Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the recirculation actuator electrical connector.

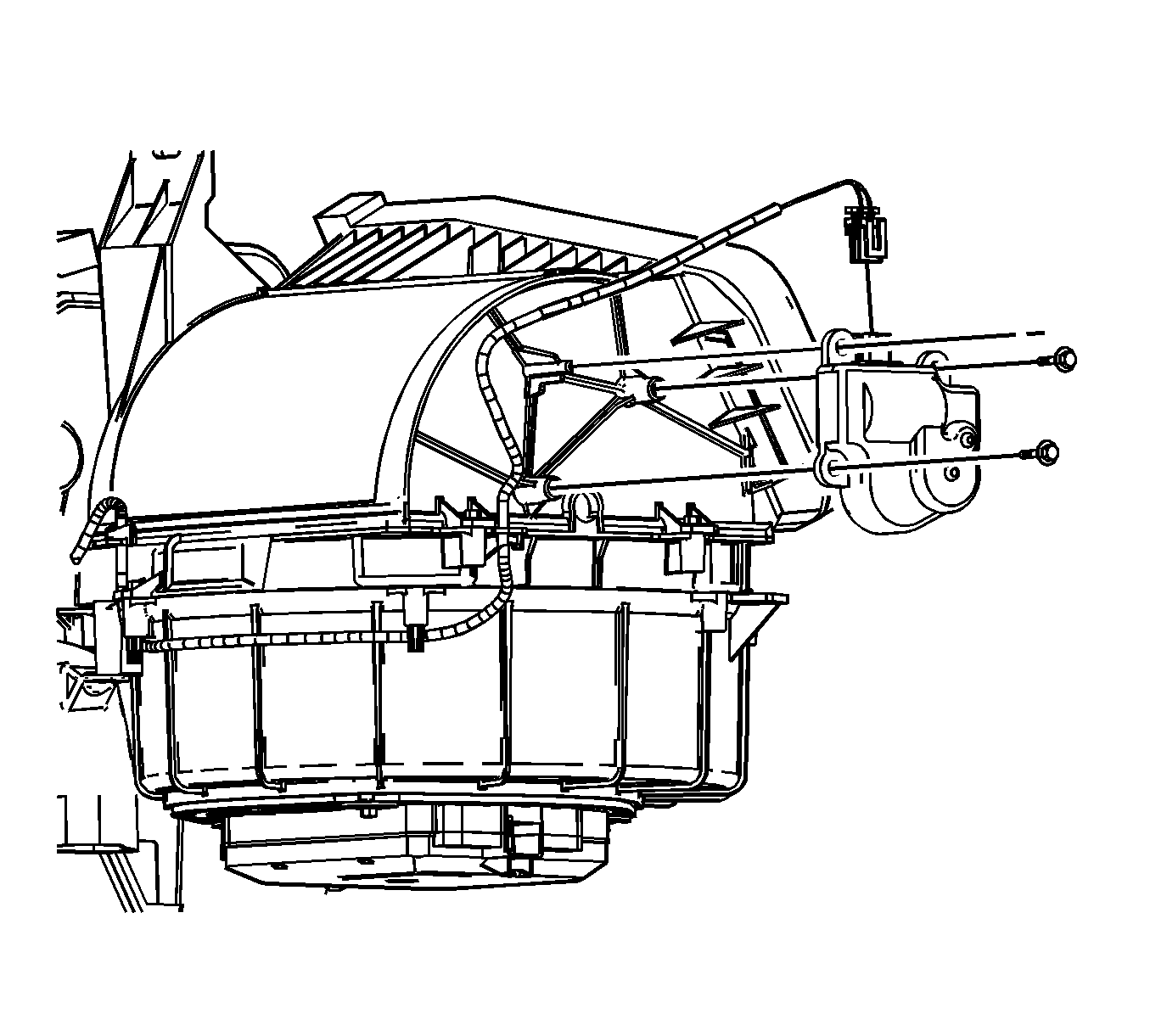

    2. Fig 1: HVAC Module & Components
    GM1224363Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the recirculation actuator.

    Install the recirculation actuator mounting screws.

    Tighten:  Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the HVAC module wiring harness to the recirculation housing wire harness retainer.
  4. Install the RH lower insulator panel. Refer to Closeout/Insulator Panel Replacement - Instrument Panel (I/P) Lower in Instrument Panel, Gages and Console.
