Electronic Brake Control Module: Locations

ABS Component Views

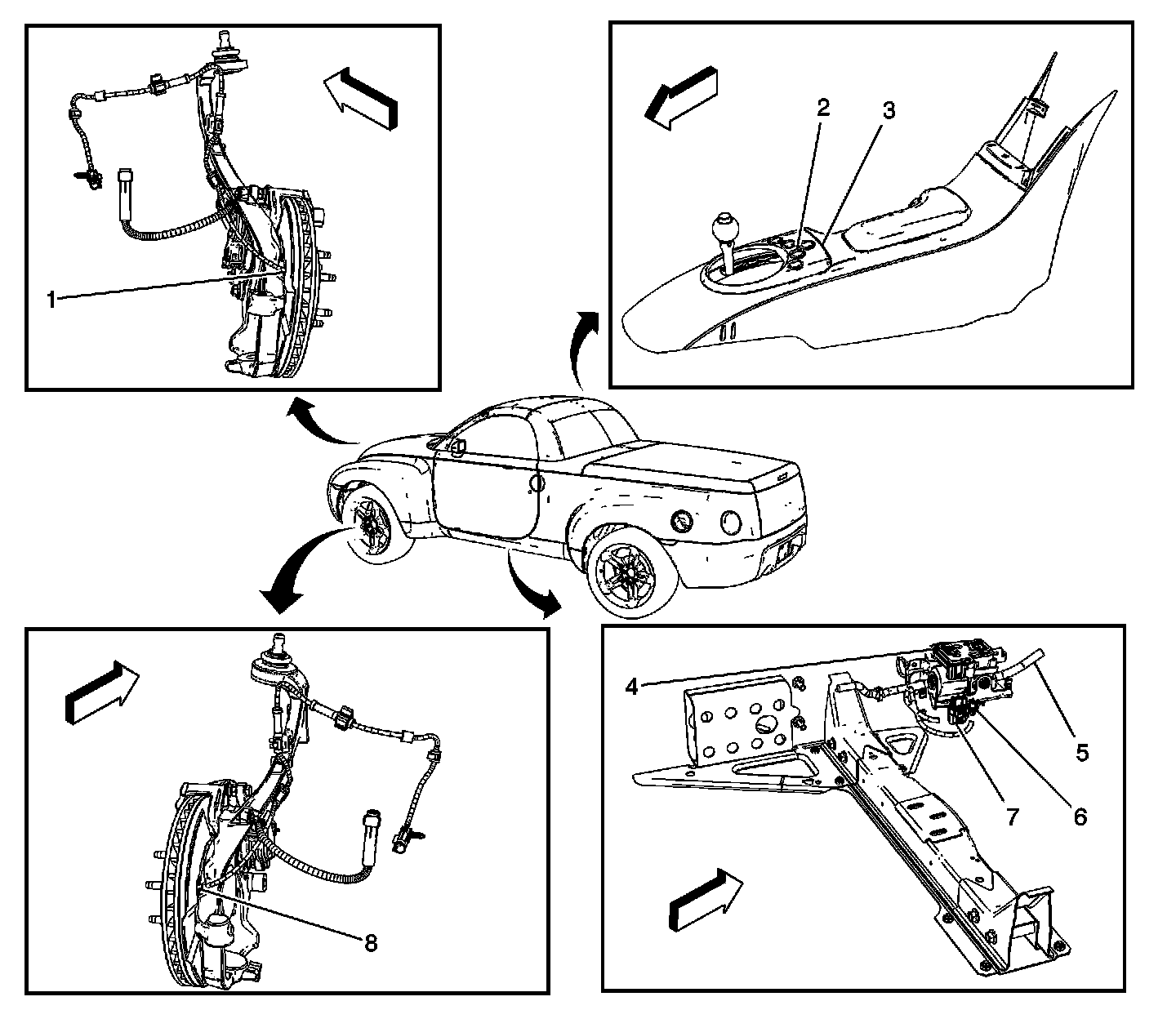

ABS Components - Sensors, Module and Switch:

1- Wheel Speed Sensor (WSS) - RF
2- Traction ON/OFF Switch
3- Center Console Switch Assembly
4- Electronic Brake Control Module (EBCM)
5- Chassis Harness
6- Electronic Brake Control MOdule (EBCM) Connector C1
7- Electronic Brake Control MOdule (EBCM) Connector C2
8- Wheel Speed Sensor (WSS) - LF
