Scan Tool Data List - Antitheft System
>>
Theft Deterrent
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Theft Deterrent

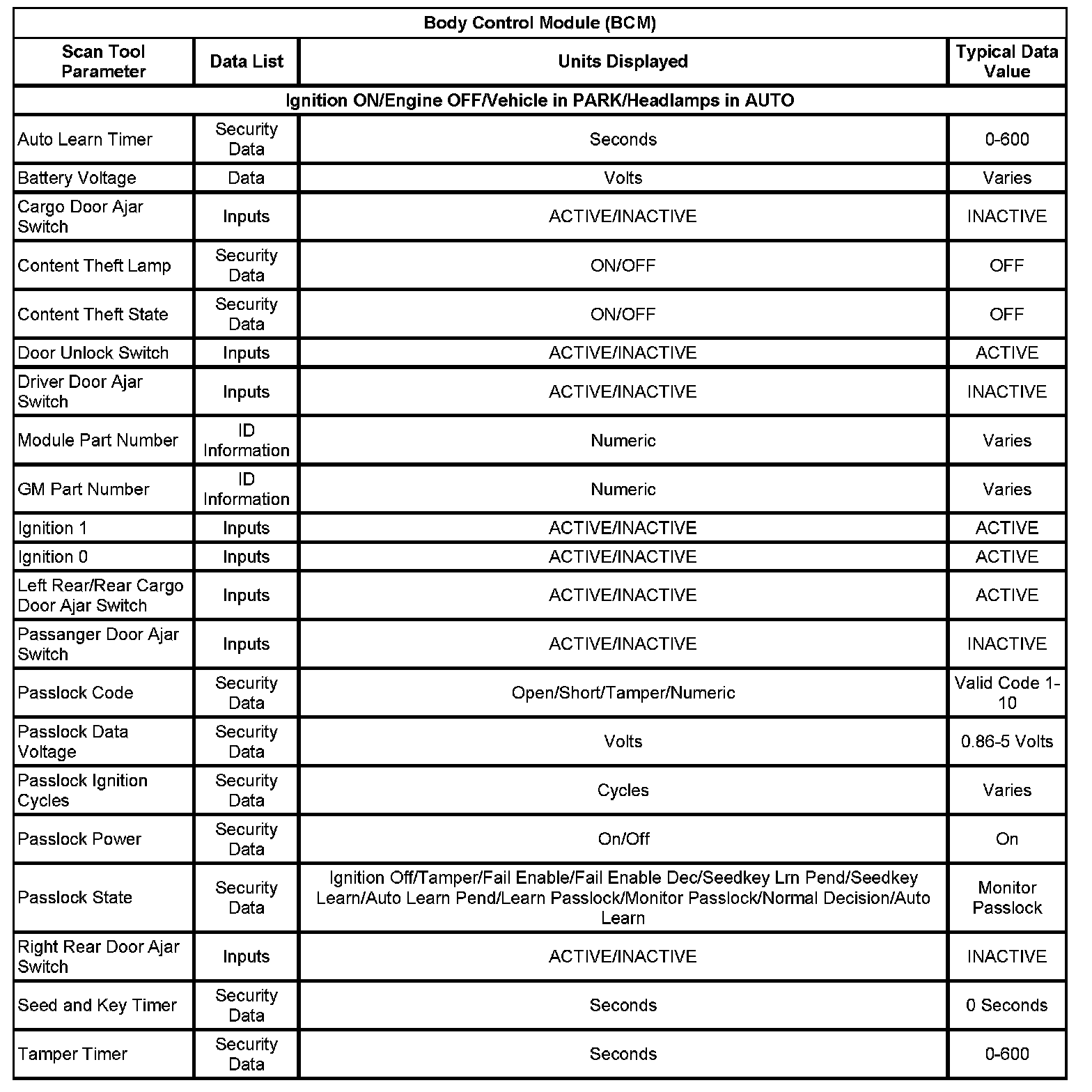

Body Control Module (BCM):
Instrument Panel Cluster (IPC):
Powertrain Control Module (PCM):
