LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
2005
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

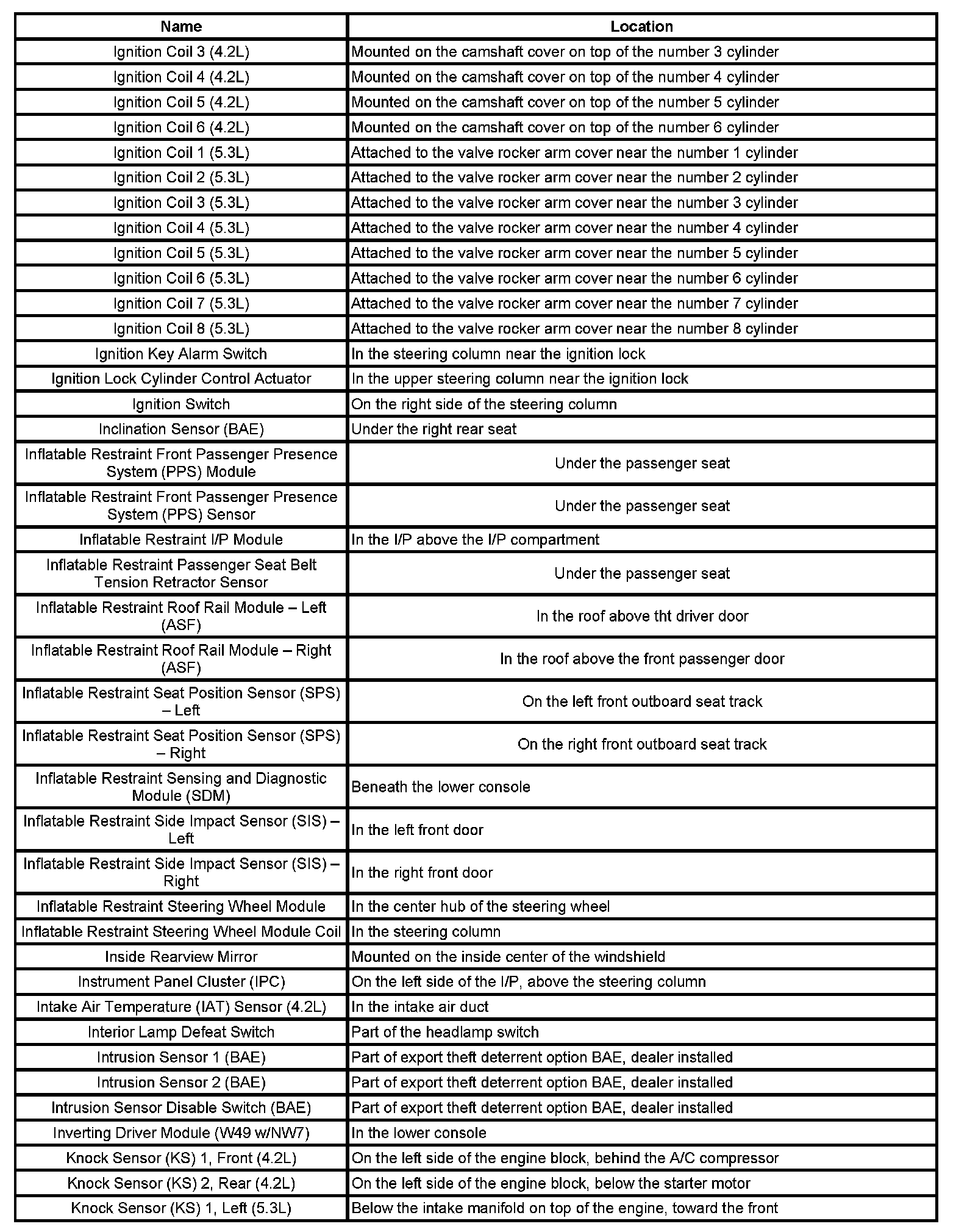

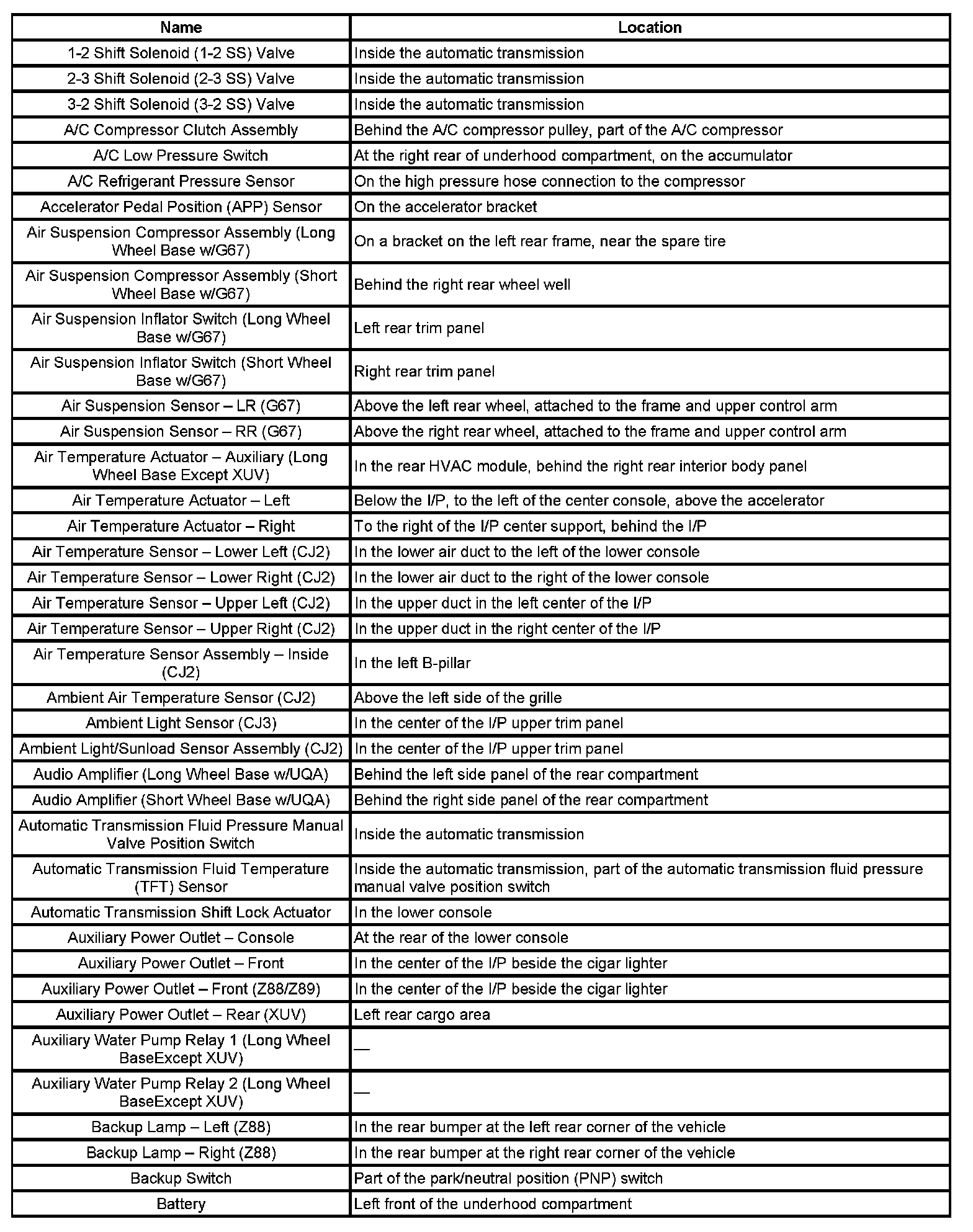

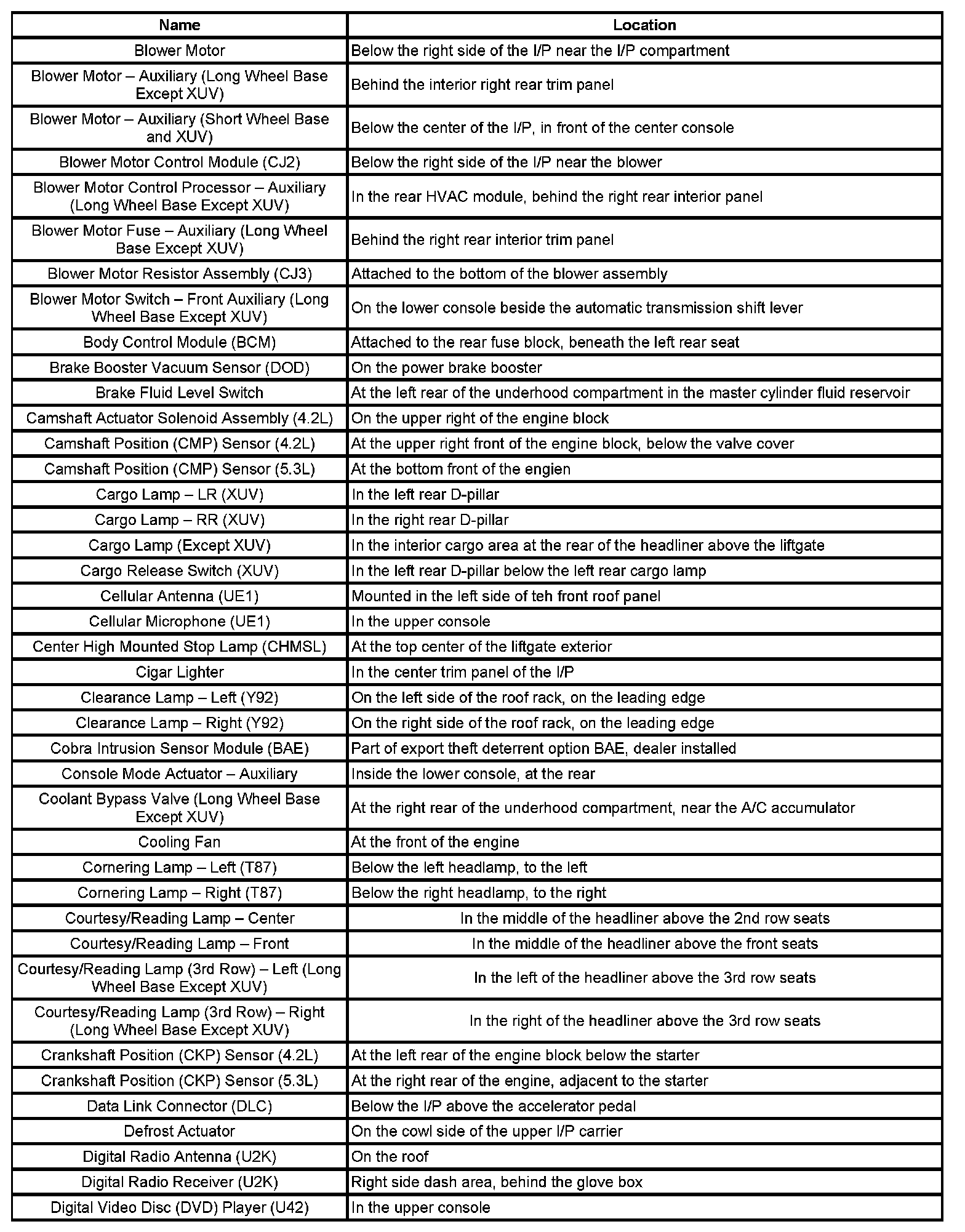

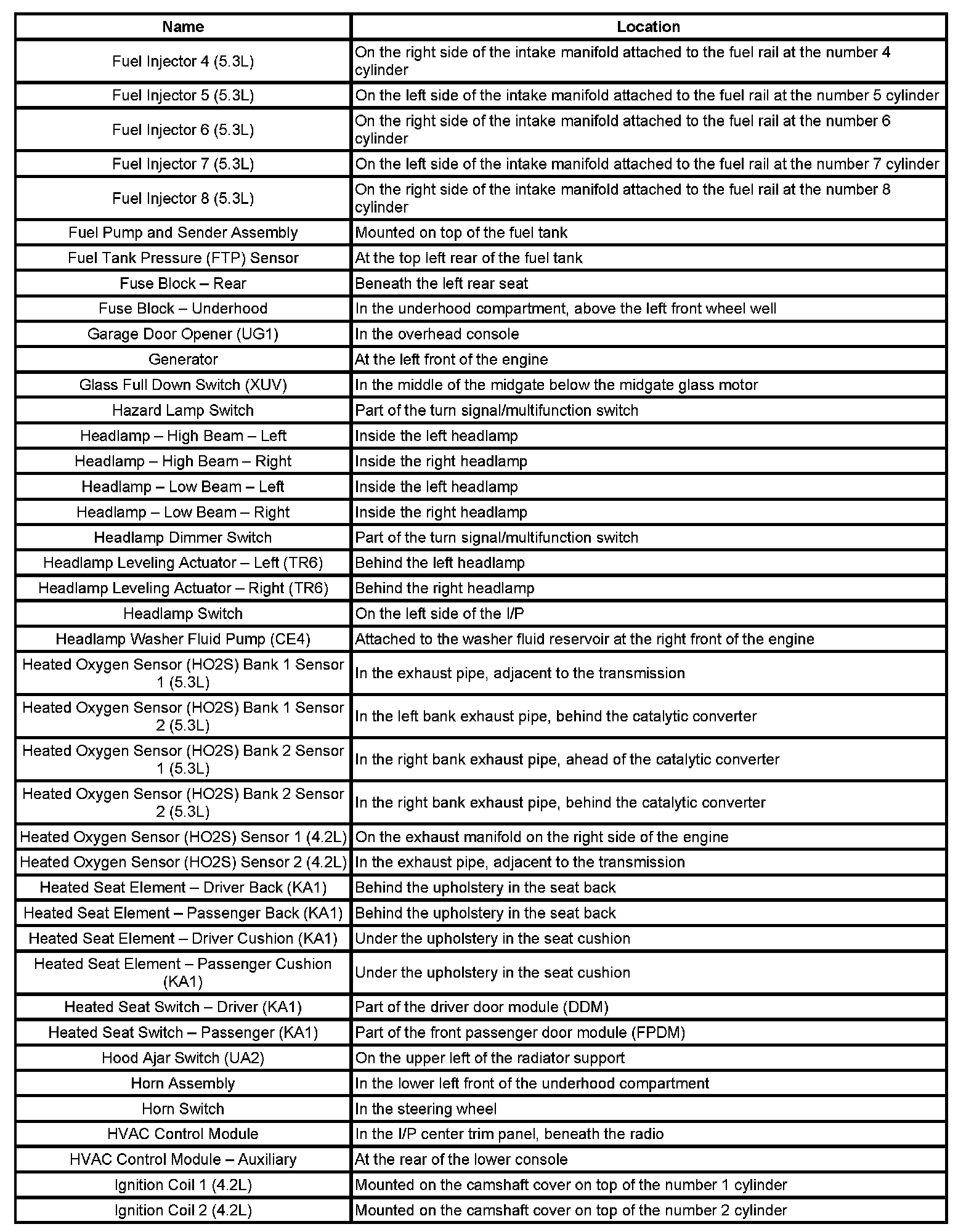

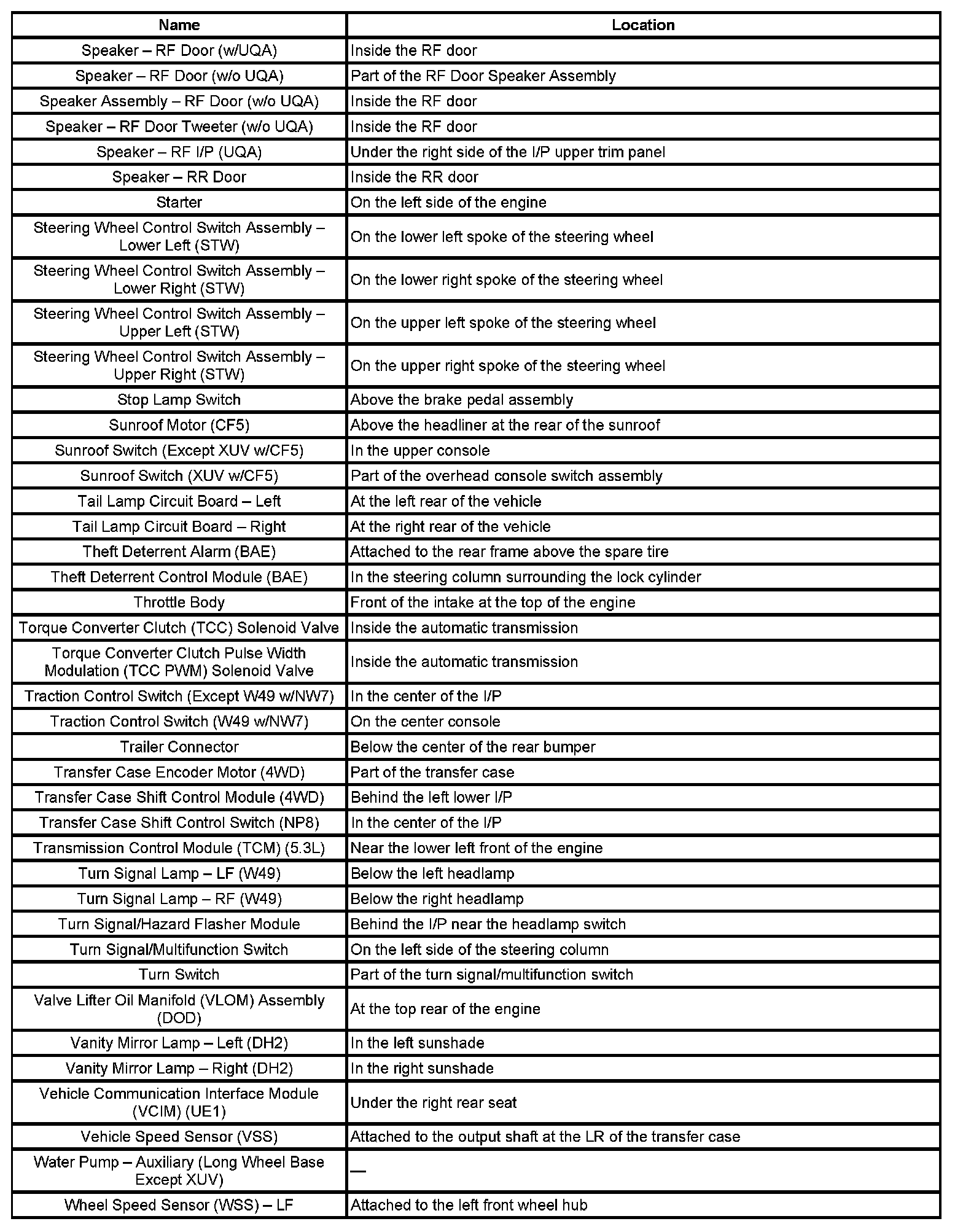

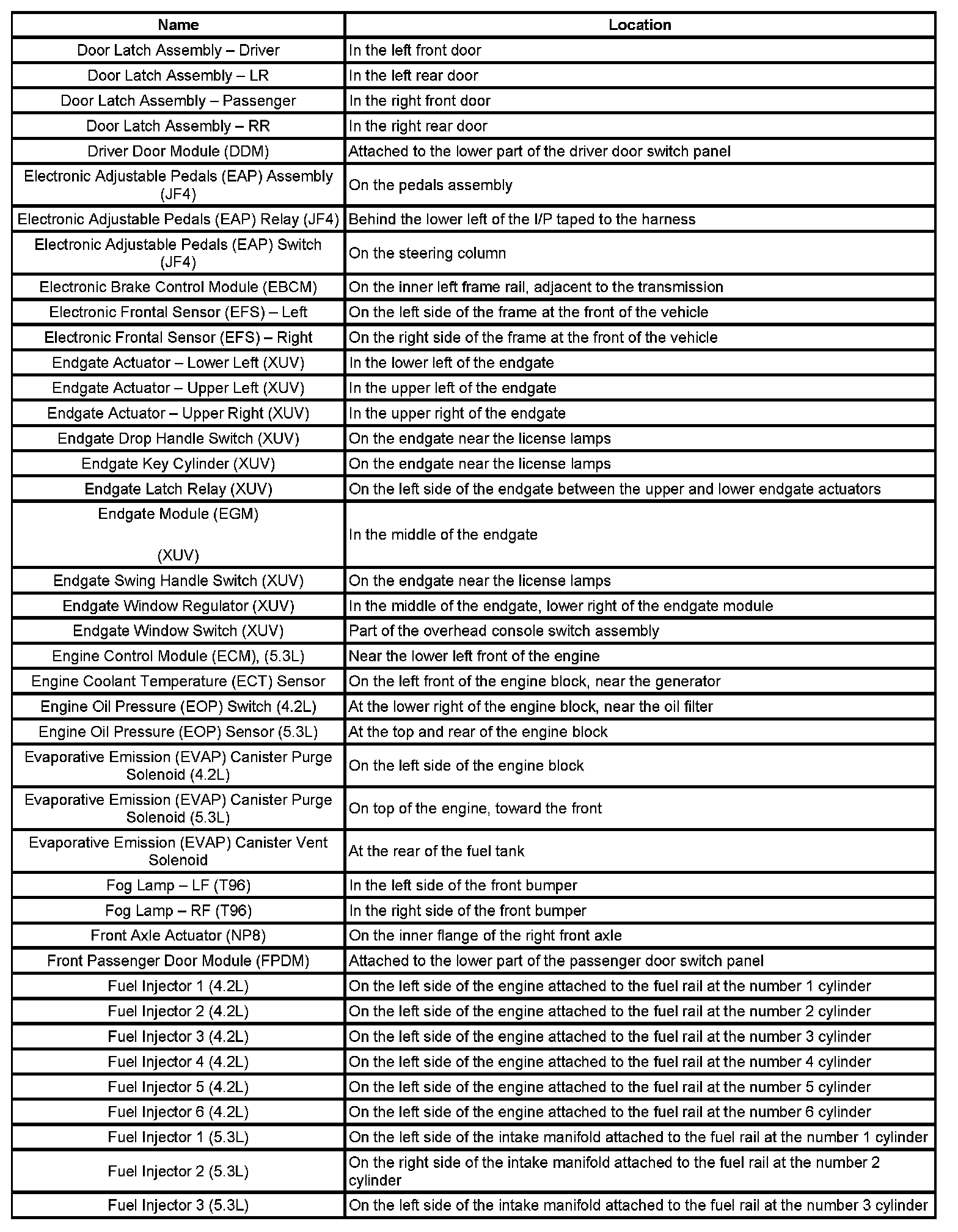

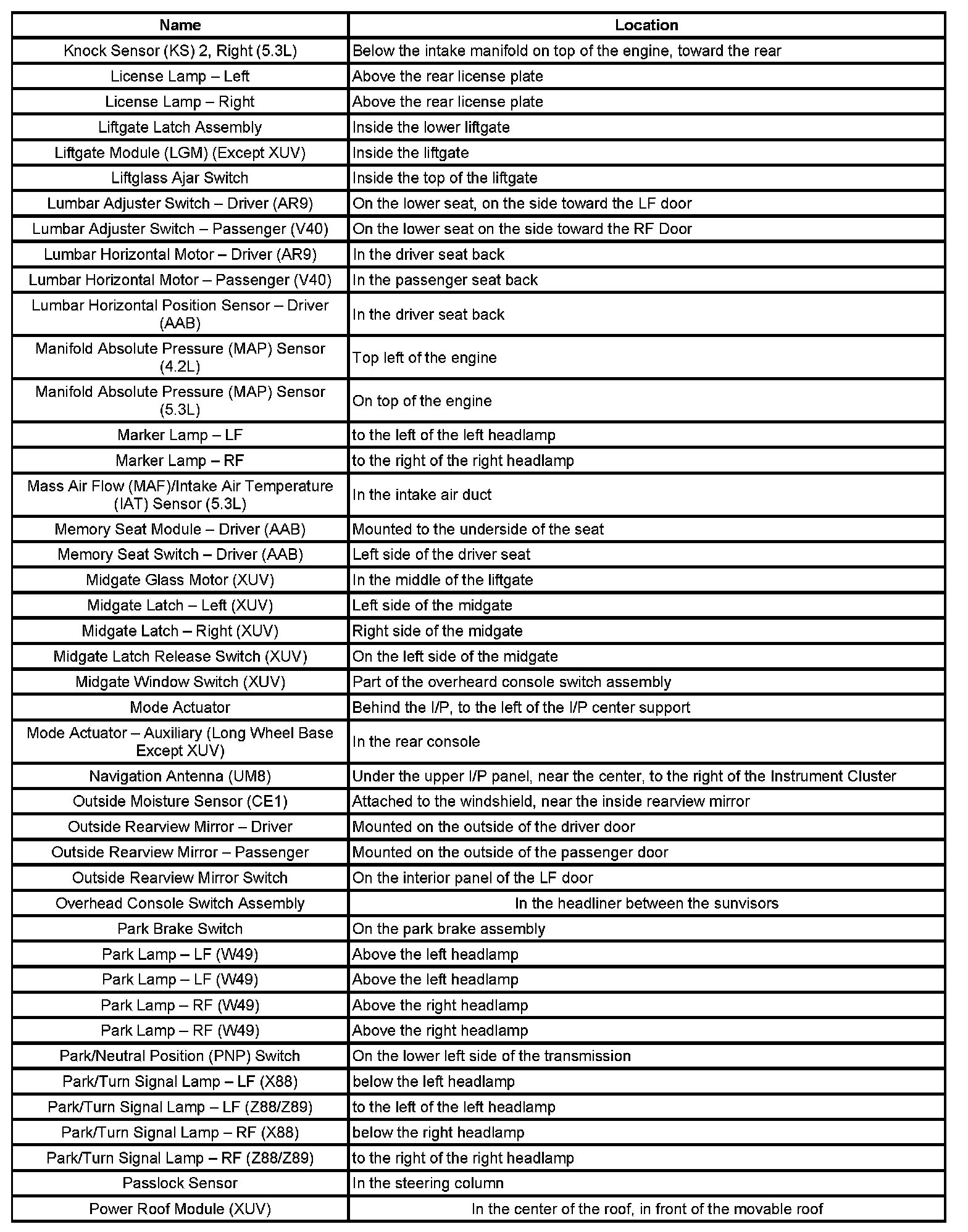

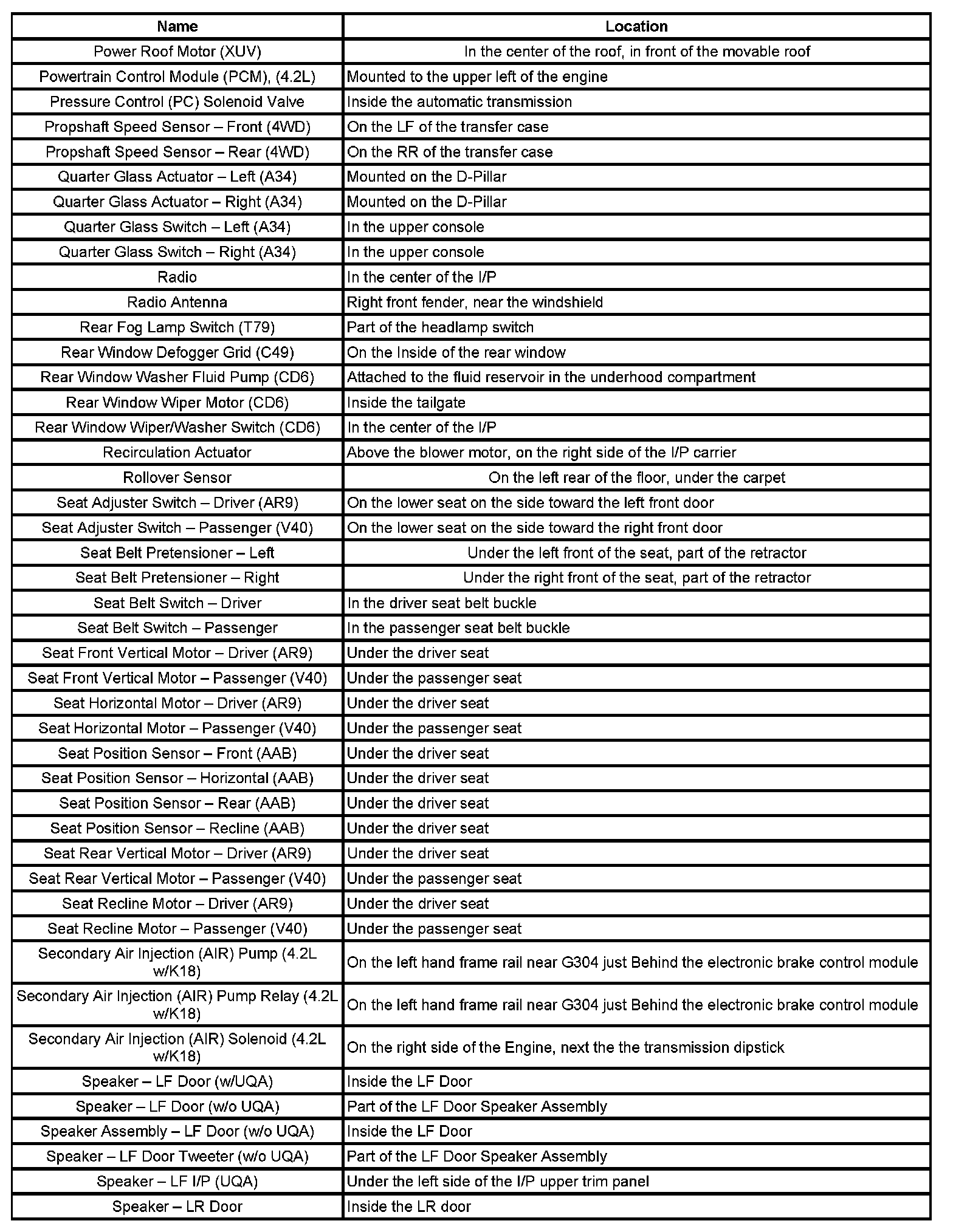

Components
1-2 - Ba:
Bl - Di:
Do - Fu:
Fu - Ig:
Ig - Kn:
Kn - Po:
Po - Sp:
Sp - Wh:
Wh - Wi:
