Oxygen Sensor: Locations

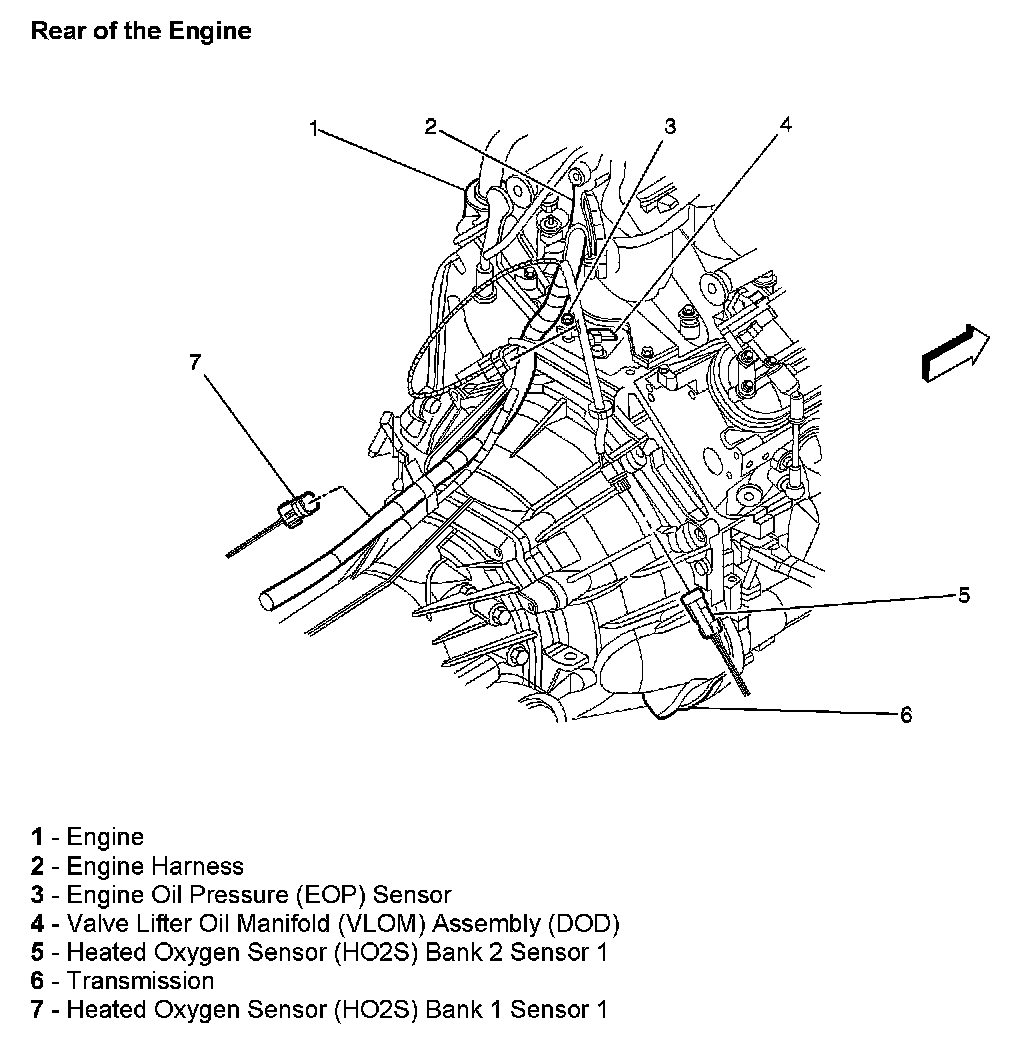

Rear Of the Engine:

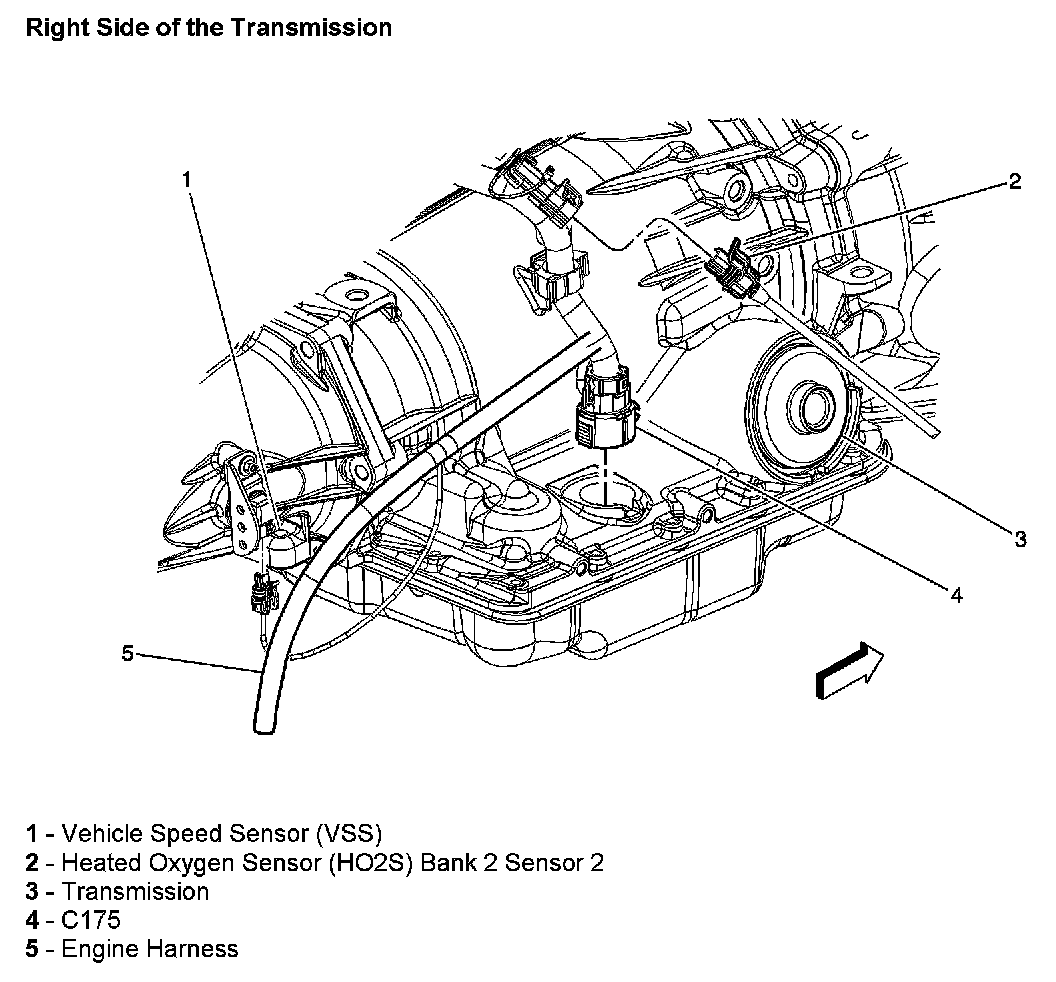

Right Side Of the Transmission:

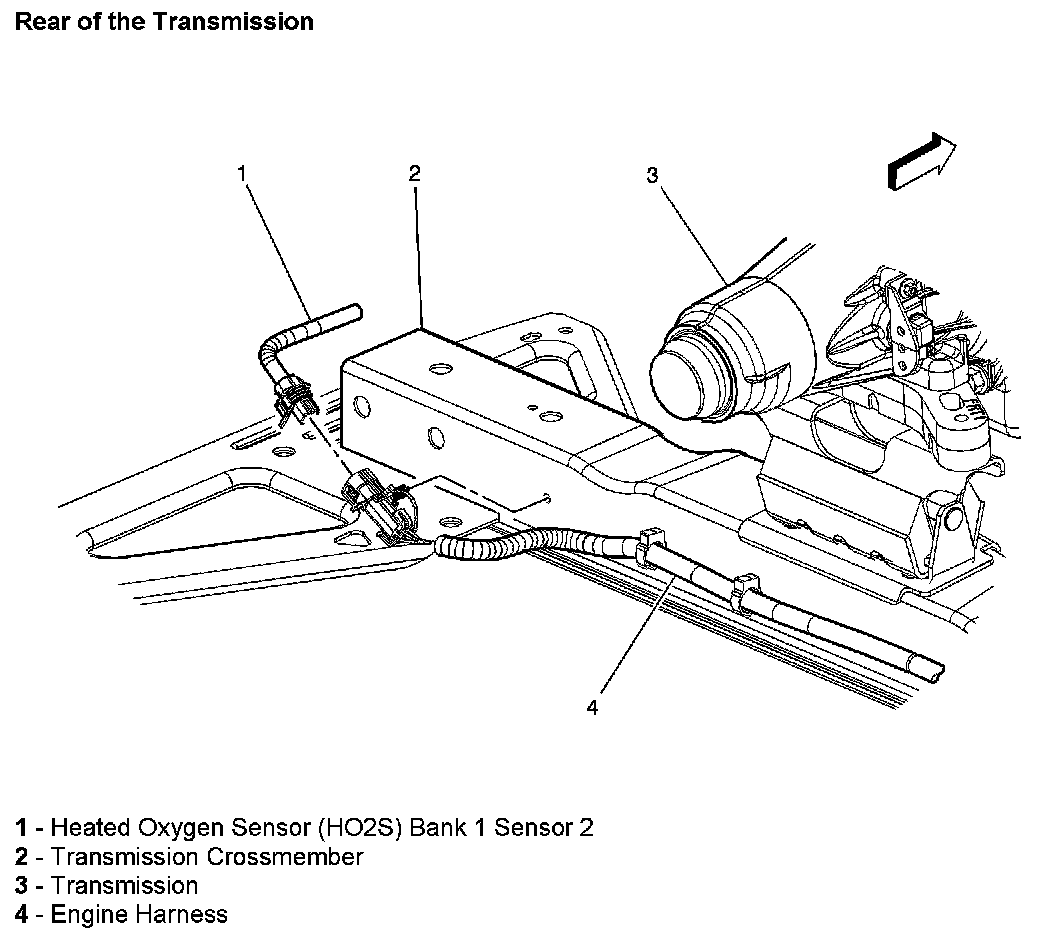

Rear Of the Transmission:
