Uplander AWD V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>
Inflatable Restraint Side Impact Sensing Module (SISM)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inflatable Restraint Side Impact Sensing Module (SISM)

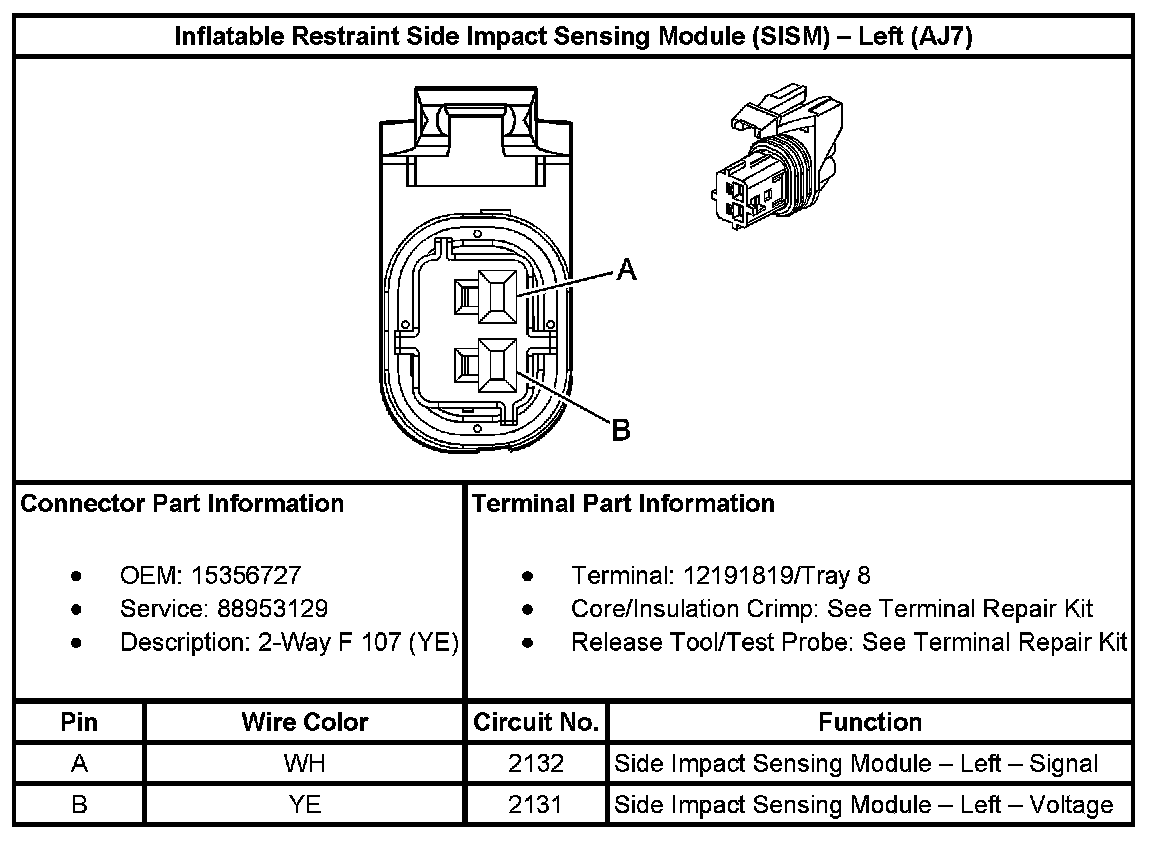

Inflatable Restraint Side Impact Module (SISM) - Left (With RPO Code AJ7):

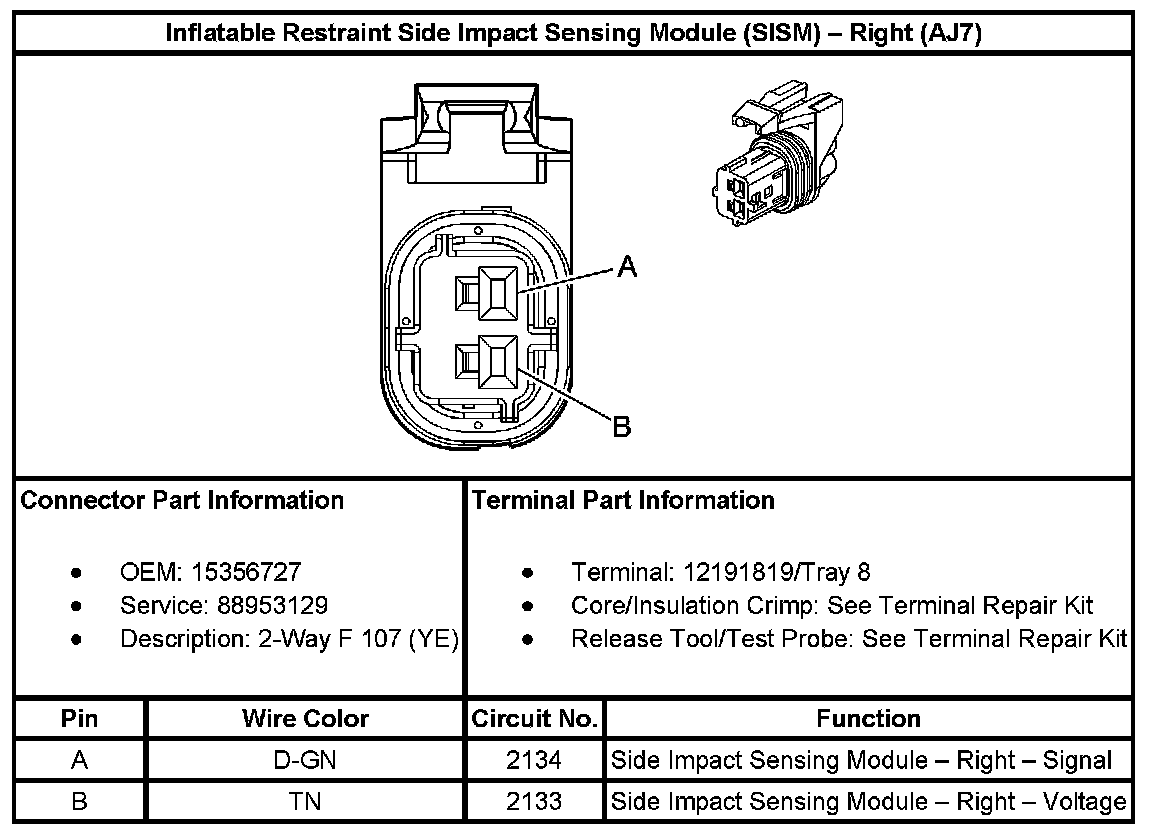

Inflatable Restraint Side Impact Module (SISM) - Right (With RPO Code AJ7):
