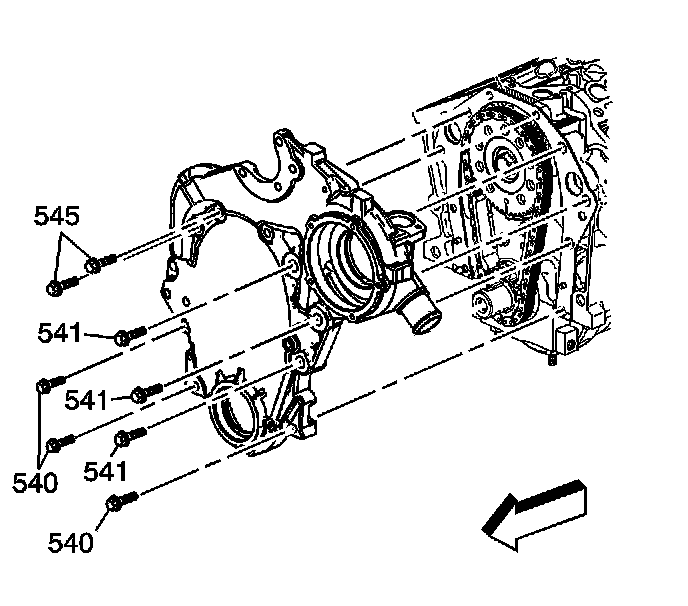

Timing Cover
Engine Front Cover Bolt
Bolt 545
27 Nm (20 ft. lbs.)
Bolts 540, 541
55 Nm (41 ft. lbs.)
