Installation Procedure

    Fig 1: View Of VSS & O-Ring
    GM10711Courtesy of GENERAL MOTORS CORP.
  1. Install the O-ring seal (11) to the vehicle speed sensor (10).
  2. Install the vehicle speed sensor to the extension case.
    3. Fig 2: Identifying Vehicle Speed Sensor (VSS)
    GM10516Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the vehicle speed sensor bolt (9).

    Tighten:  Tighten the bolt to 12 N.m (106 lb in).

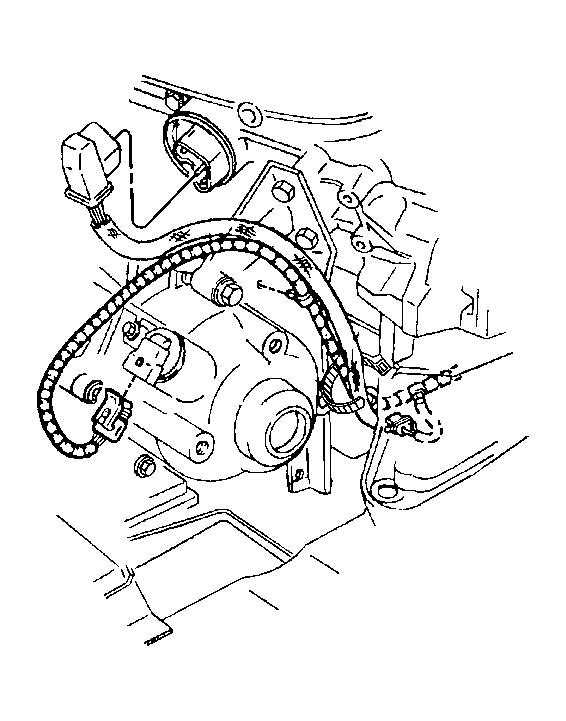

    4. Fig 3: View Of Vehicle Speed Sensor Wiring Harness Connector
    GM161096Courtesy of GENERAL MOTORS CORP.
  4. Connect the vehicle speed sensor wiring harness connector.
  5. Install the right engine splash shield. Refer to Splash Shield Replacement - Engine in Body Front End.
  6. Install the right front tire and wheel. Tire and Wheel Removal and Installation in Tires and Wheels.
  7. Lower the vehicle.
