Installation Procedure

Fig 1: View Of Memory Seat Control Module

Courtesy of GENERAL MOTORS CORP.

Slide the module into the mounting bracket and push until the module is fully seated.

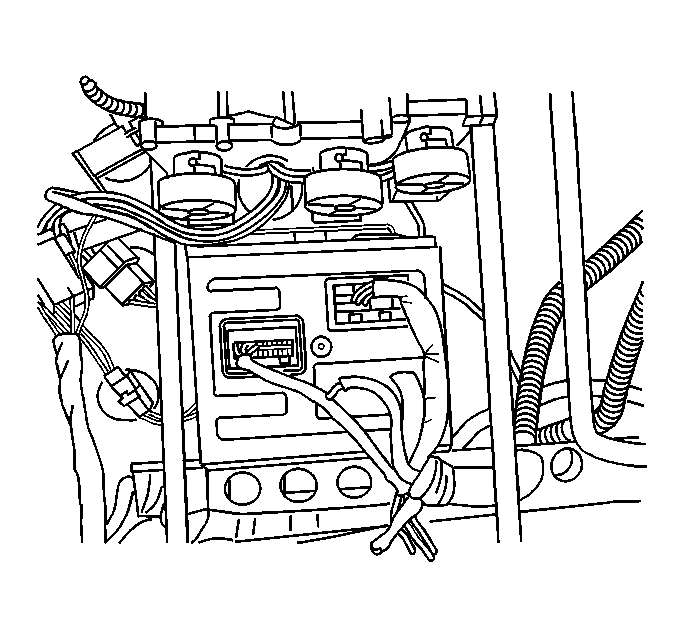

Fig 2: Locating Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors.
Install the drivers seat.
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 9 in SIR.
Calibrate the seat. Refer to Memory Seat Calibration Procedure .
