Removal Procedure
- Open the sliding door.
- Support the sliding door at the bottom.
Courtesy of GENERAL MOTORS CORP.

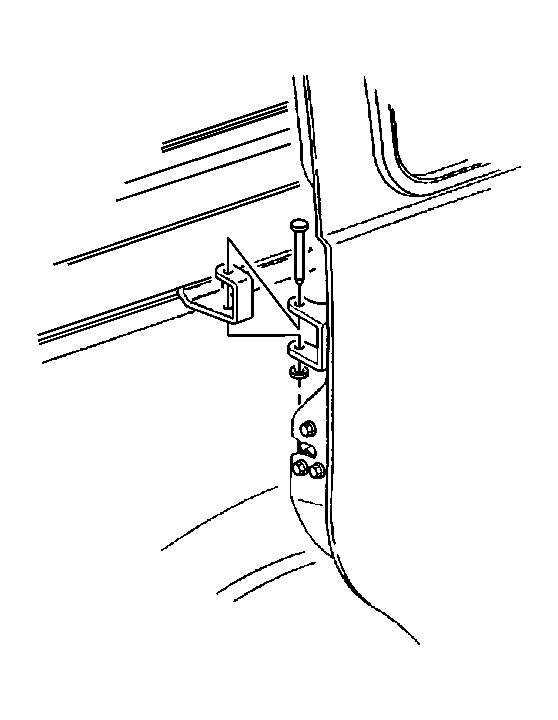

- Remove the pin from the sliding door center roller bracket.
- Remove the sliding door lower roller bracket. Refer to Roller Bracket Replacement - Lower .
- Remove the sliding door upper roller bracket. Refer to Roller Bracket Replacement - Upper .
- With an assistant, remove the sliding door from the vehicle with the aid of an assistant.
