DTC P0741: Notes

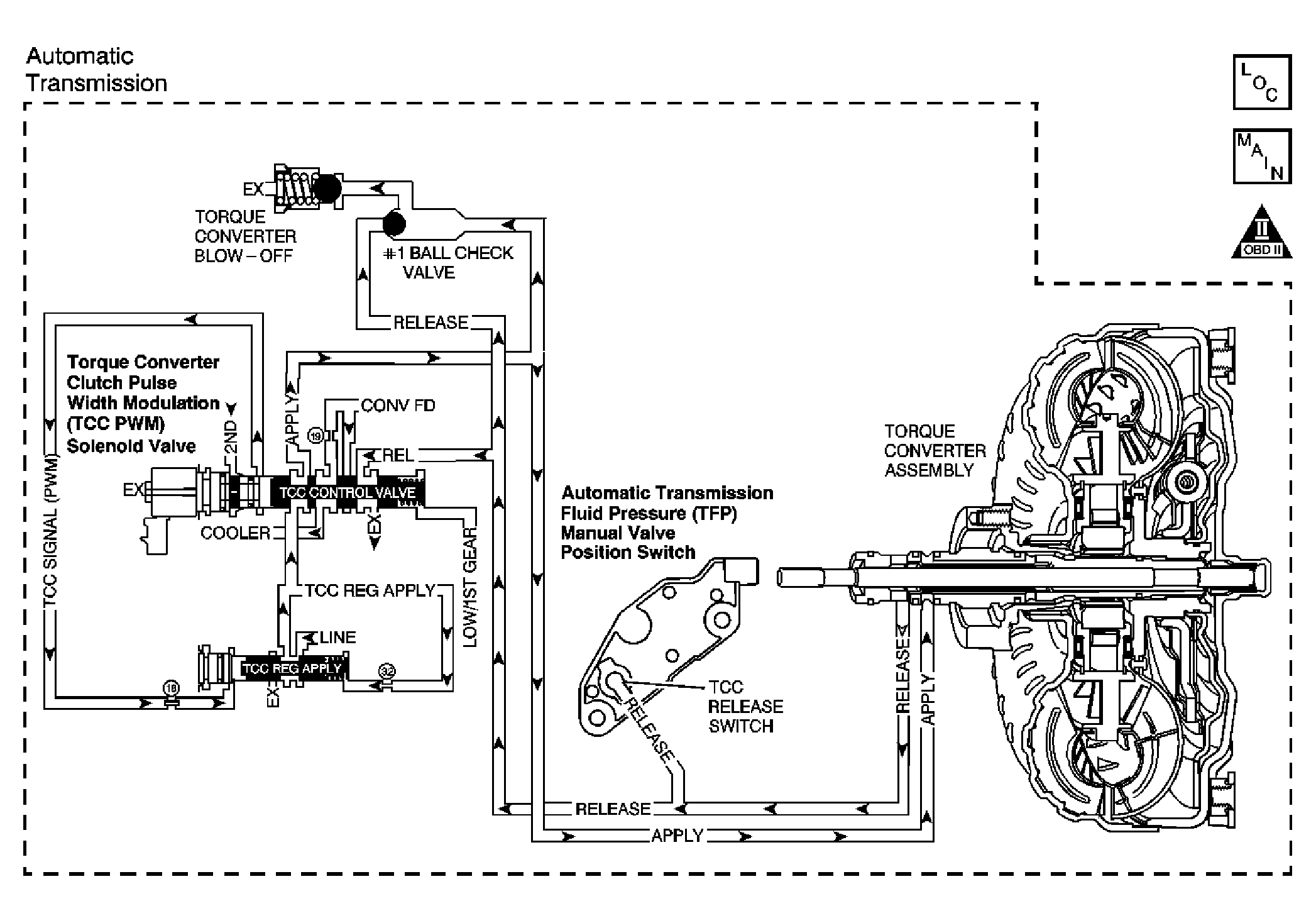

Fig 1: Automatic Transmission Flow Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
