ABS Schematics

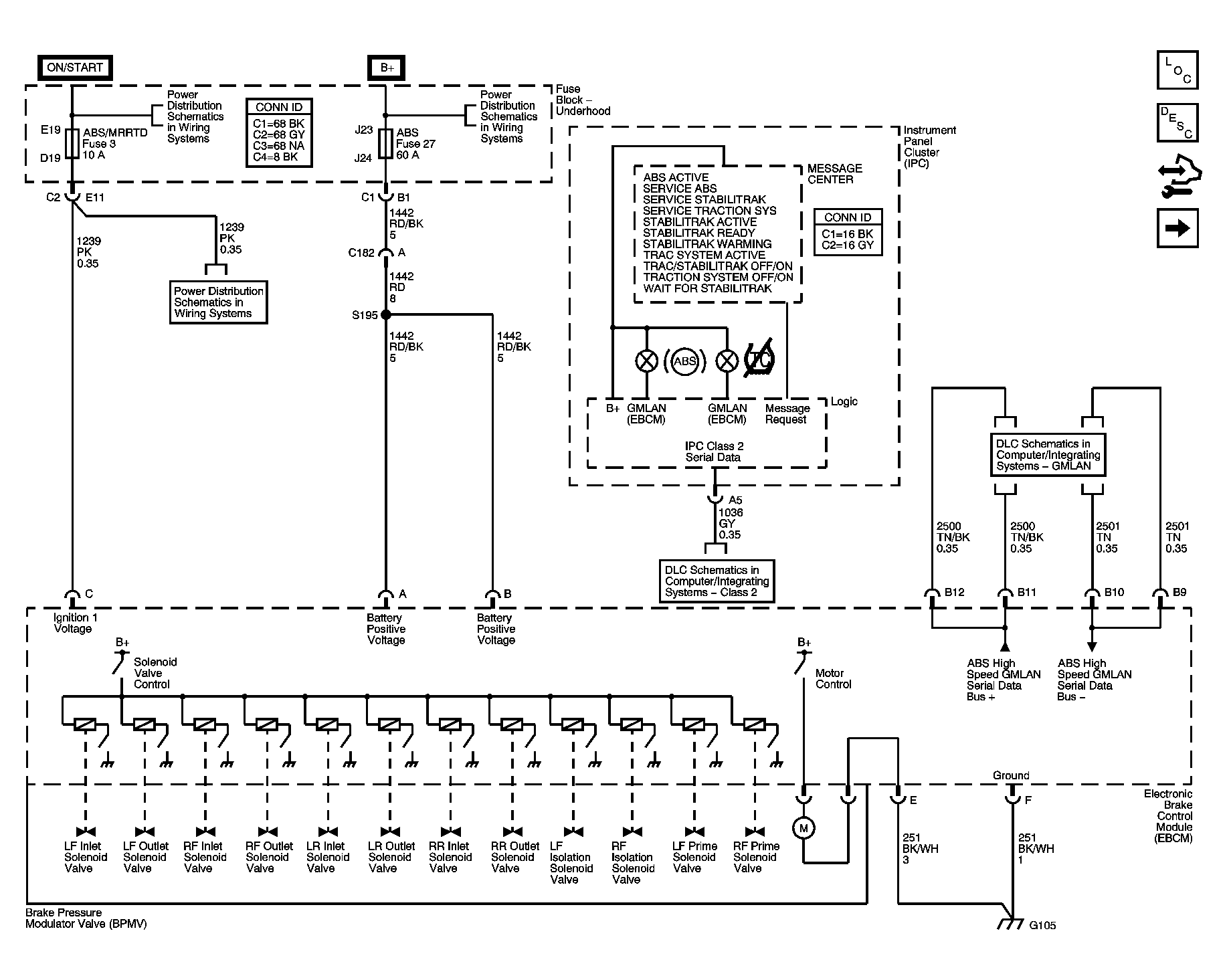

Fig 1: Ground, Indicators, Messages and Power - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

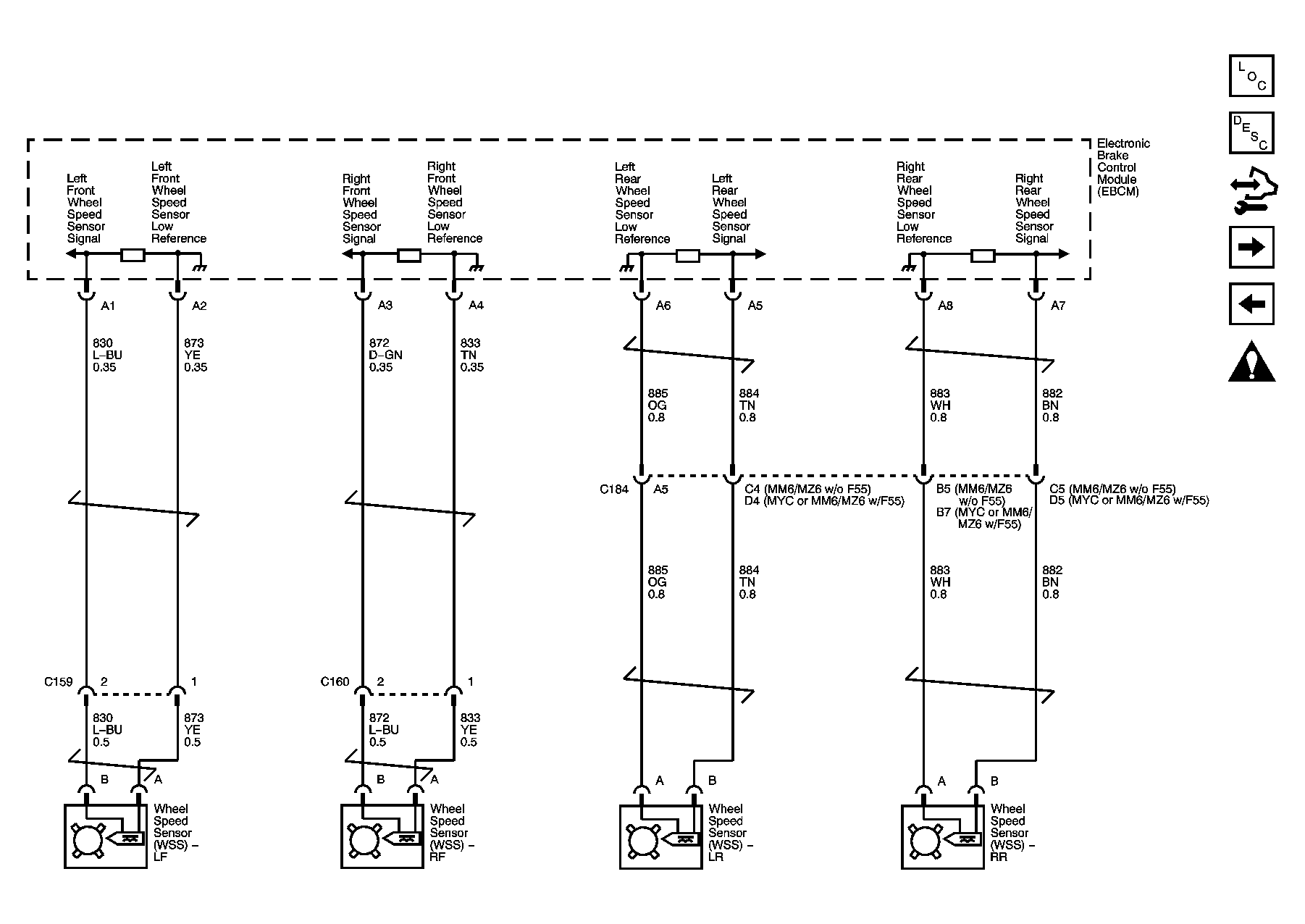

Fig 2: Wheel Speed Sensors - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

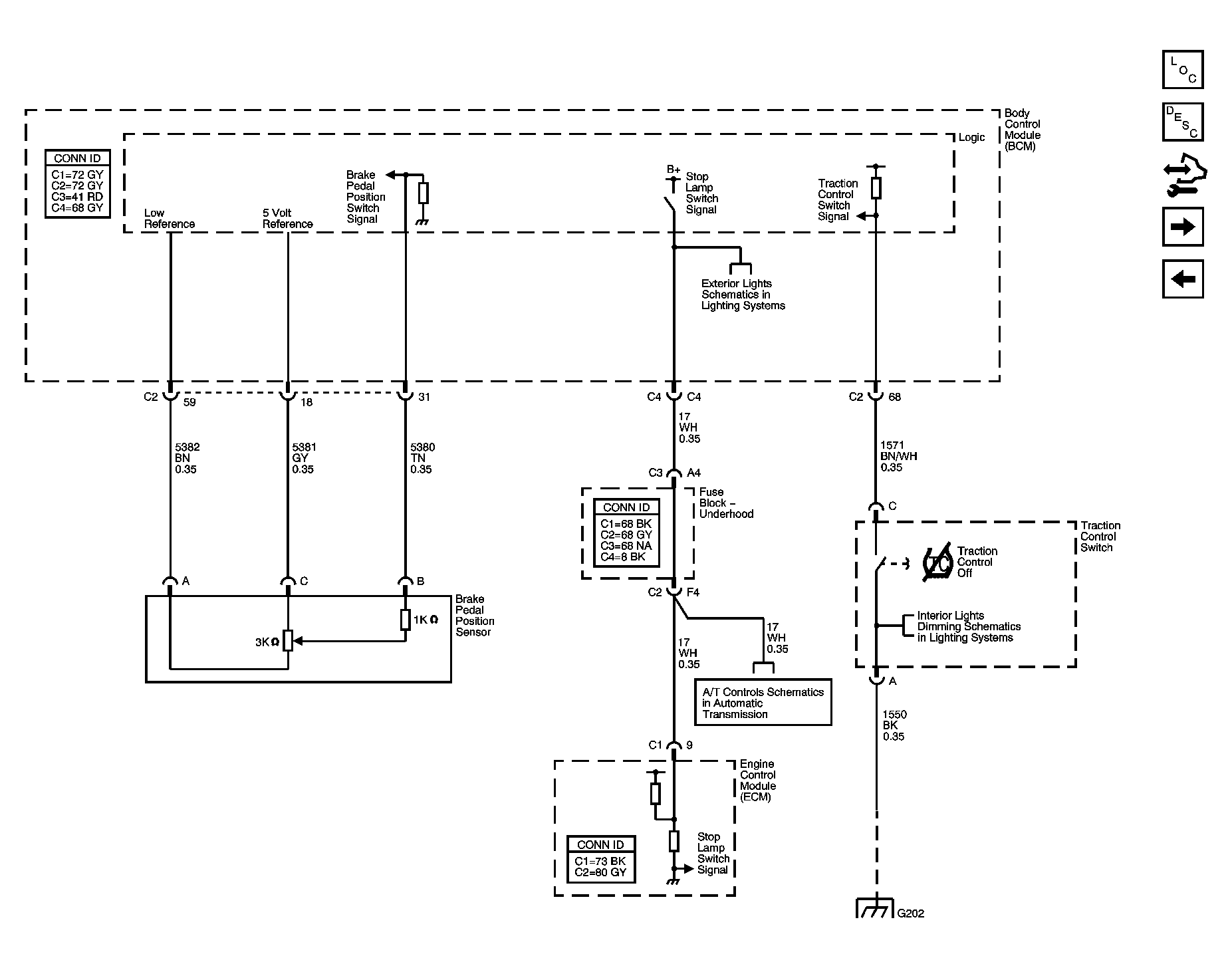

Fig 3: Brake Pedal Signal and Traction Control Switch - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

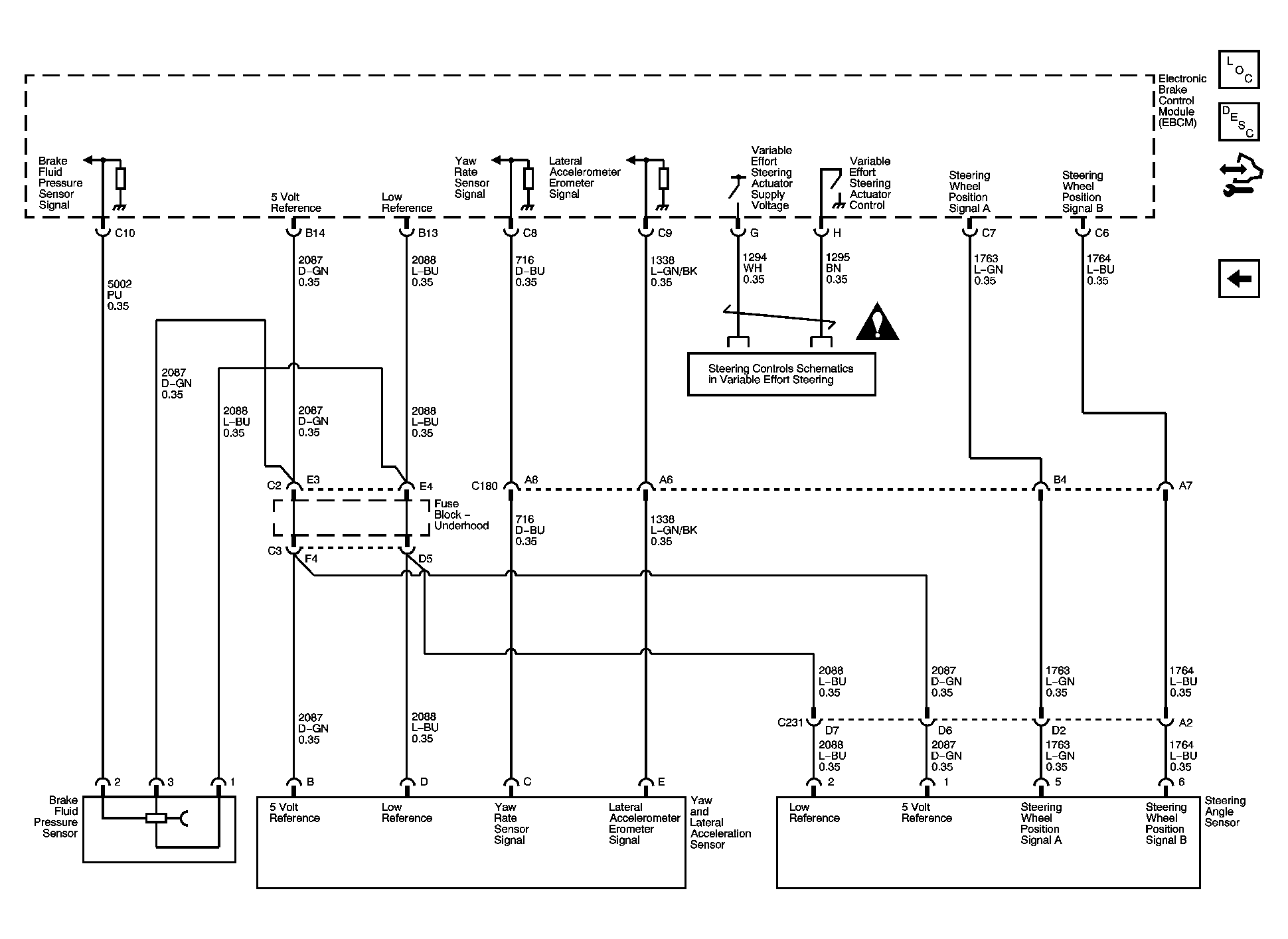

Fig 4: Stability Control Sensors - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
