Engine Controls Schematics

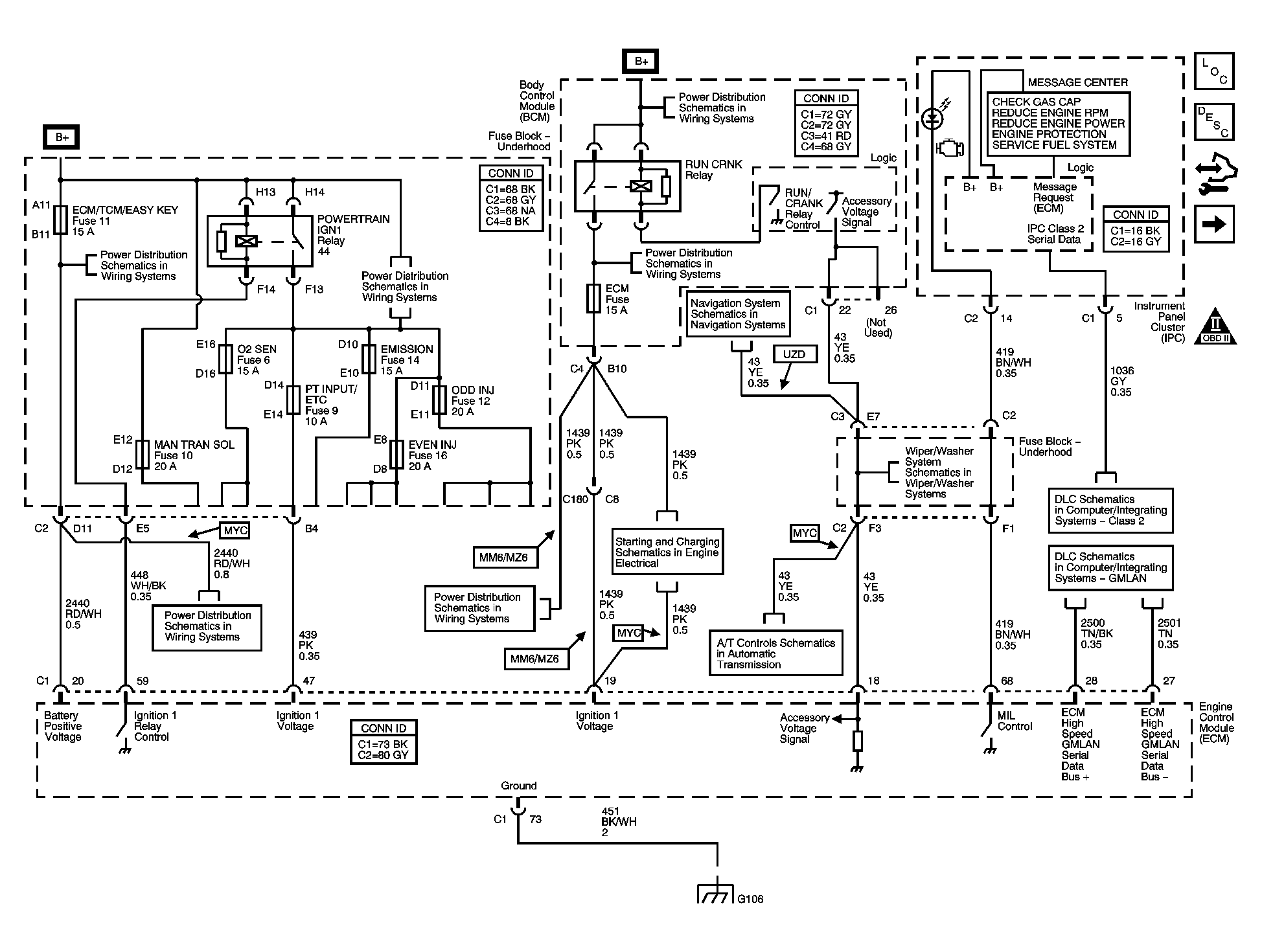

Fig 1: DLC, Ground, MIL and Power - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

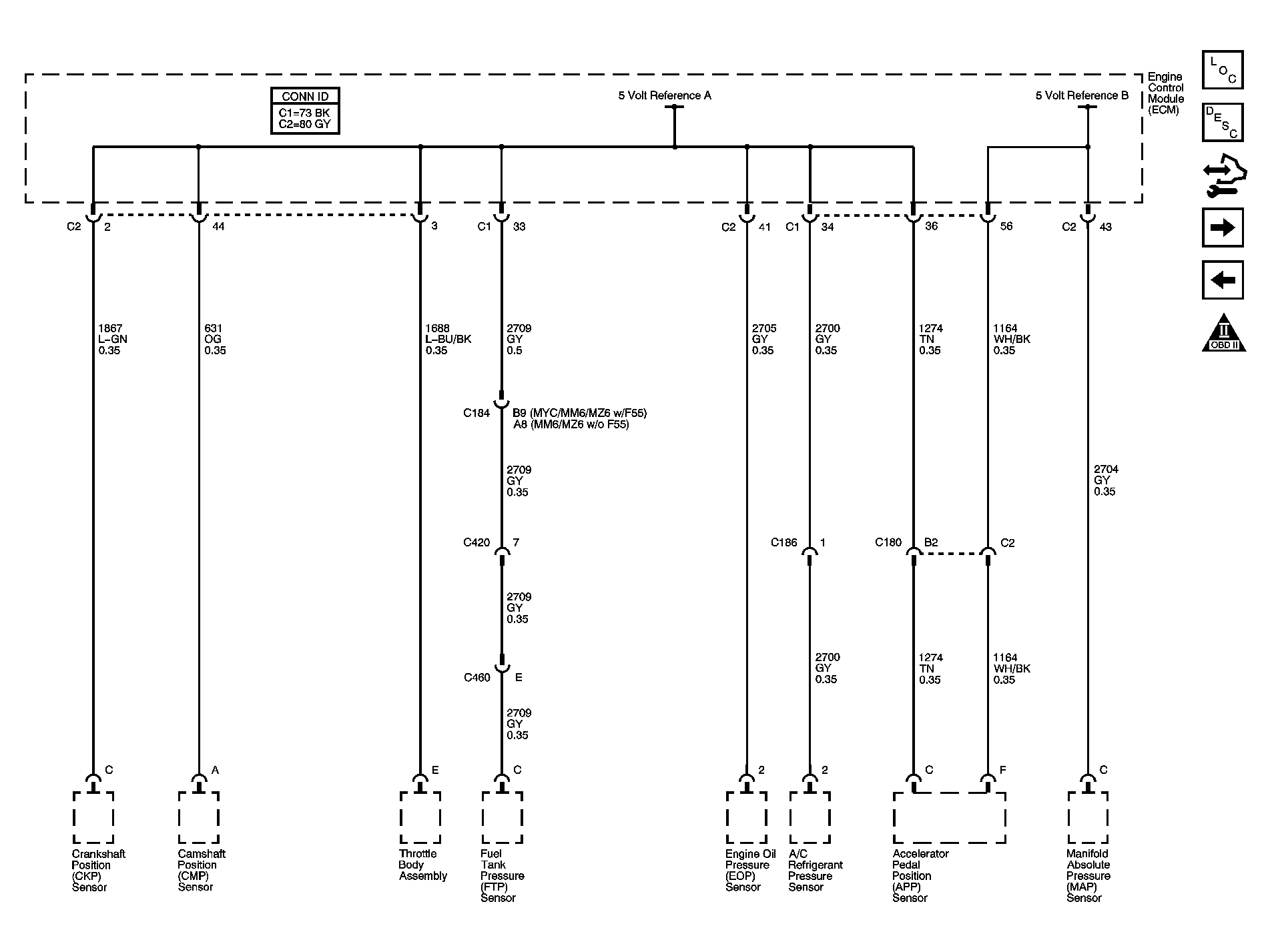

Fig 2: 5-Volt Reference Bussing - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

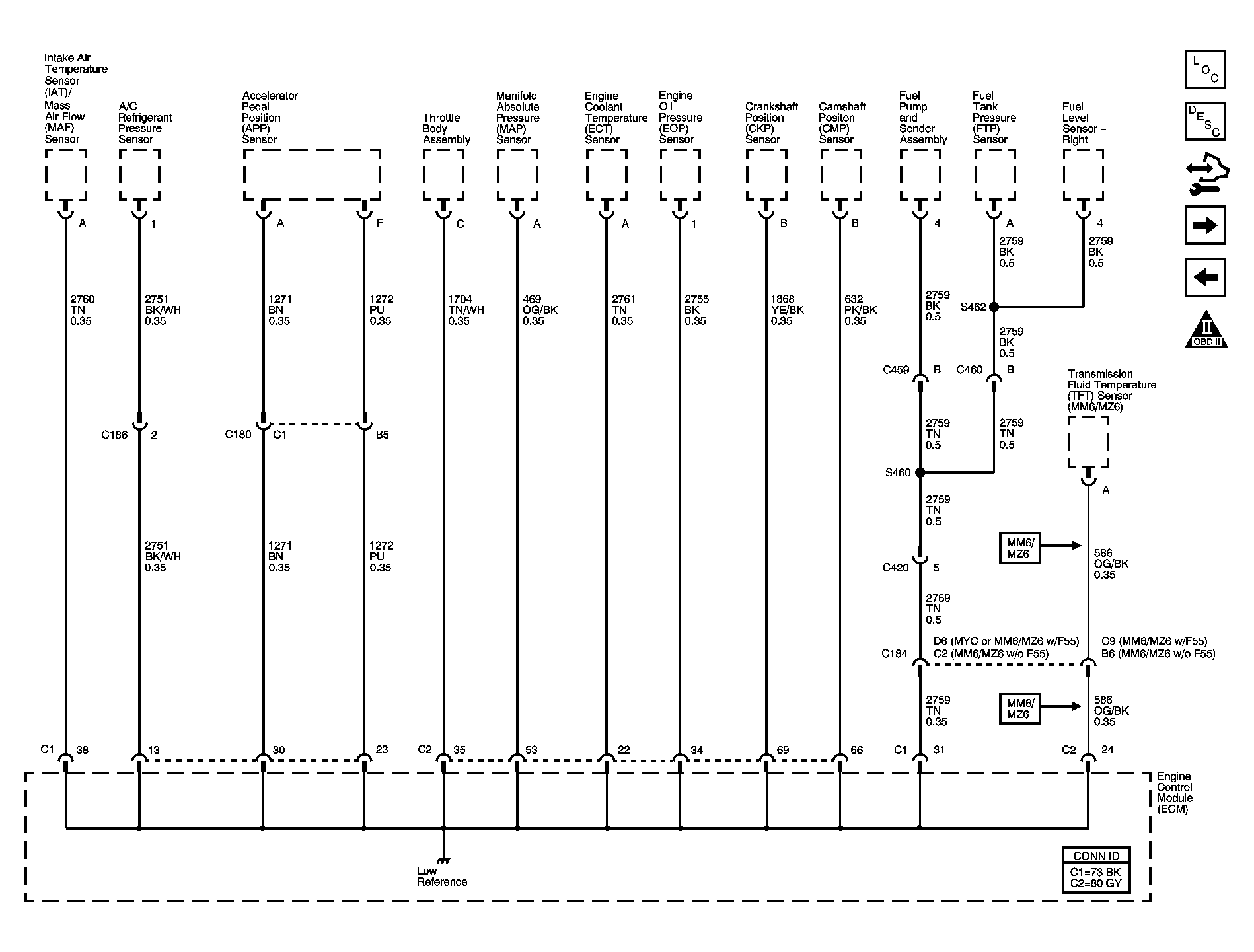

Fig 3: Low Reference Bussing - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

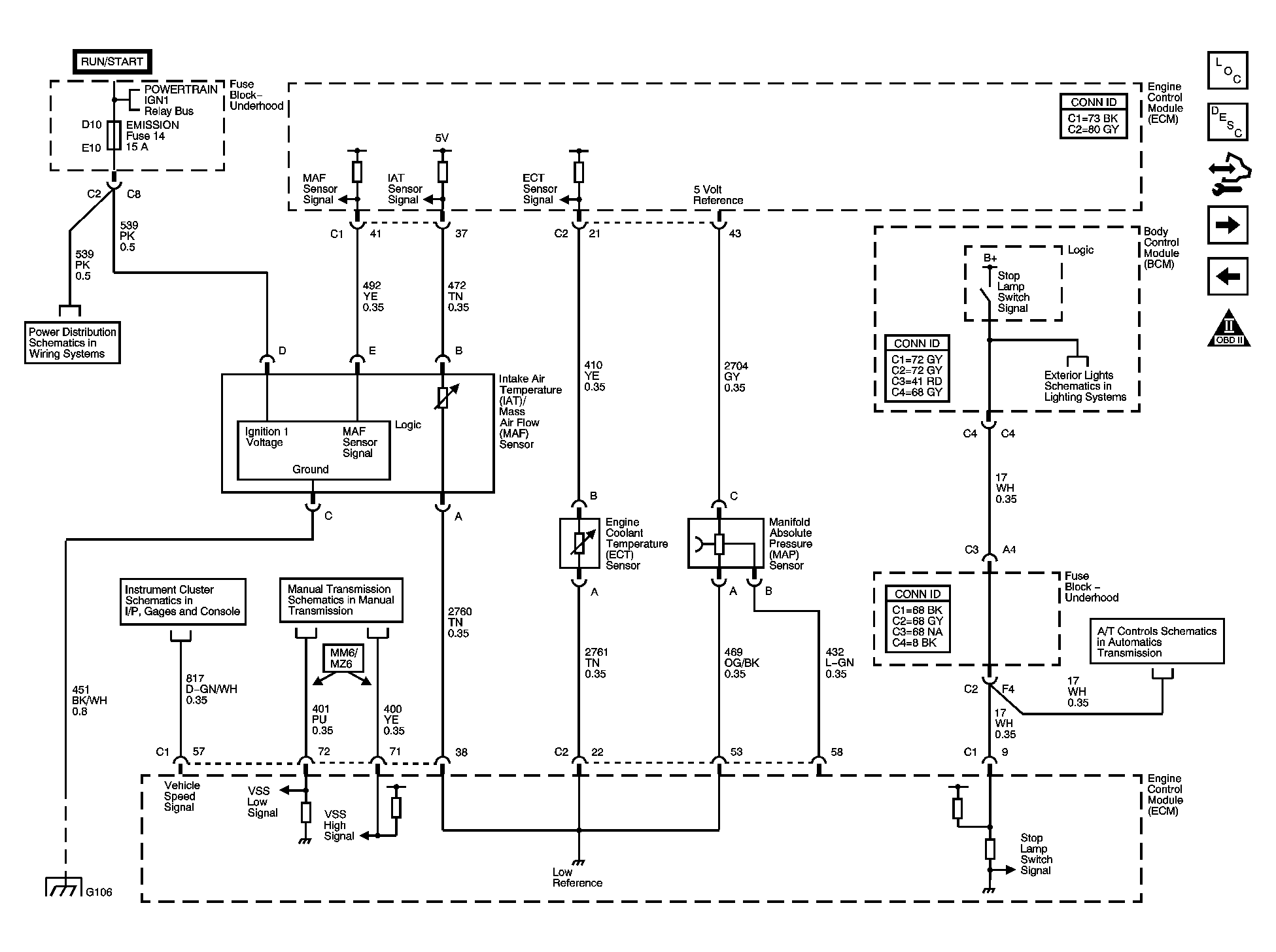

Fig 4: Engine Data Sensors - Pressure, Temperature, IAT/MAF, VSS and Brake Travel - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

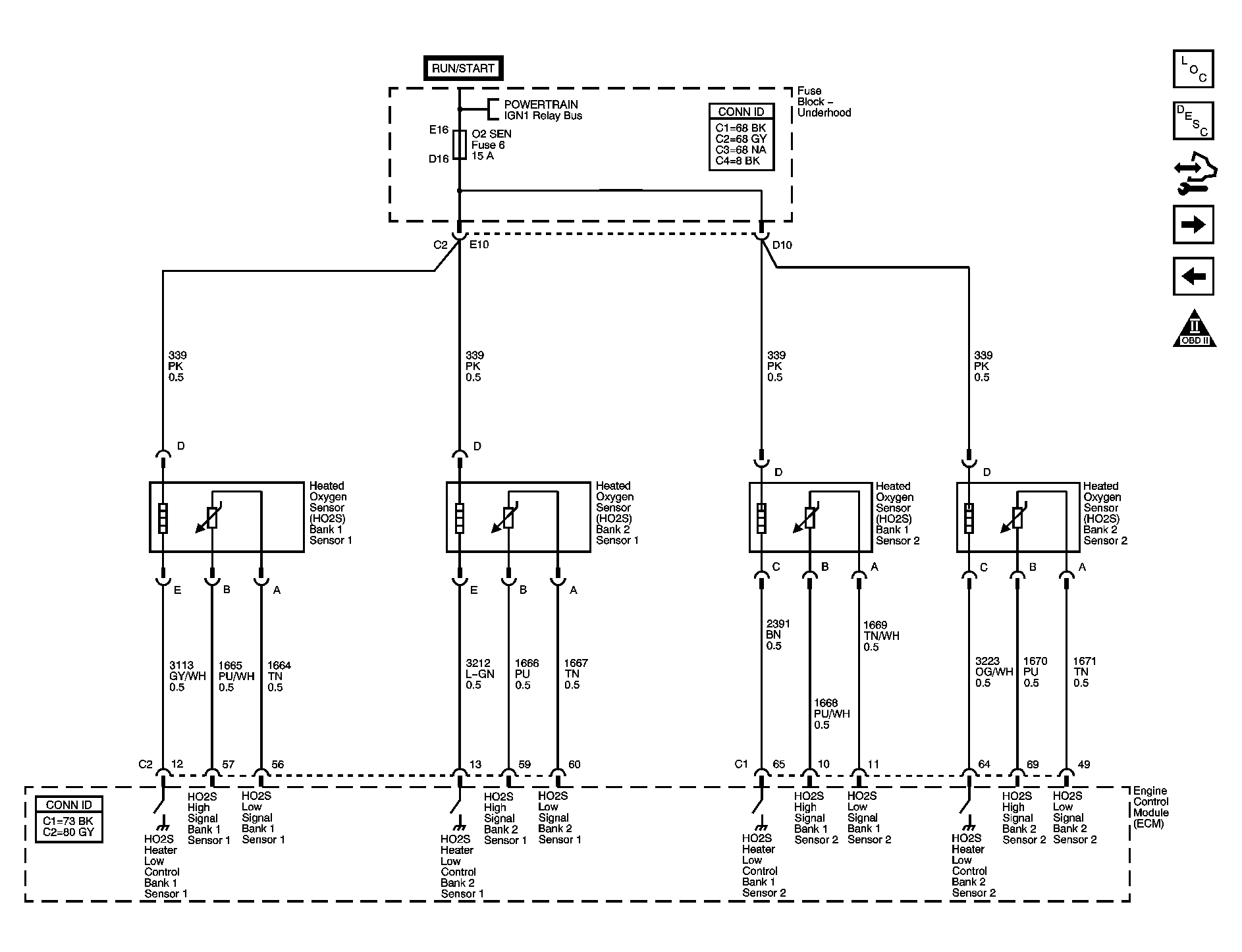

Fig 5: Engine Data Sensors - Oxygen Sensors - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

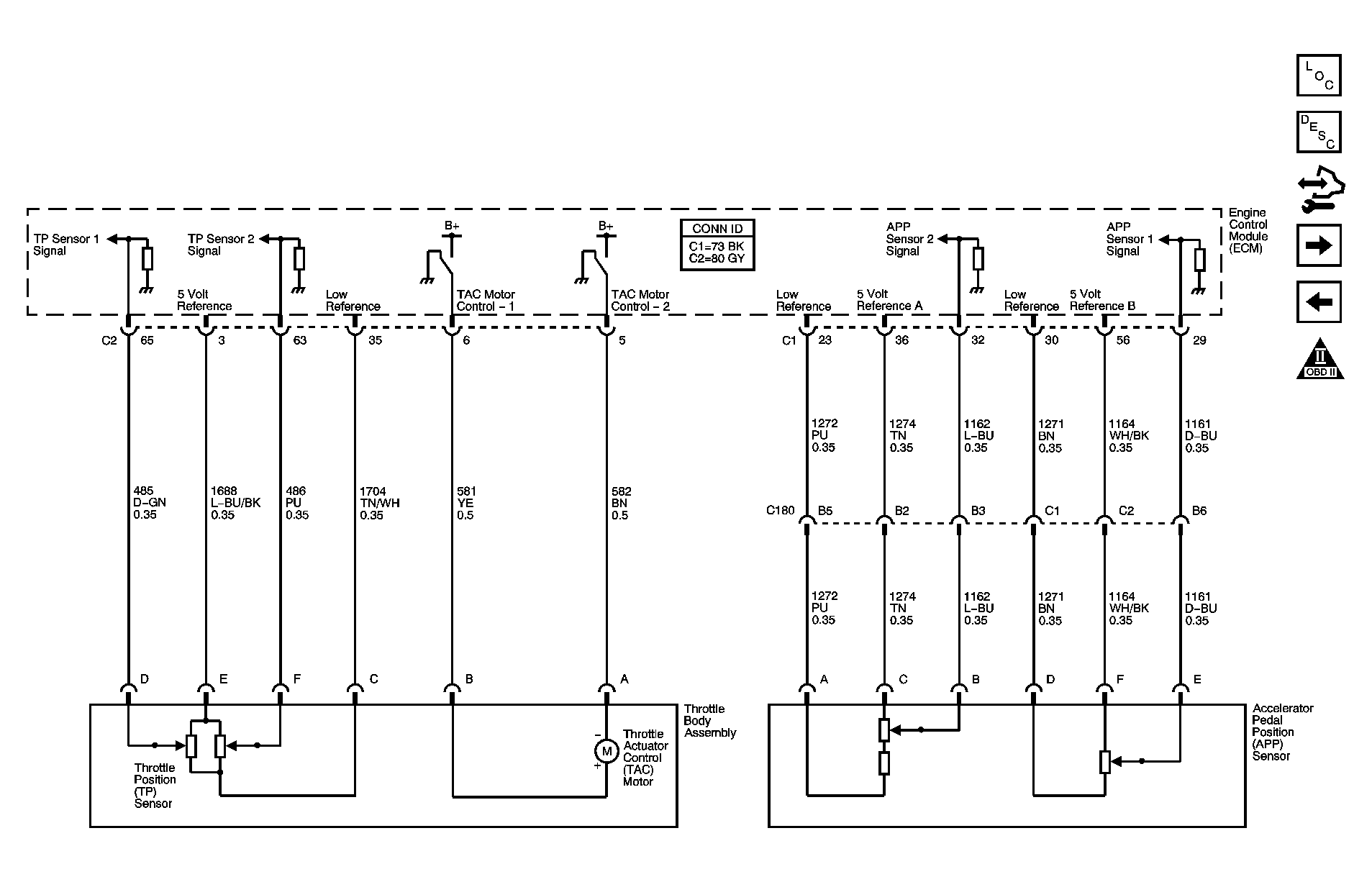

Fig 6: Engine Data Sensors - Electronic Throttle Controls - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

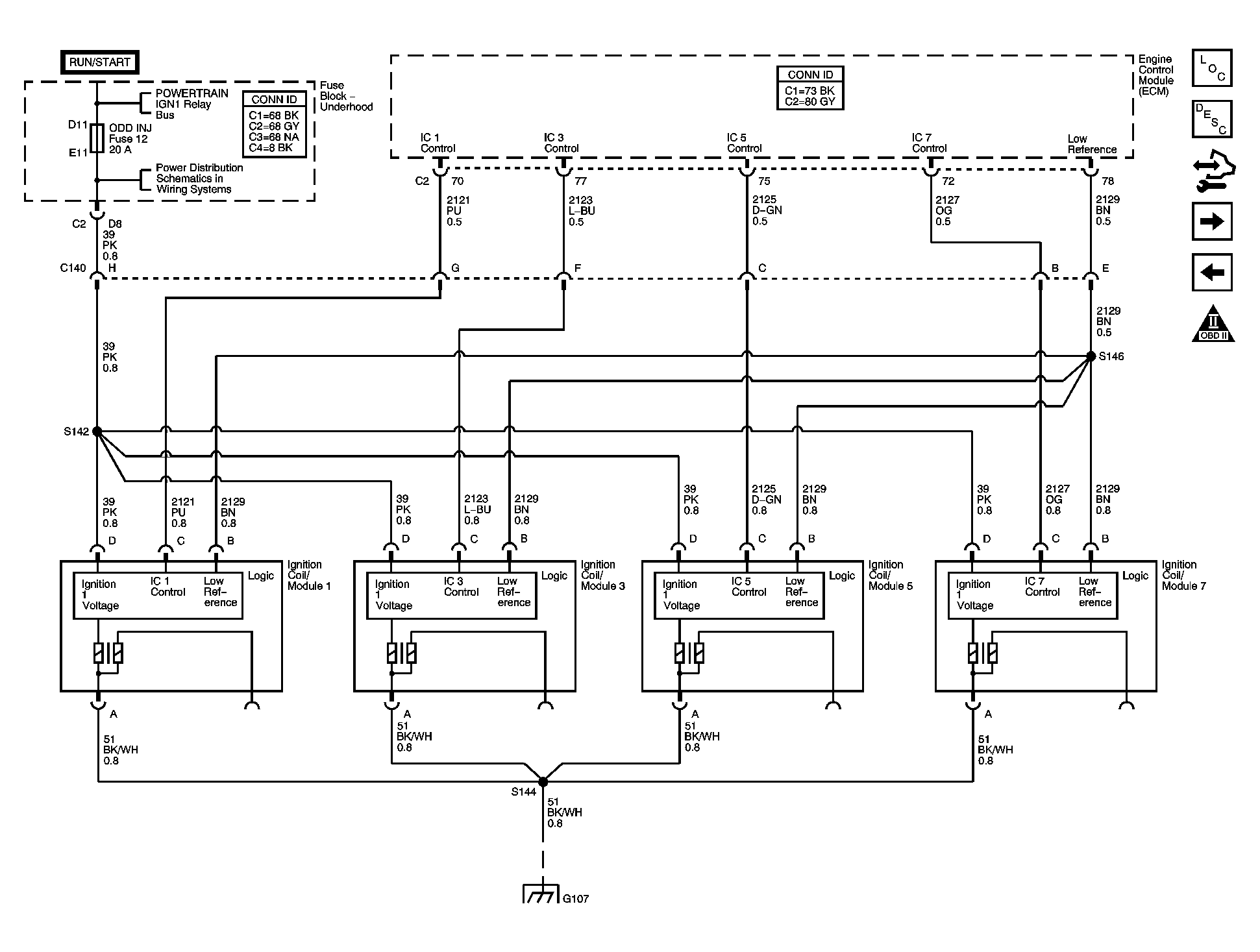

Fig 7: Ignition Controls System - Bank 1 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

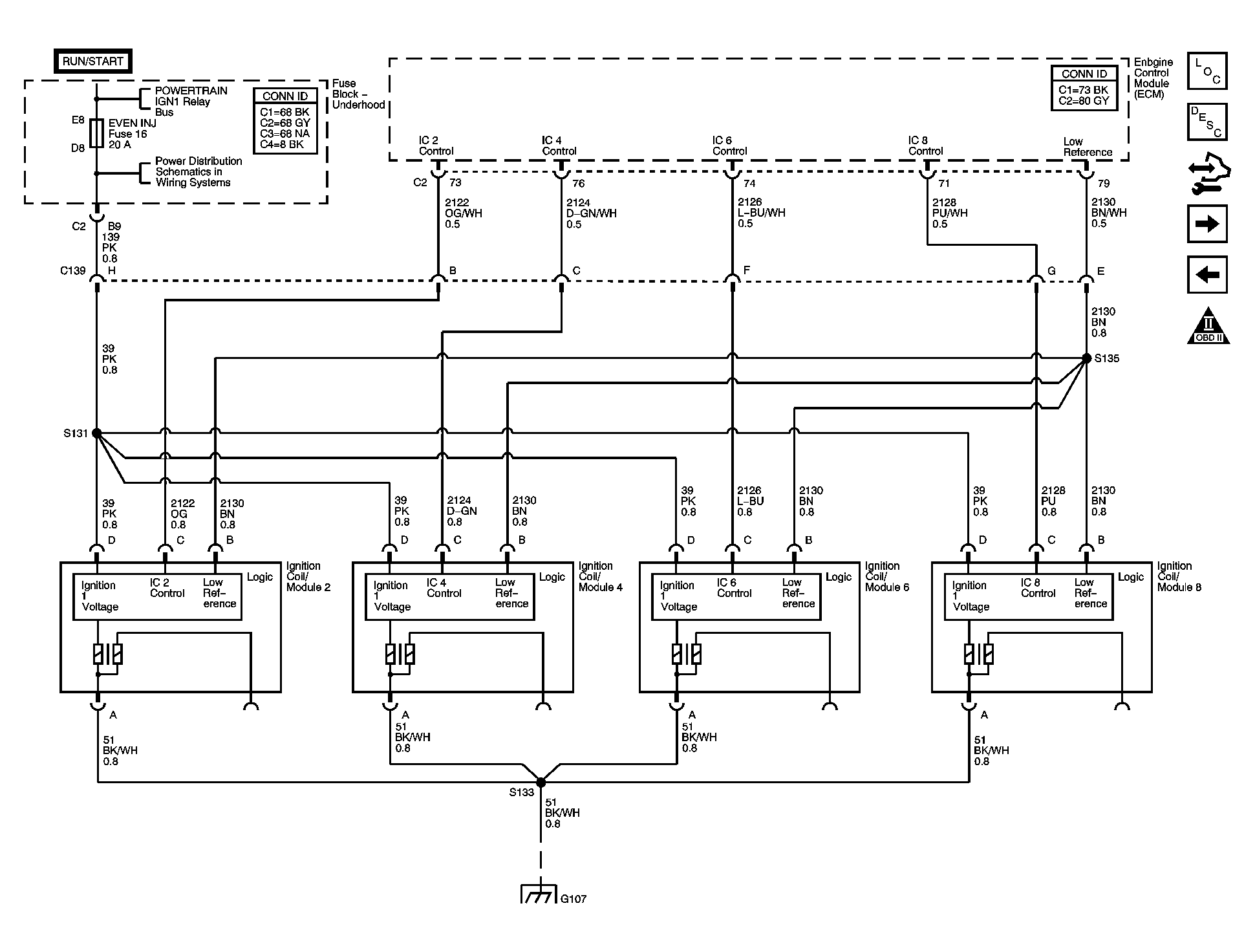

Fig 8: Ignition Controls System - Bank 2 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

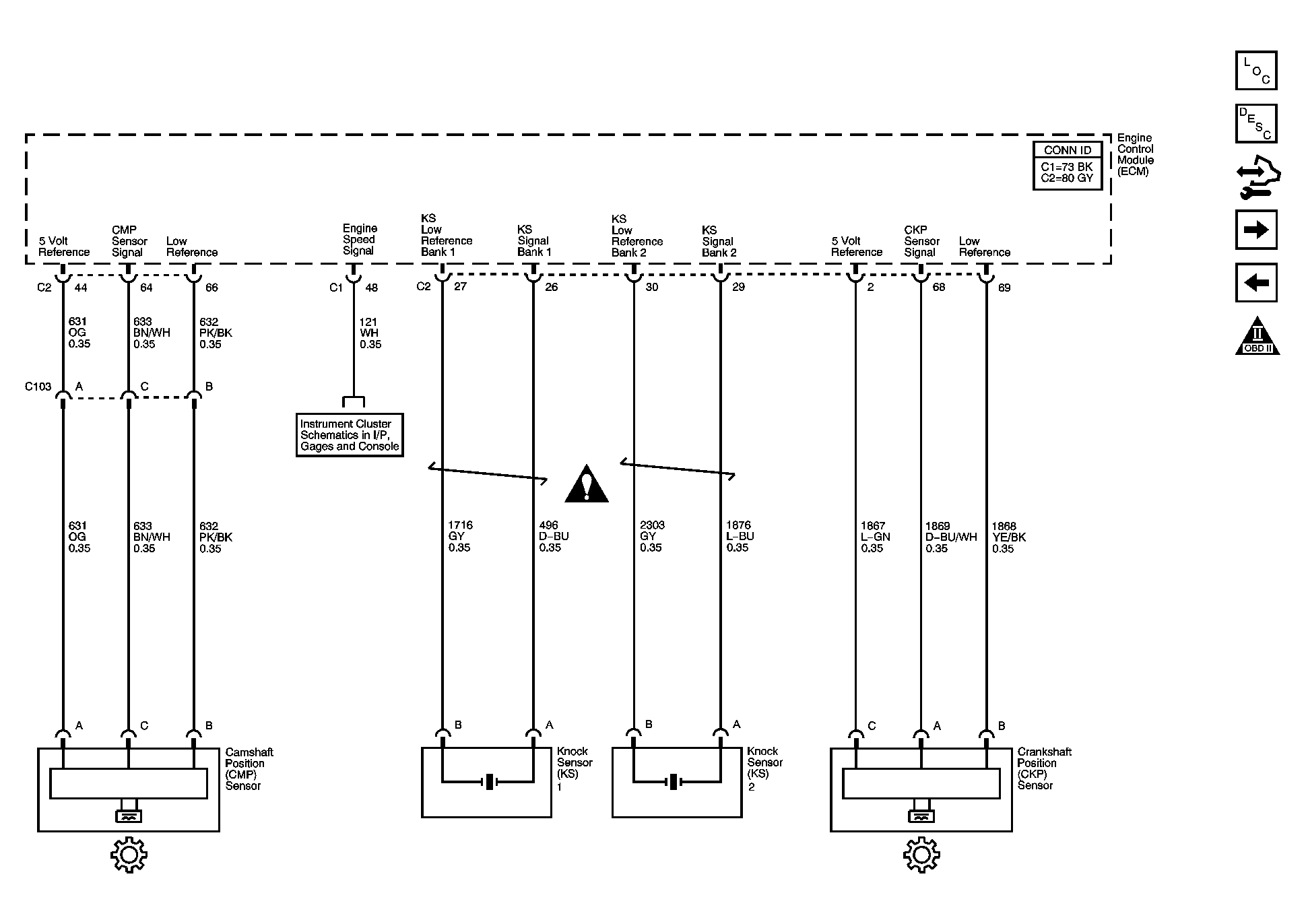

Fig 9: Ignition Controls - Sensors - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

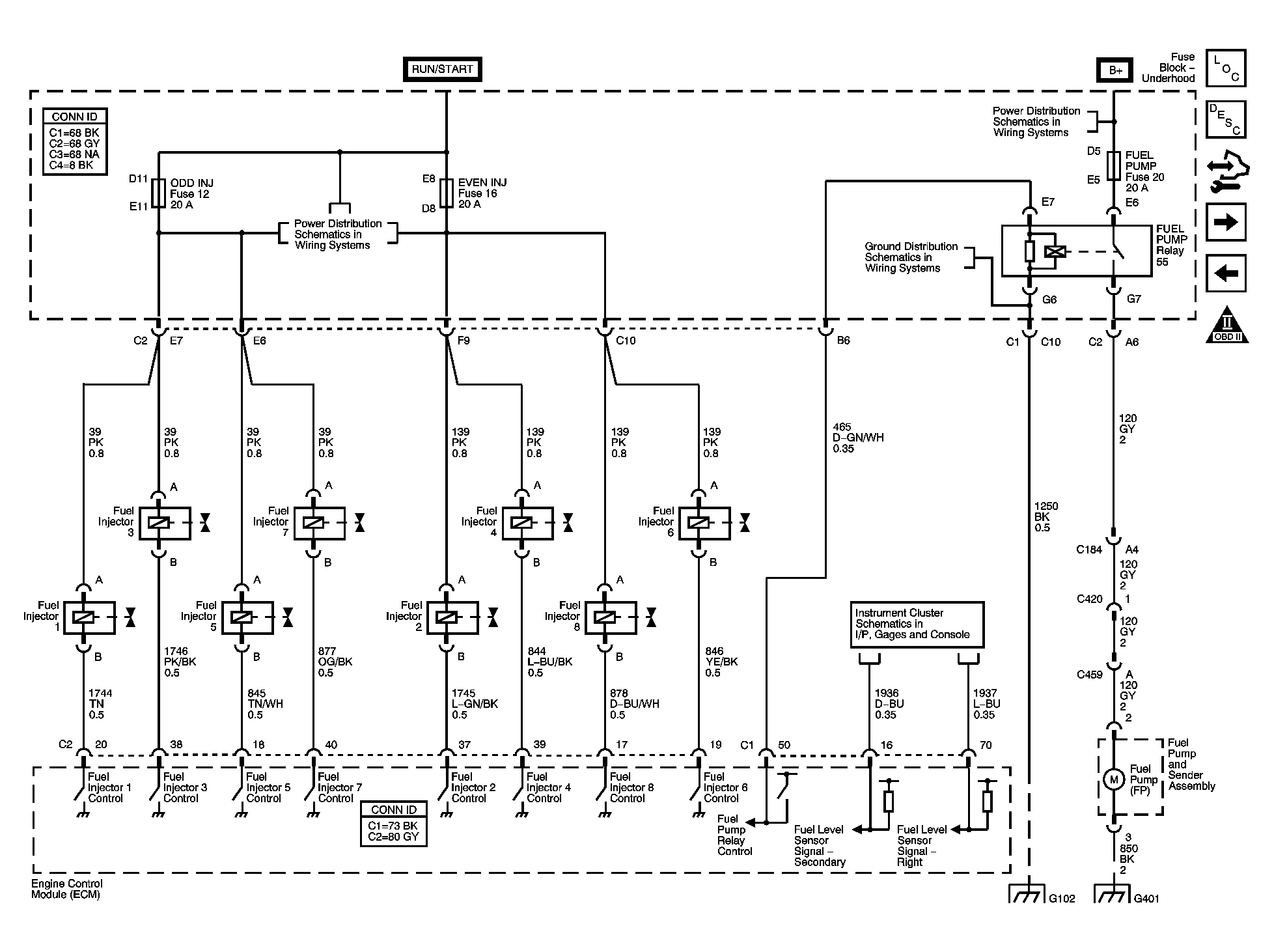

Fig 10: Fuel Controls - Fuel Pump Controls and Injectors - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

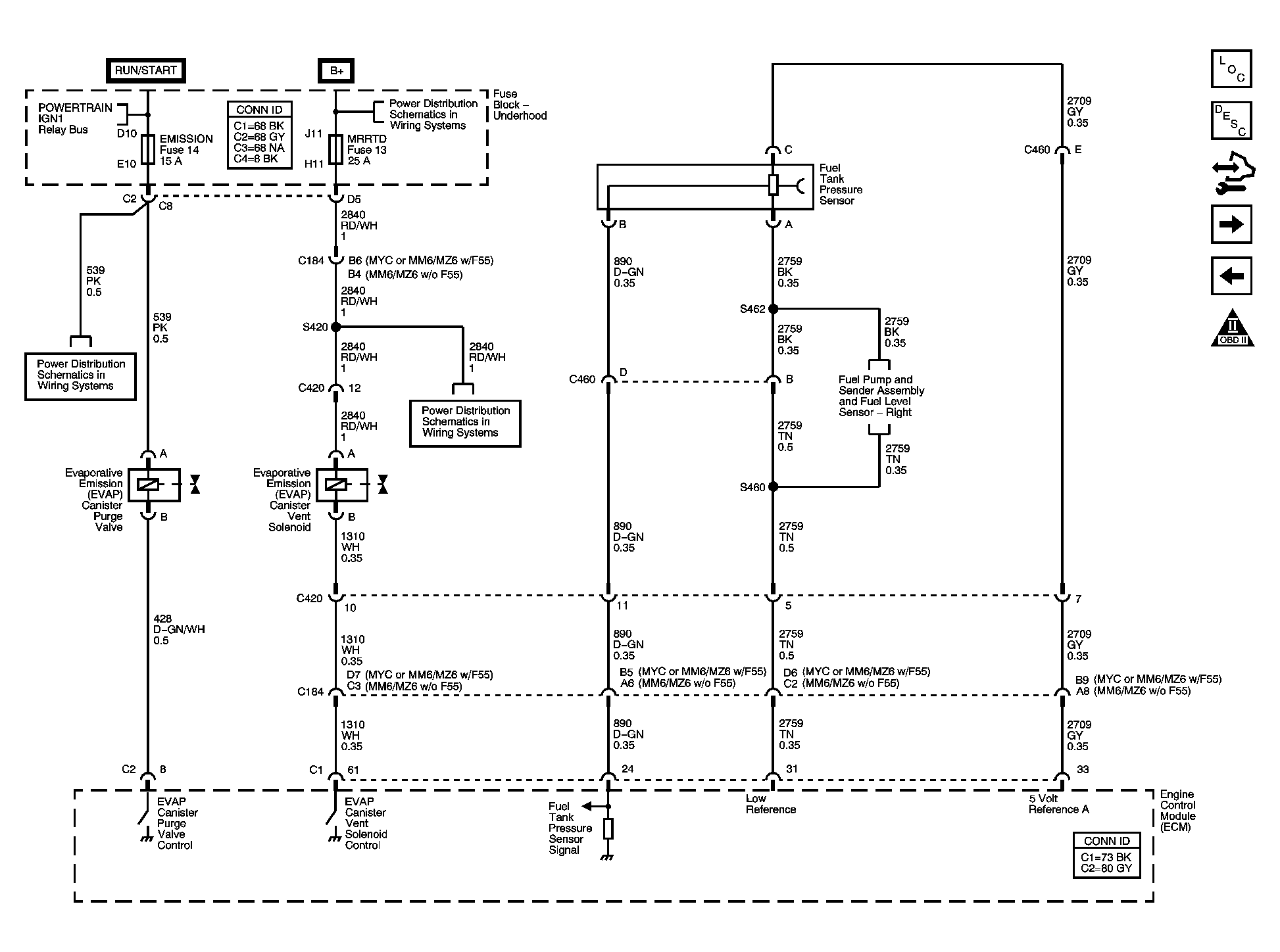

Fig 11: Fuel Controls - EVAP Controls - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

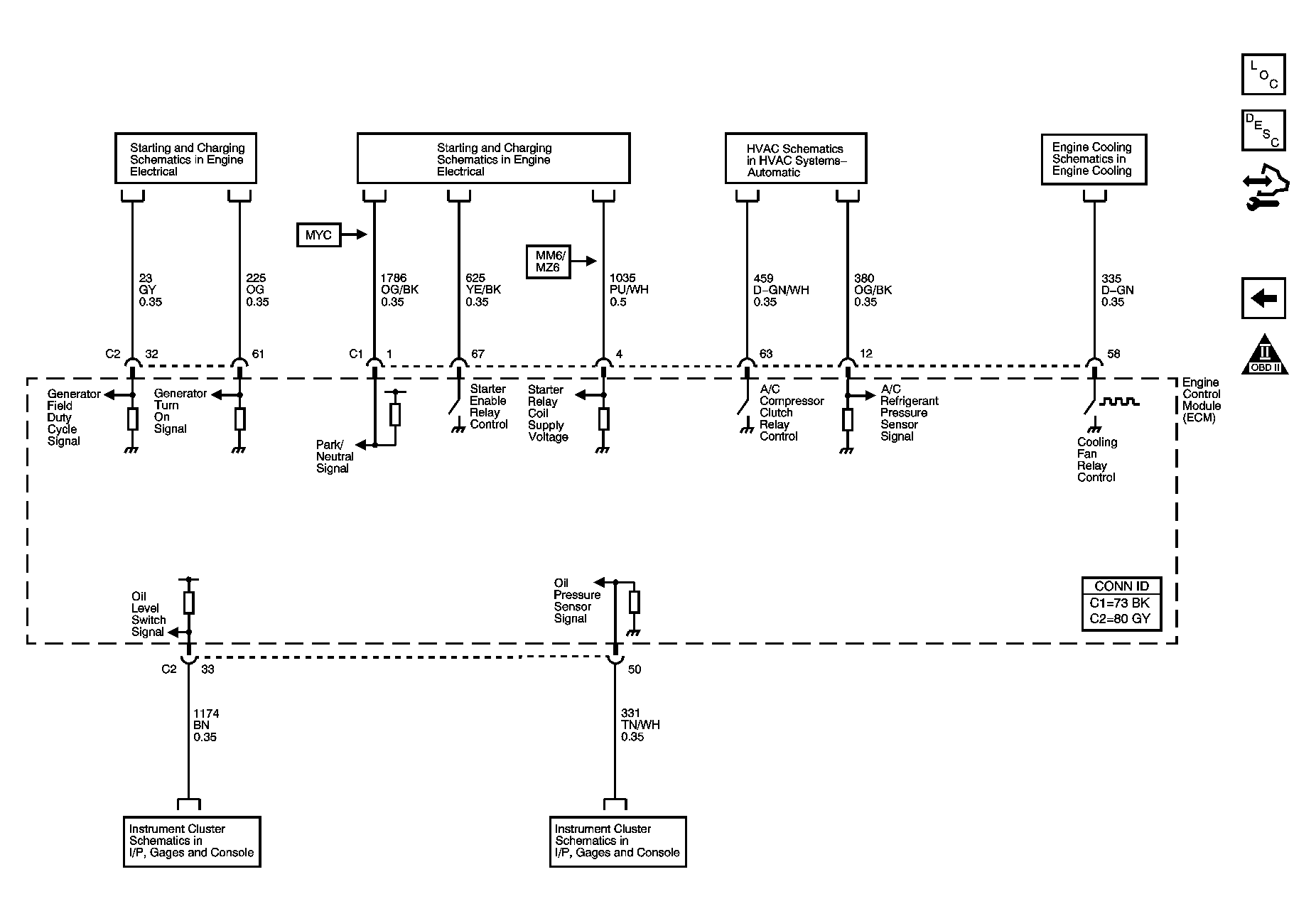

Fig 12: Controlled/Monitored Subsystem References - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
