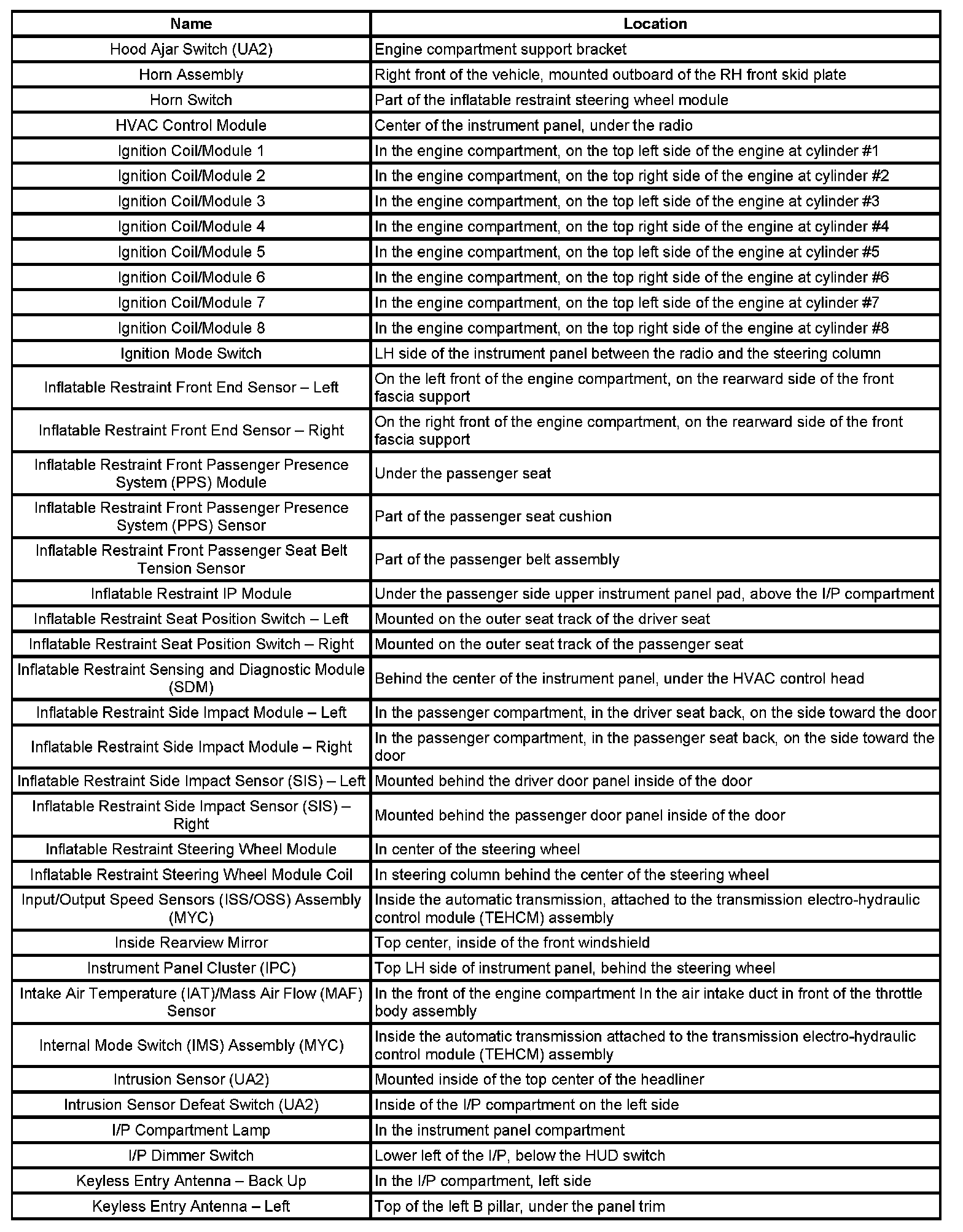

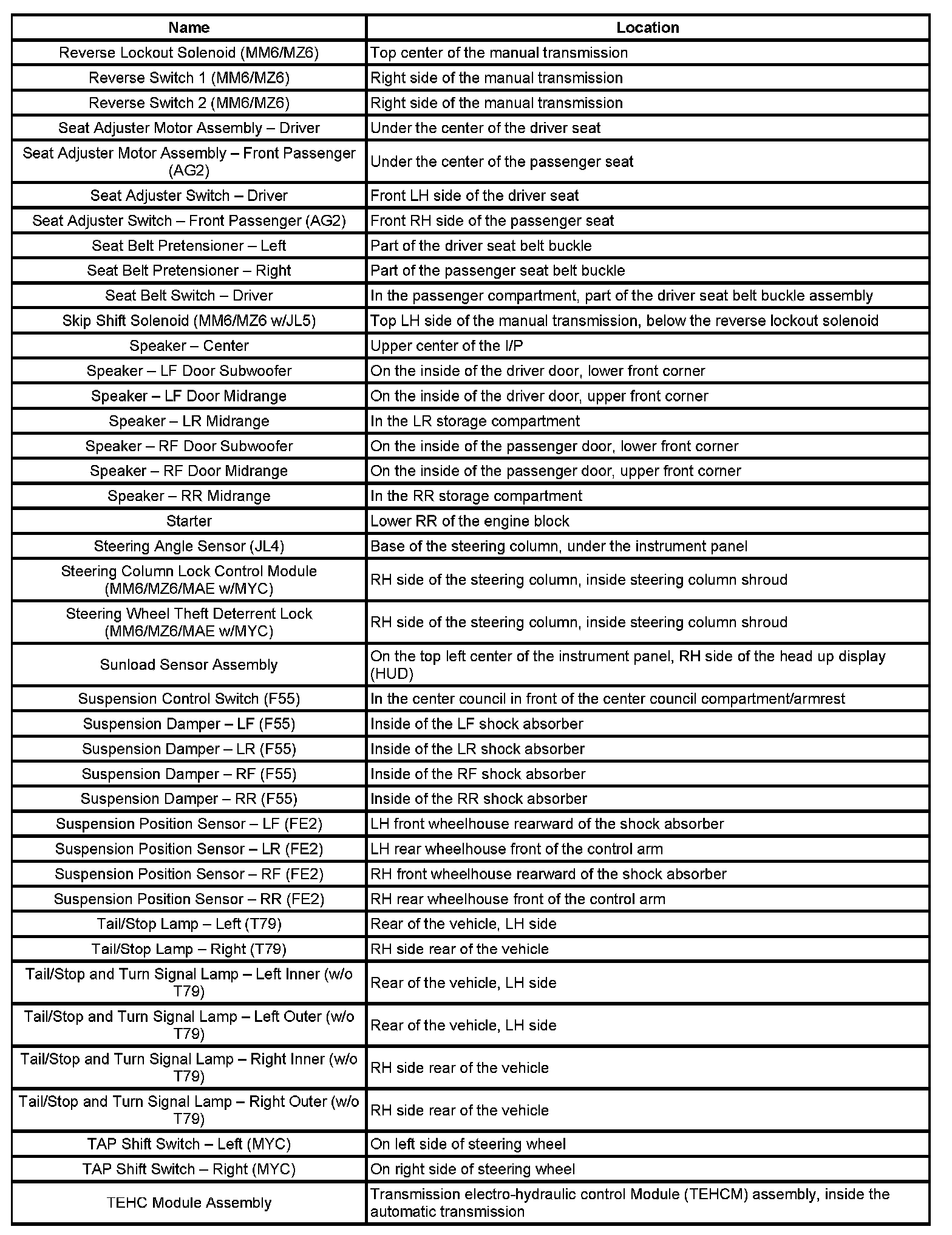

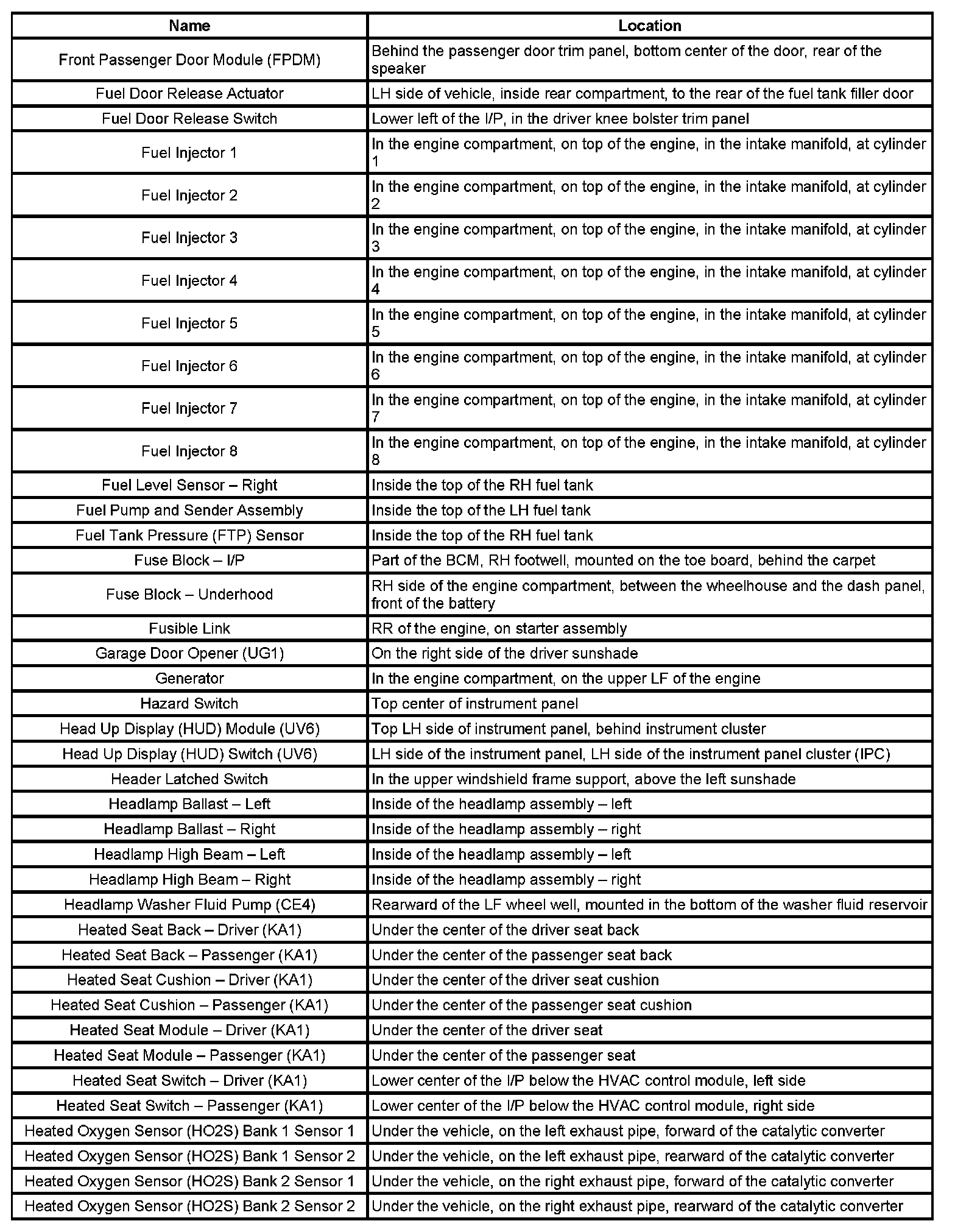

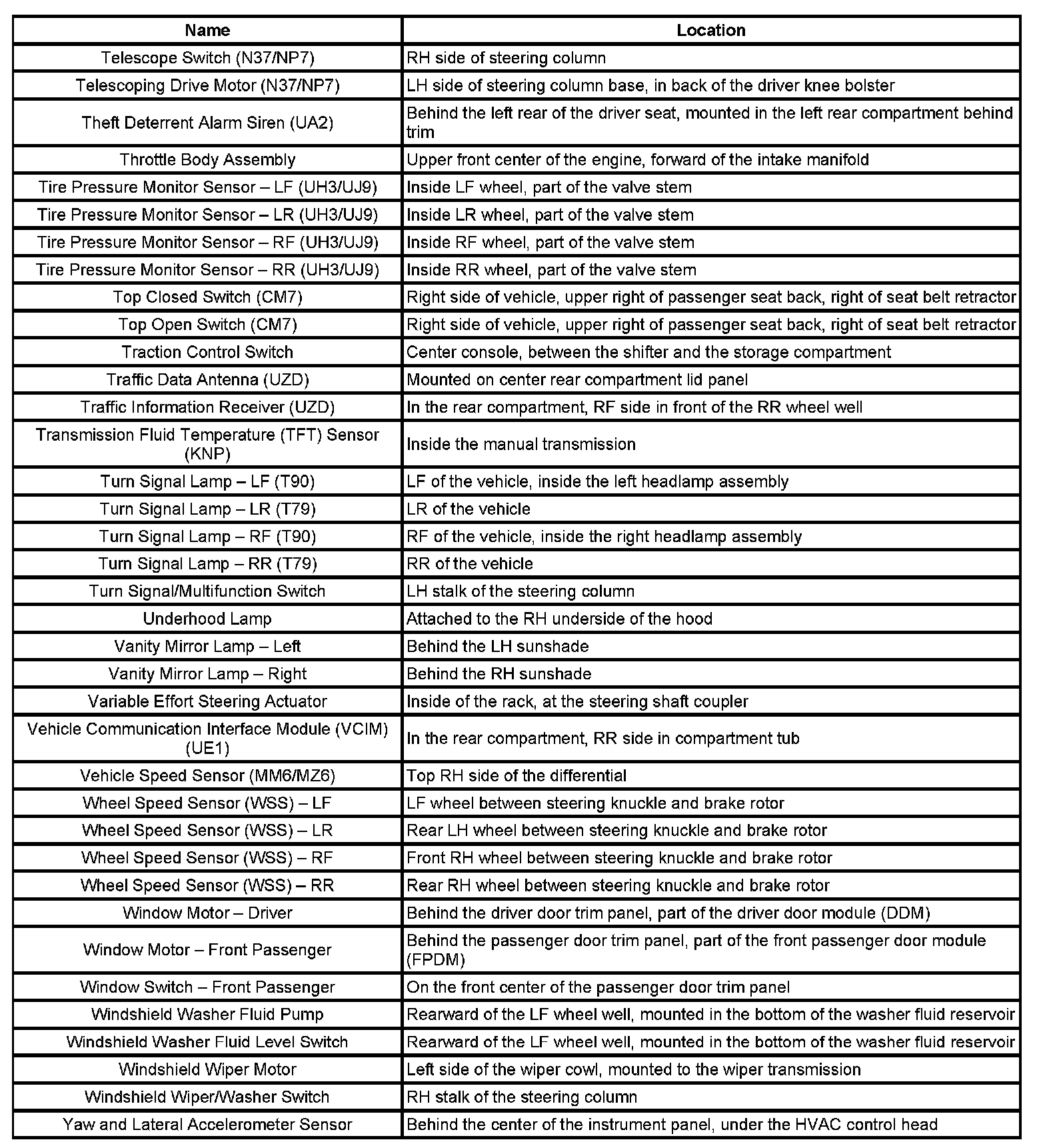

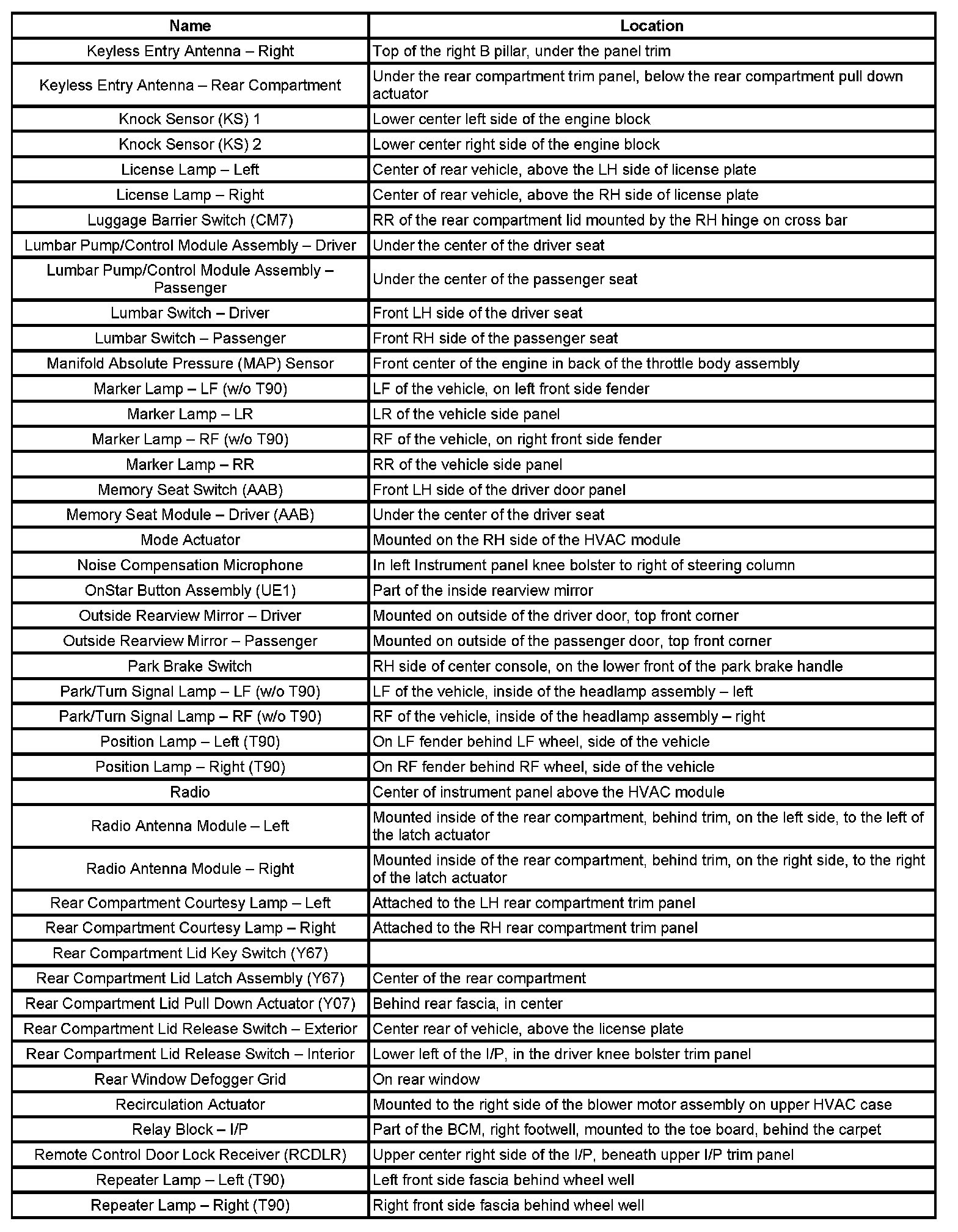

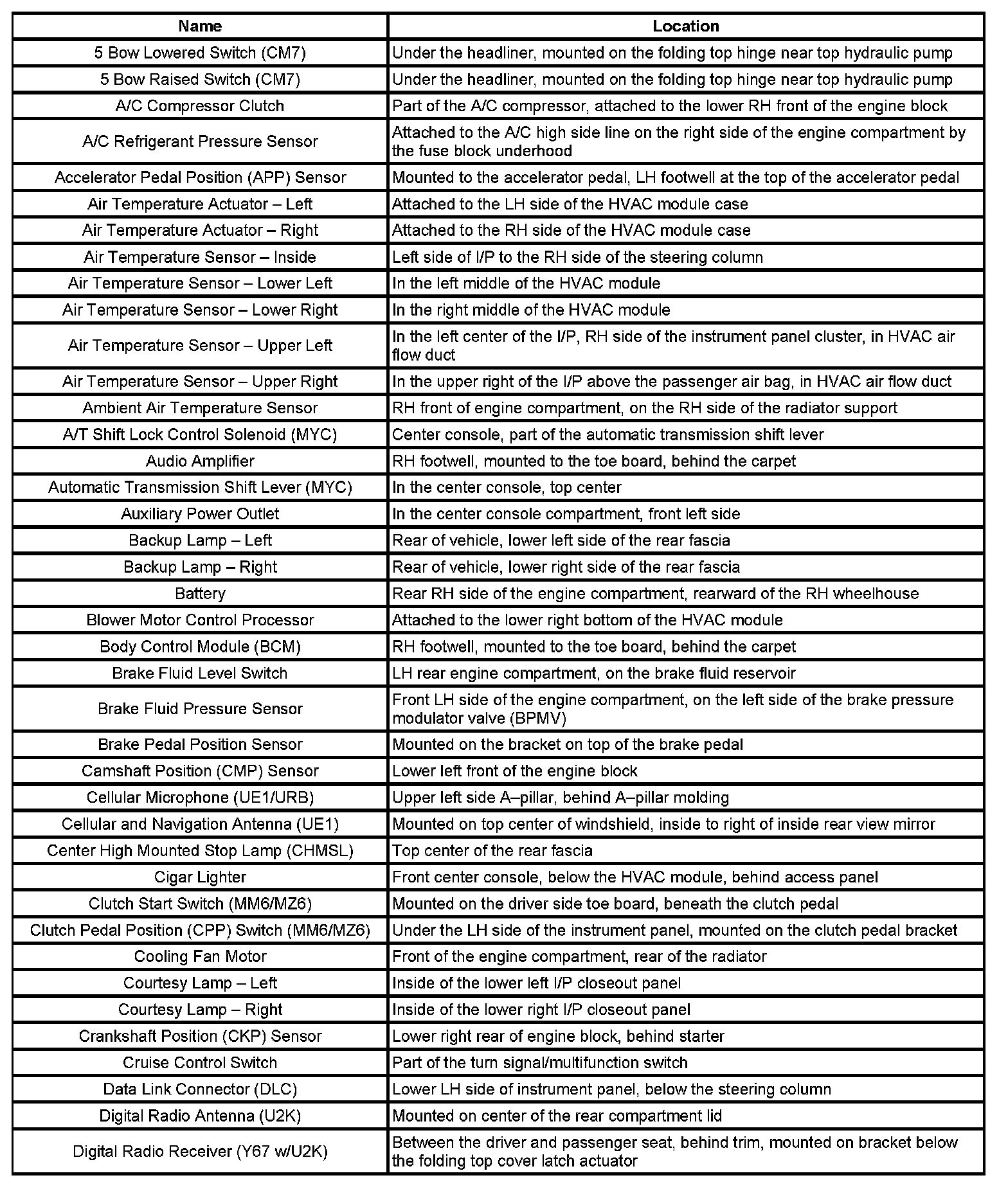

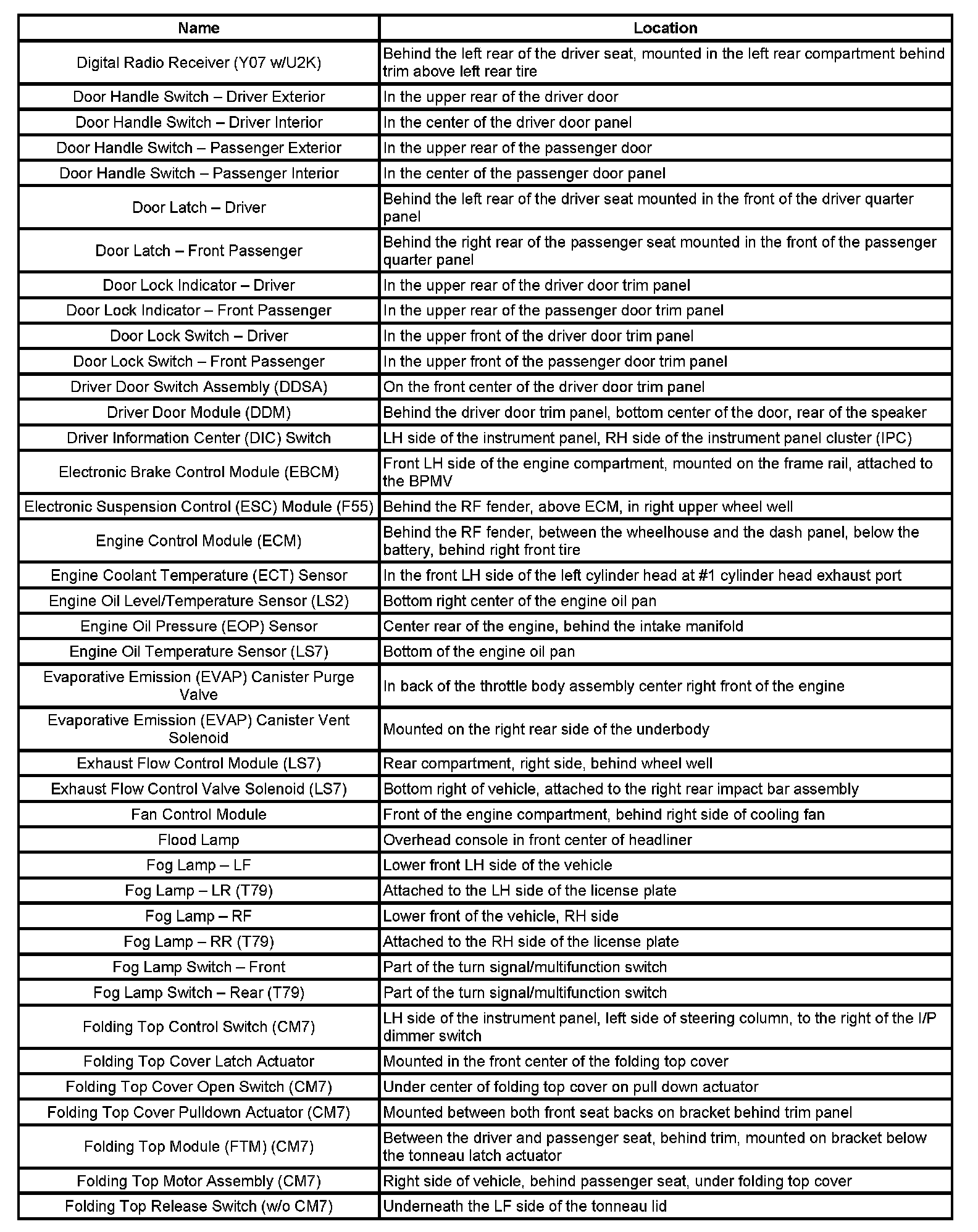

Components



5 Bo - Di:




Di - Fo:




Fr - He:




Ho - Ke:




Ke - Re:




Re - TE:




Te - Ya:
