Engine Control Module (ECM) - C3

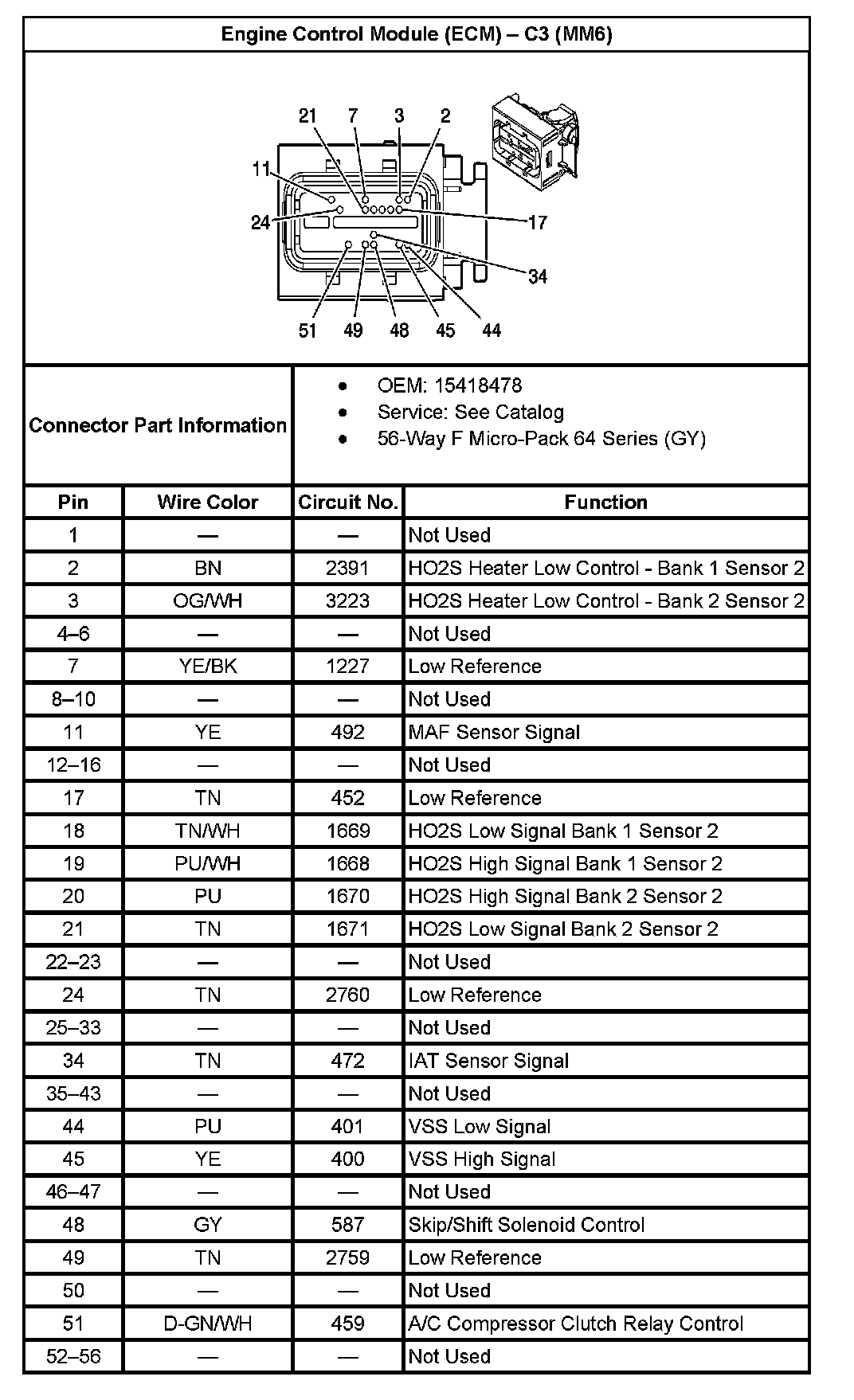

Engine Control Module (ECM) - C3 (With RPO Code MM6):

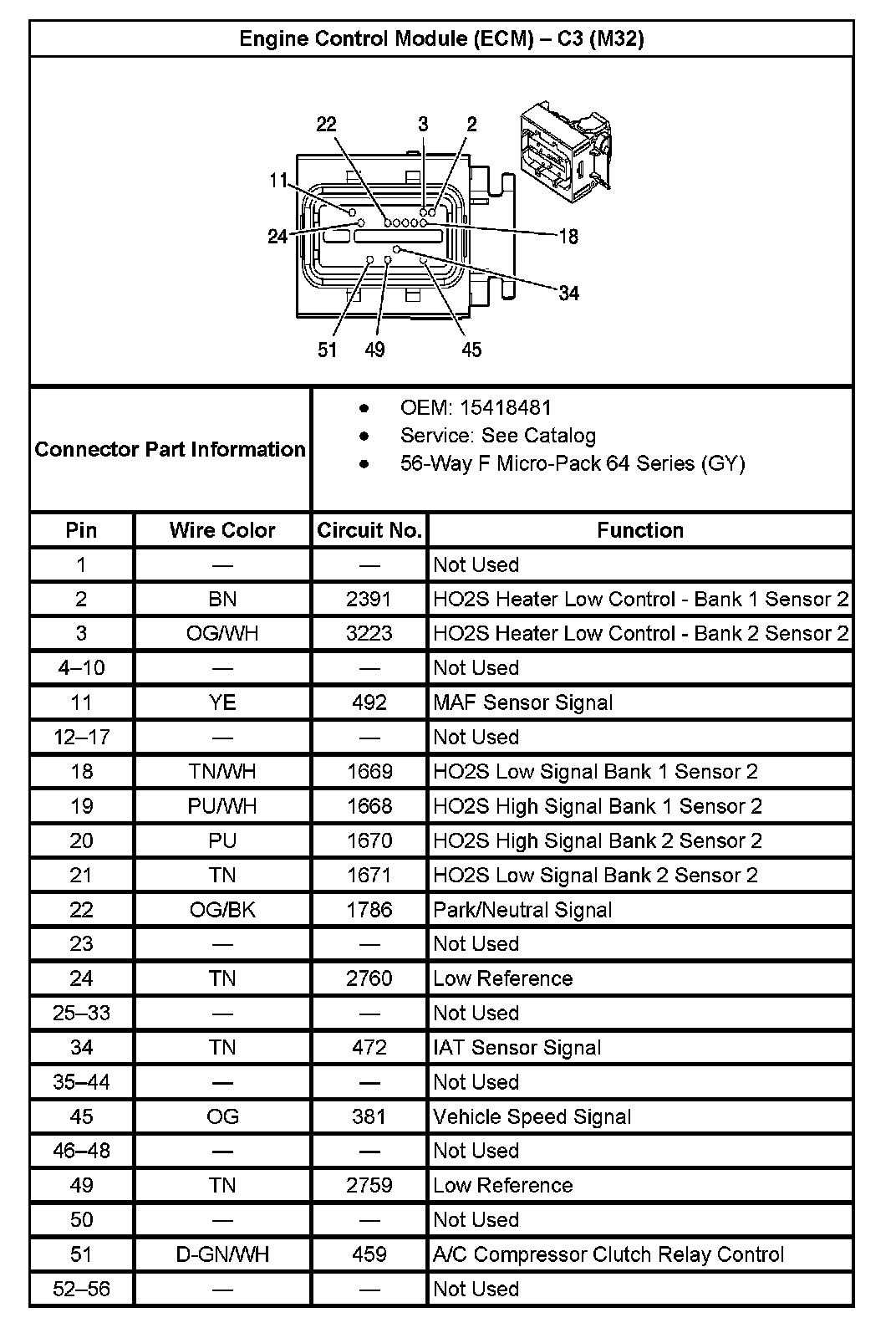

Engine Control Module (ECM) - C3 (With RPO Code M32):
