Impact Sensor: Locations

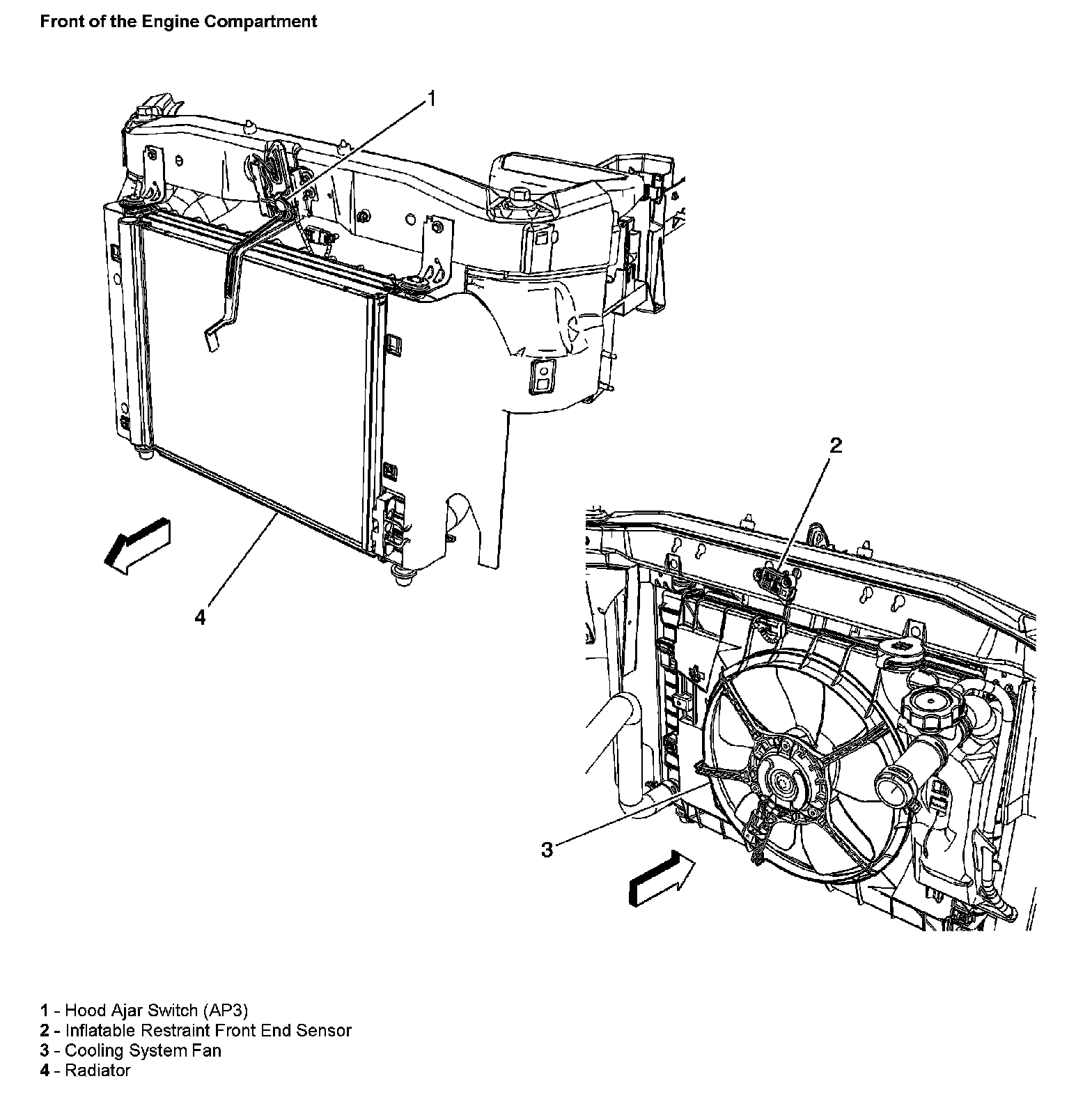

Front Of The Engine Compartment:

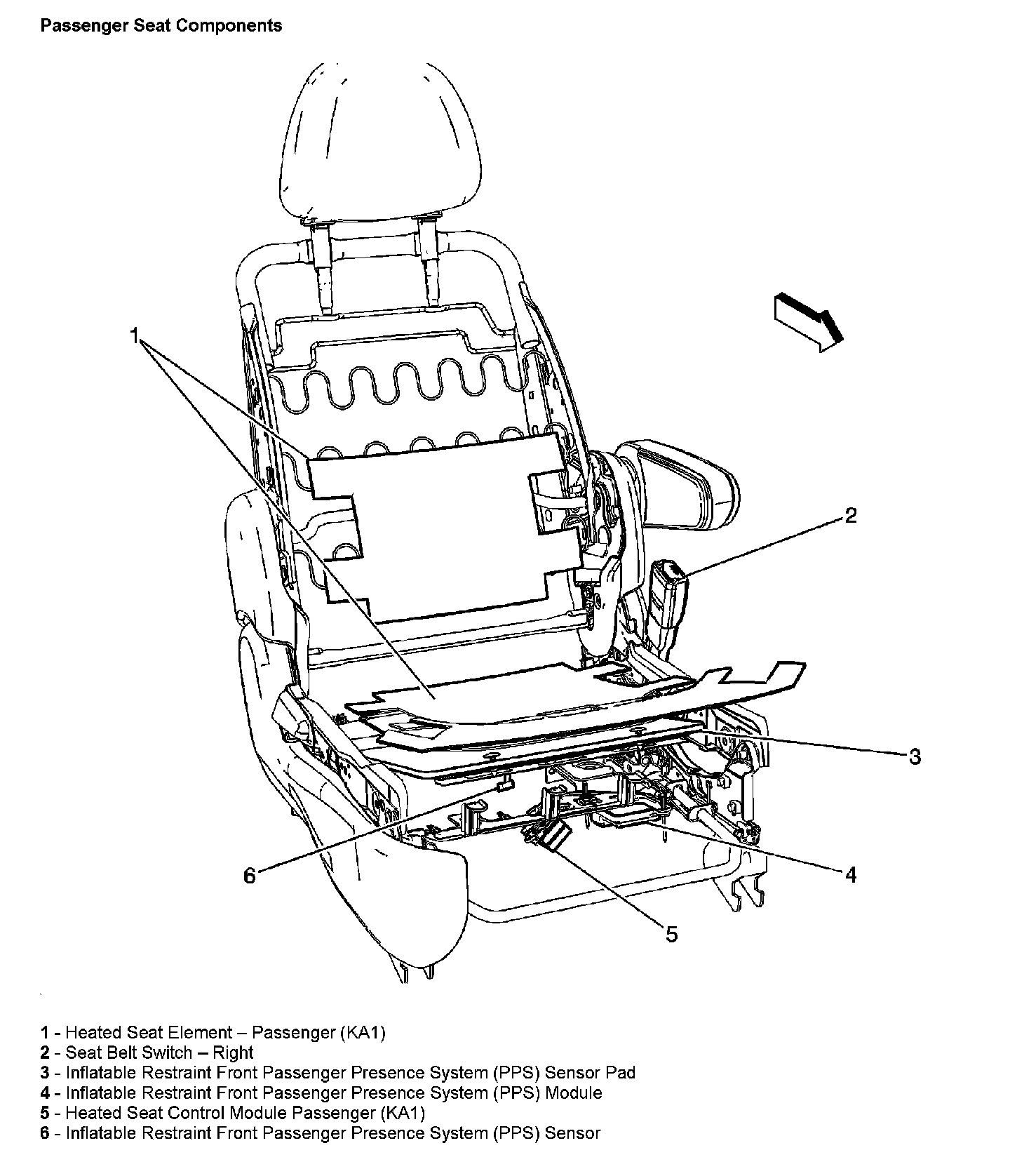

Passenger Seat Components:

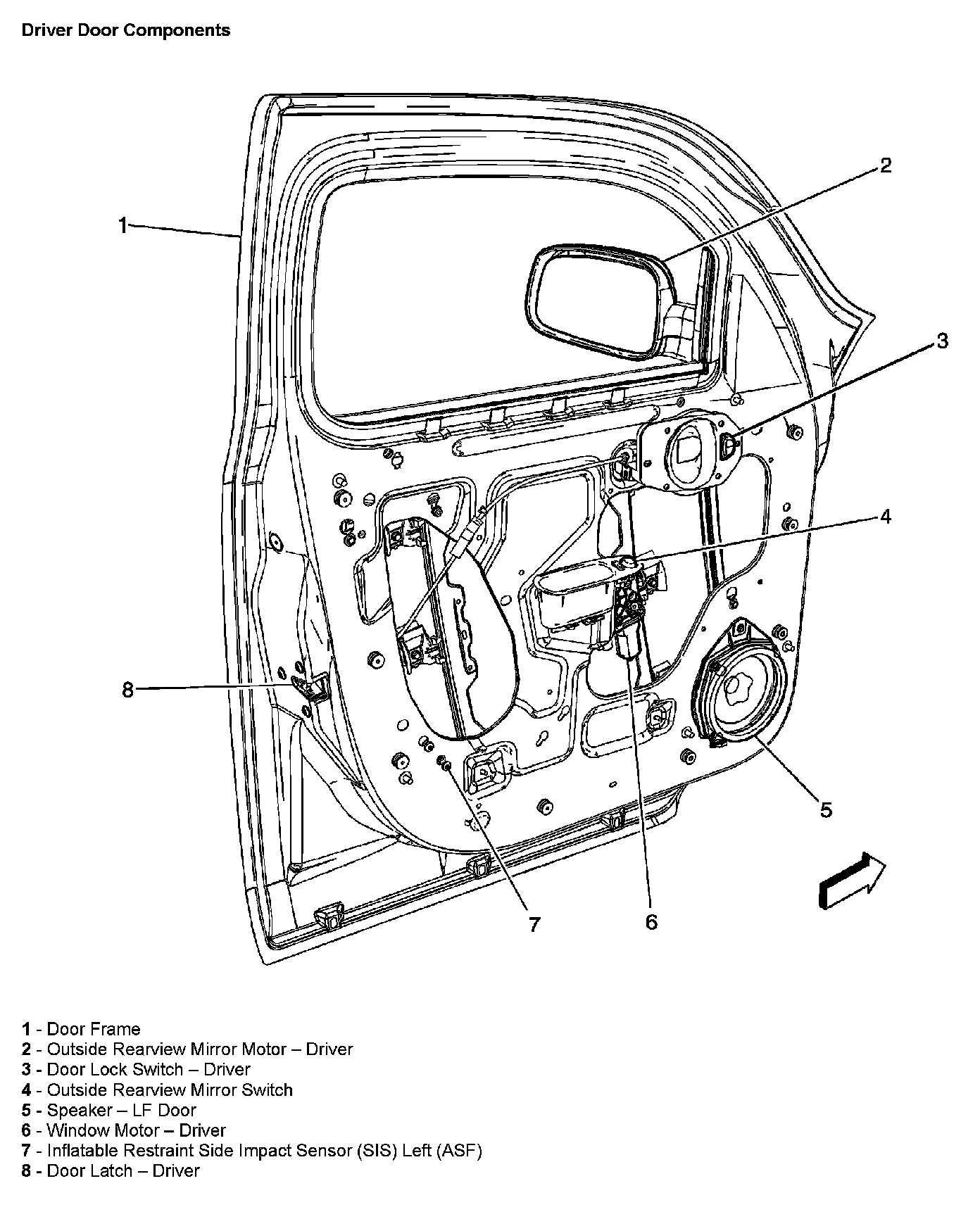

Driver Door Components:

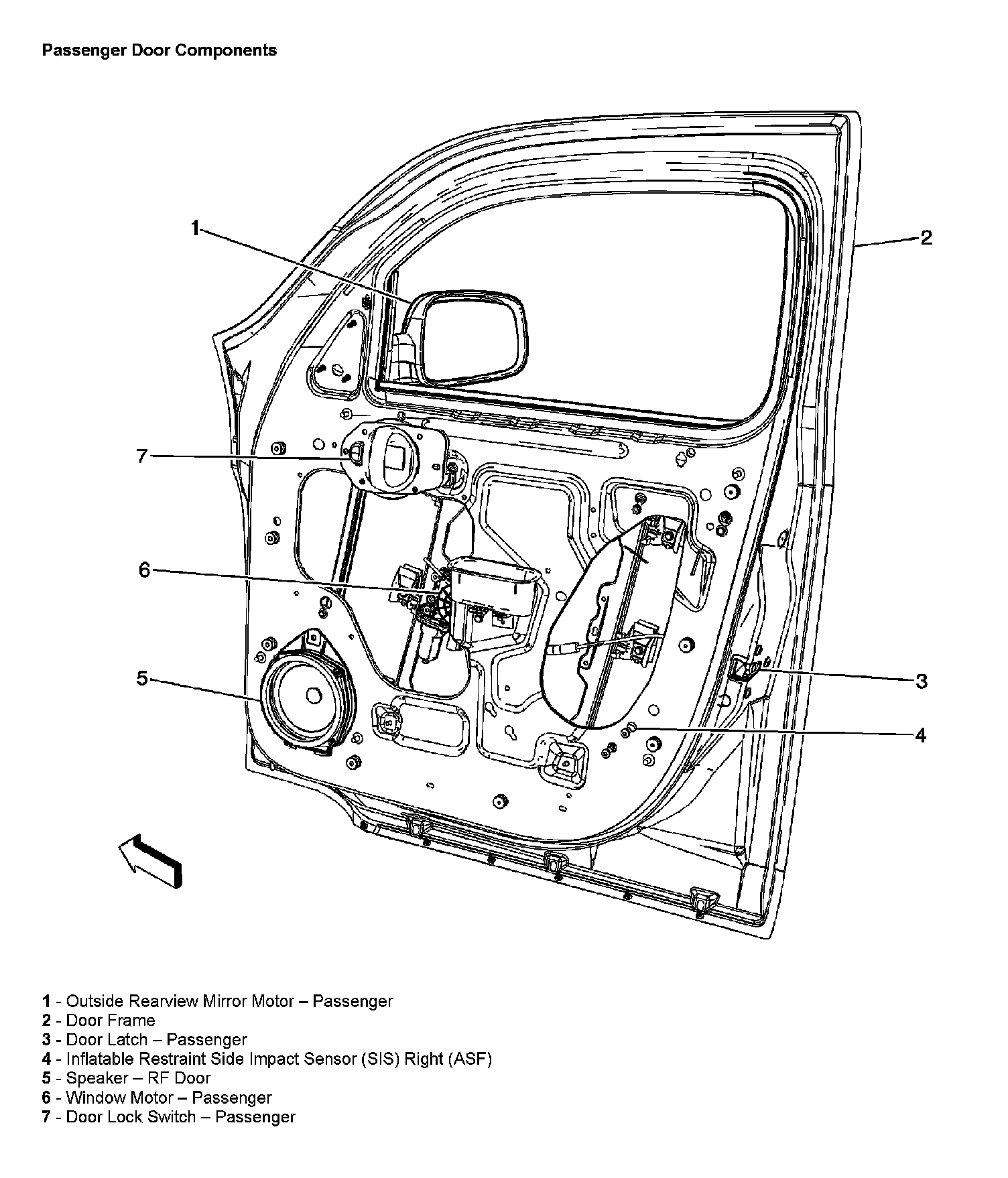

Passenger Door Components:
