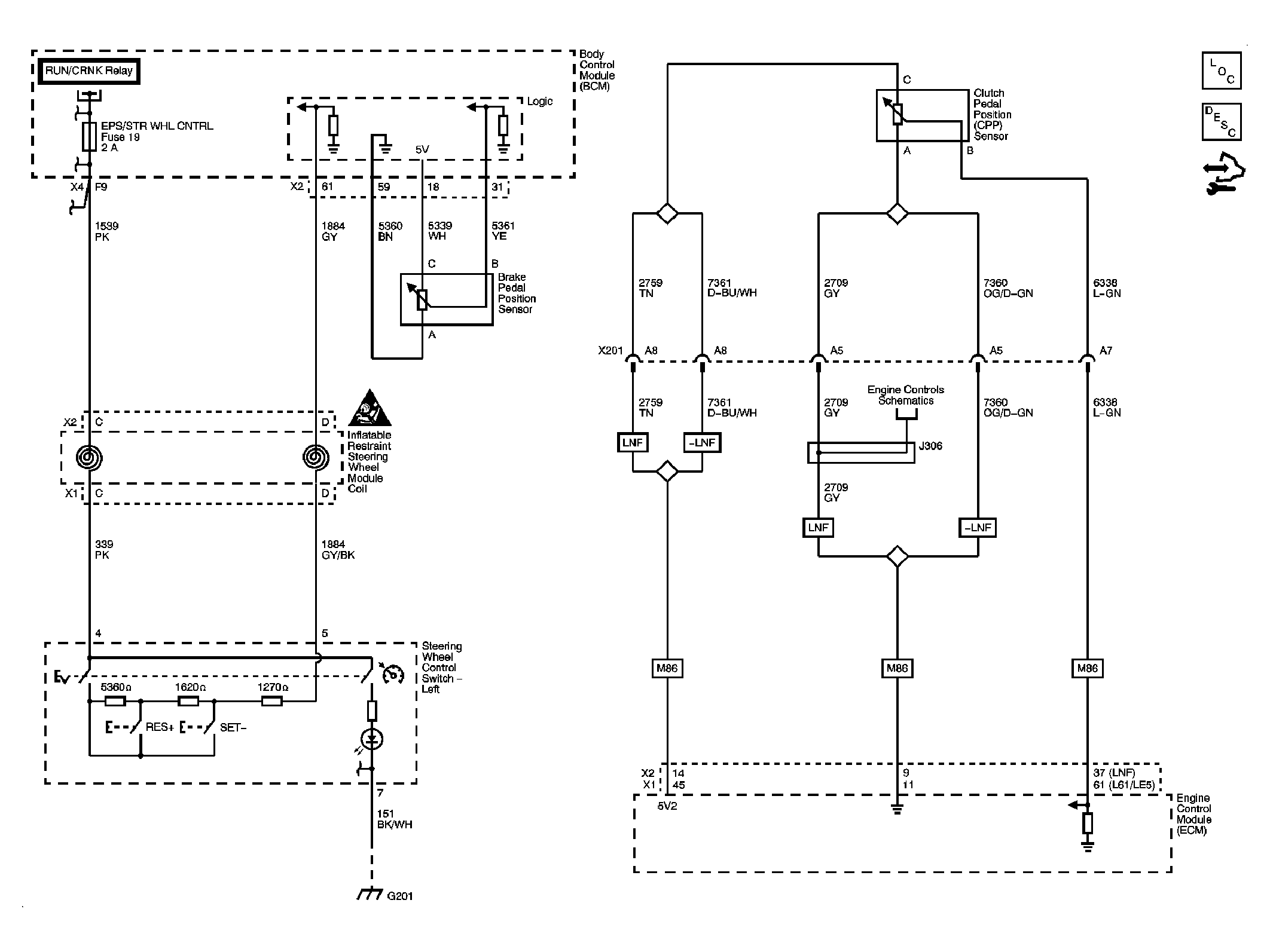

Cruise Control Schematics
WARNING: This page is about a different car, the 2009 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
