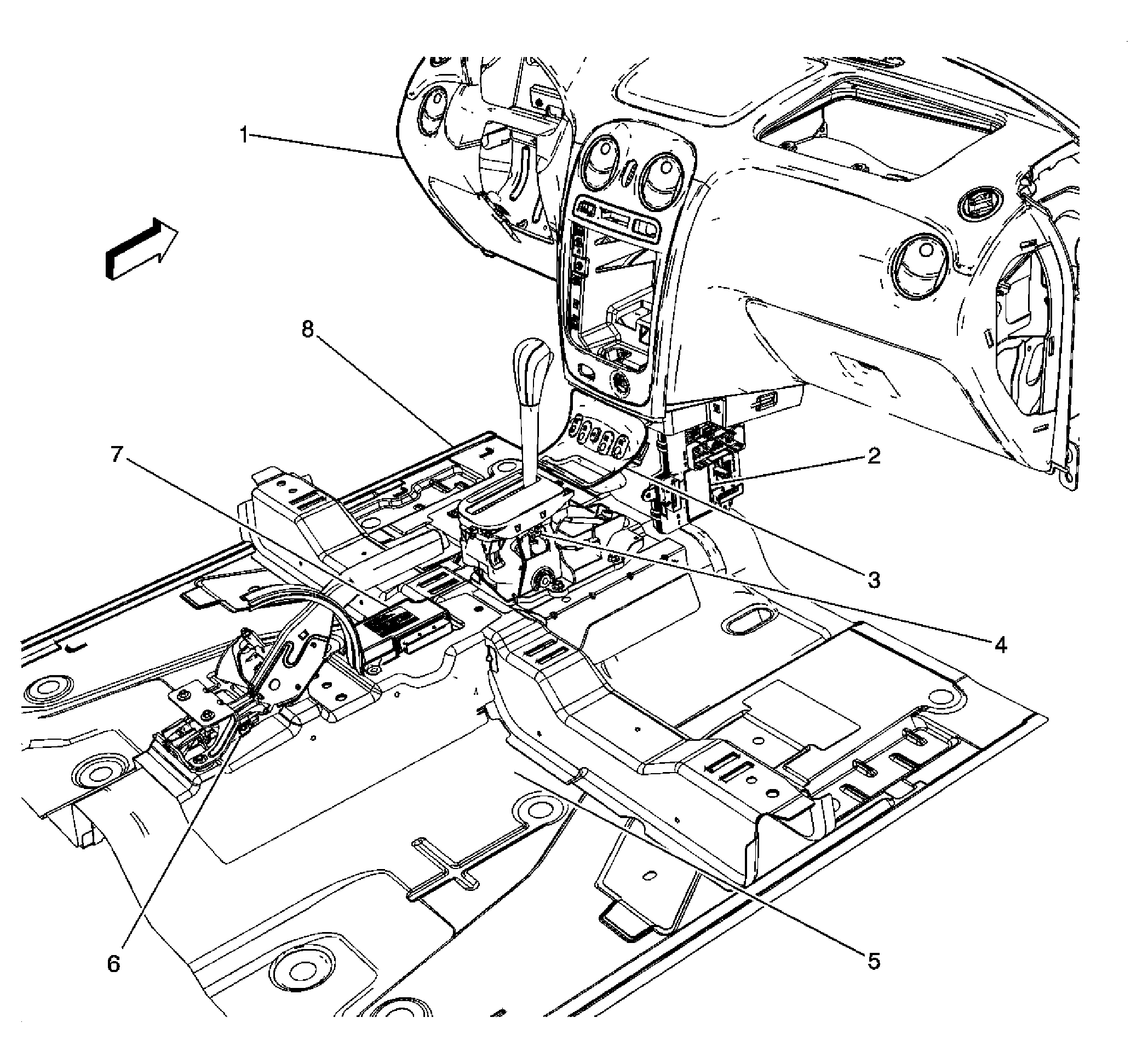

Automatic Transmission Shift Lock Control Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
I/P Trim |
| 2 |
Body Control Module (BCM) |
| 3 |
Master Window Switch |
| 4 |
A/T Shift Lock Control Solenoid (MN5) |
| 5 |
Floor Panel |
| 6 |
Park Brake Switch |
| 7 |
Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 8 |
Floor Panel |
