Armrest Bracket Replacement

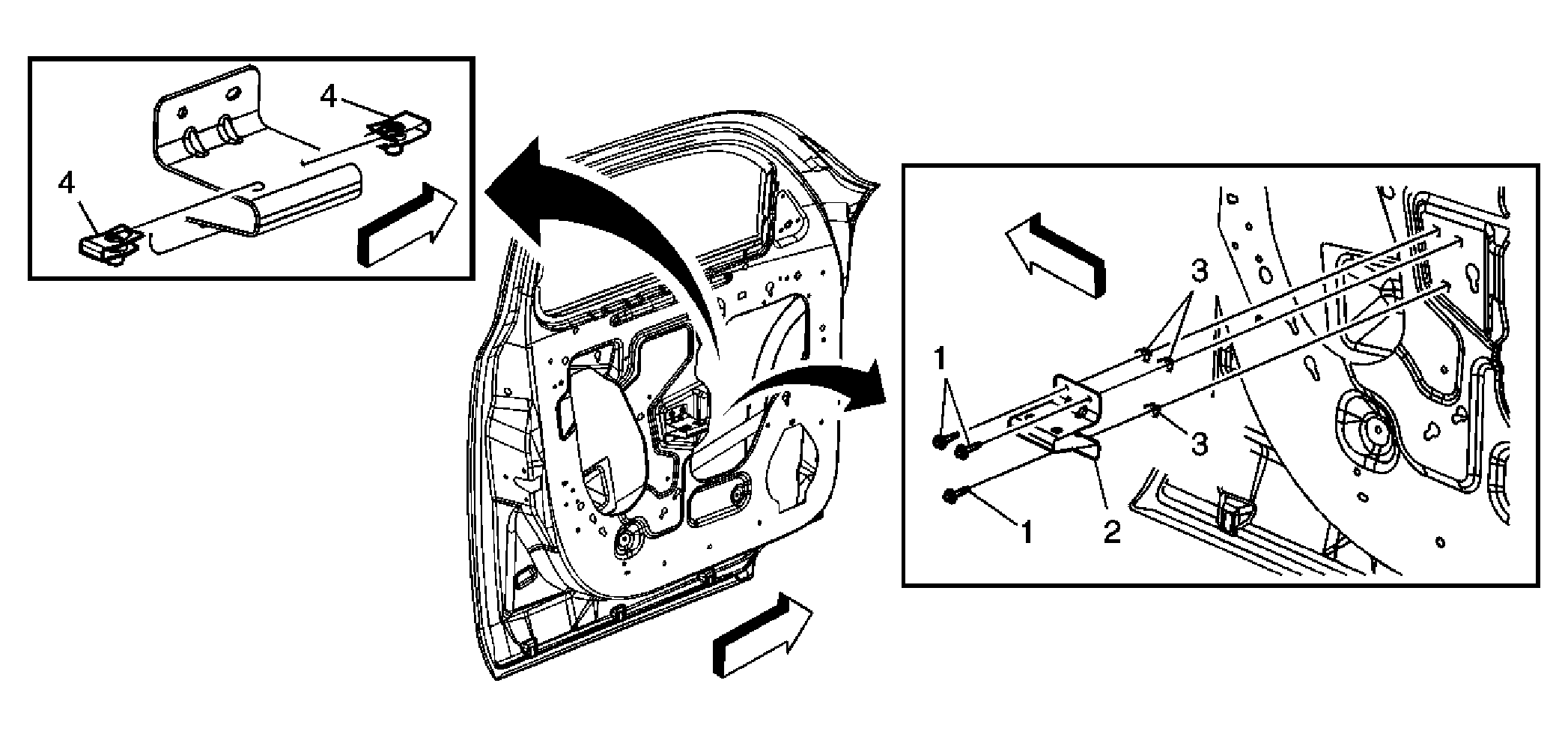

Fig 1: Armrest Bracket Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Side Door Armrest Bracket Screw (Qty: 3) Tighten: 9 N.m (80 lb in)
2	Side Door Armrest Bracket
3	Side Door Armrest Bracket Nut (Qty: 3)
4	Side Door Armrest Bracket Nut (Qty: 2)
