Roof Rail Rear Courtesy Lamp Switch Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

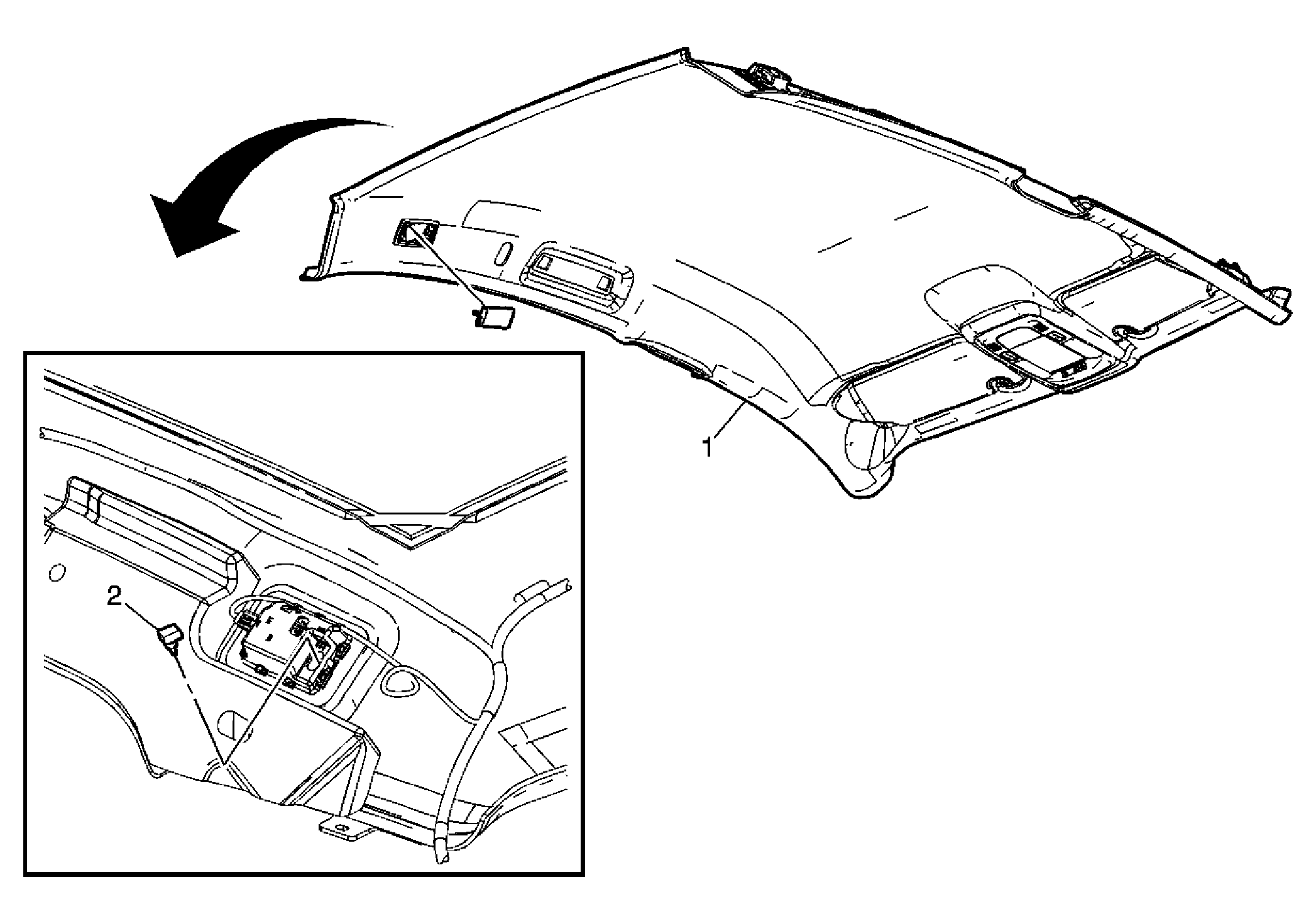

Fig 1: View Of Roof Rail Rear Courtesy Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Headlining Trim Panel Assembly Refer to Headlining Trim Panel Replacement . Tip: Lower the headliner enough to gain access to the back side of the rear roof rail lamp.
2	Roof Rail Rear Courtesy and Reading Lamp Switch
