Power Mirror Switch Replacement

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

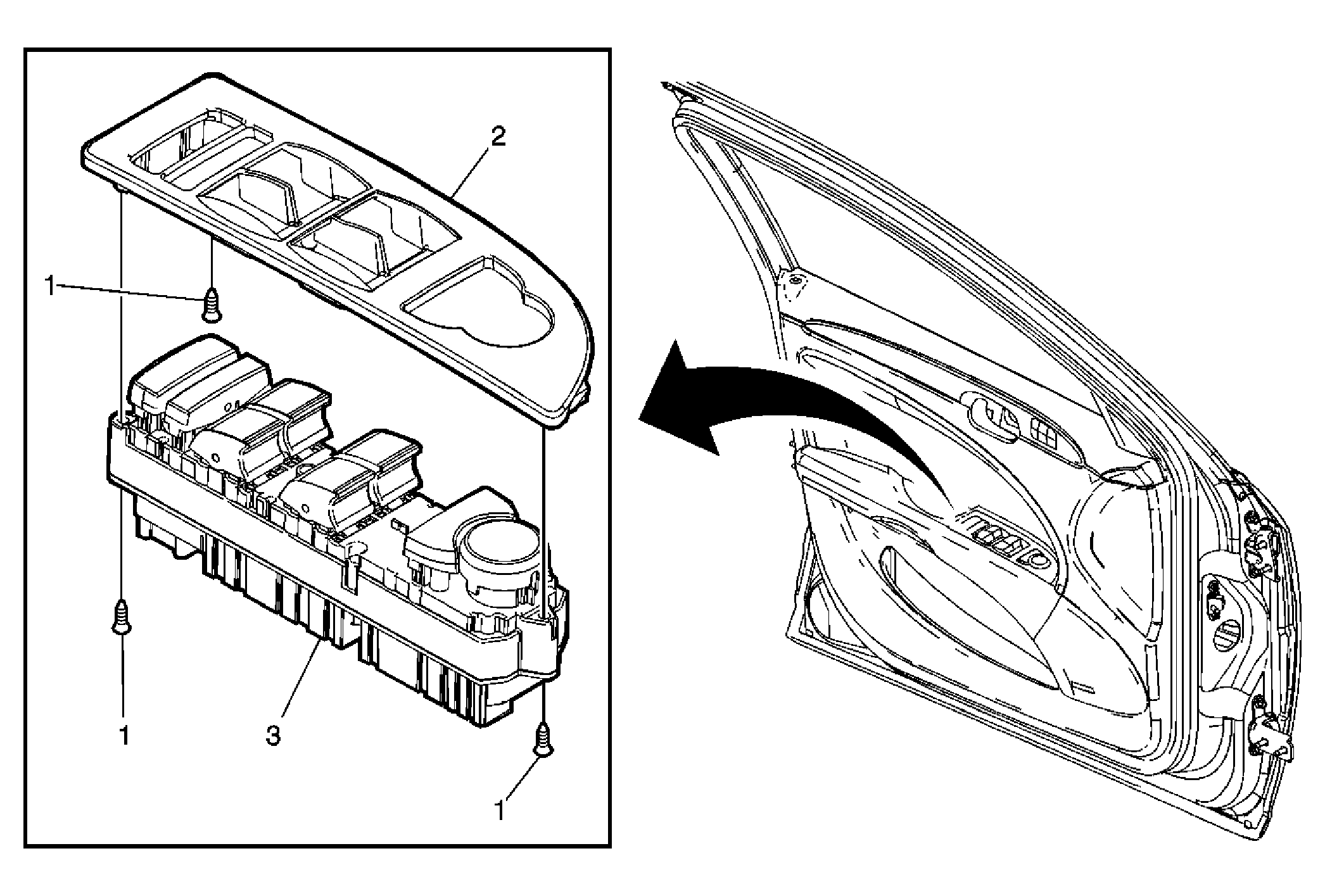

Fig 1: View Of Driver Side Door Lock and Side Window Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Switch Plate
2	Front Side Door Switch Screw (Qty: 3) Tighten: 2 N.m (18 lb in)
3	Front Side Door Switch Assembly Tip: The power window, door lock, and power mirror switch are included in the one switch.
