LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
2006
>>
Impala V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

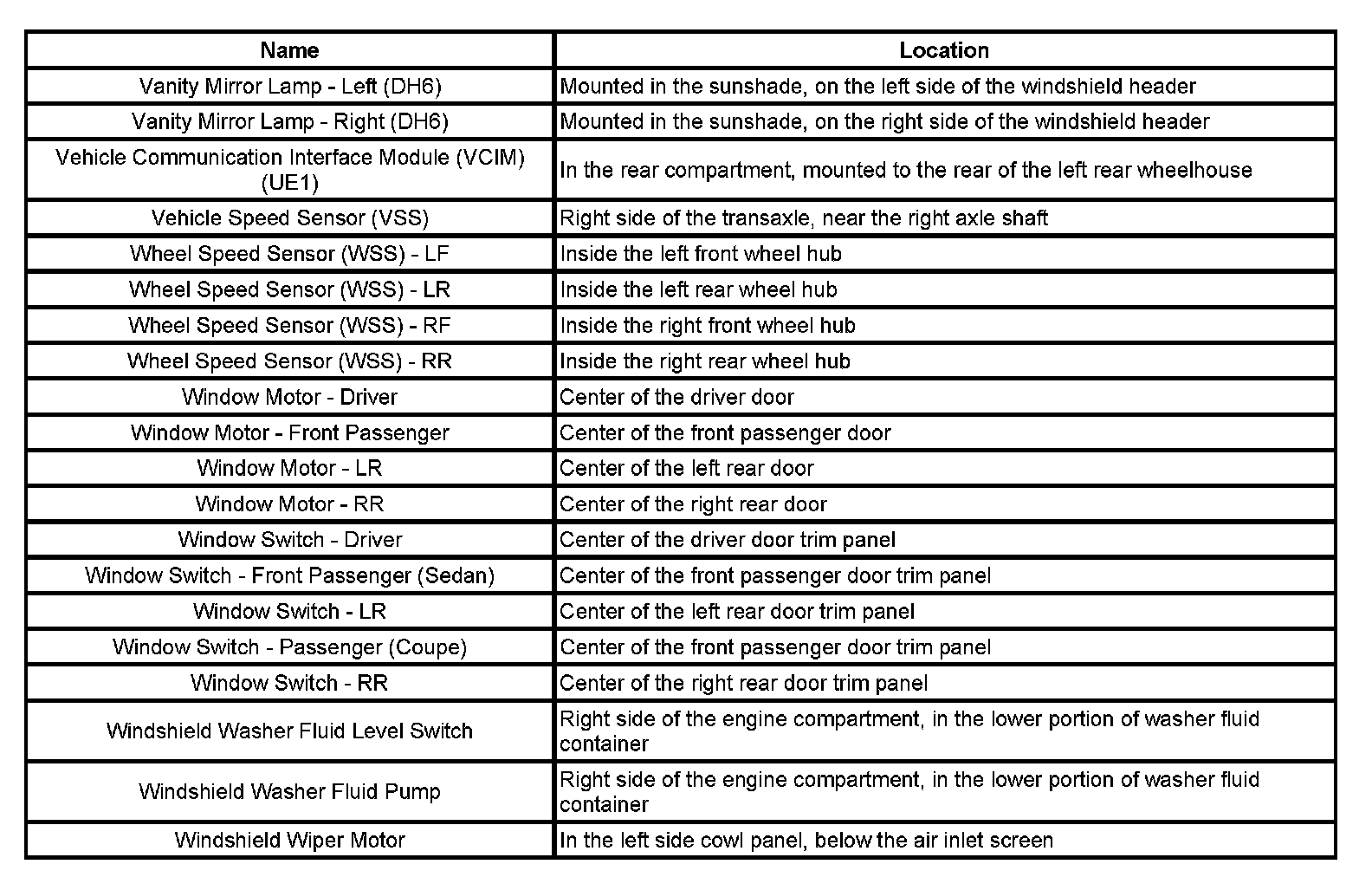

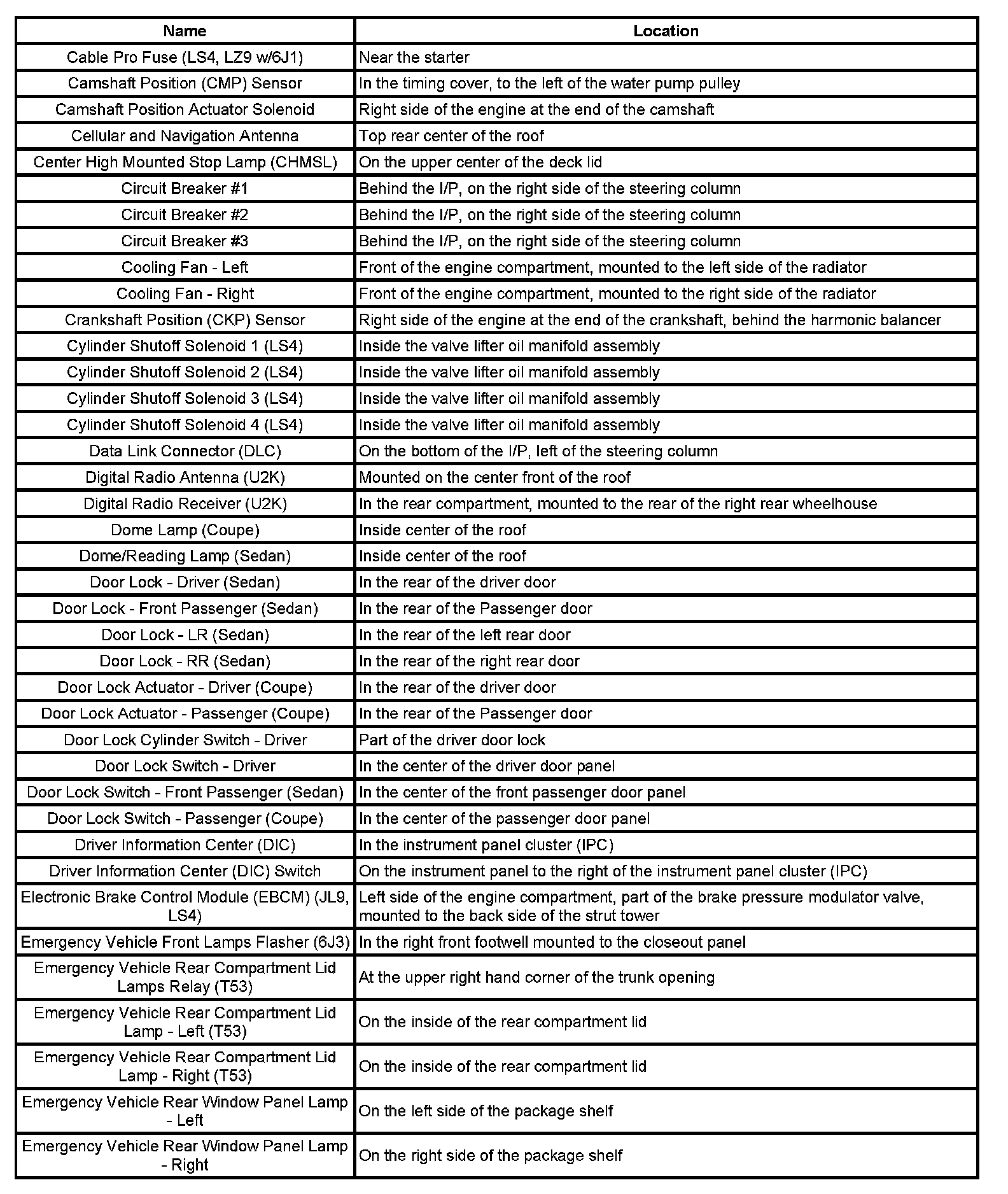

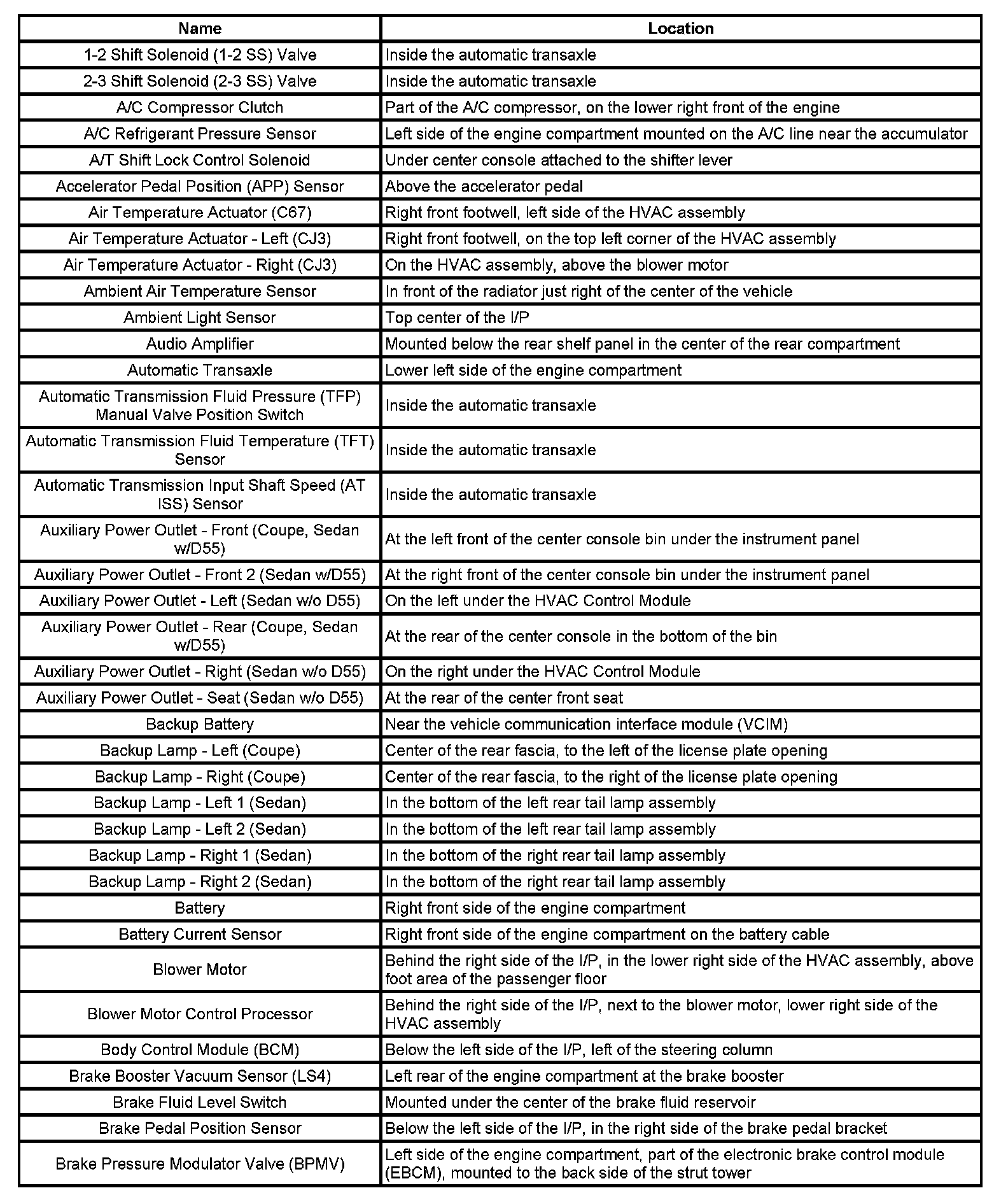

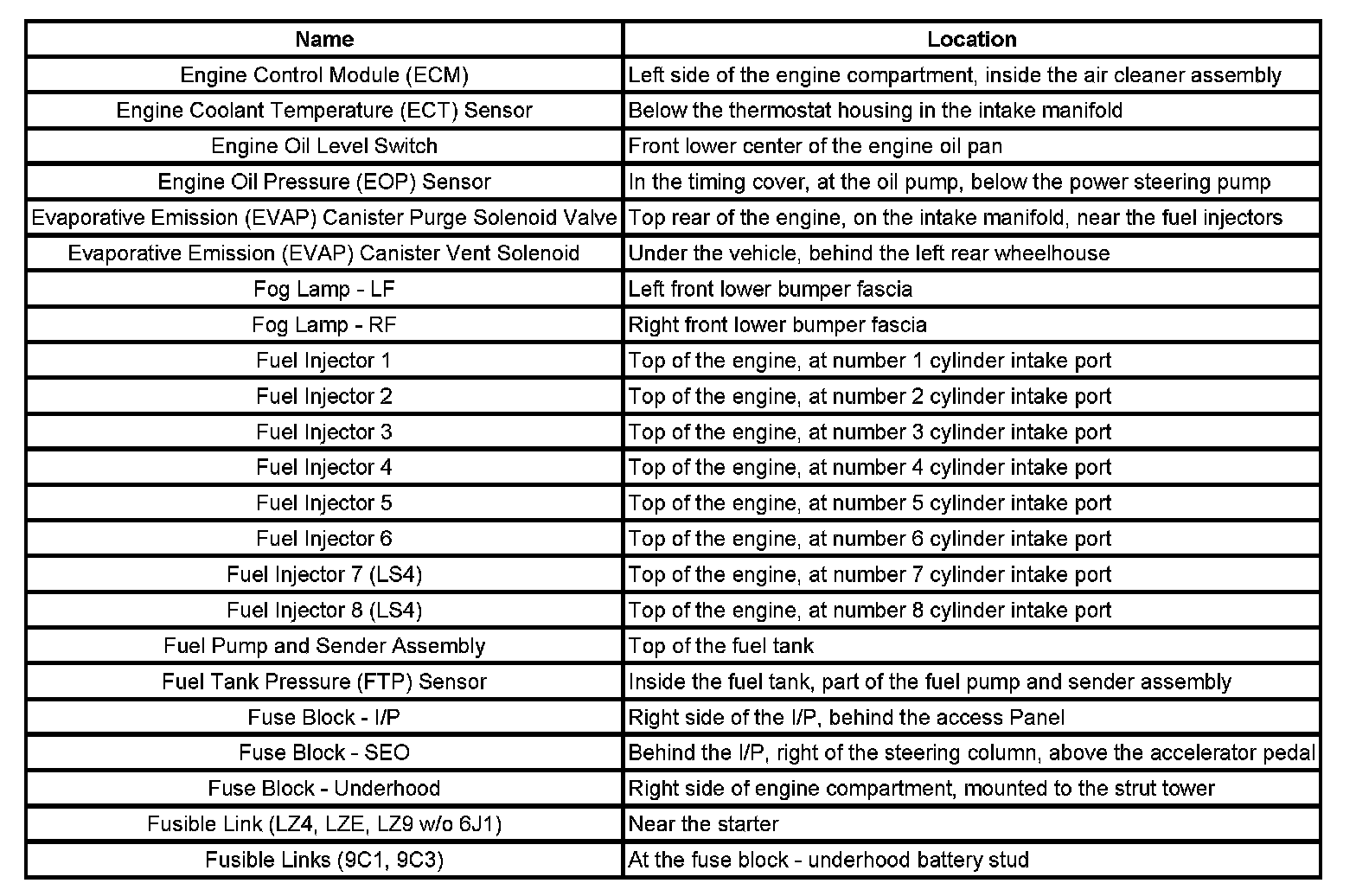

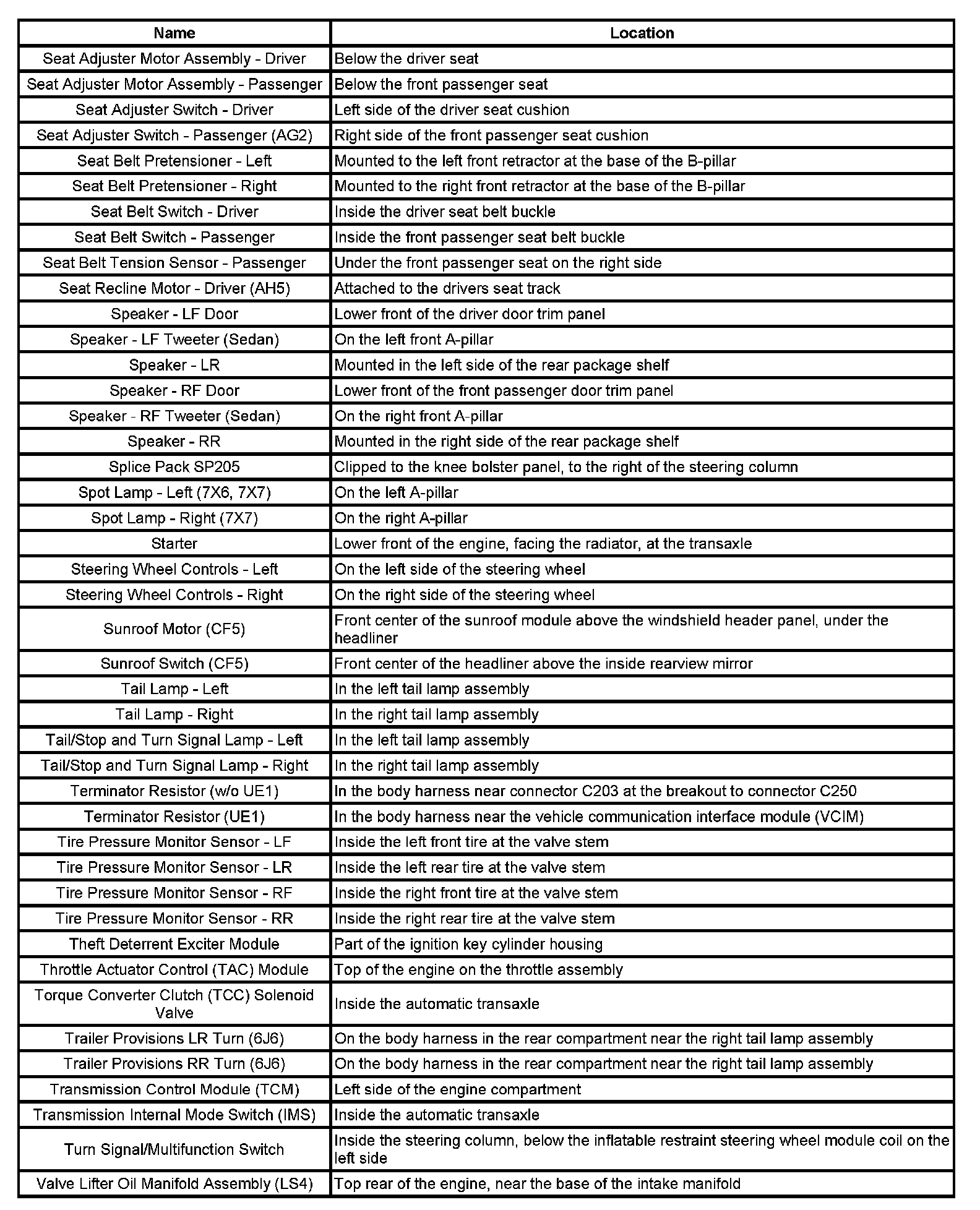

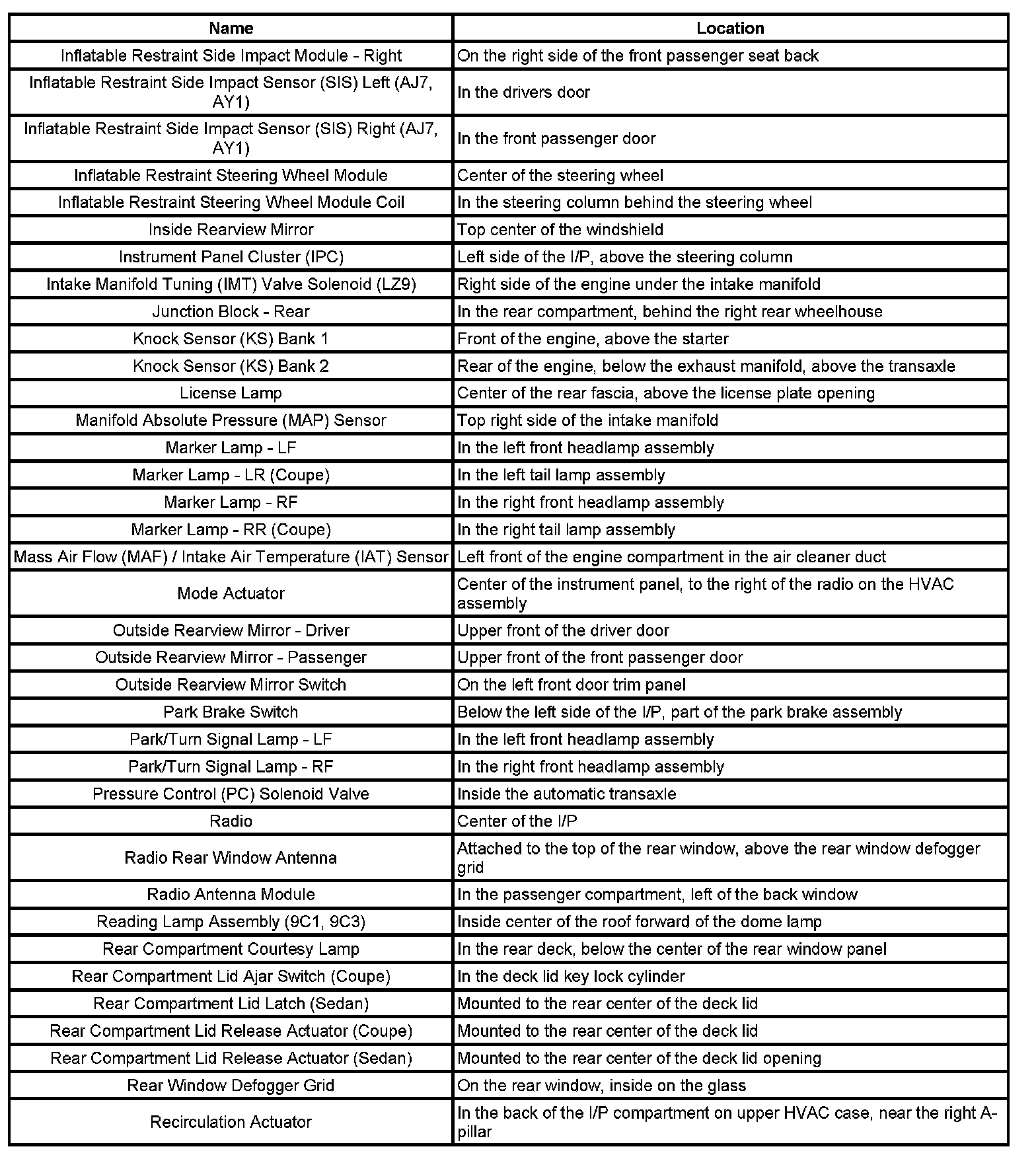

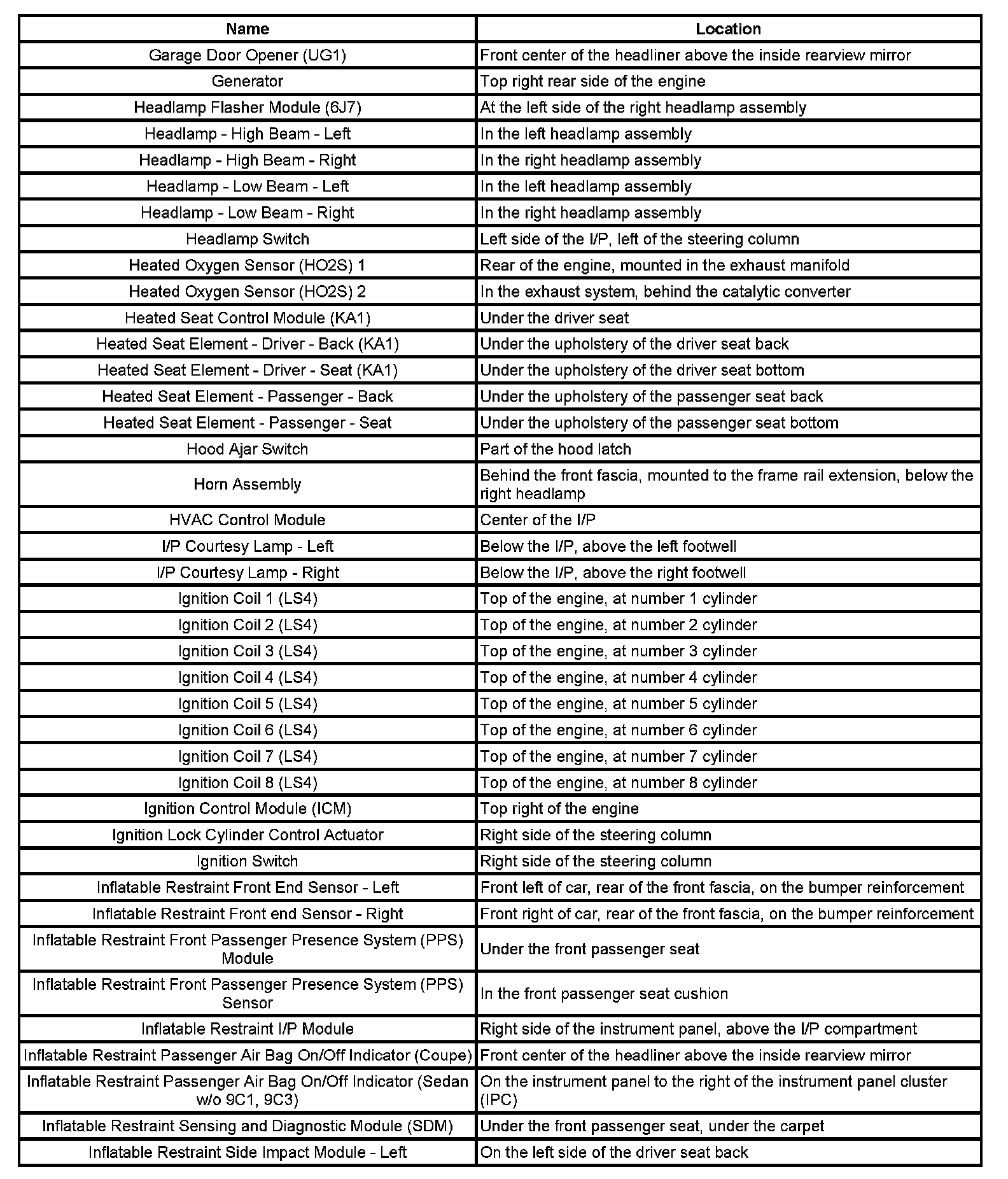

Components
1-2 Sh - Br:
Ca - Em:
En - Fu:
Ga - In:
In - Re:
Re - Ro:
Se - Va:
Va - Wi:
