Electronic Brake Control Module: Locations

ABS Component Views

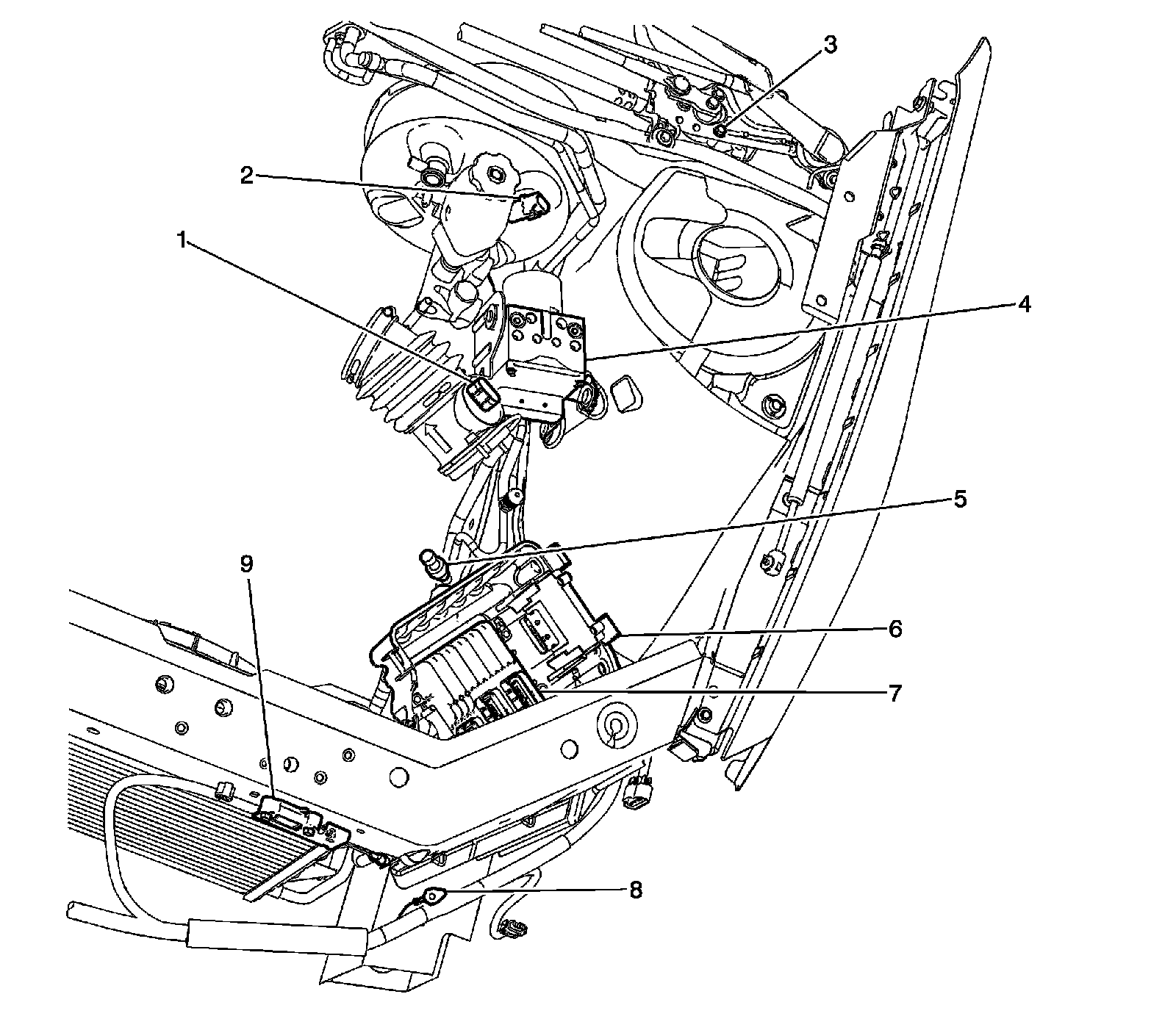

LF of the Engine Compartment:

1 - Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
2 - Brake Fluid Level Switch
3 - Windshield Wiper Motor
4 - Electronic Brake Control Module (EBCM)
5 - A/C Refrigerant Pressure Sensor
6 - Transmission Control Module (TCM)
7 - Engine Control Module (ECM)
8 - G101
9 - Inflatable Restraint Front end Sensor - Left
