Intake Manifold

FASTENER TIGHTENING SPECIFICATIONS

Upper Intake Manifold Bolt/Stud 25 Nm (18 ft. lbs.)

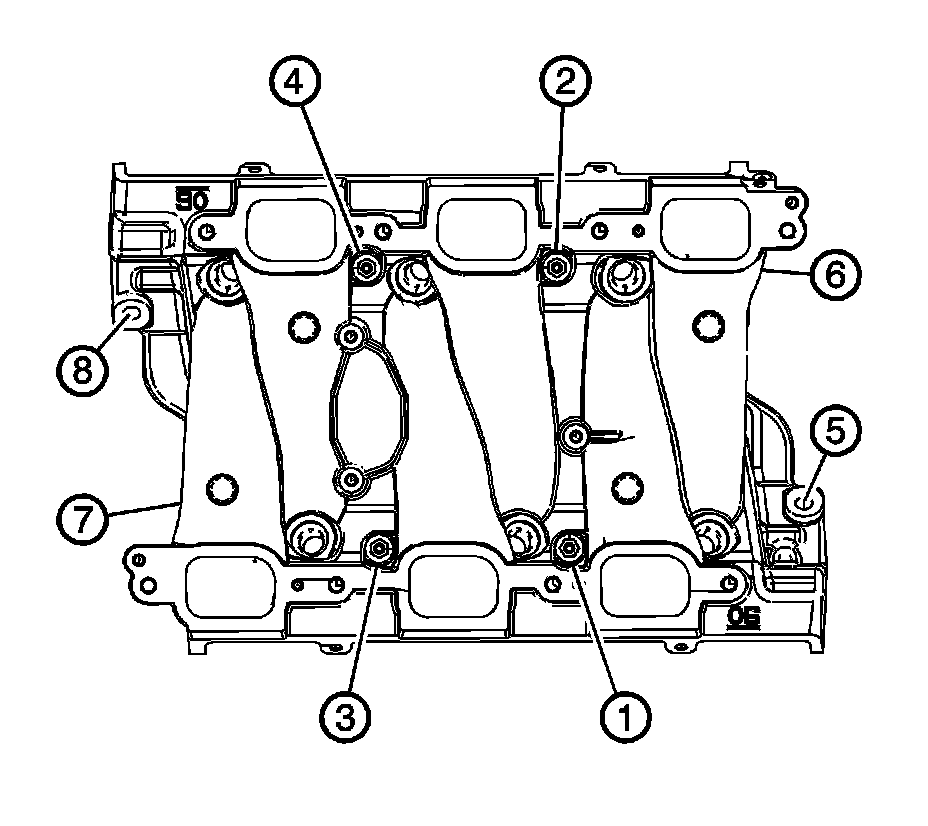

Lower Intake Manifold Bolt - Center
First Pass 7 Nm (62 in. lbs.)
Final Pass 16 Nm (12 ft. lbs.)

Lower Intake Manifold Bolt - Corner
First Pass 7 Nm (62 inch lbs.)
Final Pass 25 Nm (18 ft. lbs.)

Throttle Body Bolt/Nut 10 Nm (89 inch lbs.)
Throttle Body Stud 6 Nm (53 inch lbs.)
