Inflatable Restraint Sensing and Diagnostic Module (Without RPO Code AY1)

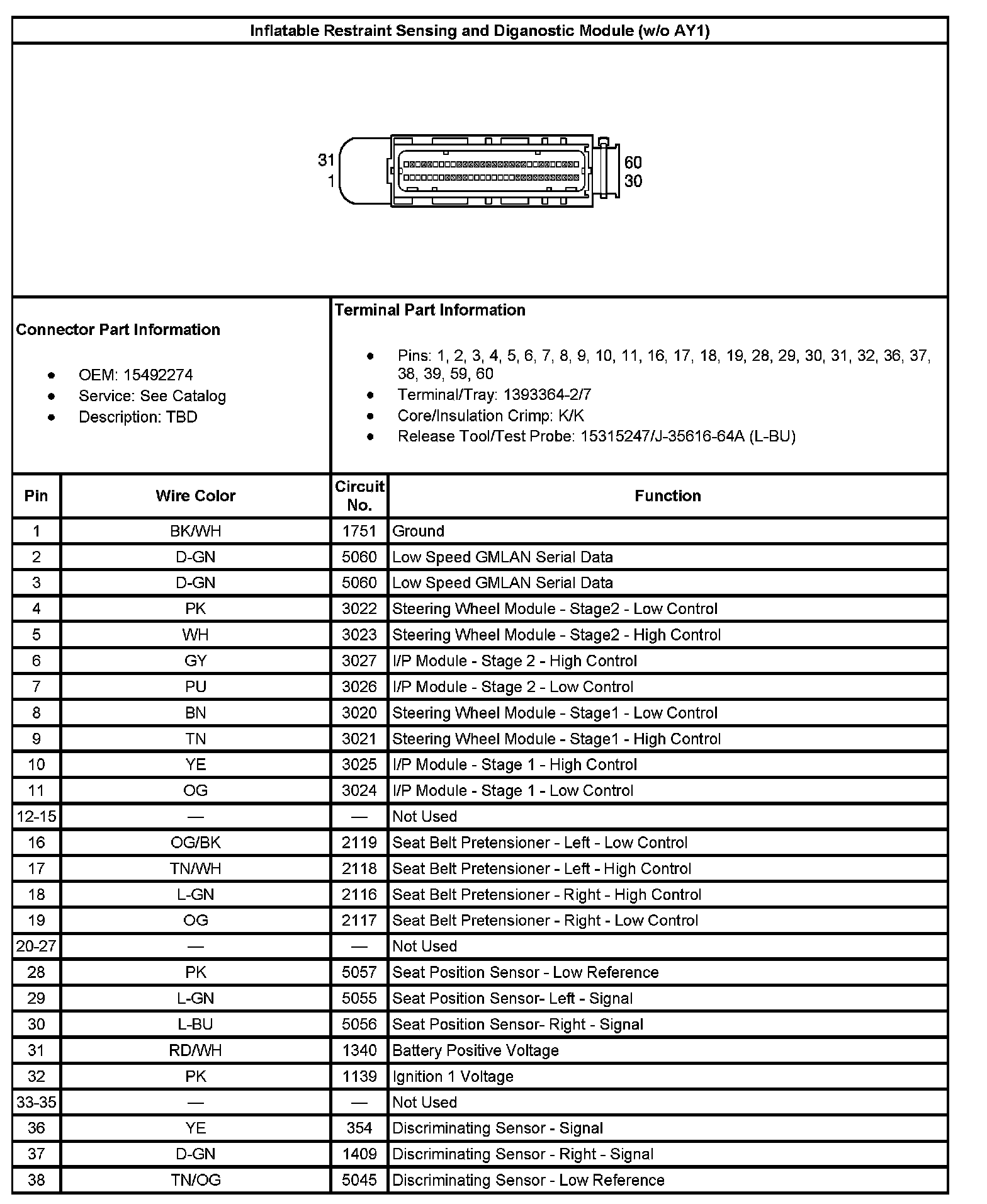

Inflatable Restraint Sensing and Diagnostic Module (Without RPO Code AY1) (Part 1):



Inflatable Restraint Sensing And Diagnostic Module (Without RPO Code AY1) (Part 2):
