Engine Controls Schematics

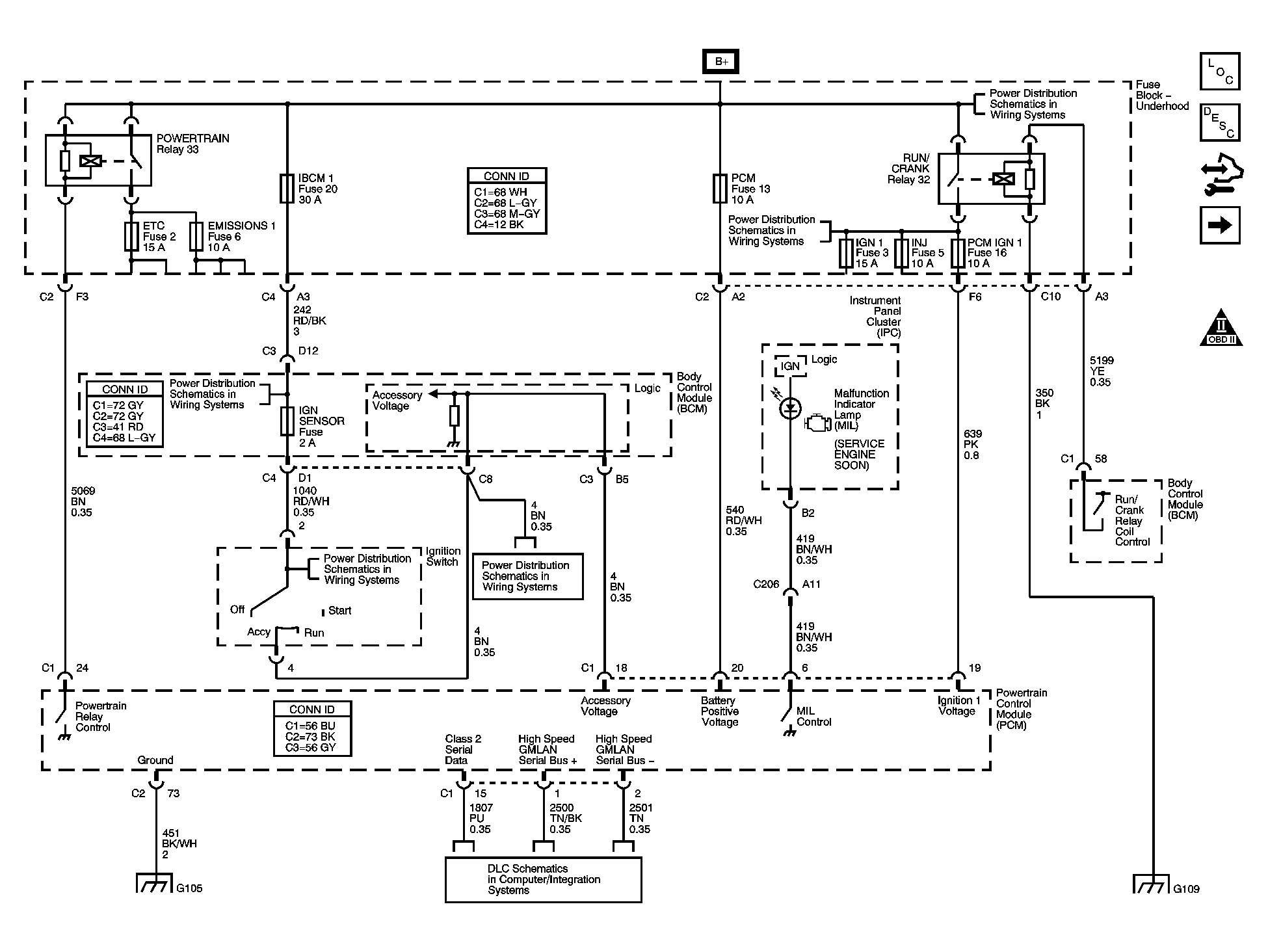

Fig 1: Power, Ground, Serial Data, And MIL

Courtesy of GENERAL MOTORS CORP.

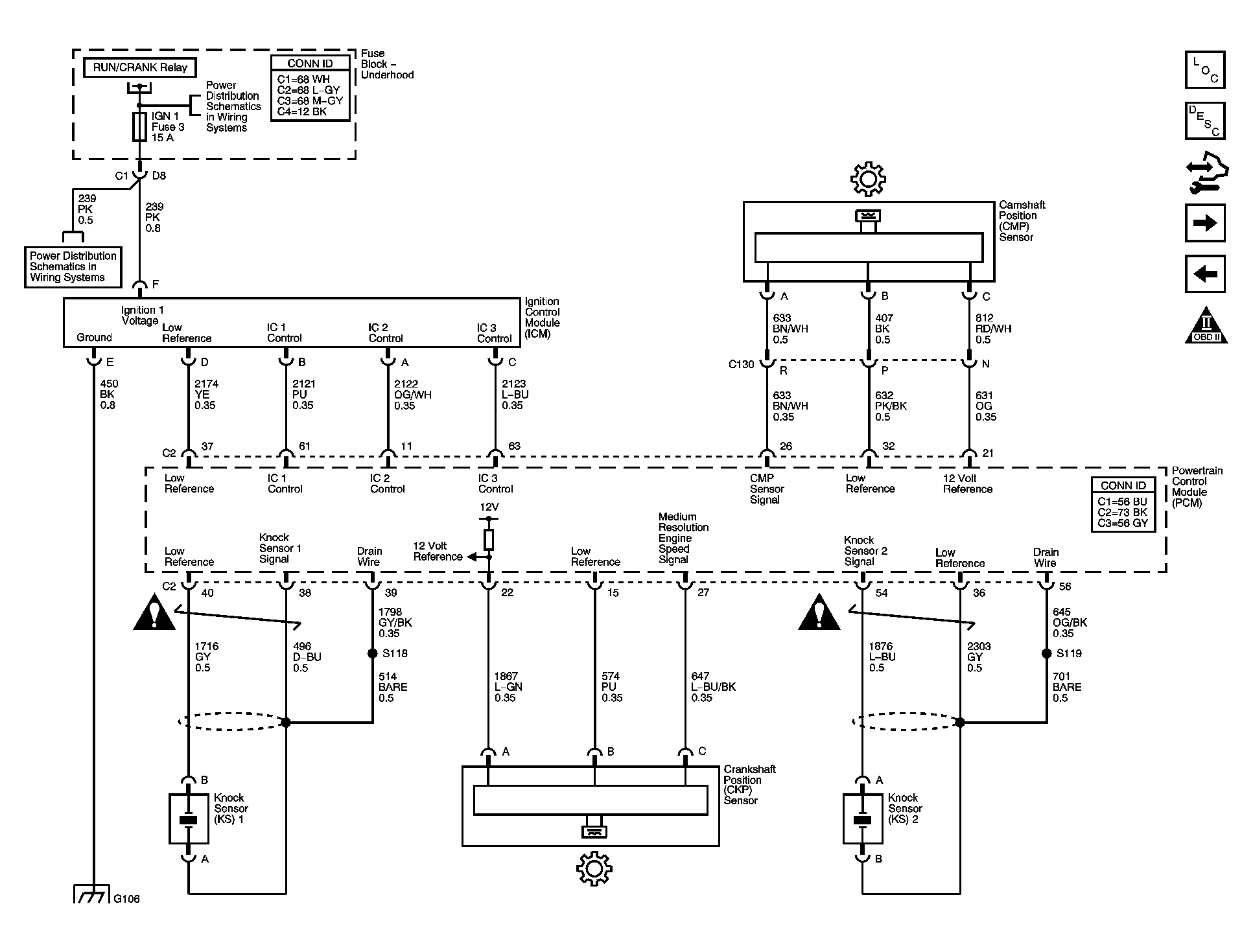

Fig 2: Engine Data Sensors - 5-Volt And Low Reference

Courtesy of GENERAL MOTORS CORP.

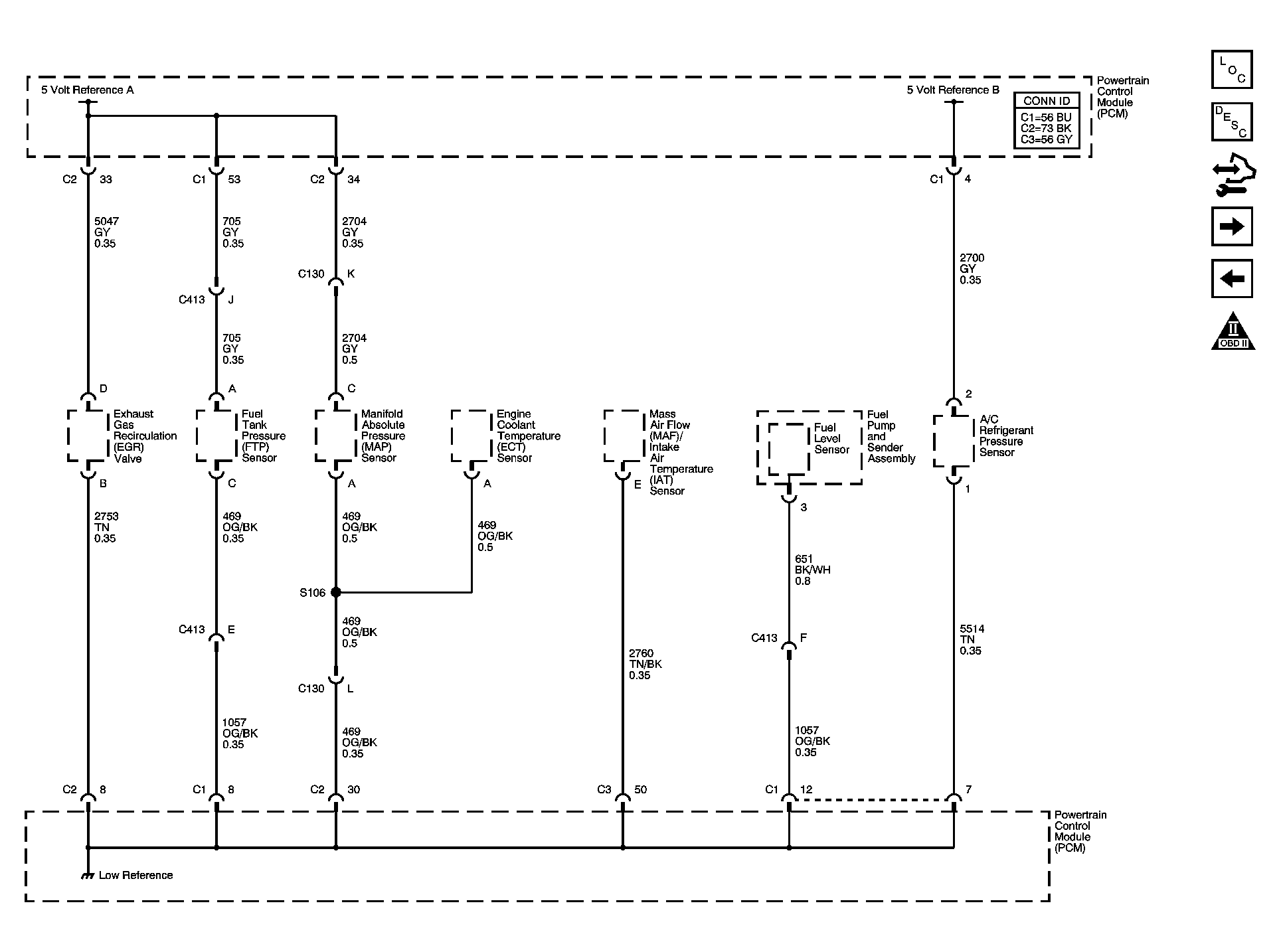

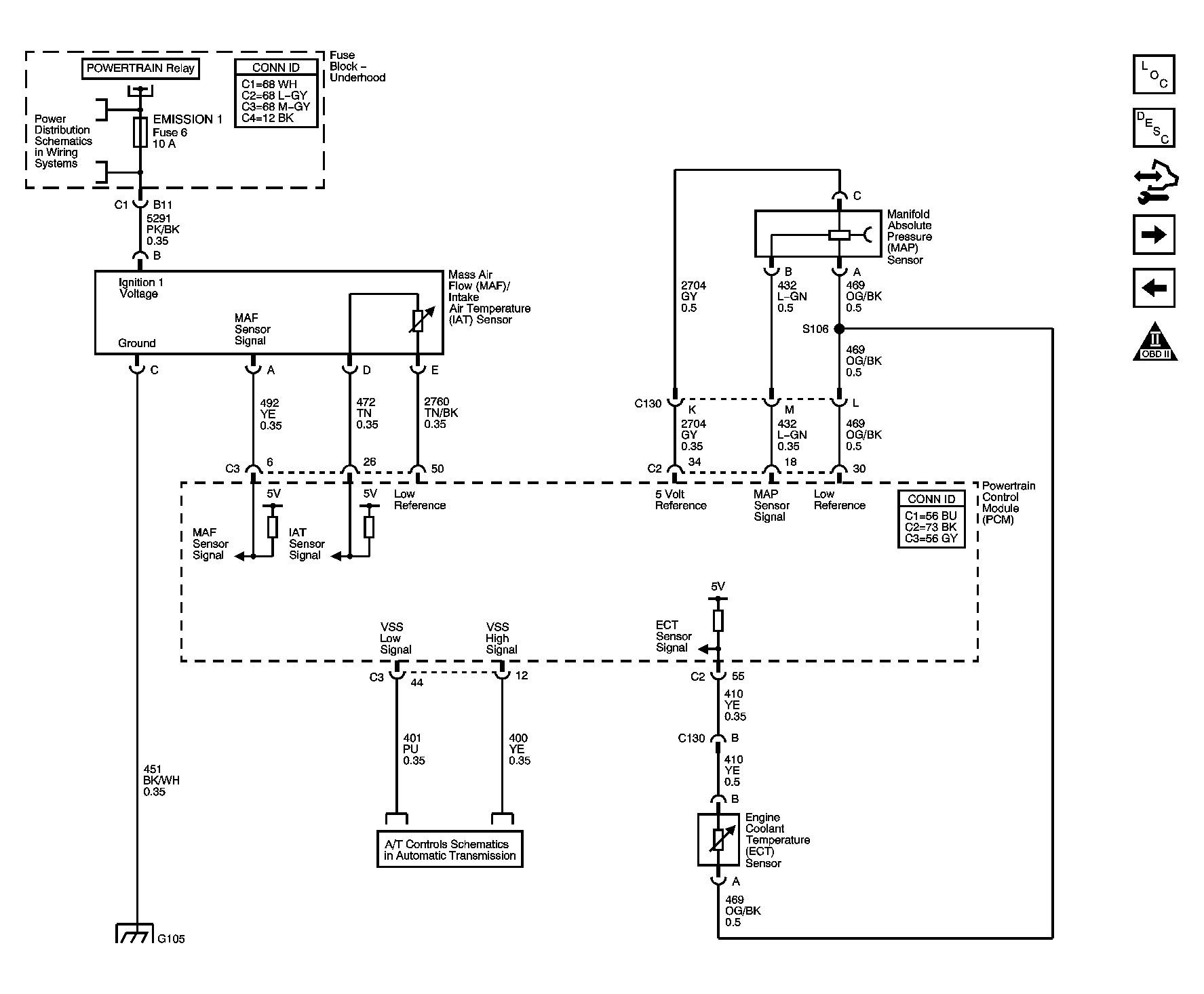

Fig 3: Engine Data Sensors - Pressure And Temperature

Courtesy of GENERAL MOTORS CORP.

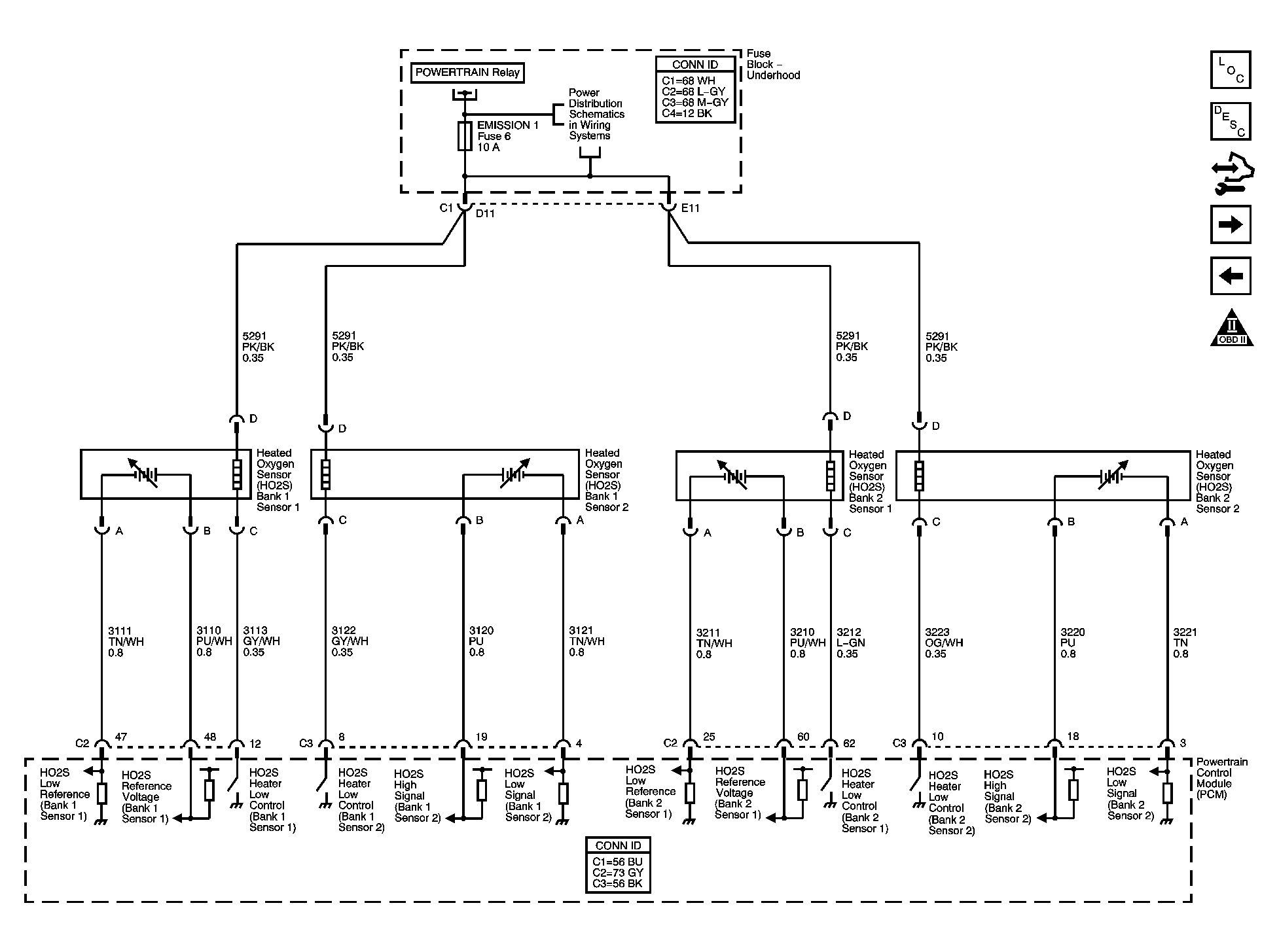

Fig 4: Engine Data Sensors - Heated Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

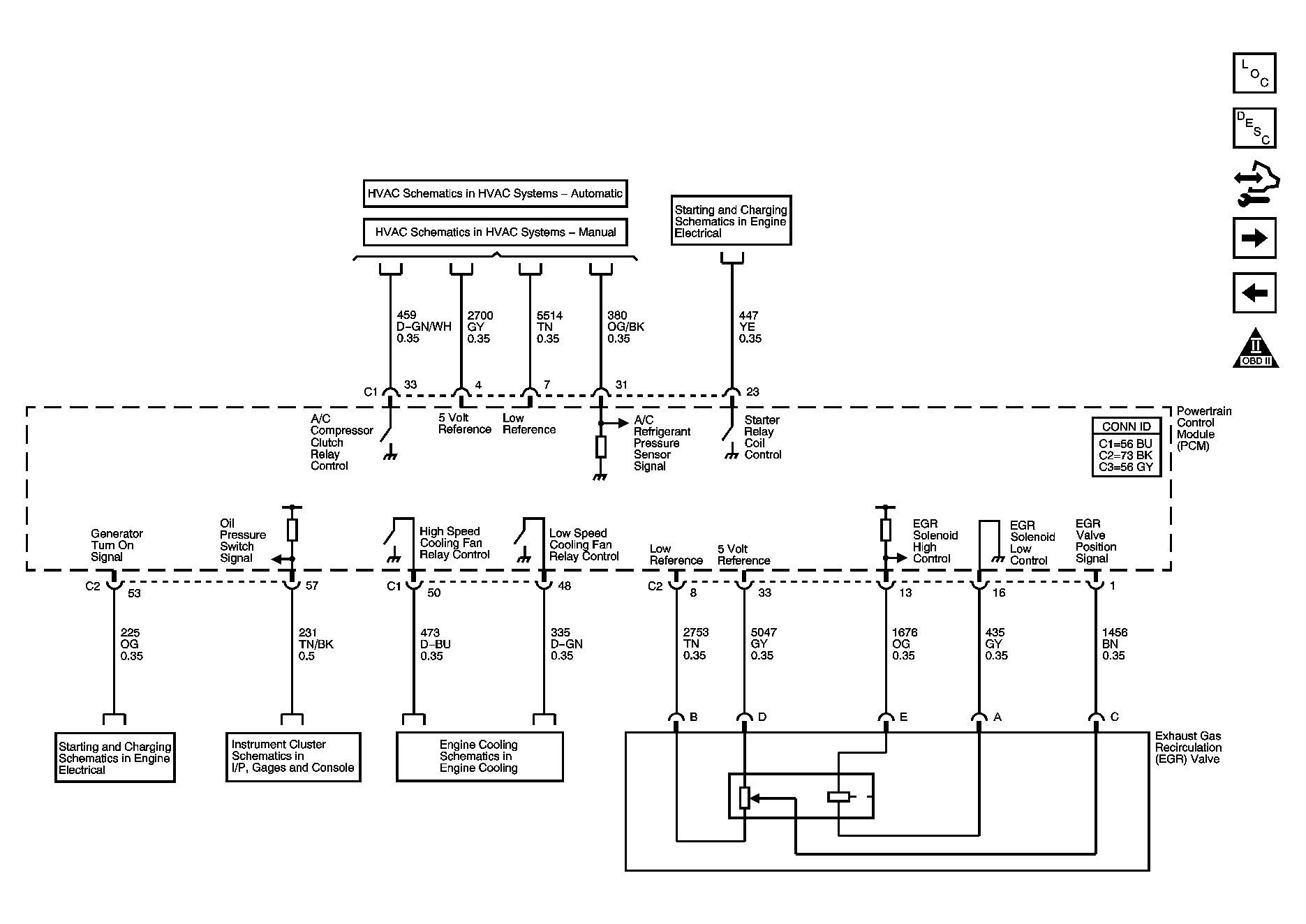

Fig 5: Engine Data Sensors - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls - Ignition System

Courtesy of GENERAL MOTORS CORP.

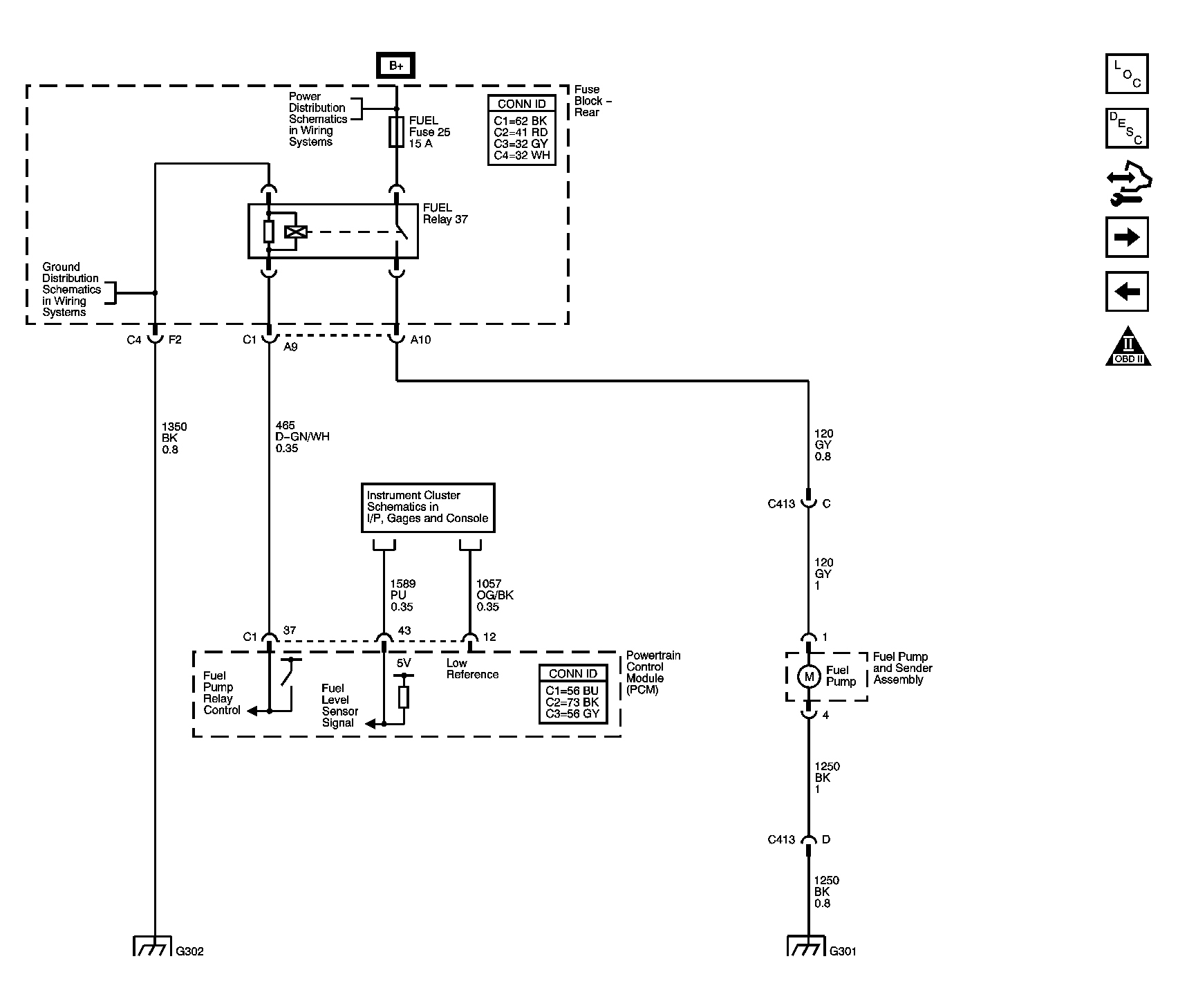

Fig 7: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

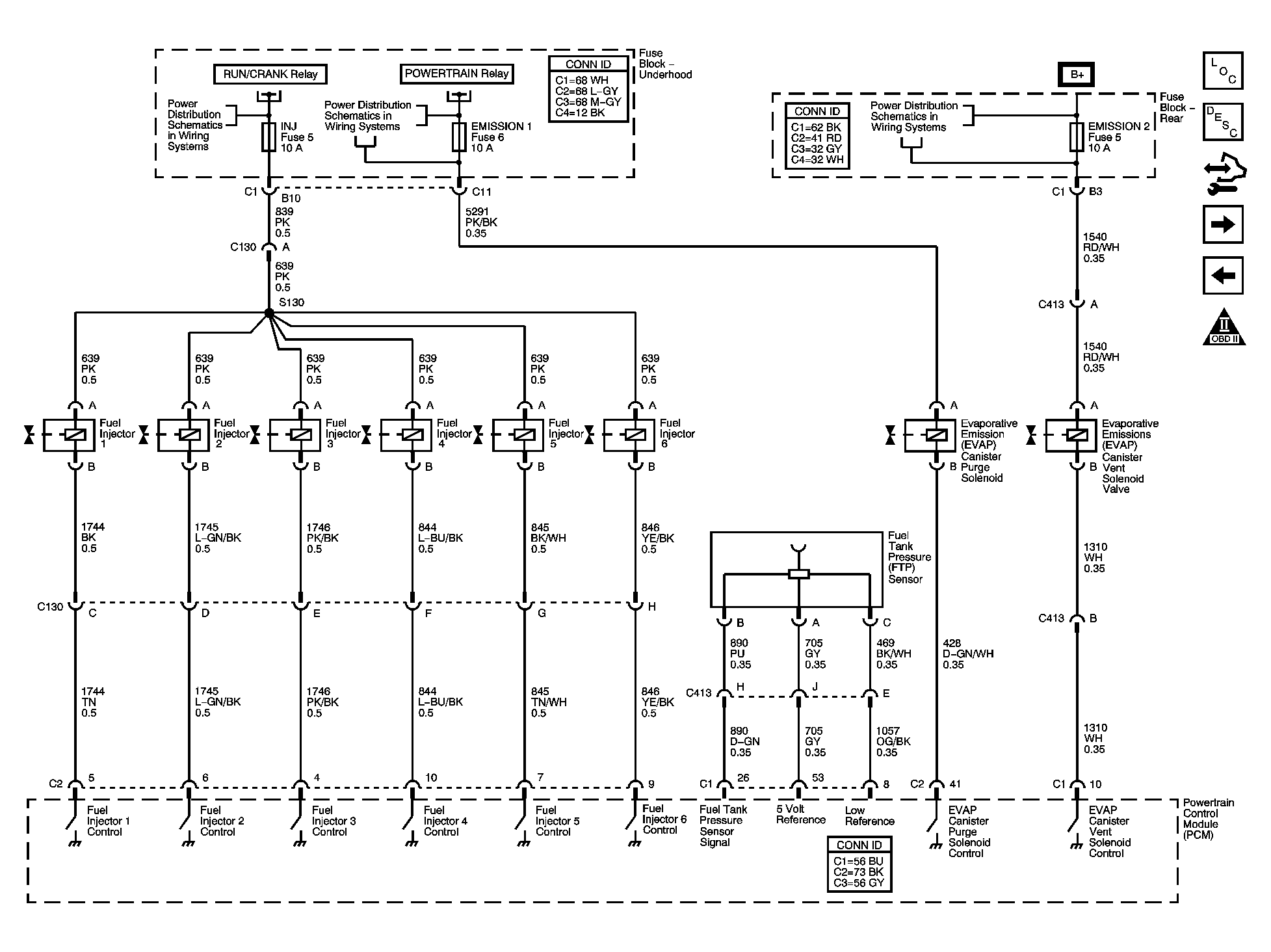

Fig 8: Fuel Controls - Fuel Injectors and EVAP

Courtesy of GENERAL MOTORS CORP.

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

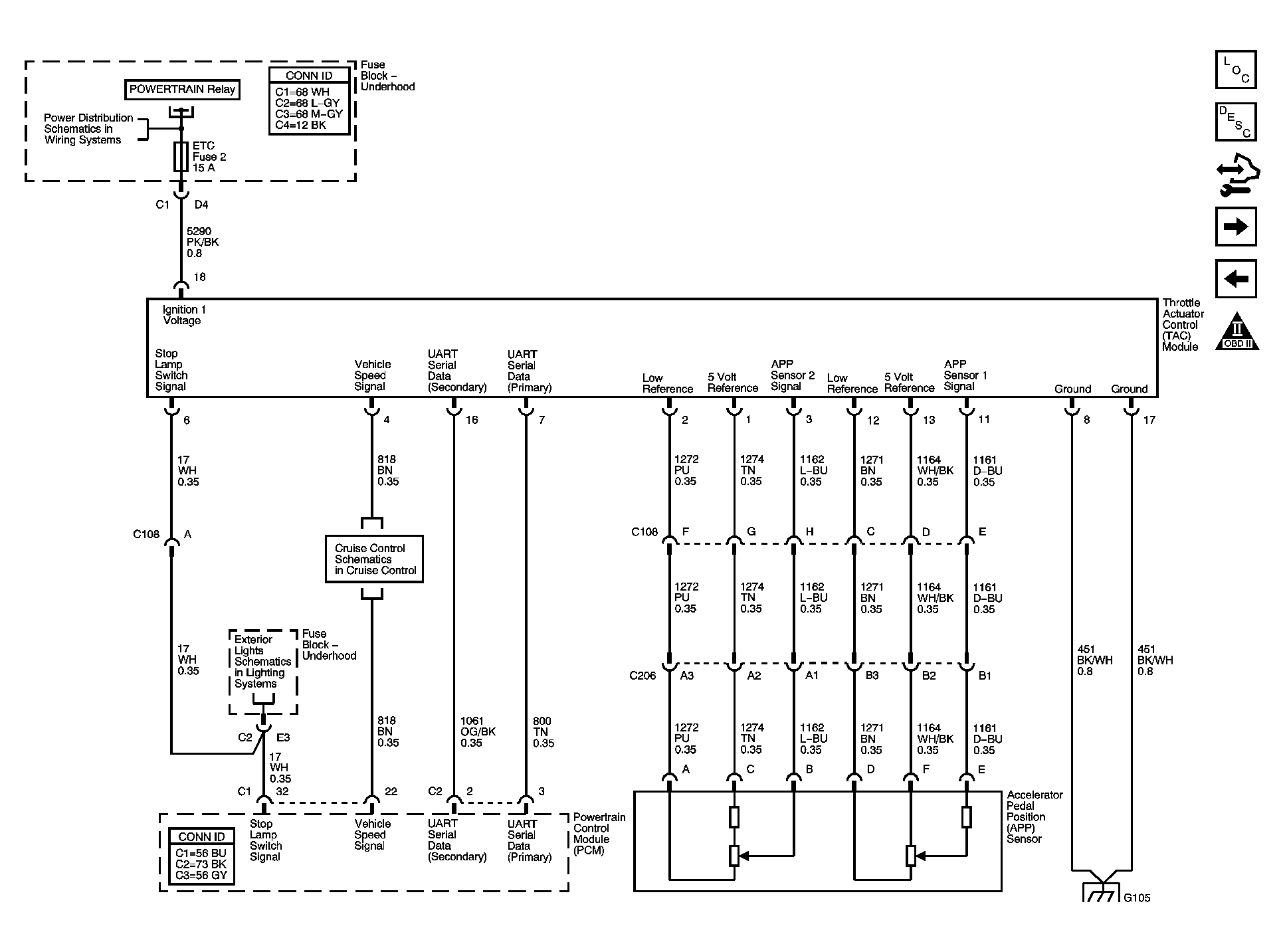

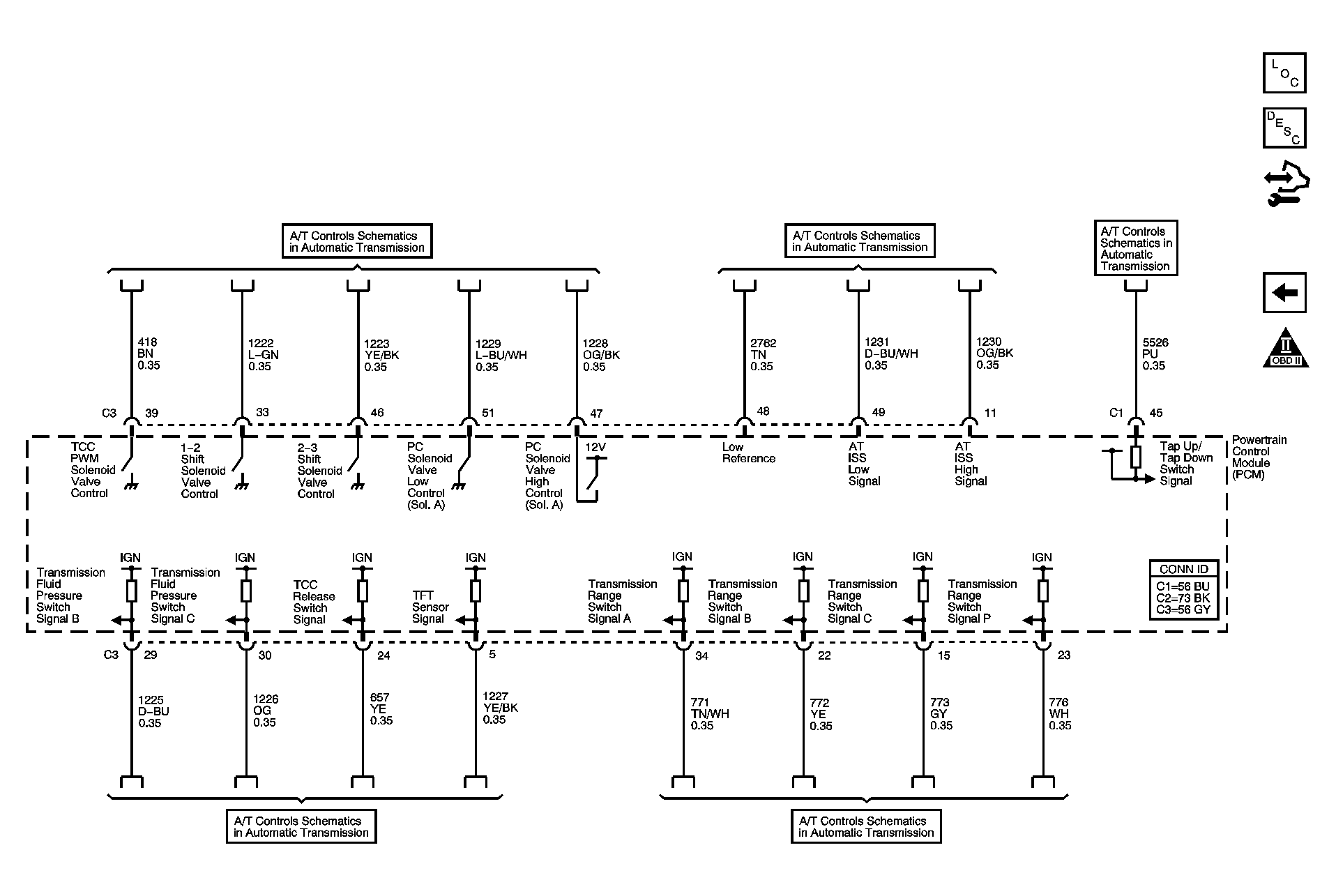

Fig 10: Transmission Control References

Courtesy of GENERAL MOTORS CORP.
