Fuse Block: Locations




Electrical Center Identification Views

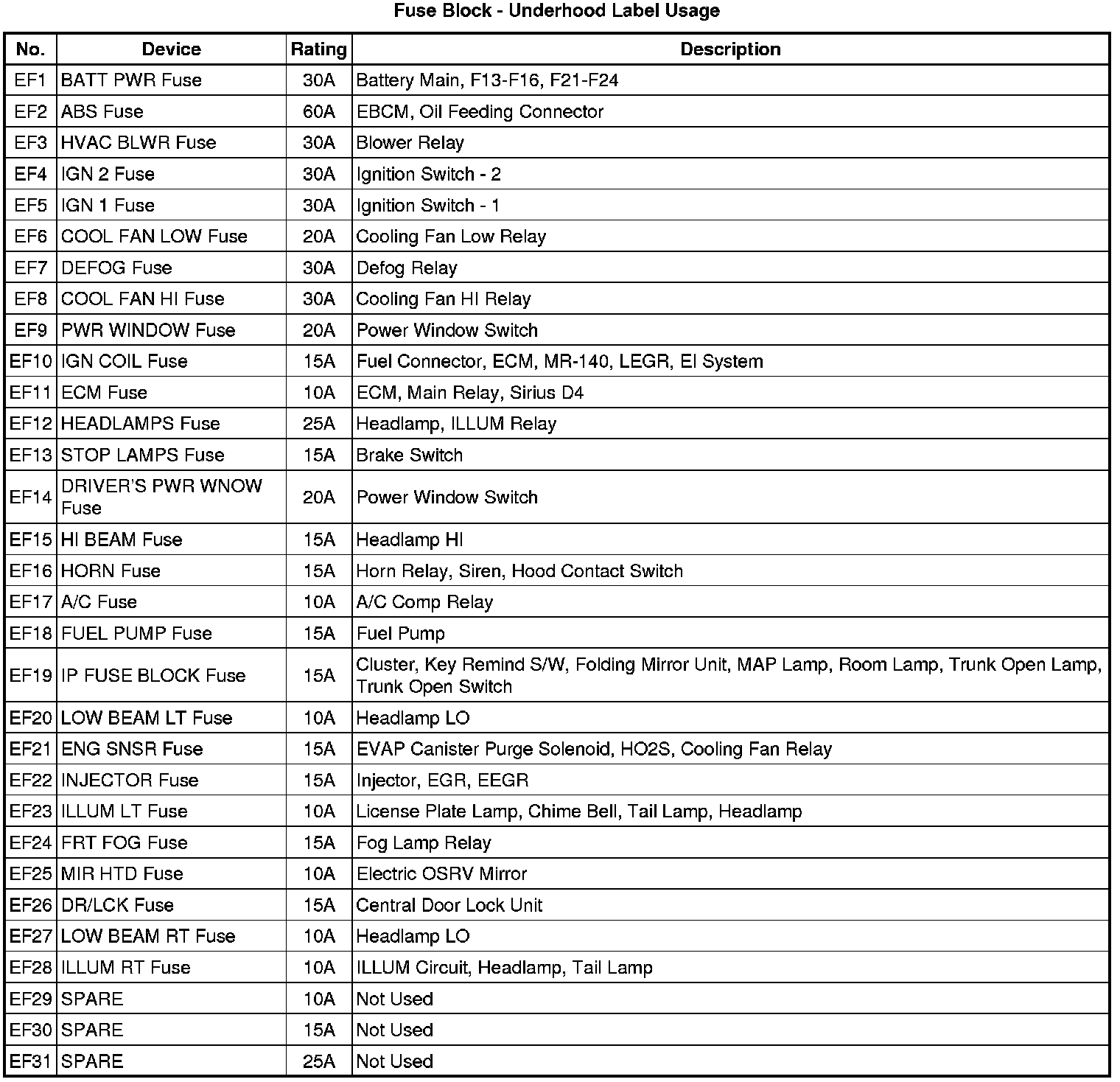

Fuse Block - Underhood Label

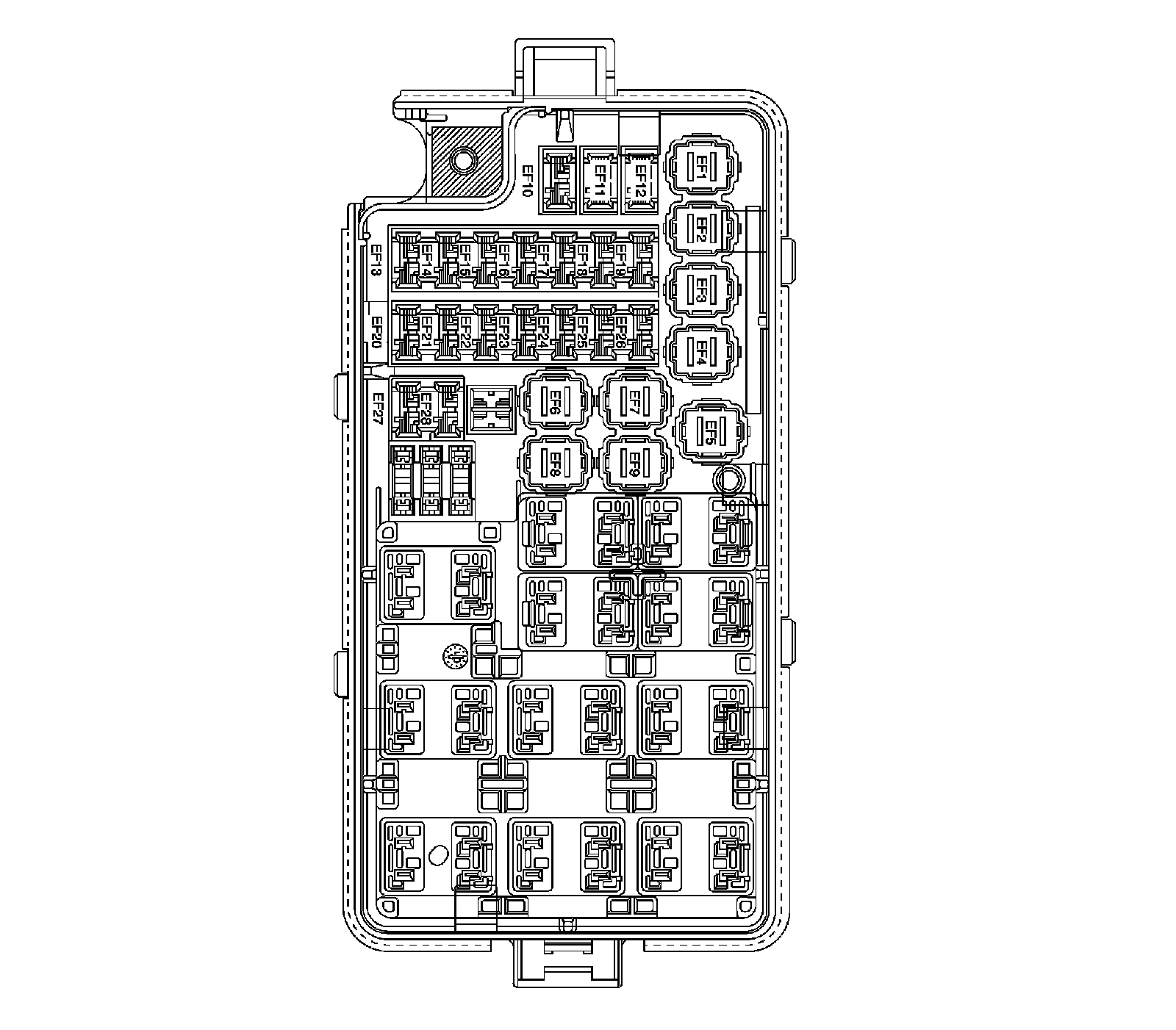

Fuse Block Underhood - Top View

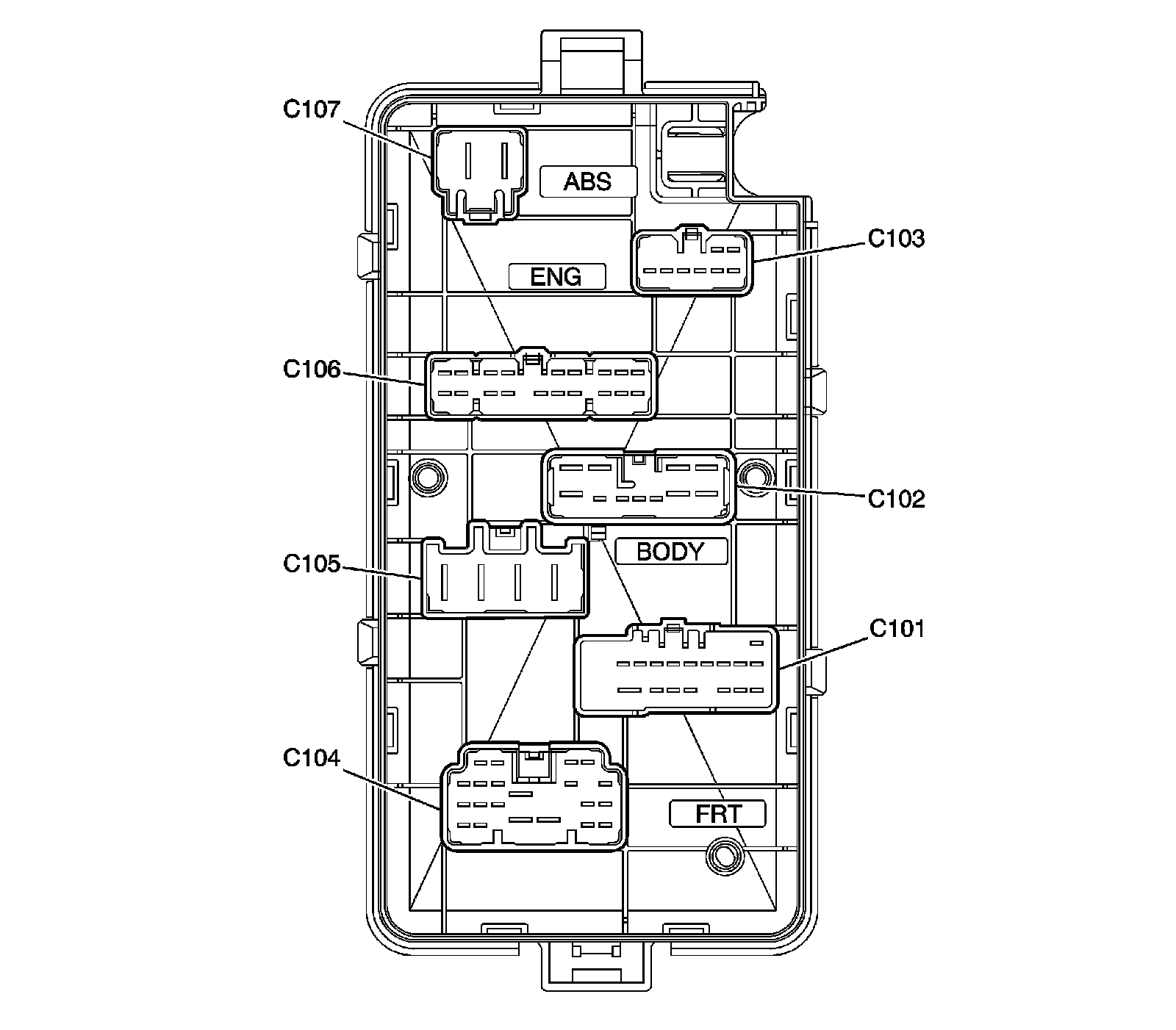

Fuse Block Underhood - Bottom View

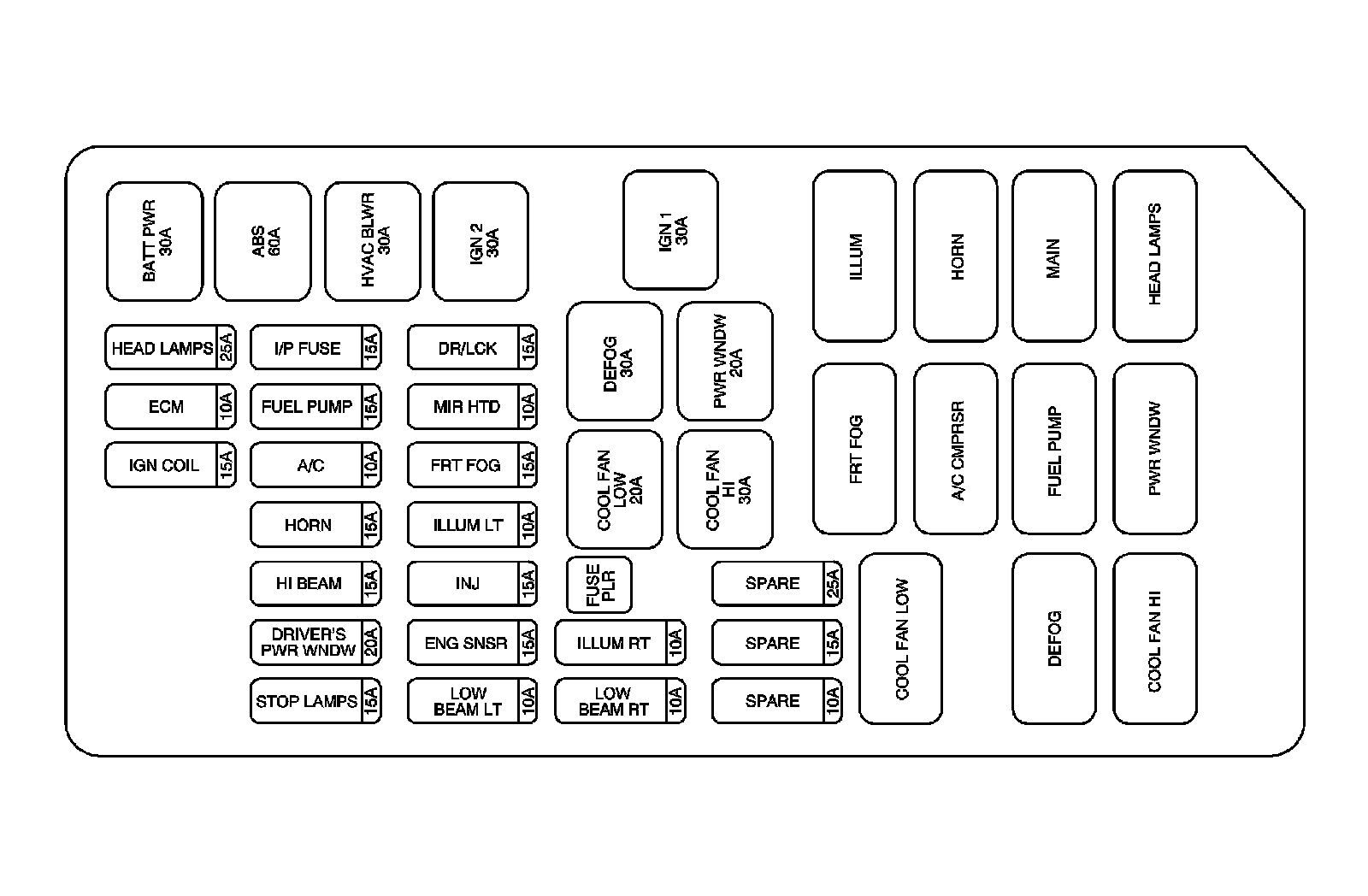

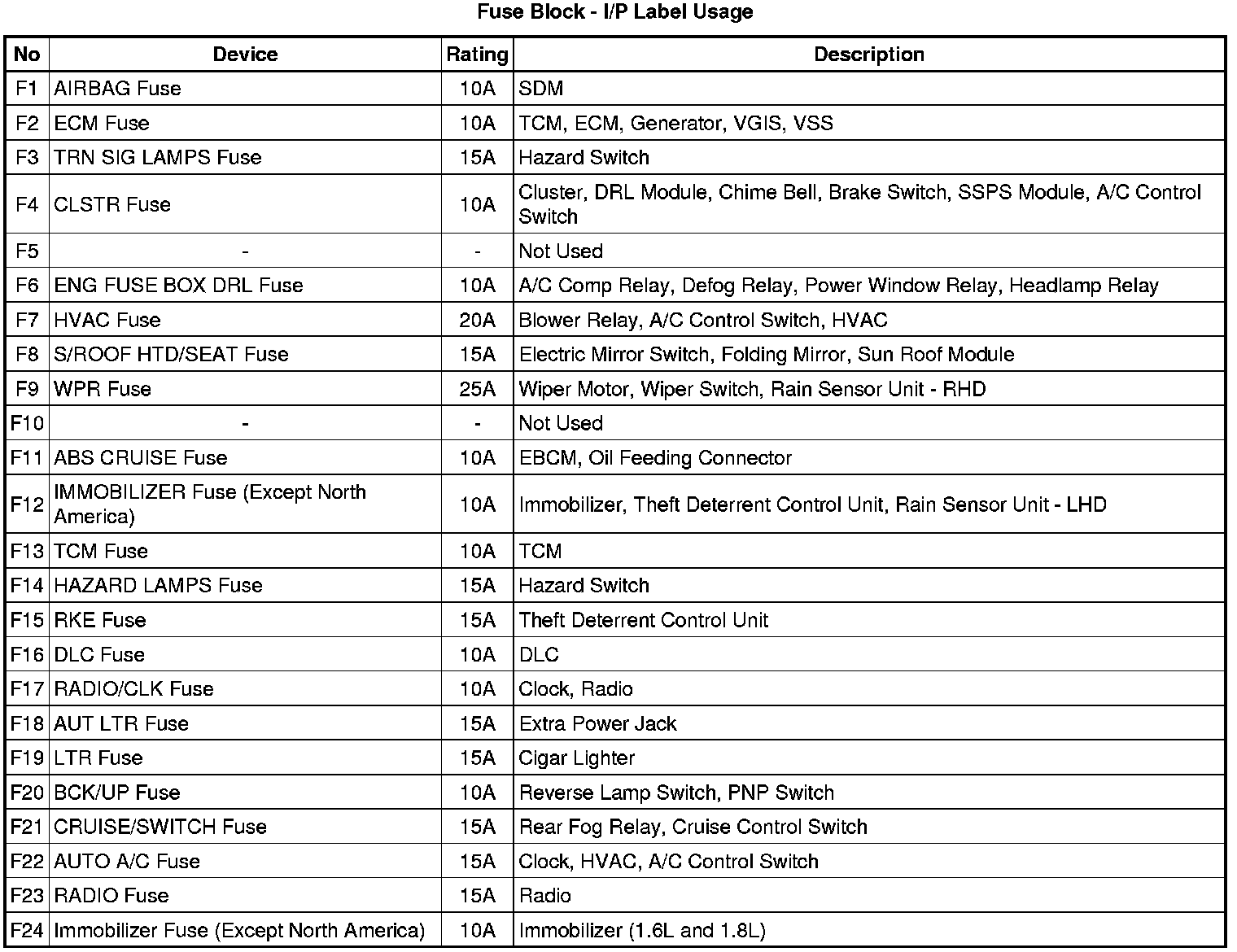

Fuse Block - I/P Label









Fuse Block I/P - Top View





Fuse Block I/P - Bottom View
