Power Window Schematics

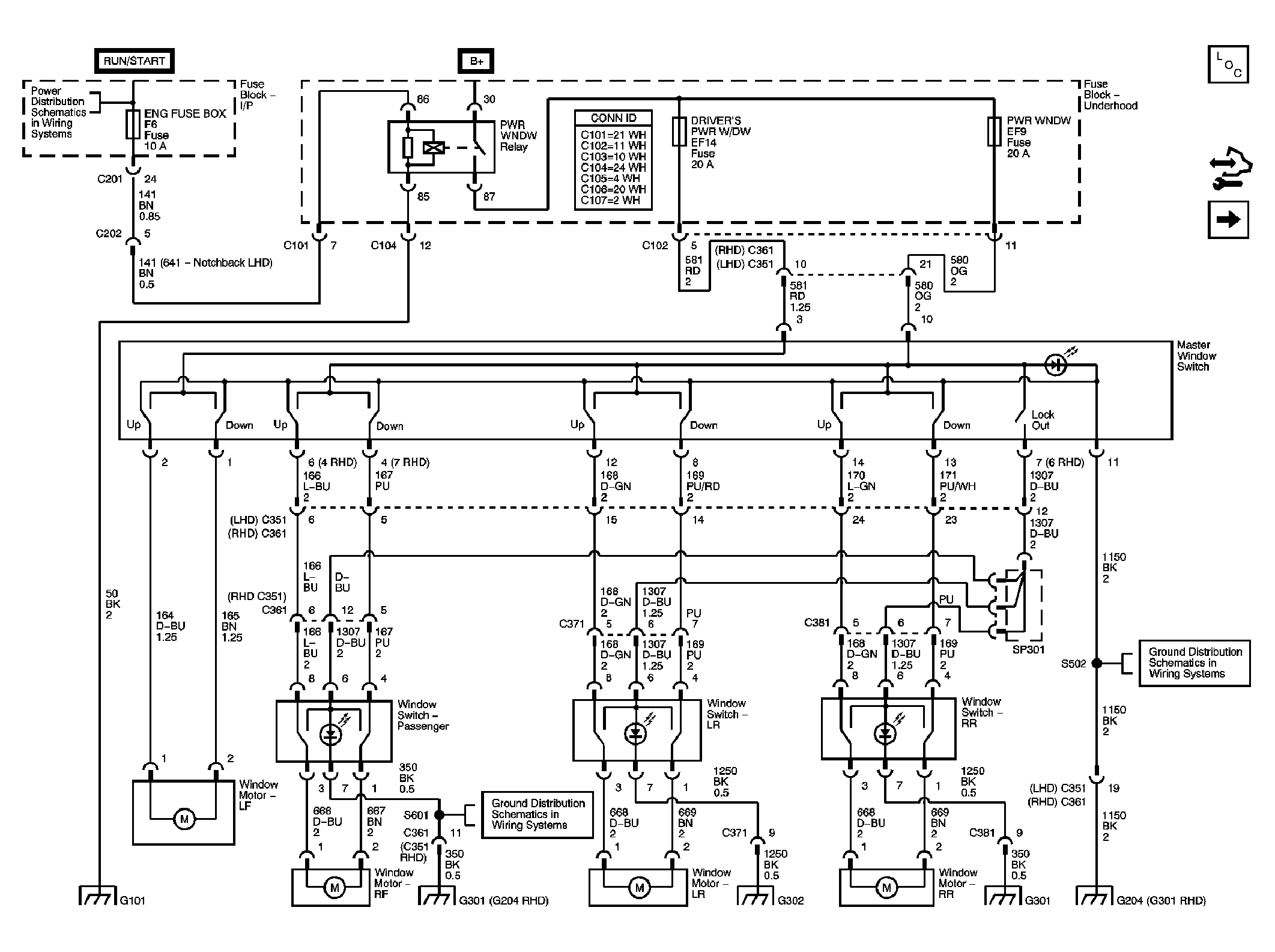

Fig 1: Front/Rear Power Windows Schematic
GM1650864Courtesy of GENERAL MOTORS CORP.
Fig 2: Passenger Power Window Schematic
GM1360860Courtesy of GENERAL MOTORS CORP.
