Cargo Lamp Replacement

WARNING: This page is about a different car, the 2007 Pontiac Torrent and 2007 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

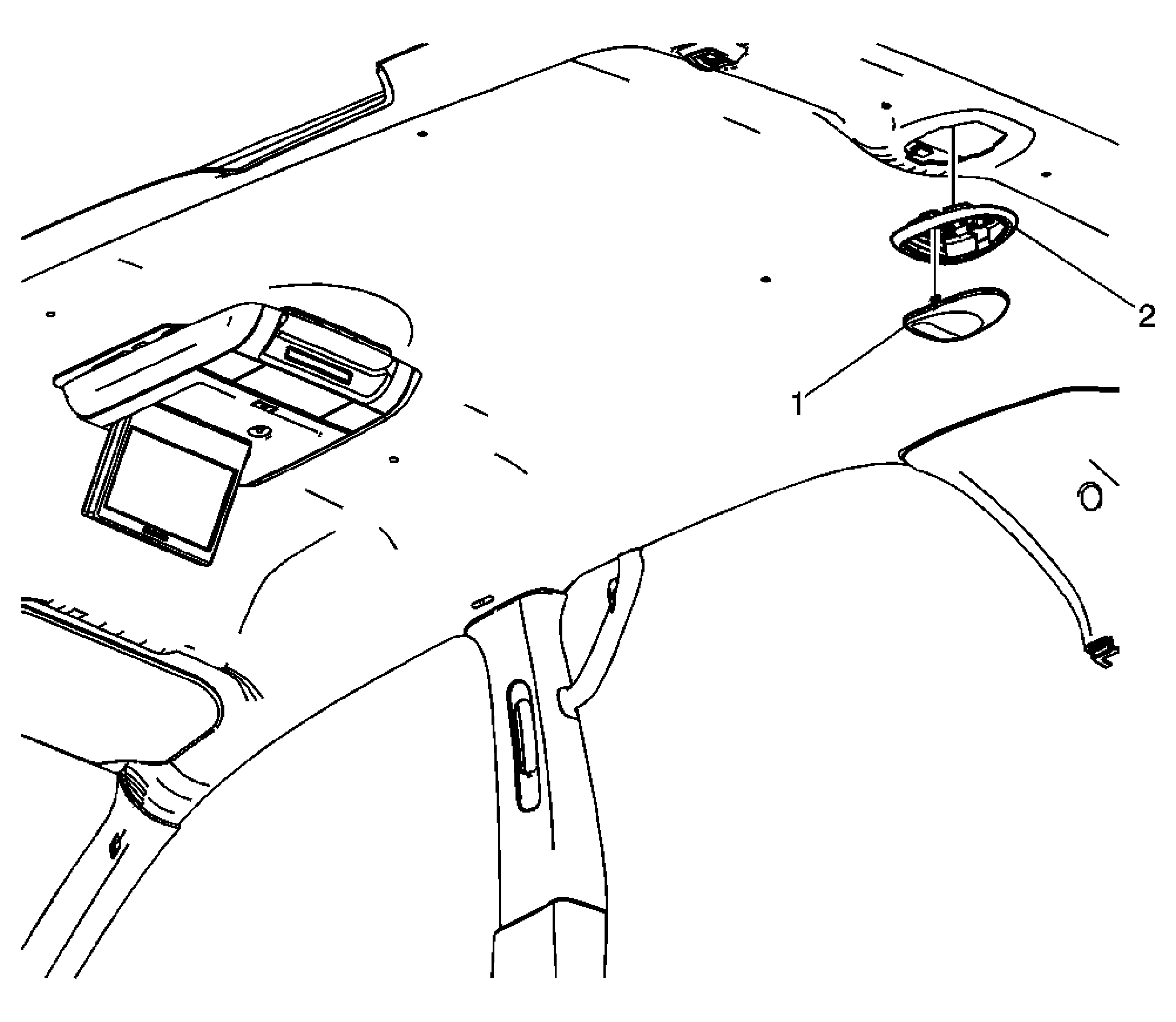

Fig 1: View Of Cargo Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cargo Lamp Lens Tip: Use a small flat bladed tool to aid in the removal of the lens.
2	Cargo Lamp Assembly Tip: Using a small flat-bladed tool, disengage the cargo lamp attaching clips by gently prying at each side of the retaining tab while pulling the tab off of the headliner. Pull the forward edge of the cargo lamp downward and rearward to disengage the lamp from the headliner. Disconnect the electrical connector.
