UNDERHOOD Fuse Block: Notes

NOTE: Underhood fuse block is located on driver's side of engine compartment, above left front wheel well. See Fig 1.

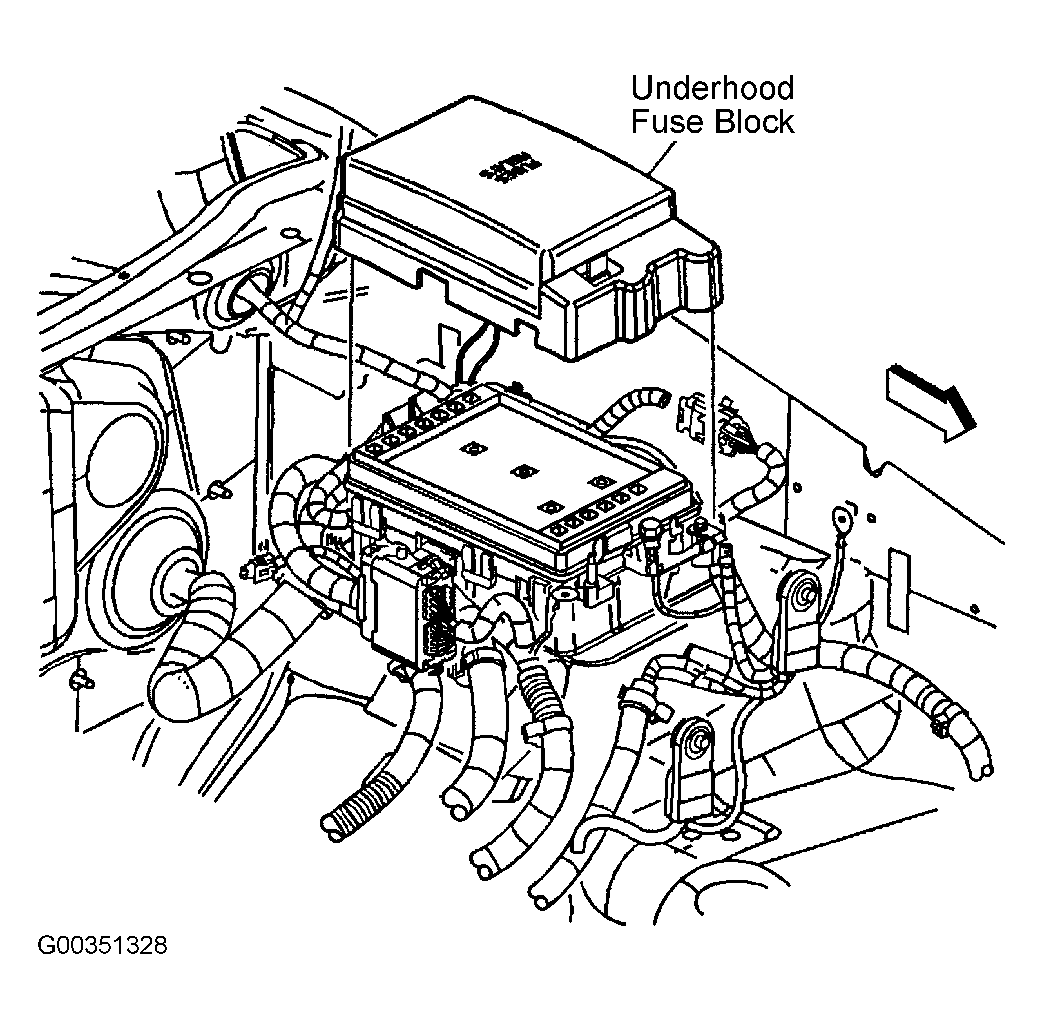

Fig 1: Locating Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.
