ACTUATOR CONTROL MODULE REPLACEMENT - PSD (WITH RPO CODE E59 LH)

REMOVAL PROCEDURE
1. Remove the left rear quarter lower trim panel.

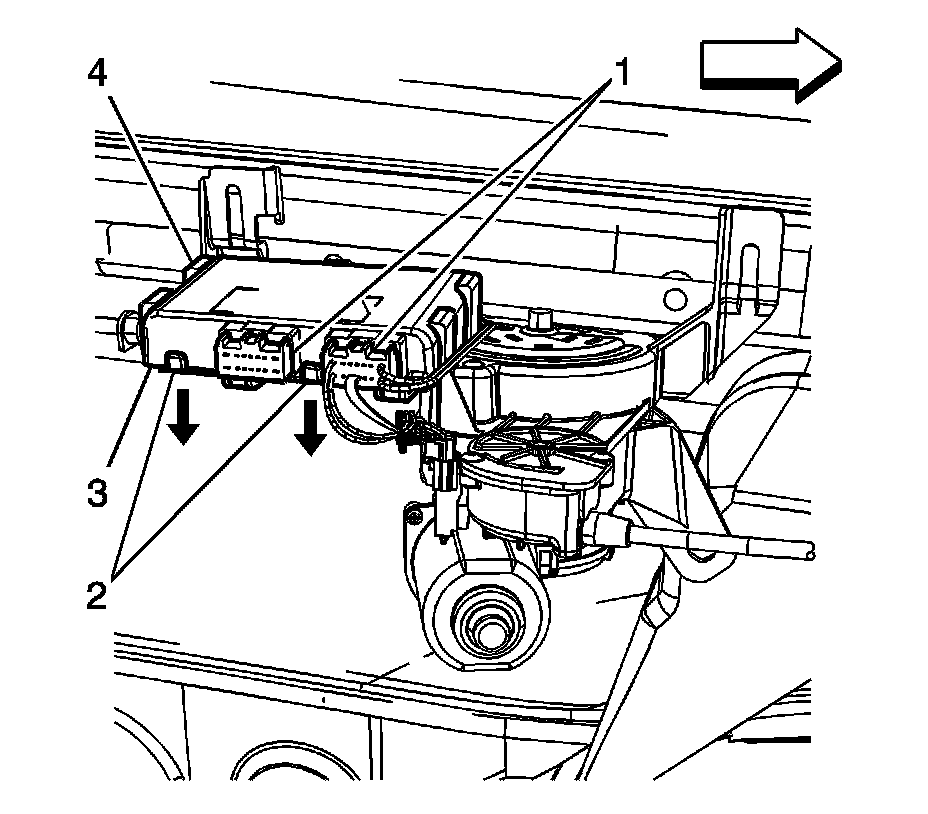

2. Disconnect the electrical connectors (1) from the power sliding door (PSD) actuator control module (3).
3. Release the integral clips (2) securing the actuator module to the top side of the motor module bracket (4).
4. Pull the PSD actuator control module (3) inboard in order to release the control module from the actuator motor module bracket.

INSTALLATION PROCEDURE




1. Push the PSD actuator control module (3) outboard in order to hook the control module to the actuator motor bracket (4).
2. Connect the PSD actuator control module electrical connectors (1).
3. Perform the re-initialization procedure. Refer to Actuator Control Module - Power Sliding Door (PSD) Programming and Setup.
4. Install the left rear quarter lower trim panel.
