Front Seat Frame Assembly Replacement - Passenger

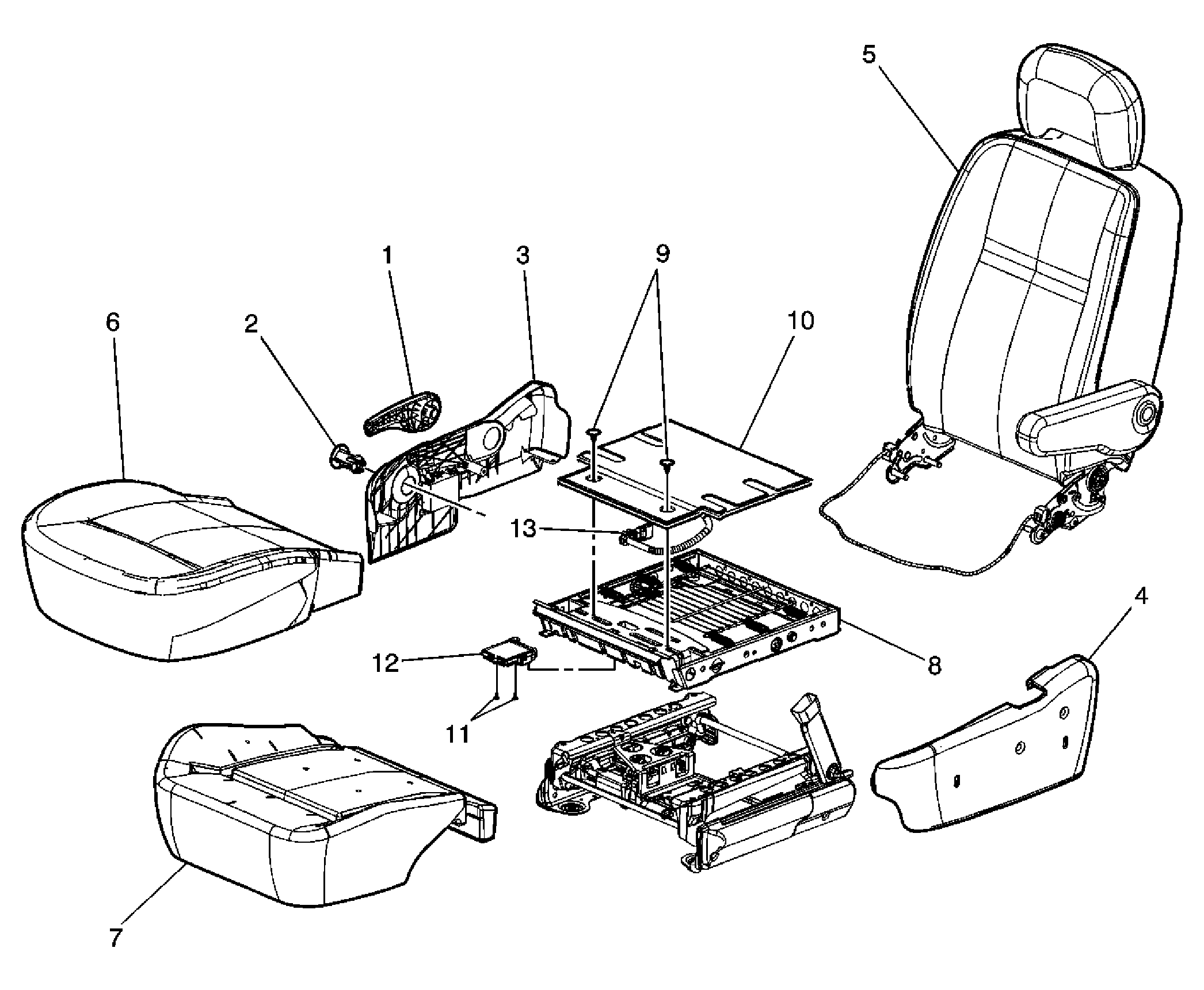

Fig 1: Identifying Front Inflatable Restraint Passenger Presence System

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. The bladder, the pressure sensor, the seat cushion and the control module are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly. NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front bucket seat. Refer to Seat Replacement - Front Bucket . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Programming and Setup .
1	Handle, Seat Recliner Refer to Seat Back Recliner Handle Replacement - Front .
2	Plug, Seat Recliner Handle
3	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
4	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
5	Seat Back Assembly Refer to Seat Back Replacement - Front .
6	Cover, Seat Cushion Refer to Seat Adjuster Track Cover Replacement - Front .
7	Pad Assembly, Seat Cushion Refer to Seat Adjuster Track Cover Replacement - Front .
8	Frame Assembly, Seat Cushion
9	Retainer, Inflatable Restraint Passenger Presence System Bladder (Qty: 2)
10	Bladder, Inflatable Restraint Passenger Presence System
11	Screw, Electronic Control Unit (Qty: 2) Tighten: 2 N.m (18 lb in)
12	Electronic Control Unit
13	Switch, Inflatable Restraint Passenger Presence System Pressure
