Seat Back Frame Replacement - Front

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

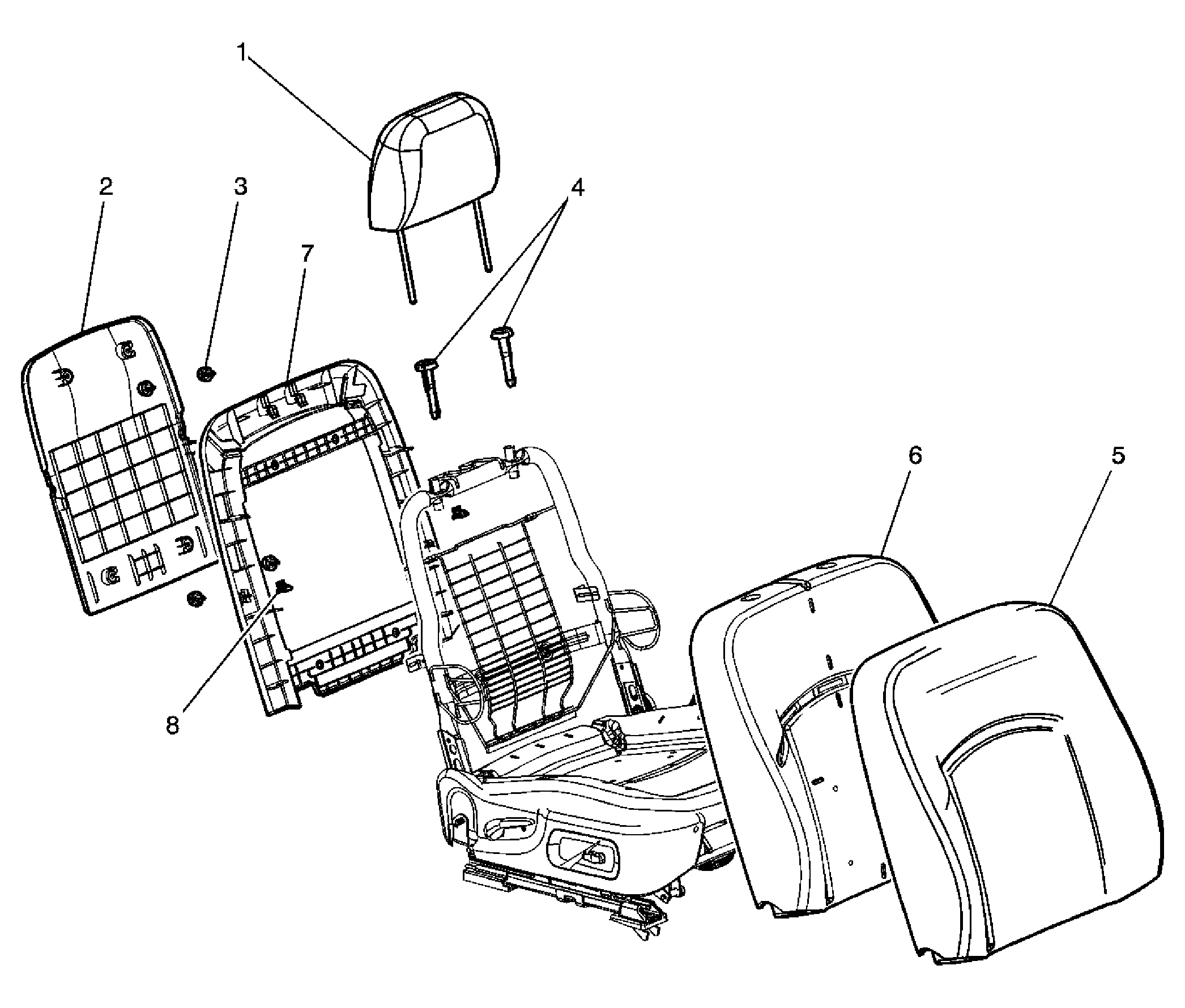

Fig 1: Seat Back - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front bucket seat. Refer to Seat Replacement - Front Bucket . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Rezeroing Procedure .
1	Pocket, Seat Back Cushion
2	Panel, Seat Back Cushion Tip: Pull from the bottom edge of the panel to remove.
3	Head Restraint Assembly Tip: Push in the button on the head restraint guides to release the head restraint from the seat.
4	Guide, Head Restraint (Qty: 2) Tip: Squeeze the bottom of the guide and push upward to remove.
5	Cover, Seat Back Cushion Tip: Remove the hog rings that attach the seat cushion cover to the seat cushion.
6	Pad, Seat Back Cushion
7	Retainer, Seat Power Lumbar Support (Qty: 5)
8	Support Assembly, Seat Power Lumbar
9	Handle, Seat Recliner Refer to Seat Back Recliner Handle Replacement - Front .
11	Cover, Seat Adjuster Finish Cover Refer to Seat Adjuster Track Cover Replacement - Front .
13	Pretensioner Assembly, Front Seat Belt Buckle Refer to Seat Belt Buckle Pretensioner Replacement .
14	Cover, Seat Cushion Refer to Seat Cushion Cover Replacement - Front .
15	Pad, Seat Cushion Tip: Disconnect electrical connector if equipped with passenger presence system.
16	Bolt, Seat Cushion Frame (Qty: 4) Tighten: 25 N.m (18 lb ft)
17	Frame Assembly, Seat Cushion
19	Bolt, Seat Back Cushion Frame (Qty: 4) Tighten: 25 N.m (18 lb ft)
20	Frame Assembly, Seat Back Cushion
