Seat Switch Replacement - Power

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

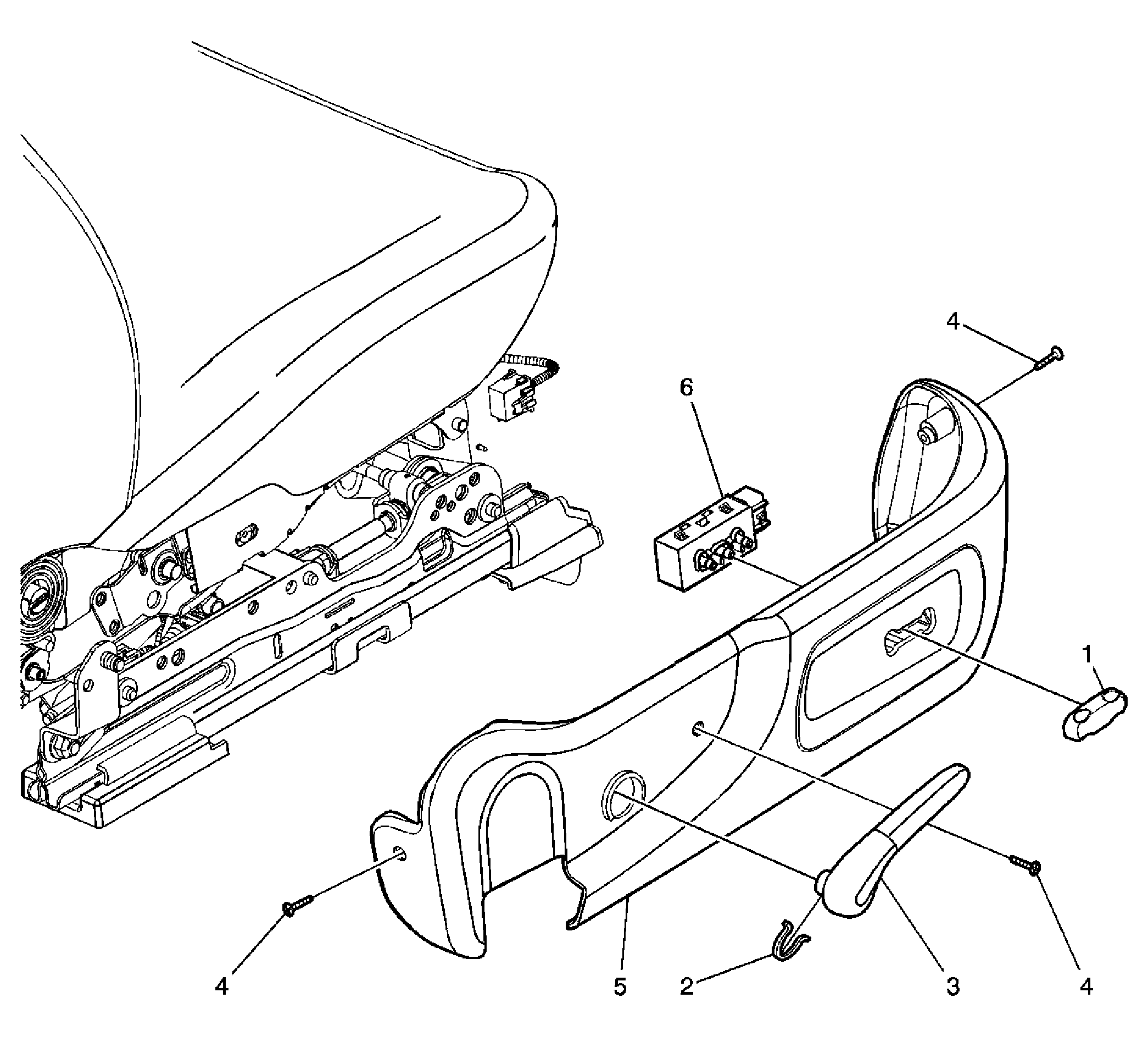

Fig 1: Seat Back Recliner - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Knob, Power Seat Adjuster Switch
2	Retainer Clip, Seat Recliner Handle
3	Handle, Seat Recliner
4	Screw, Seat Adjuster Finish Cover (Qty: 3) Tighten: 2 N.m (18 lb in)
5	Cover, Seat Adjuster Finish
6	Switch, Power Seat Adjuster Tip: Disconnect the electrical connector. Unclip the switch from the seat outer adjuster cover.
