Amplifier Replacement
WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Amplifier Replacement
| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear window shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf
. |
|

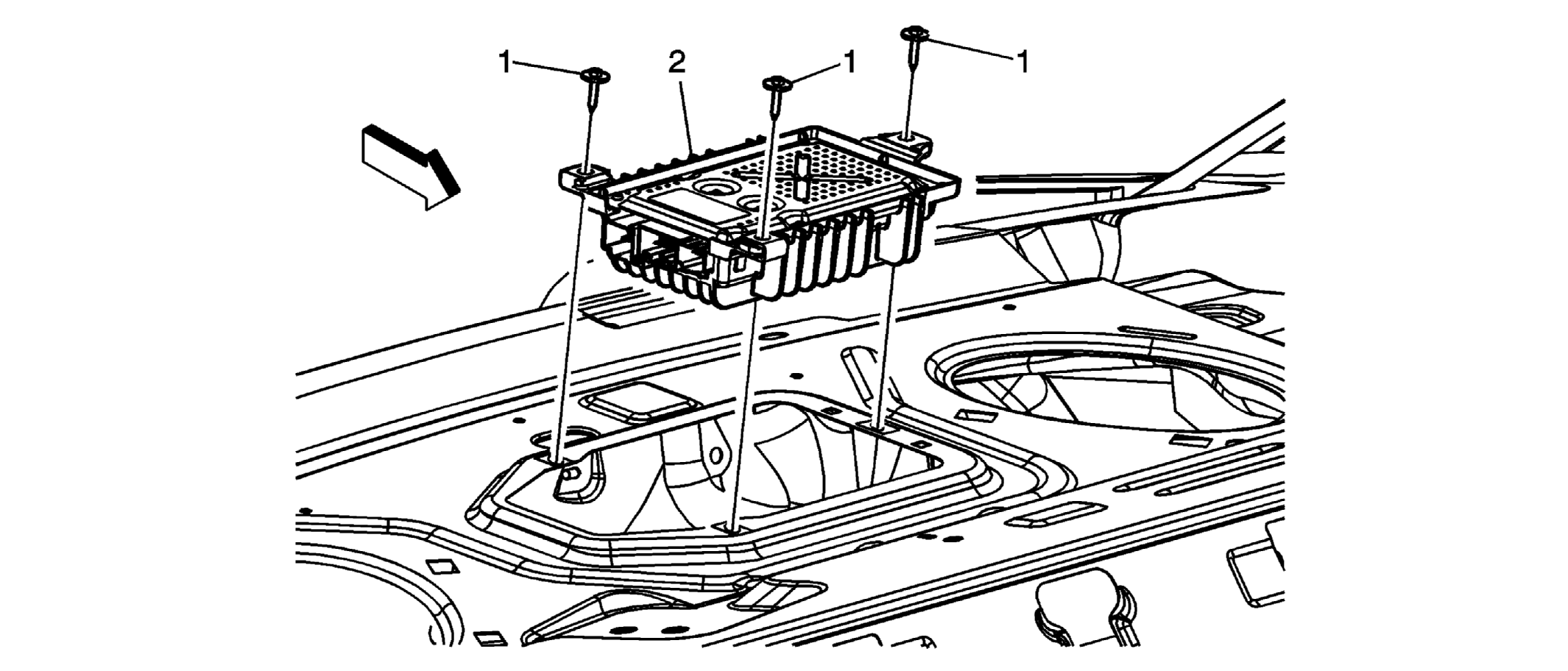

| 1 | Bolt, Low Frequency Audio Amplifier (Qty: 3) Tighten: 2.5 N.m (22 lb in) |
| 2 | Amplifier Assembly, Low Frequency Audio |
