Inflatable Restraint Sensing and Diagnostic Module (SDM)

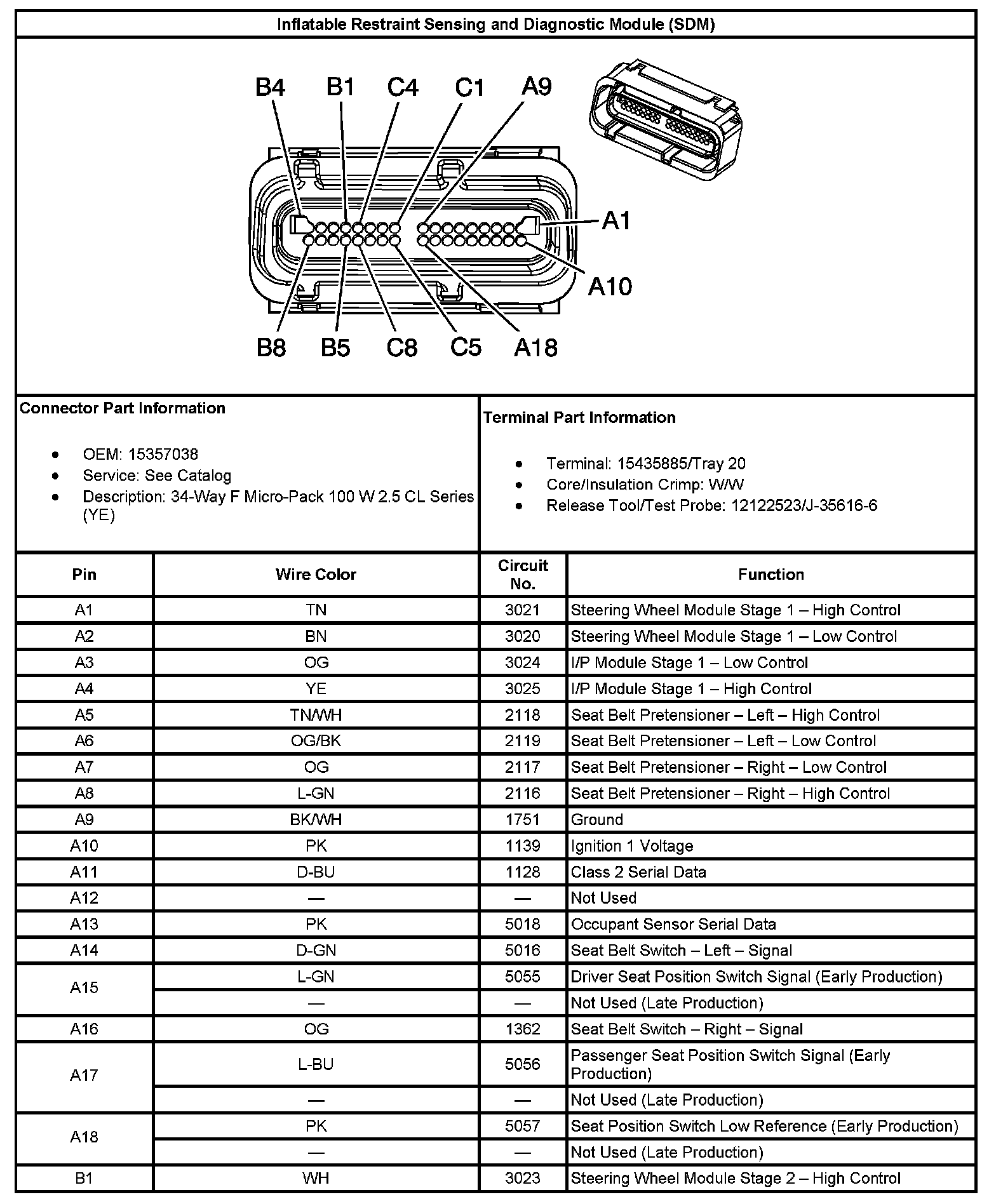

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Part 1):

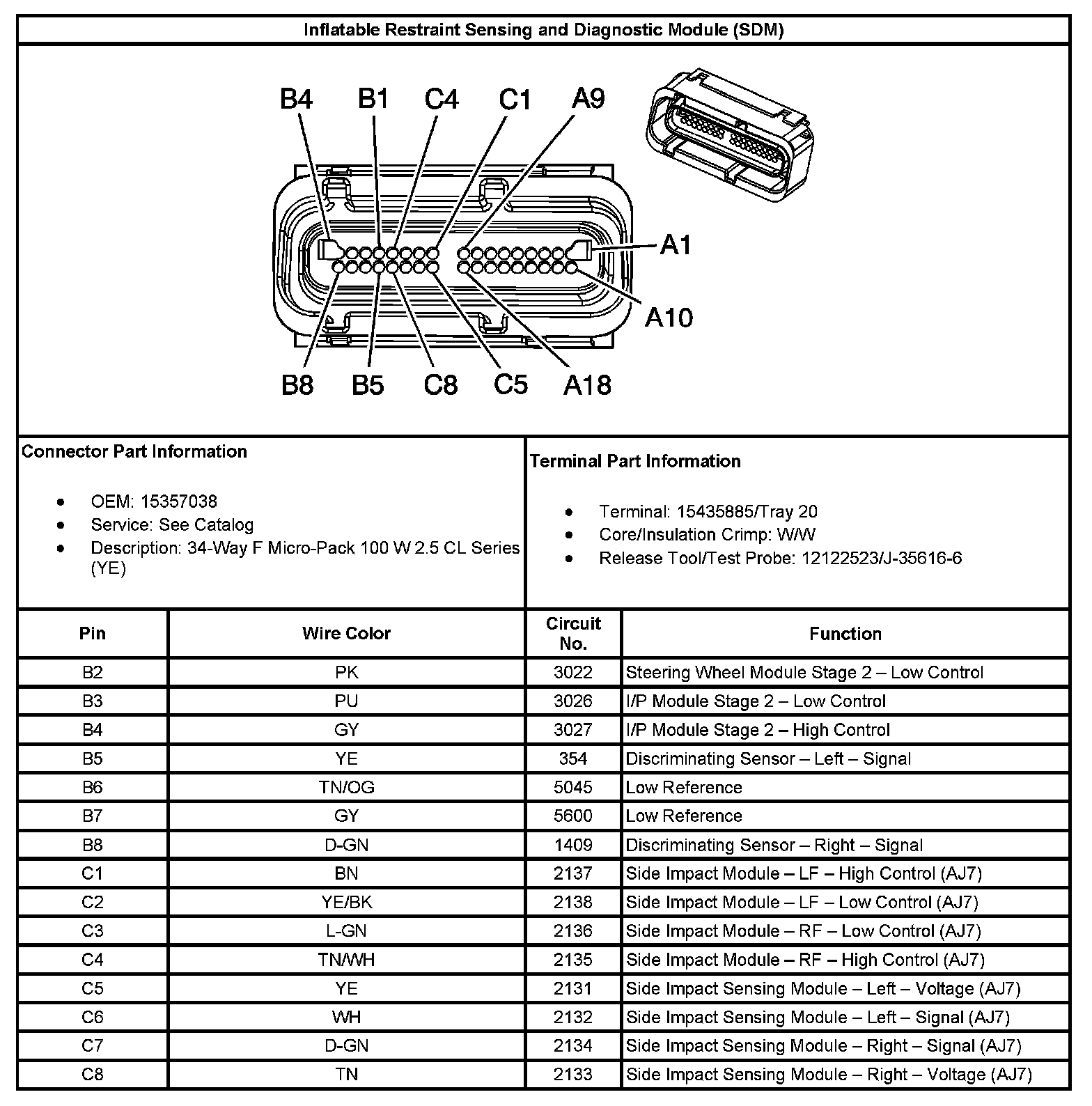

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Part 2):
