Turn Signal/Multifunction Switch

Turn Signal/Multifunction Switch C1 (Early Production):



Turn Signal/Multifunction Switch C1 (Late Production):



Turn Signal/Multifunction Switch C2:



Turn Signal/Multifunction Switch C3:

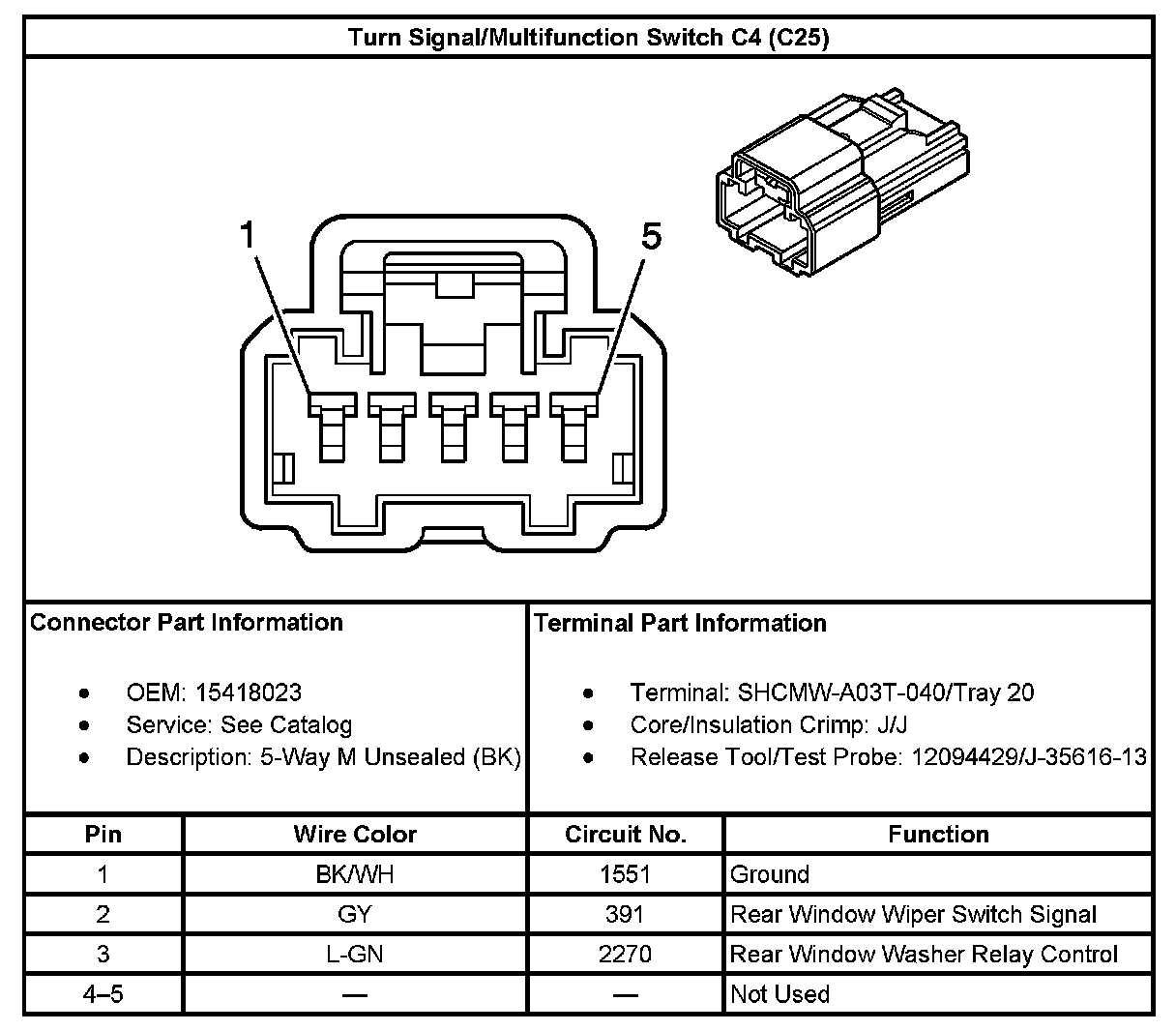

Turn Signal/Multifunction Switch C4 (With RPO Code C25):
