Fuse Block - I/P C2

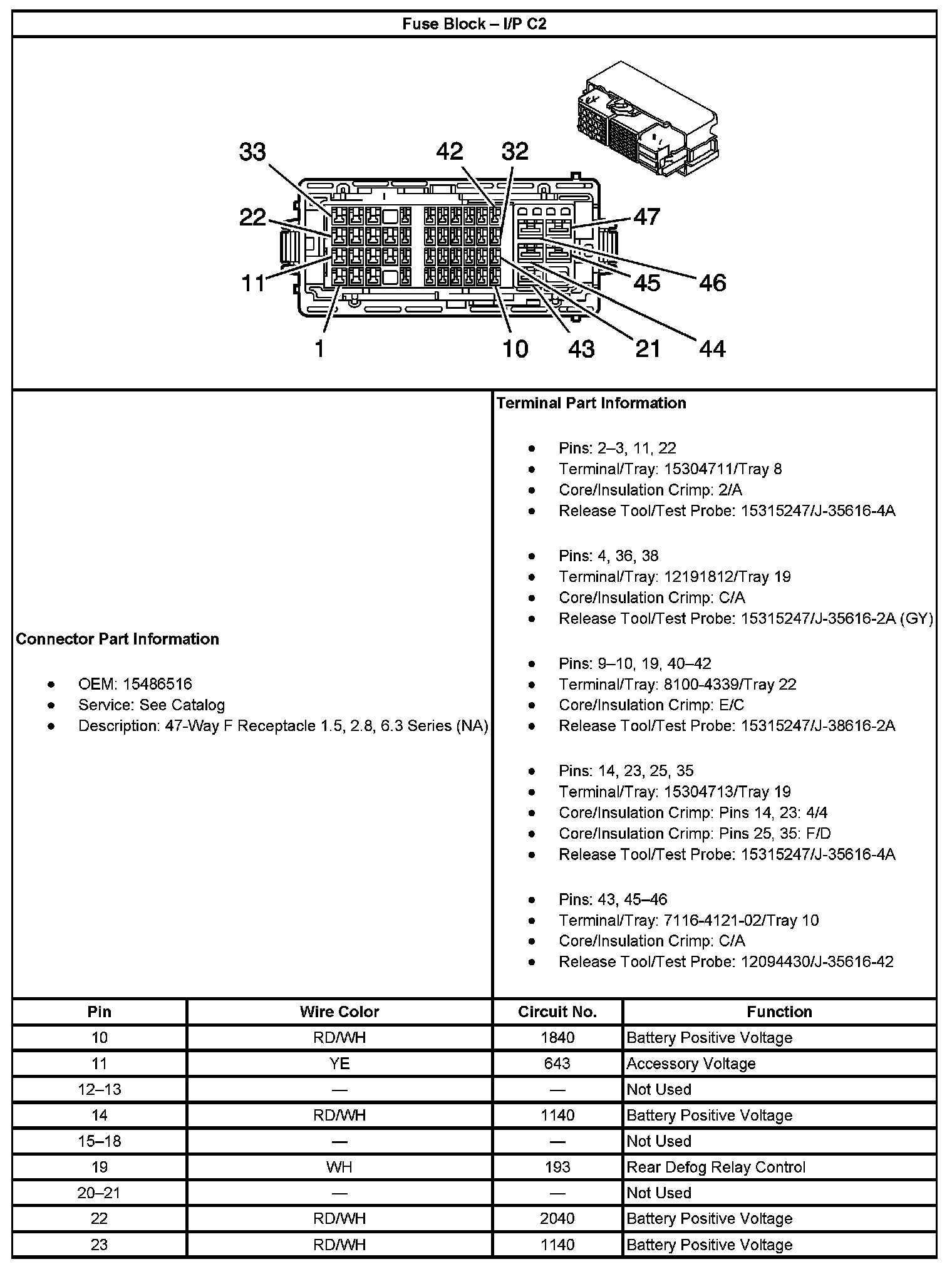

Fuse Block - I/P C2 (Part 1):

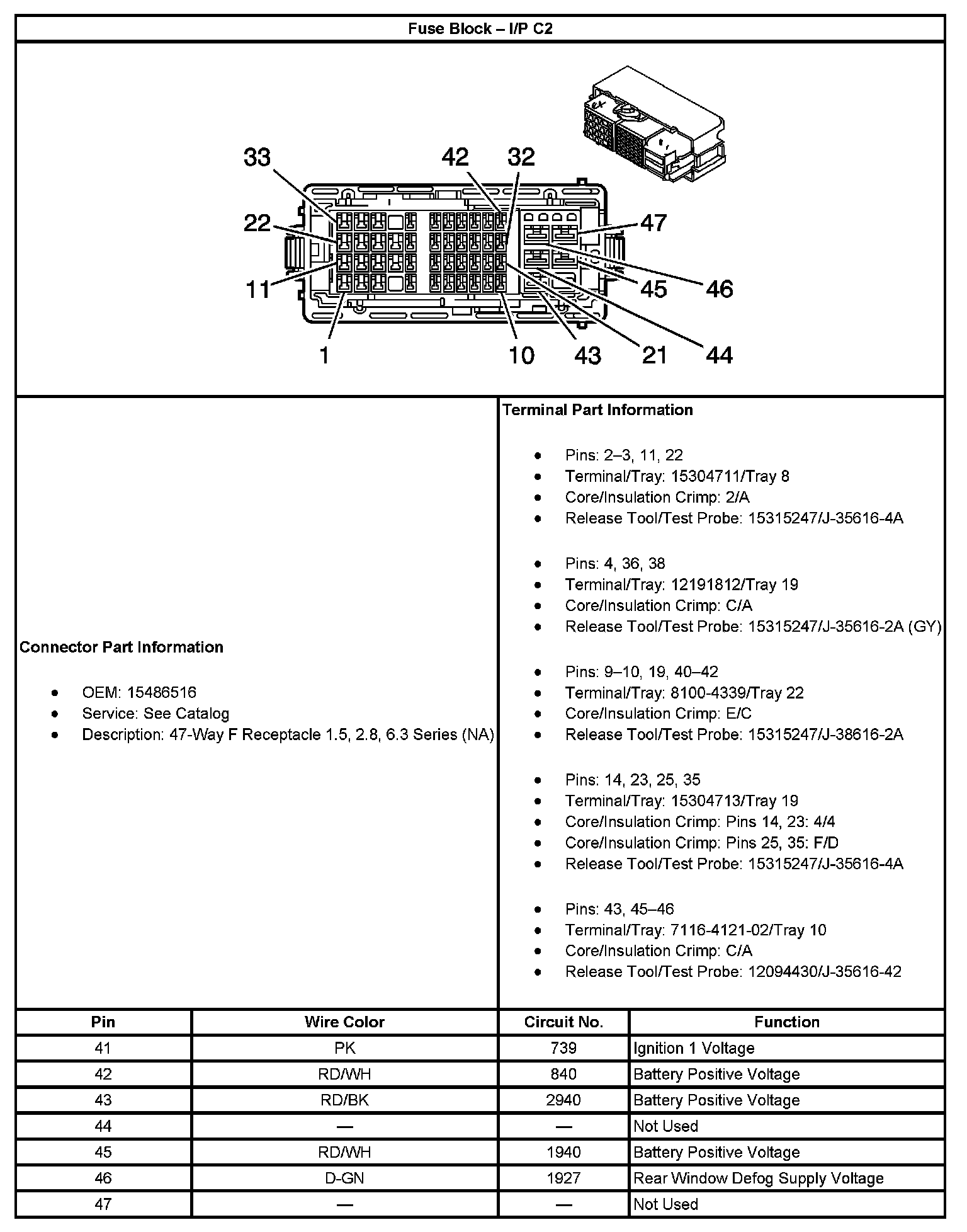

Fuse Block - I/P C2 (Part 2):

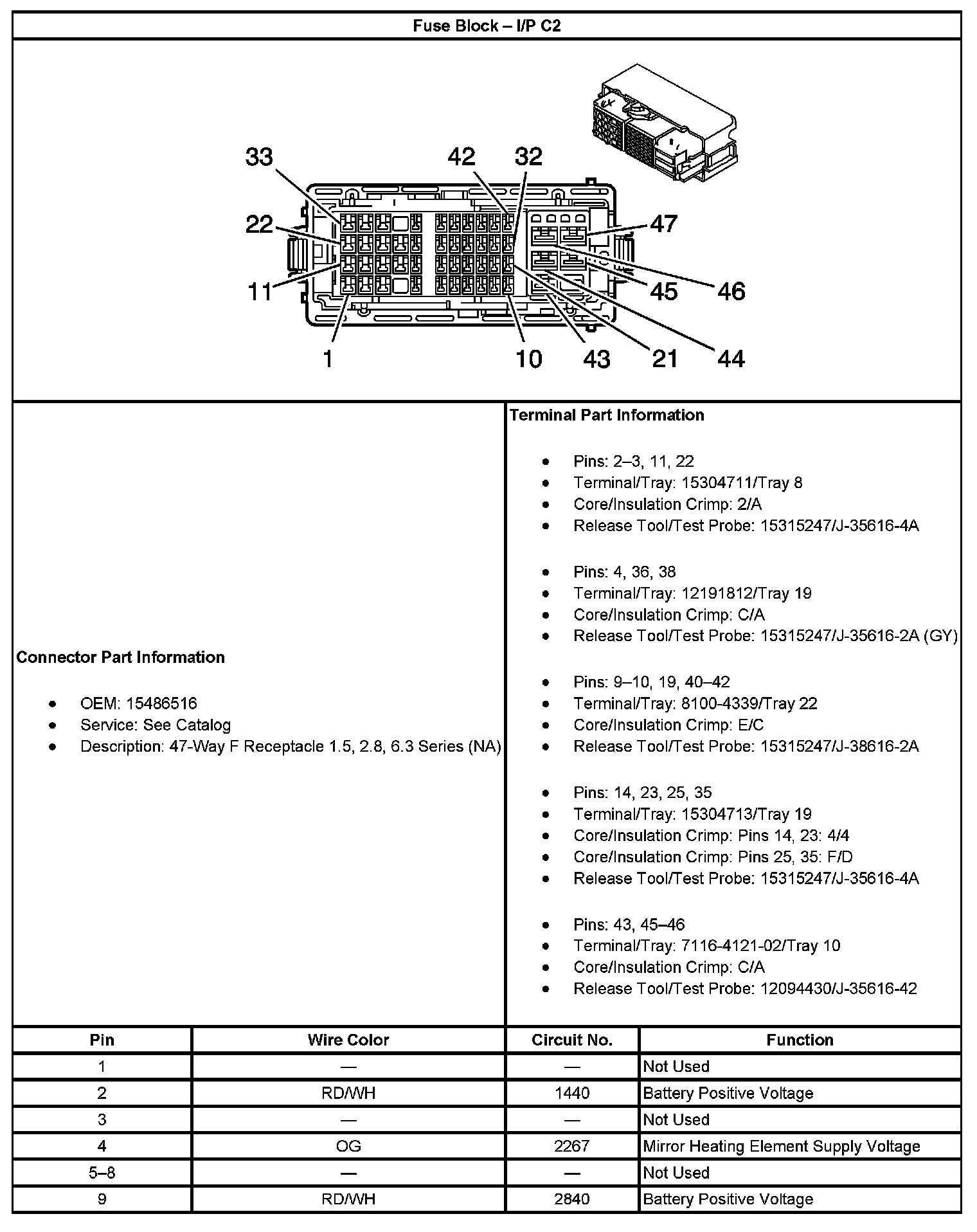

Fuse Block - I/P C2 (Part 3):

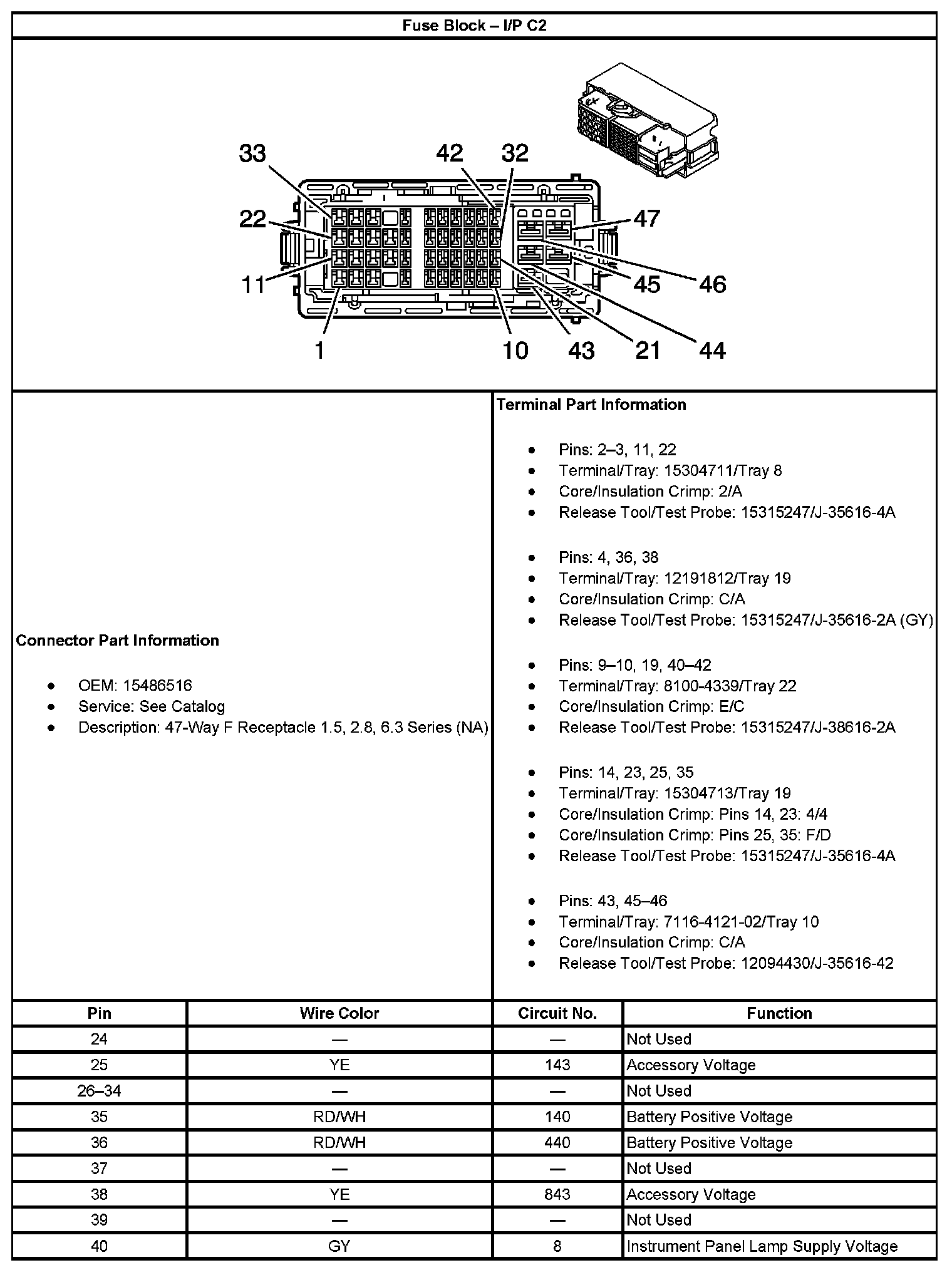

Fuse Block - I/P C2 (Part 4):
