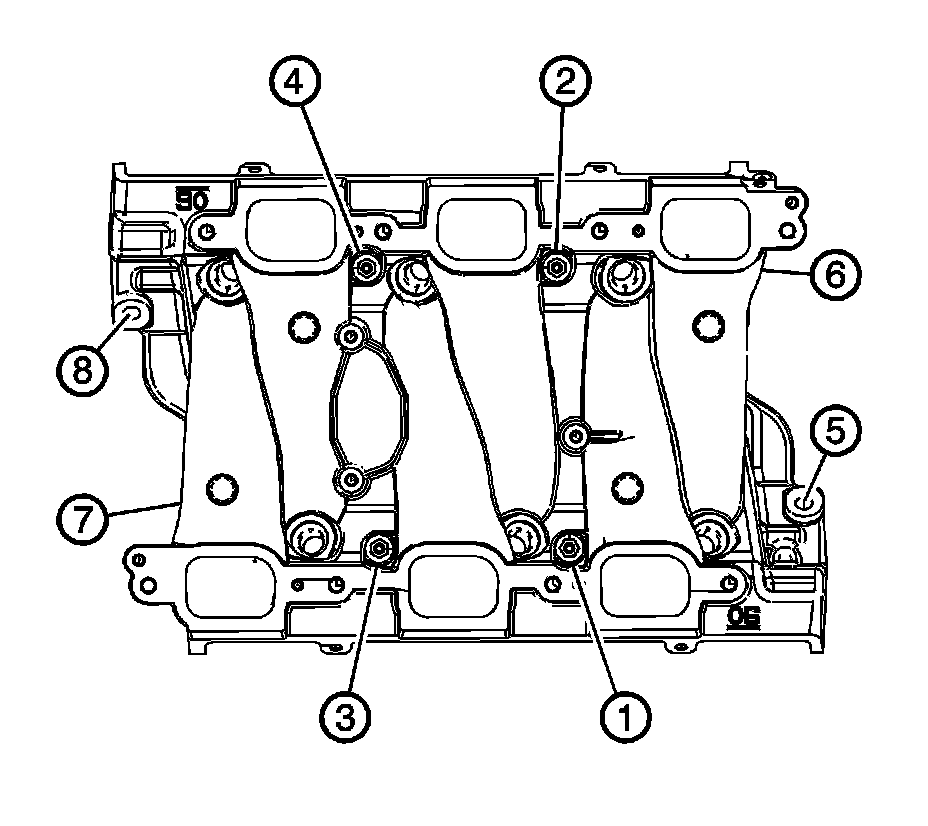

Intake Manifold

Lower Intake Manifold Bolt - Center
First Pass 13 Nm (10 ft. lbs.)
Final Pass 20 Nm (15 ft. lbs.)
Lower Intake Manifold Bolt - Corner
First Pass 13 Nm (10 ft. lbs.)
Final Pass 25 Nm (18 ft. lbs.)

Upper Intake Manifold Bolt/Stud 25 Nm (18 ft. lbs.)
Throttle Body Stud 6 Nm (53 inch lbs.)
