Window Systems Connector End Views (Hatchback)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

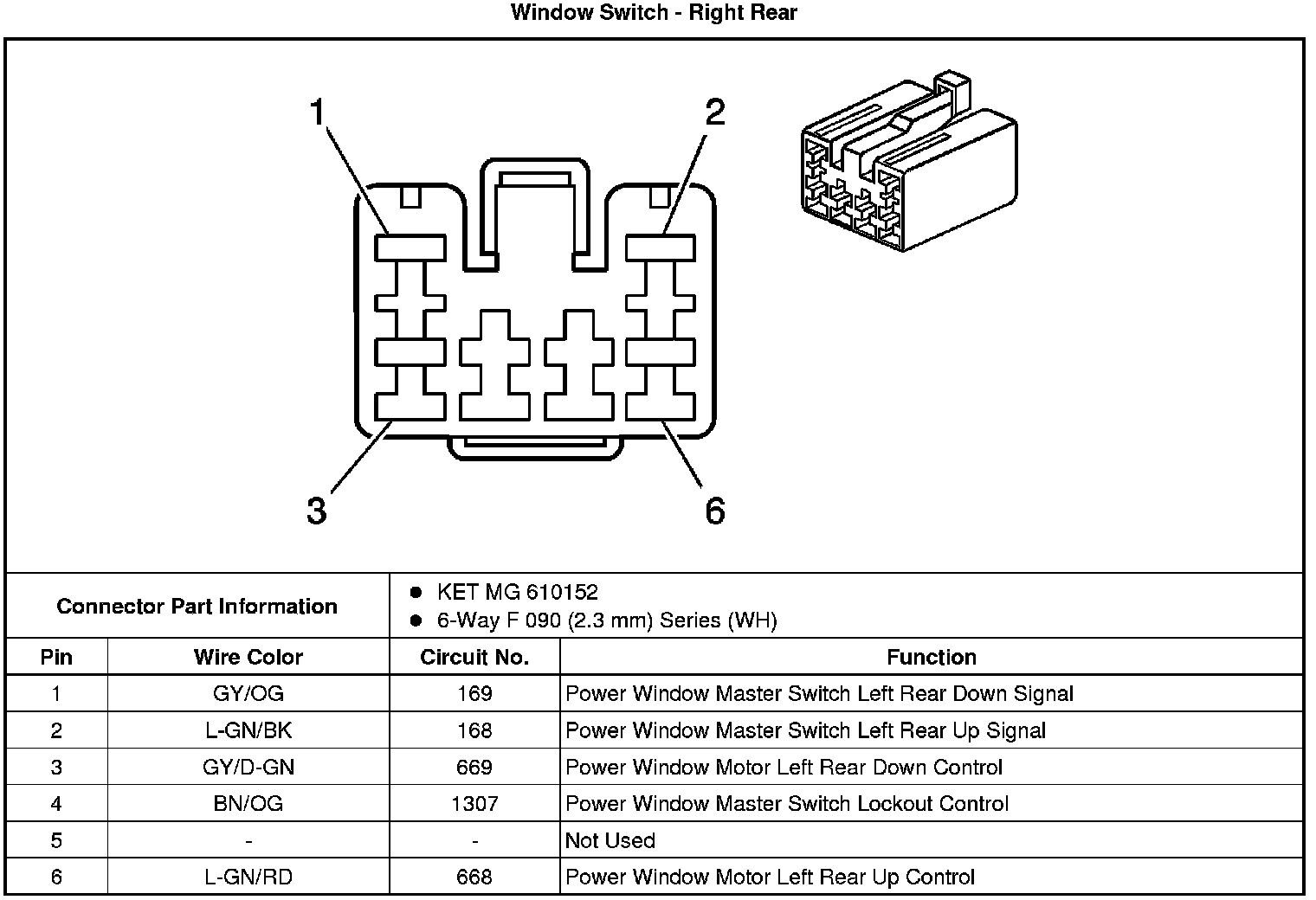

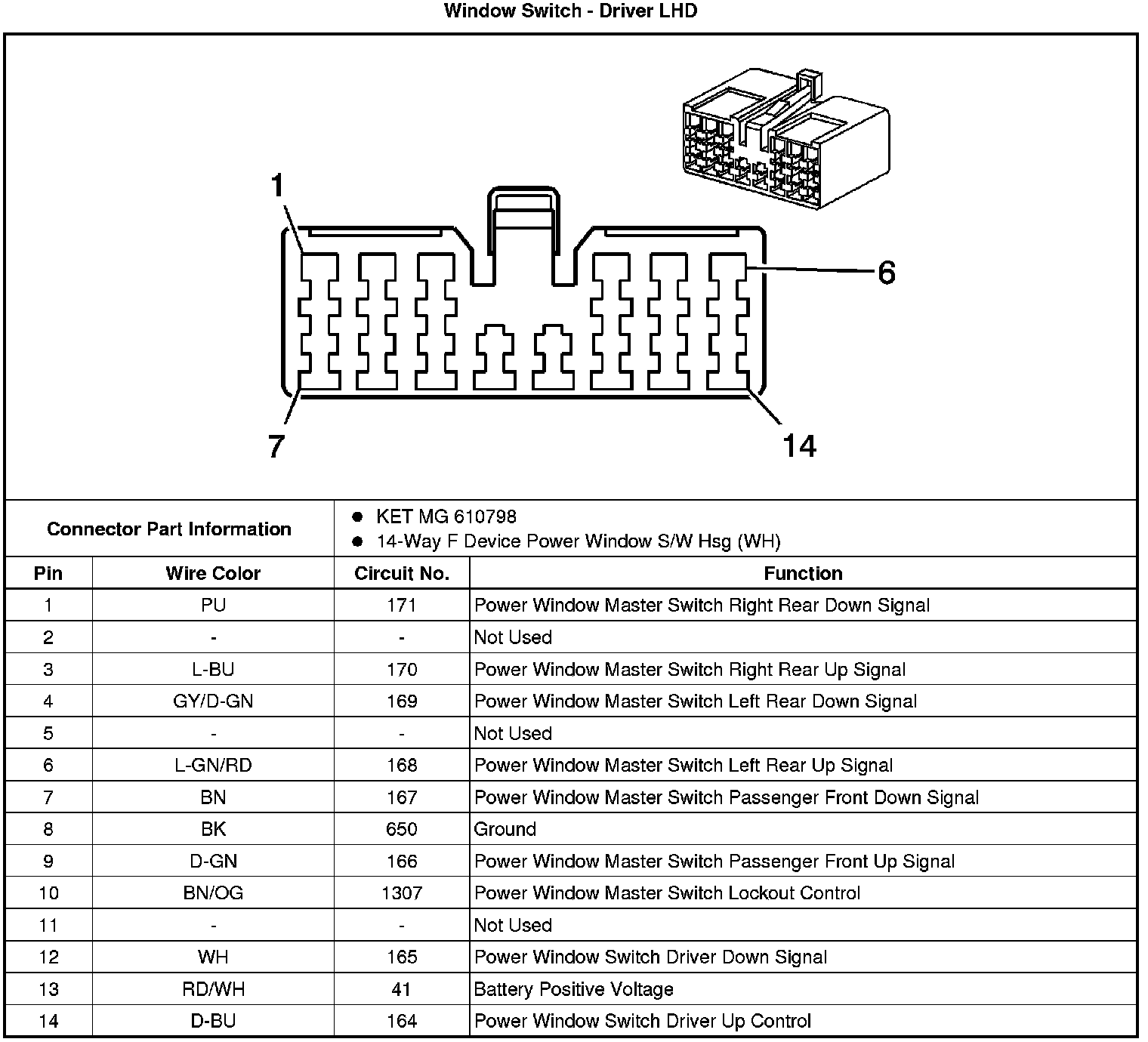

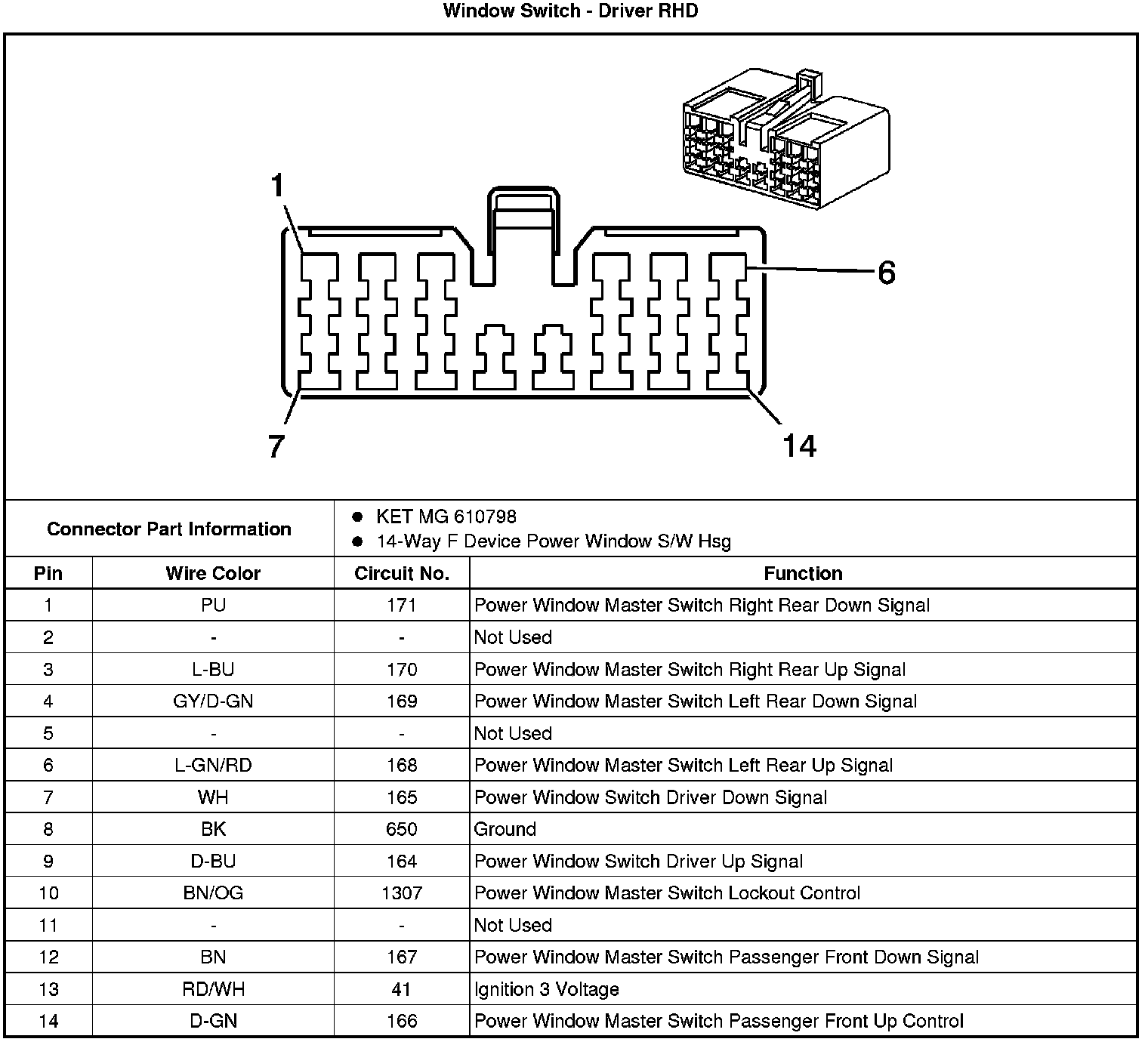

Window Systems Connector End Views (Hatchback)
Window Systems Connector End Views (Hatchback)
