Hatchback



Automatic Transmission Controls Schematics (Hatchback)

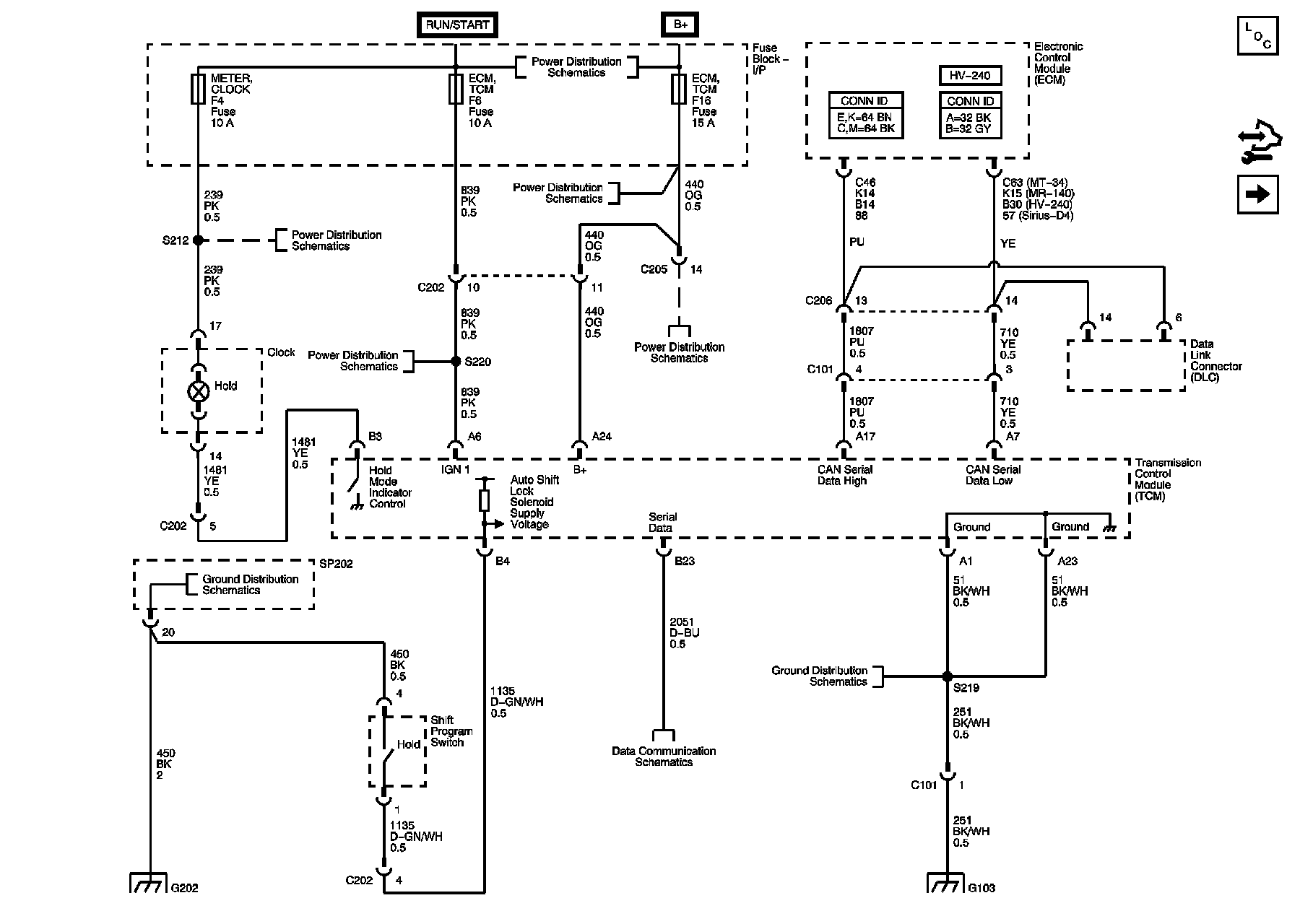

Transmission Control Module

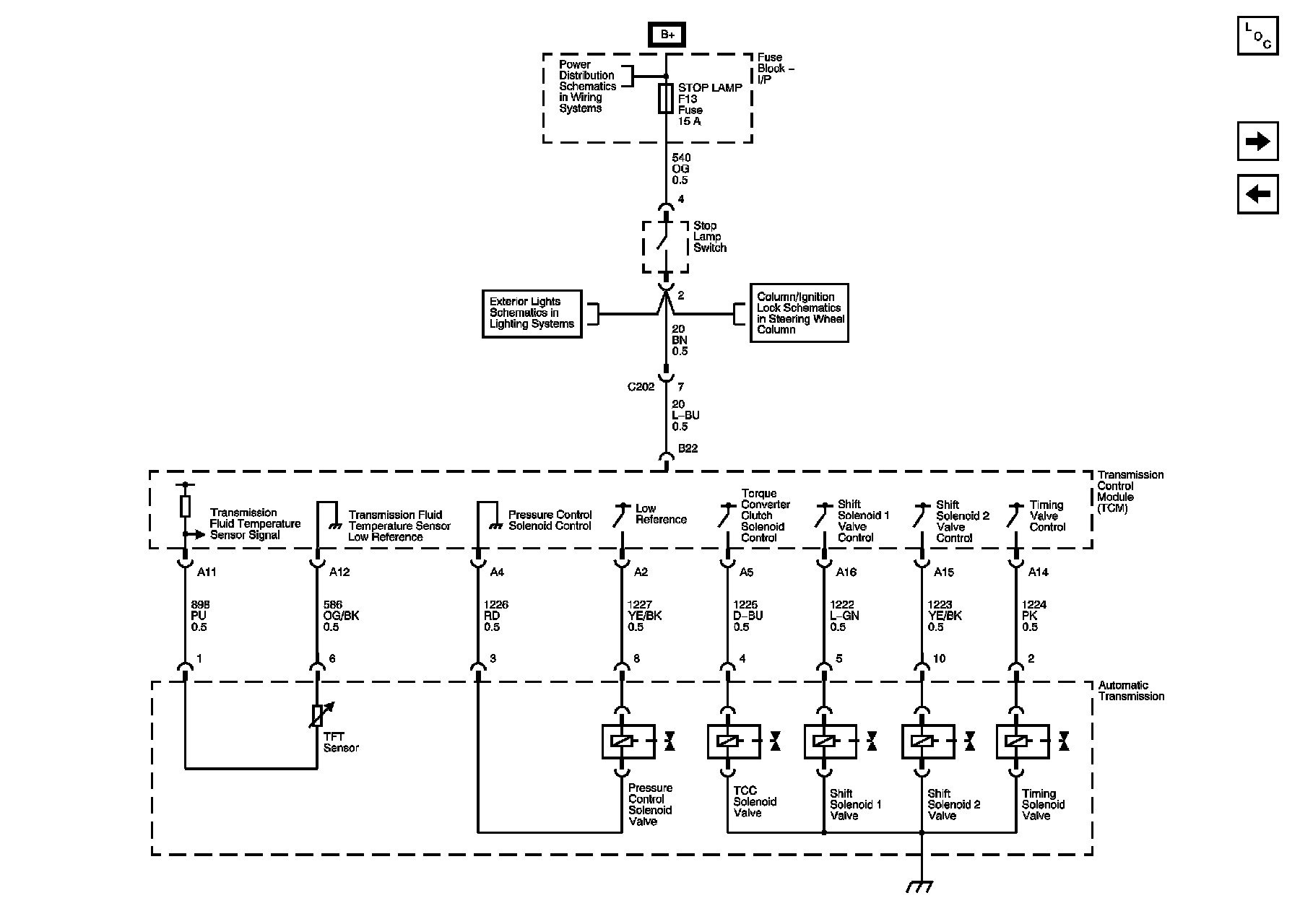

Stop Lamp Switch and Transaxle Valves





Transmission Control Module, VSS

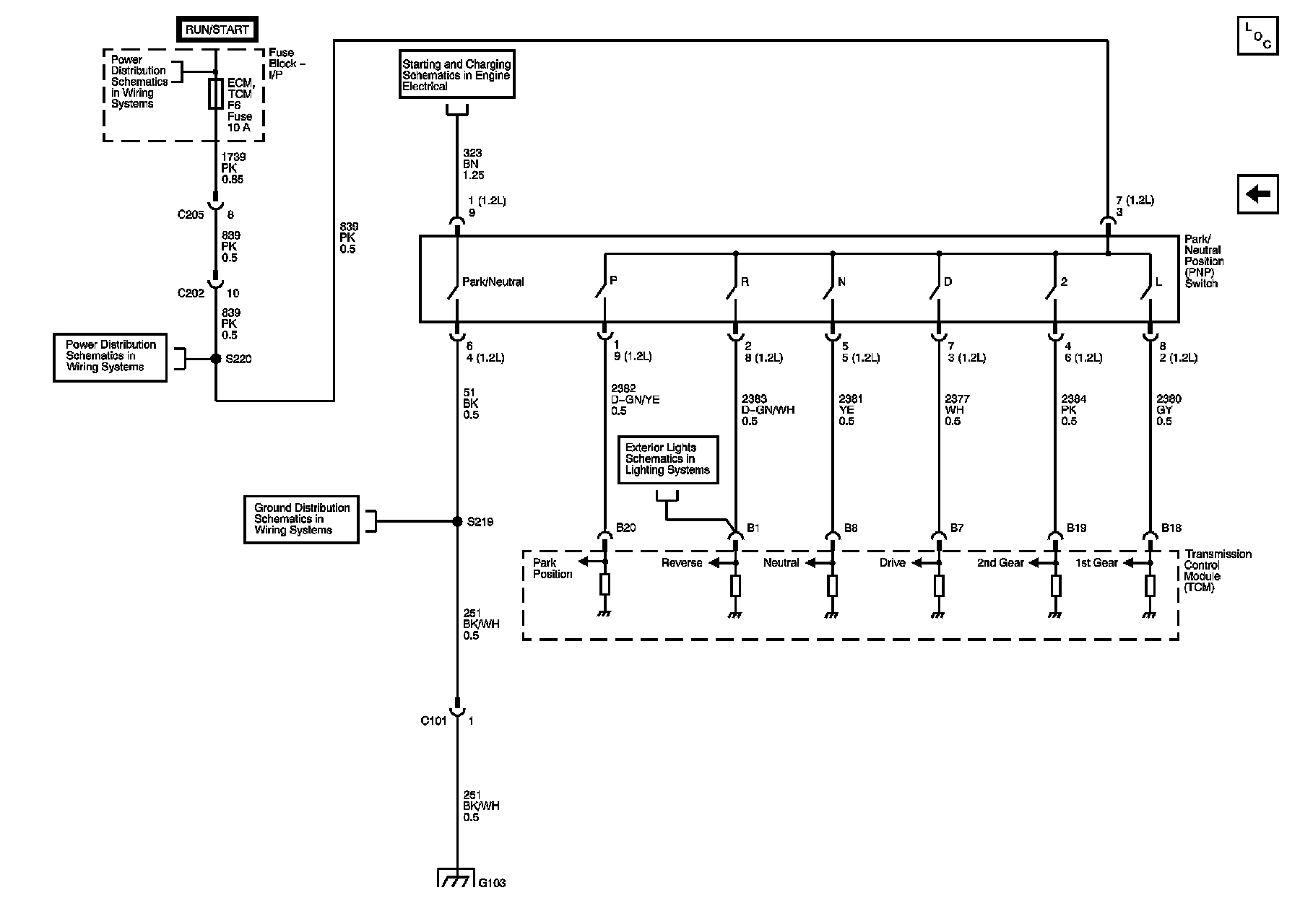

PNP Switch
