Electrical Center Identification Views (Hatchback)
Electrical Center Identification Views (Hatchback)

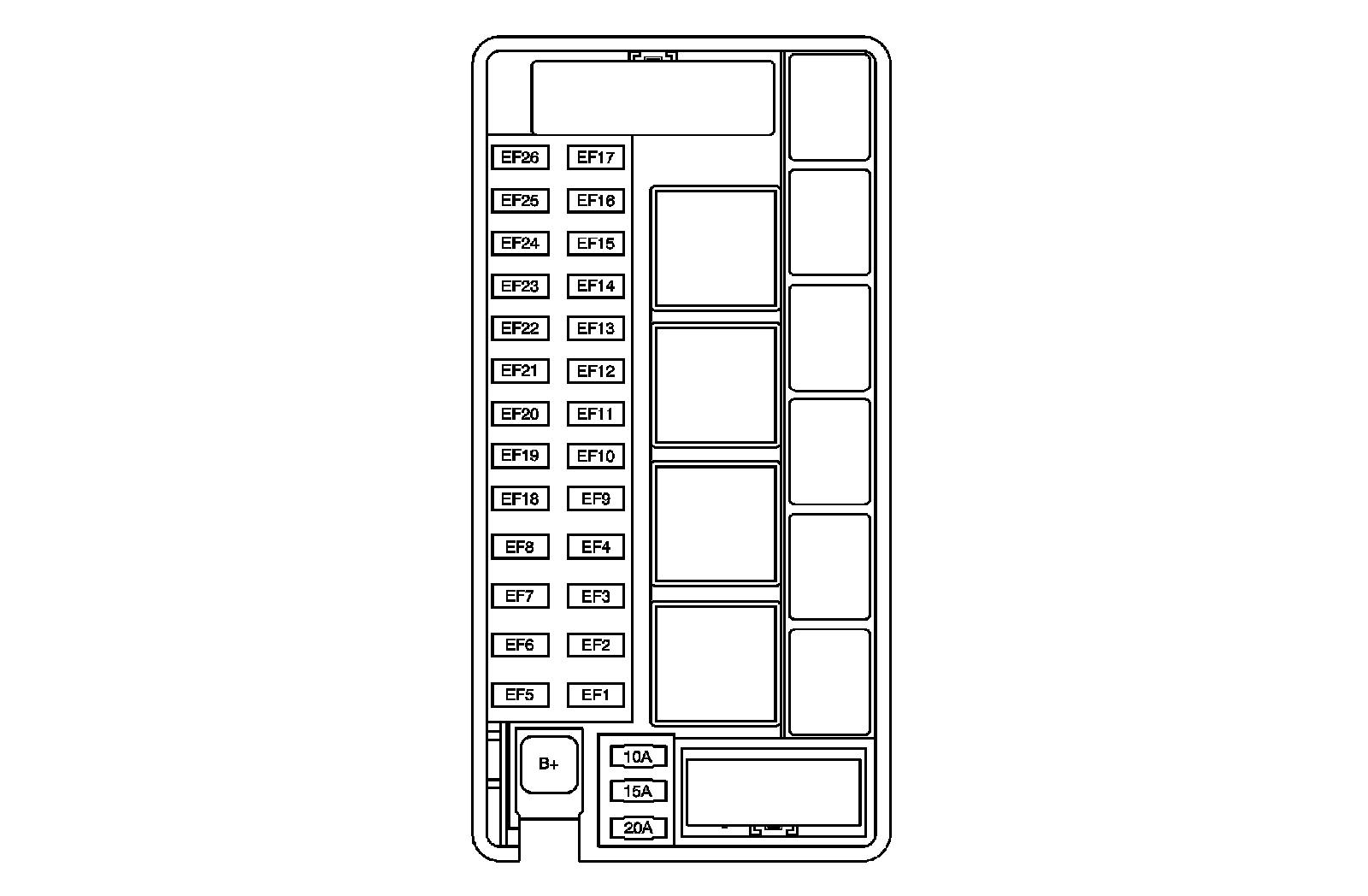

Fuse Block - Underhood Label (Except North America)

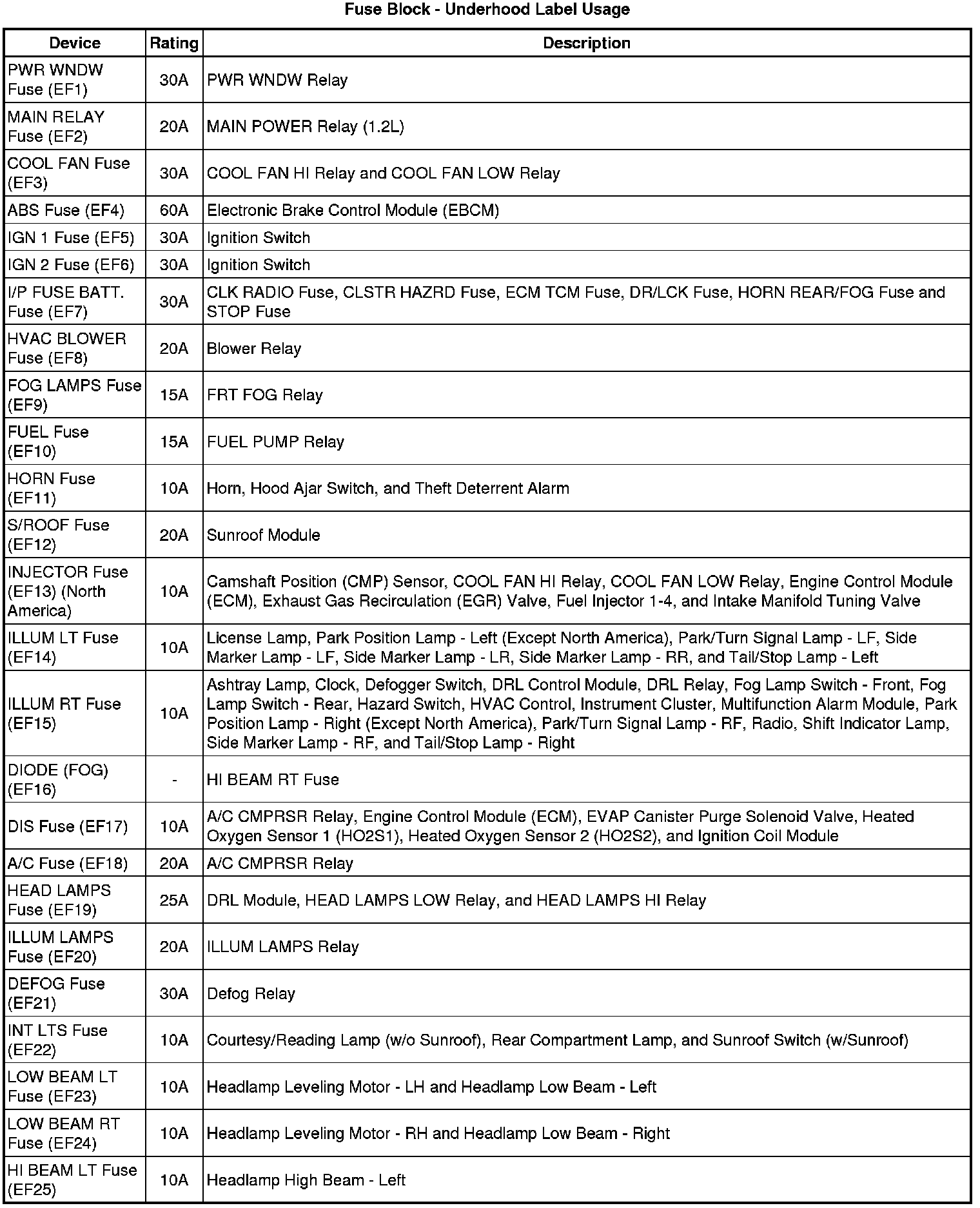

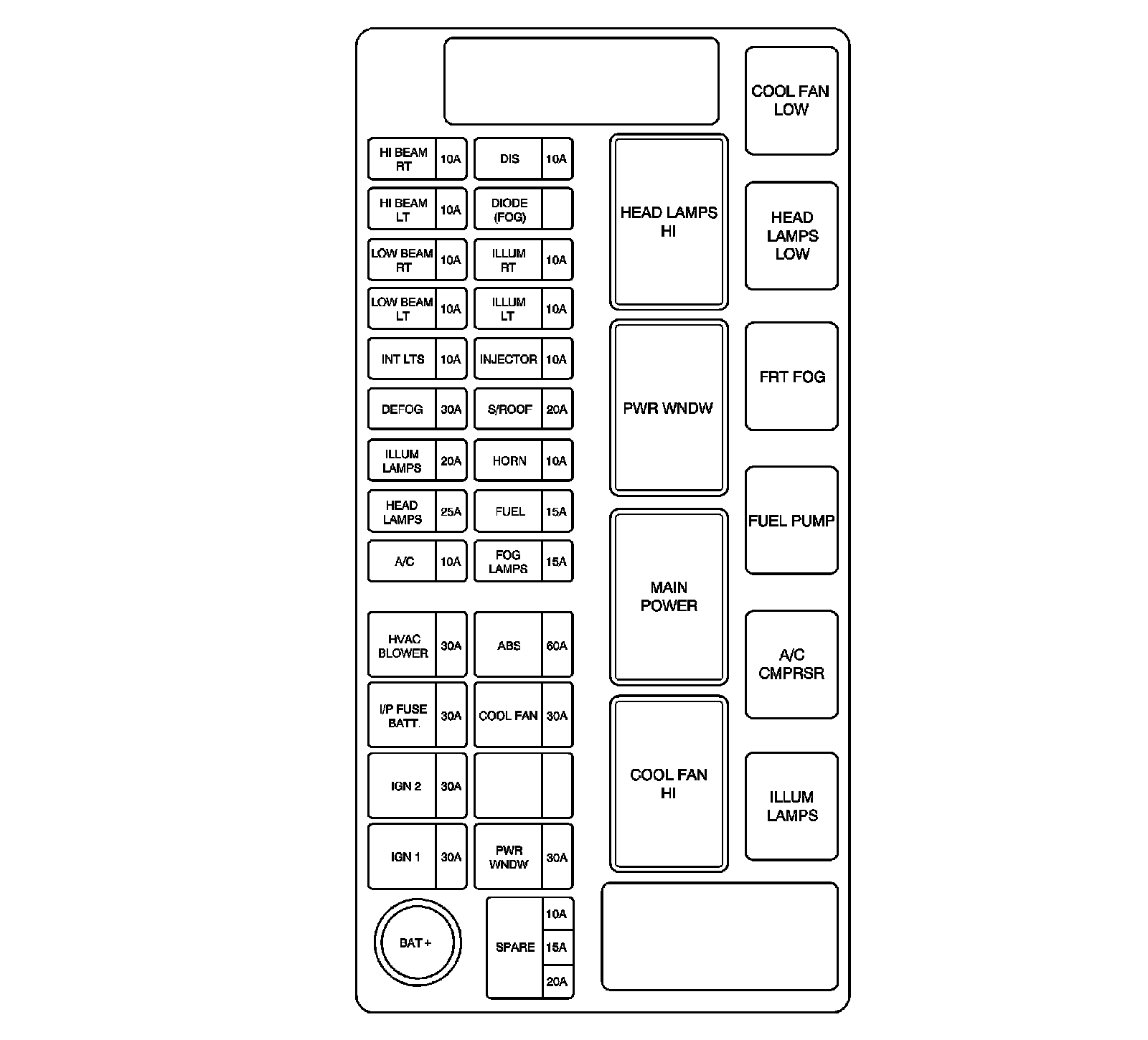

Fuse Block - Underhood Label (North America)

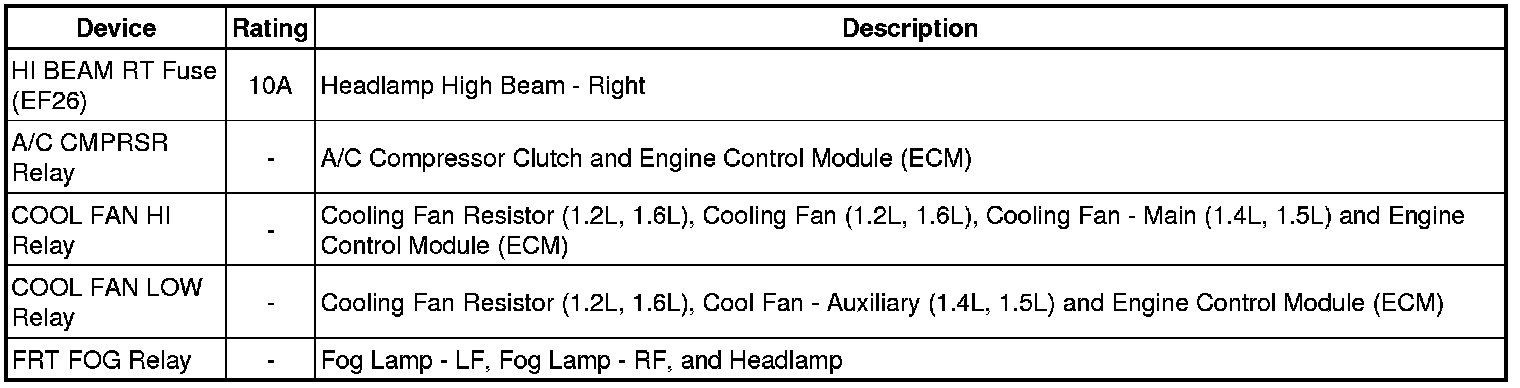

Fuse Block - Underhood Top View

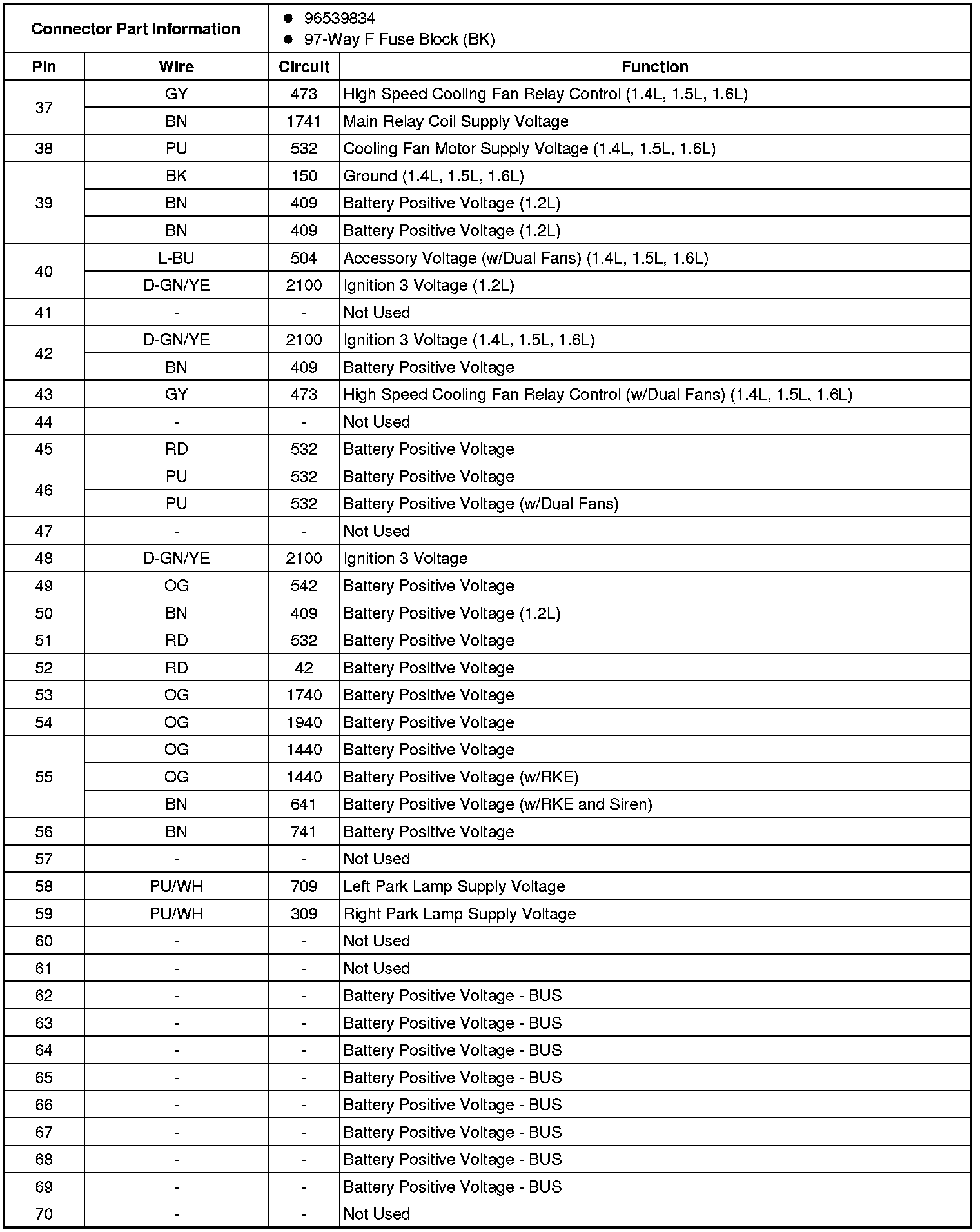

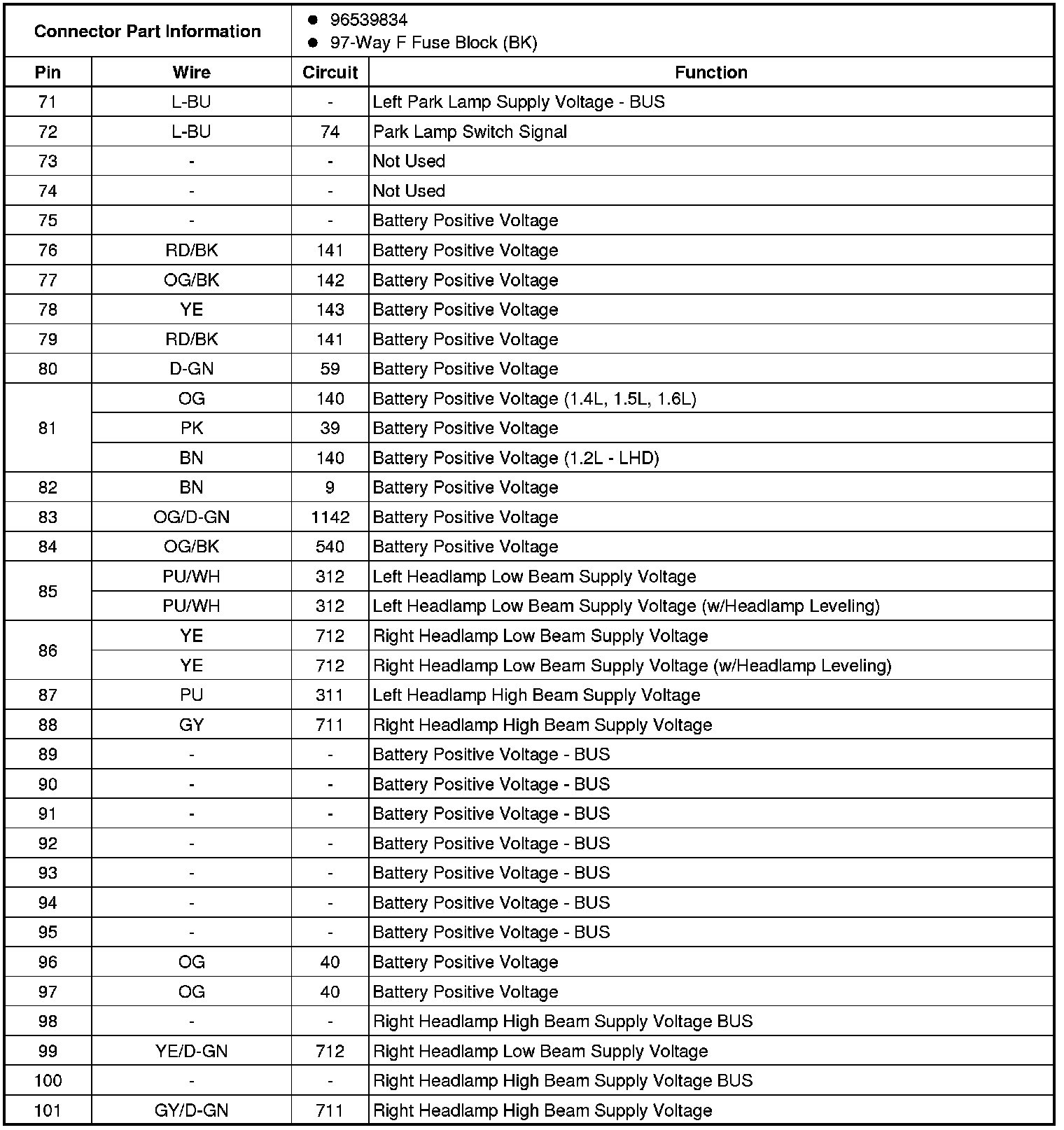

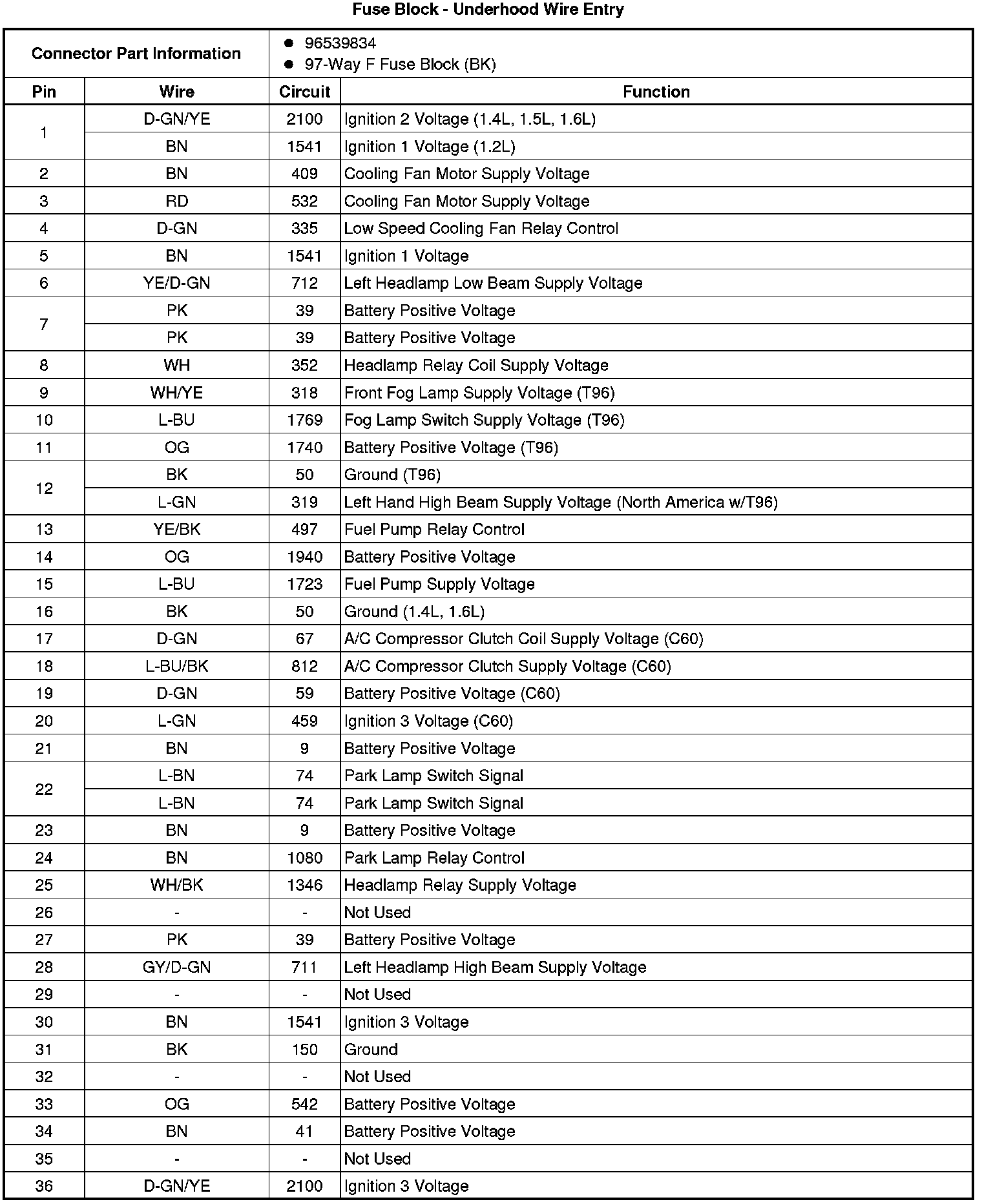

Fuse Block - Underhood Bottom View

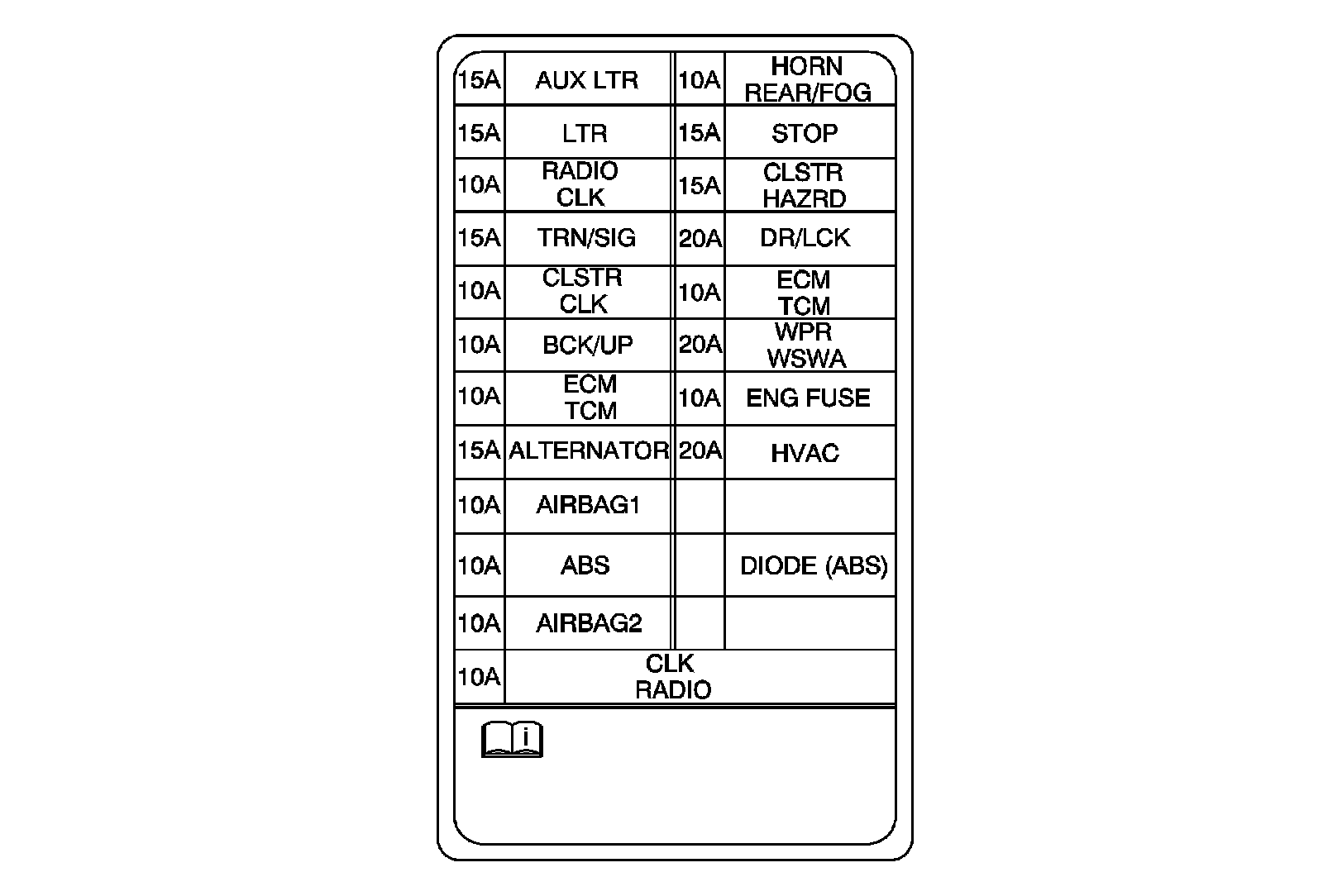

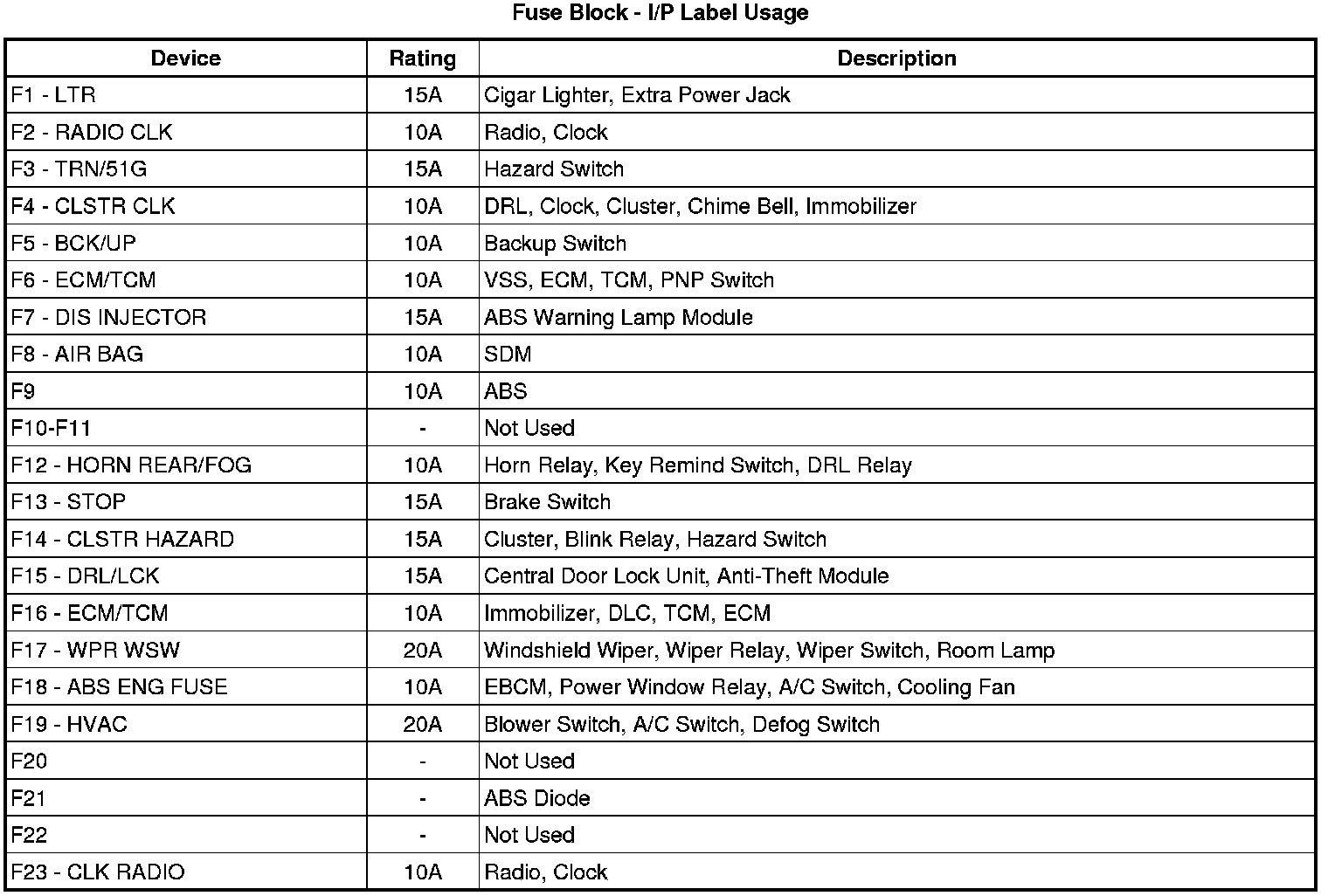

Fuse Block - I/P Label

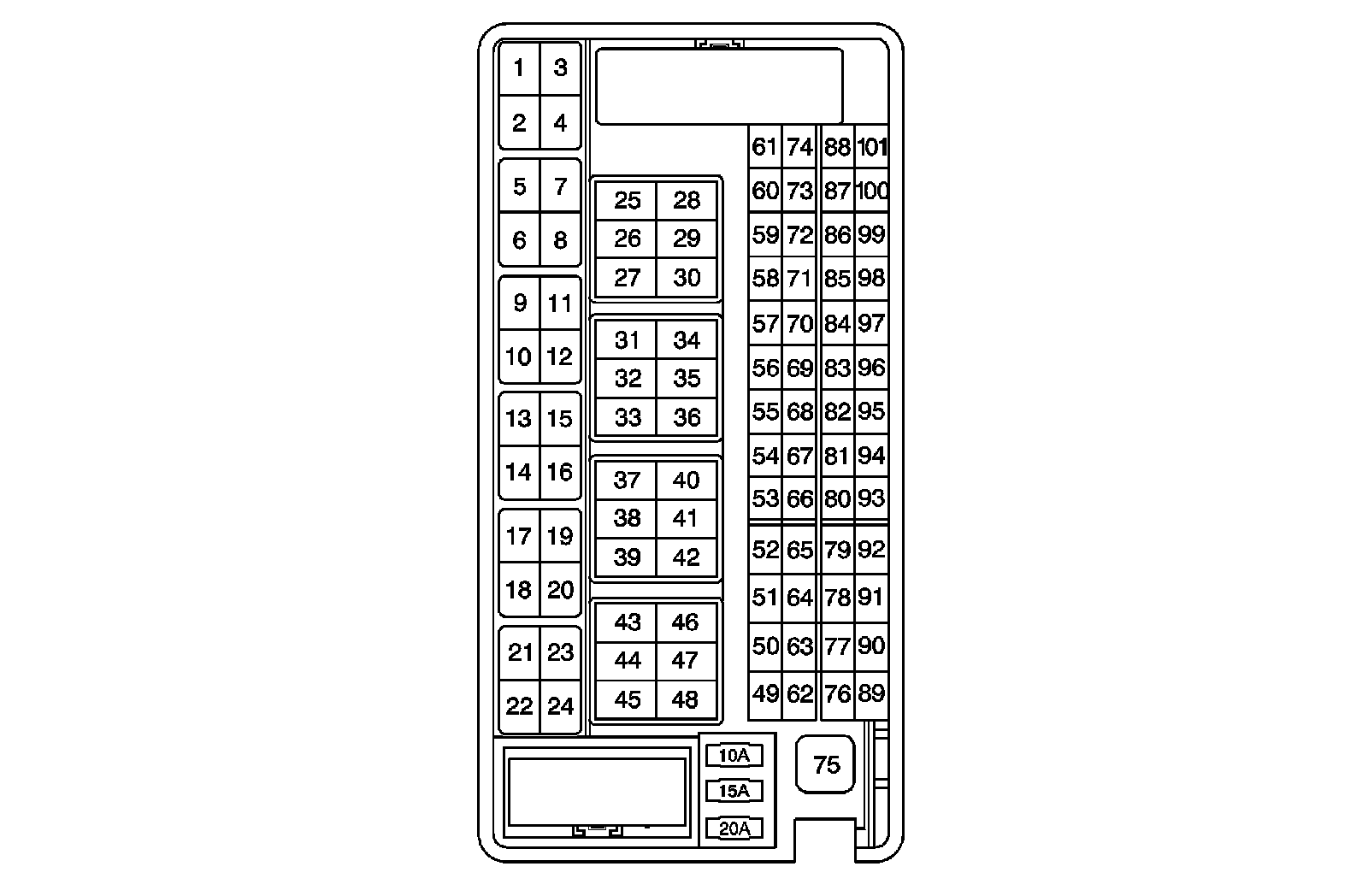

Fuse Block - I/P Top View

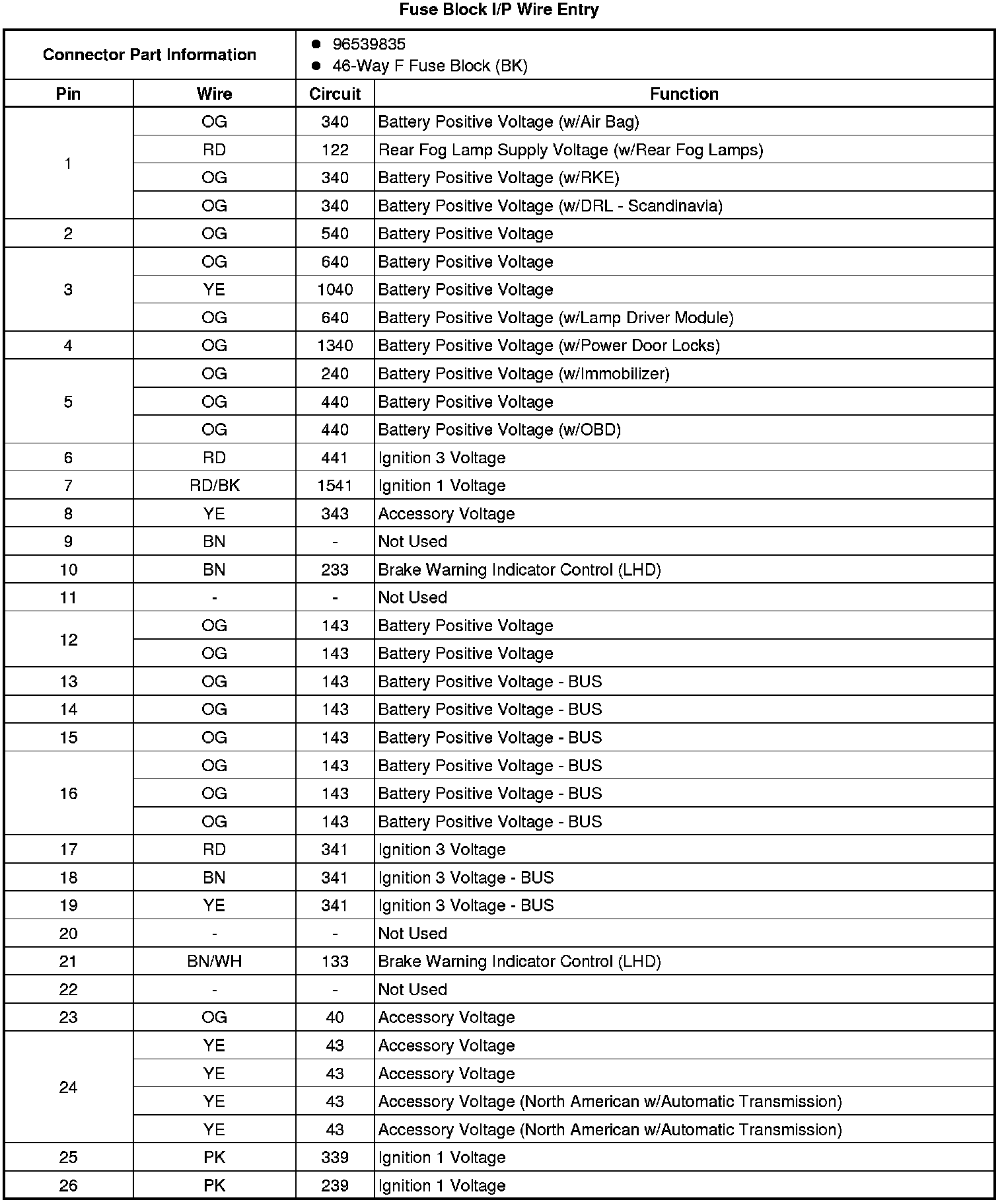

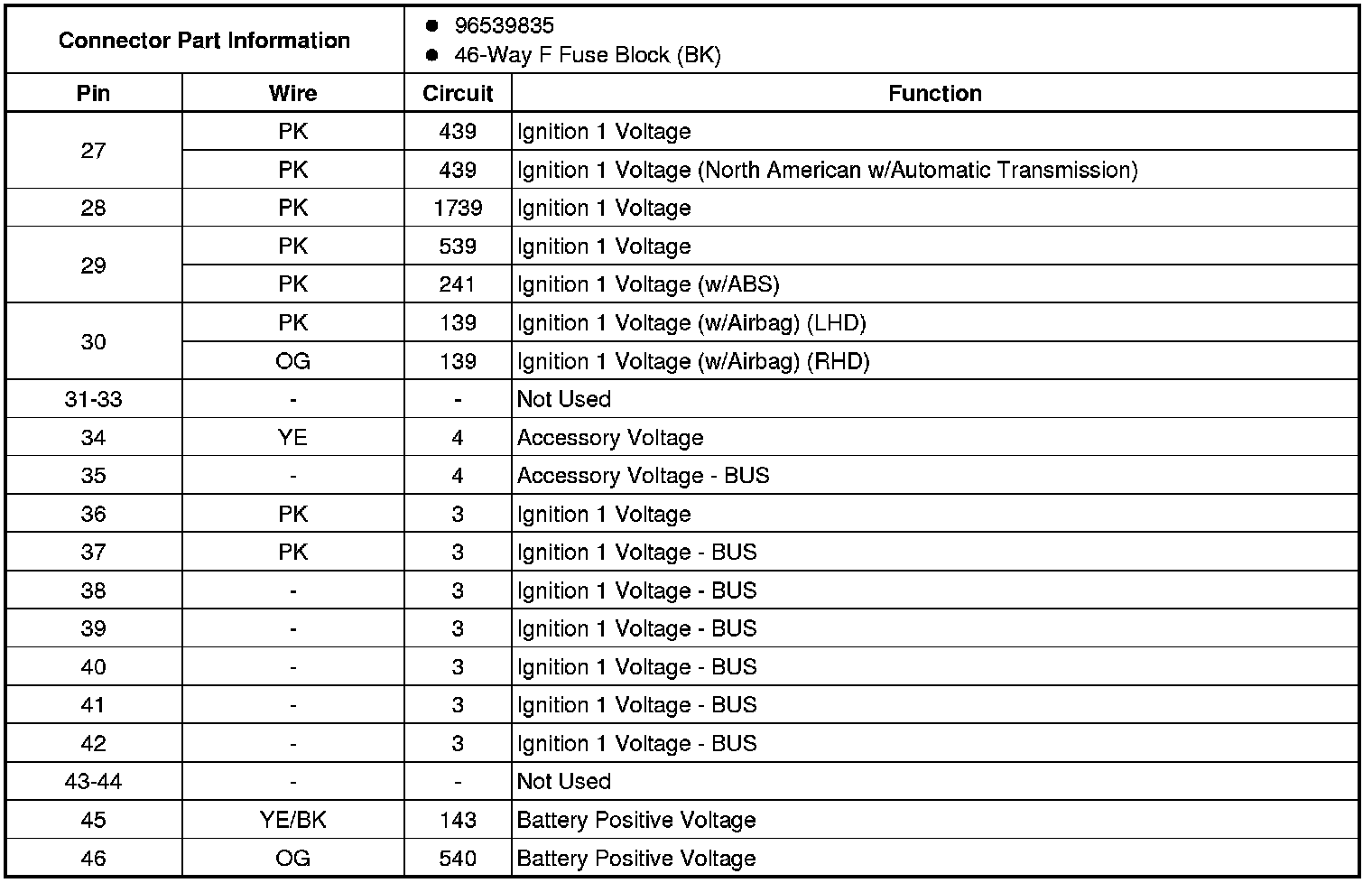

Fuse Block - I/P Bottom View
