Electronic Traction Control Switch Replacement

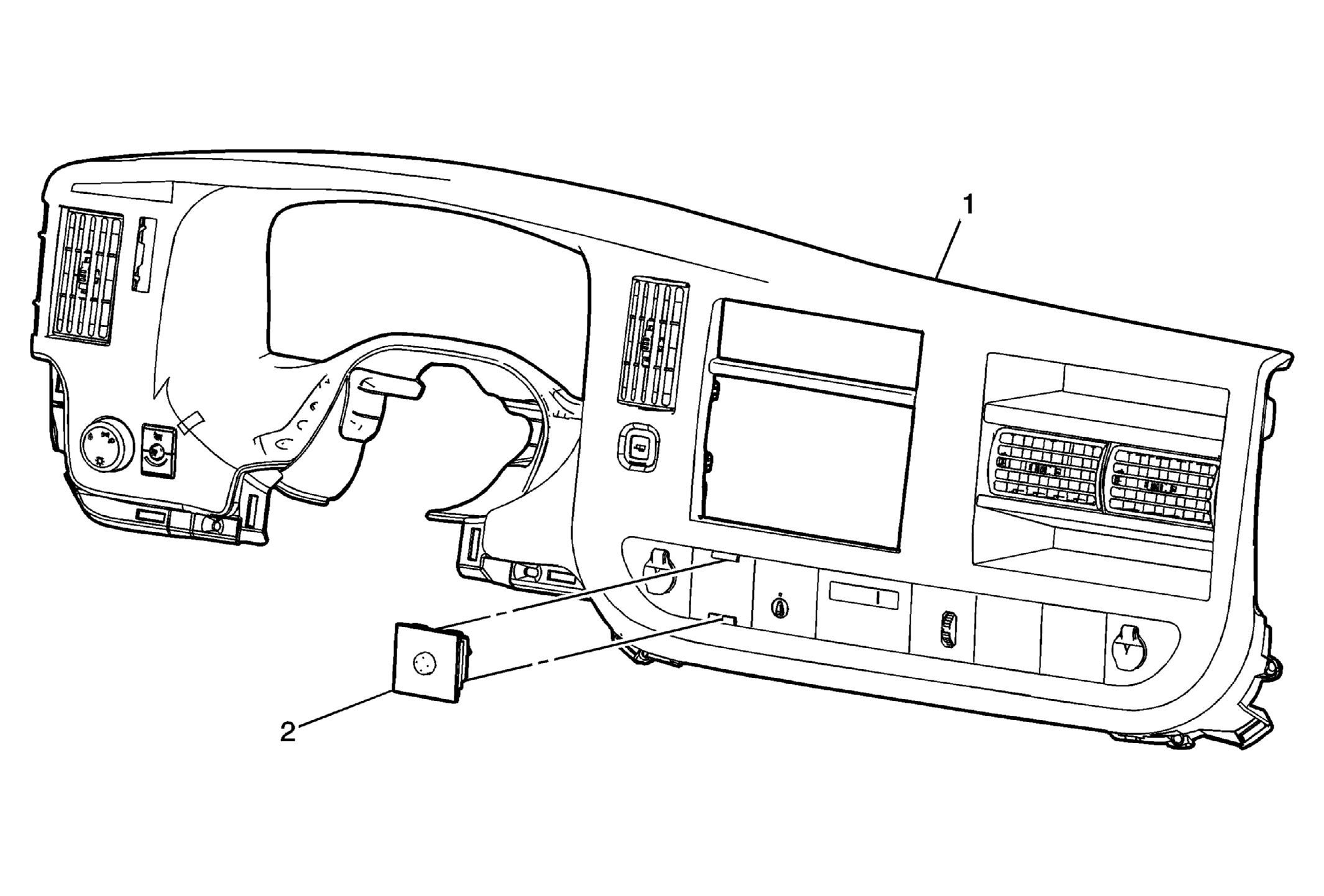

Fig 1: Electronic Traction Control Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster Trim Plate Bezel Assembly Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
2	Traction Control Switch Assembly Procedure: Squeeze the retaining tabs on the back of the switch and push the switch out of the cluster trim bezel assembly.
