Powertrain Management: Diagrams



Engine Controls Schematics

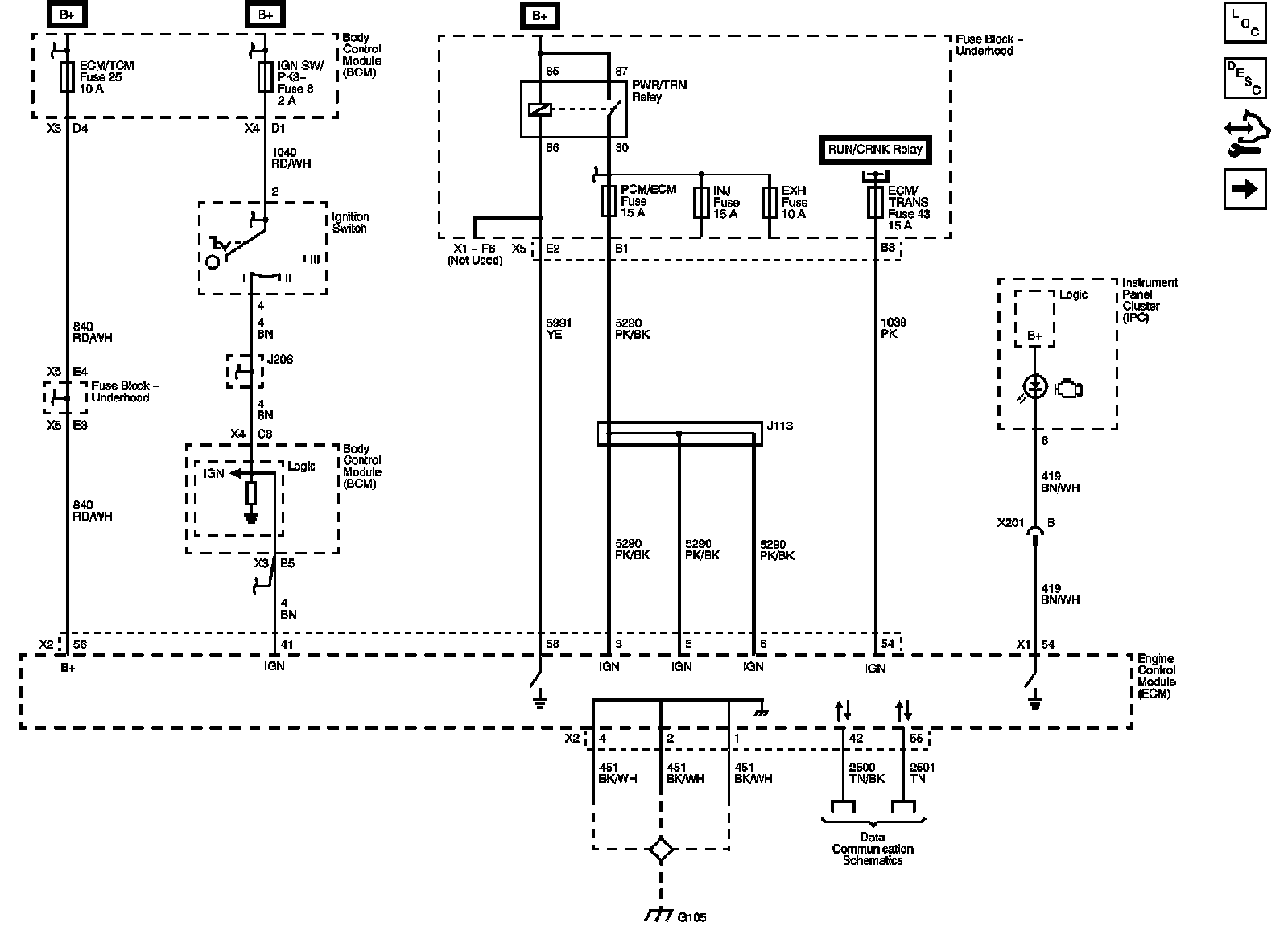

Power, Ground, MIL, Communication

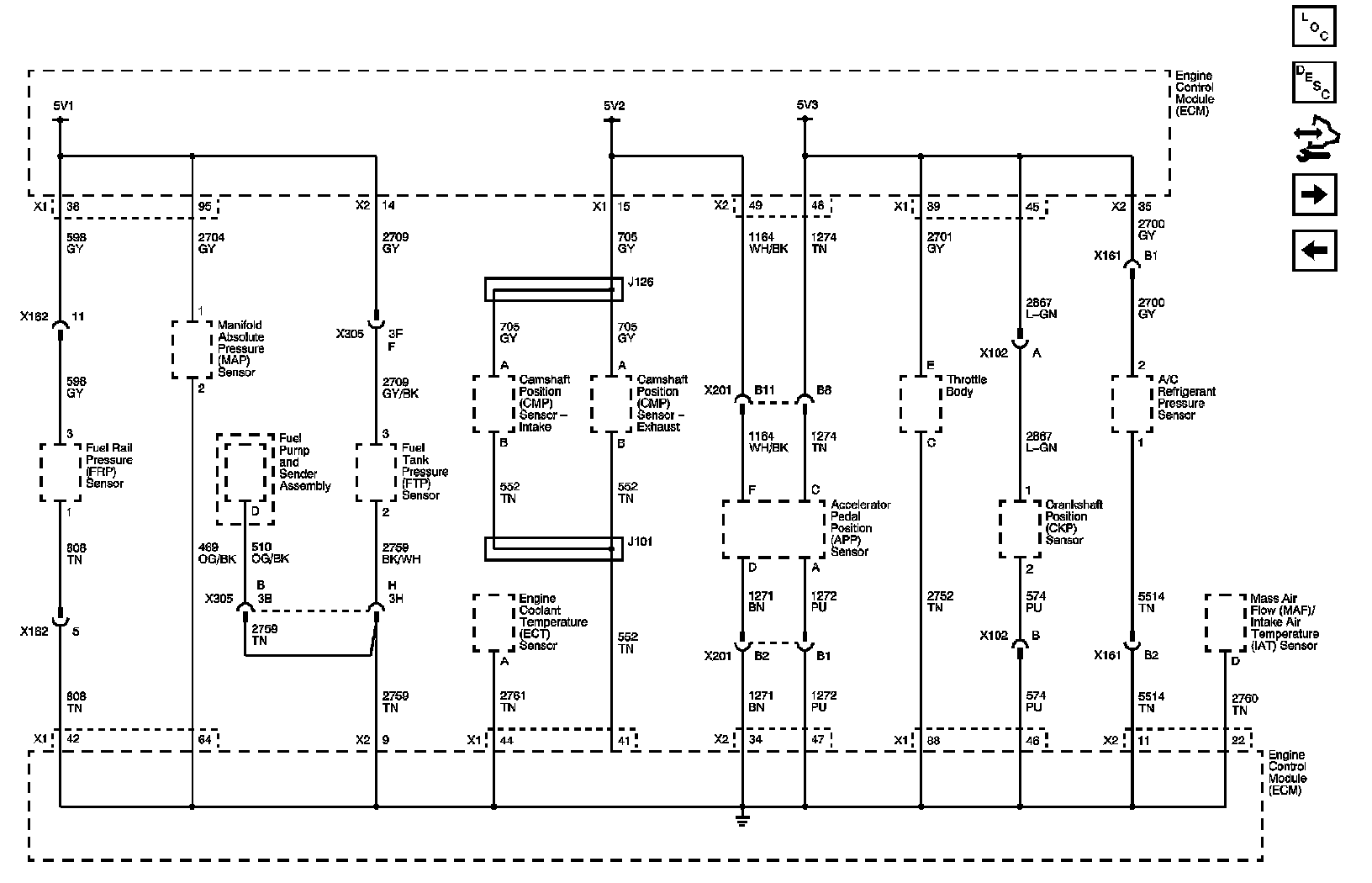

5-Volt and Low Reference Bussing






Engine Data Sensors - Pressure, Temperature

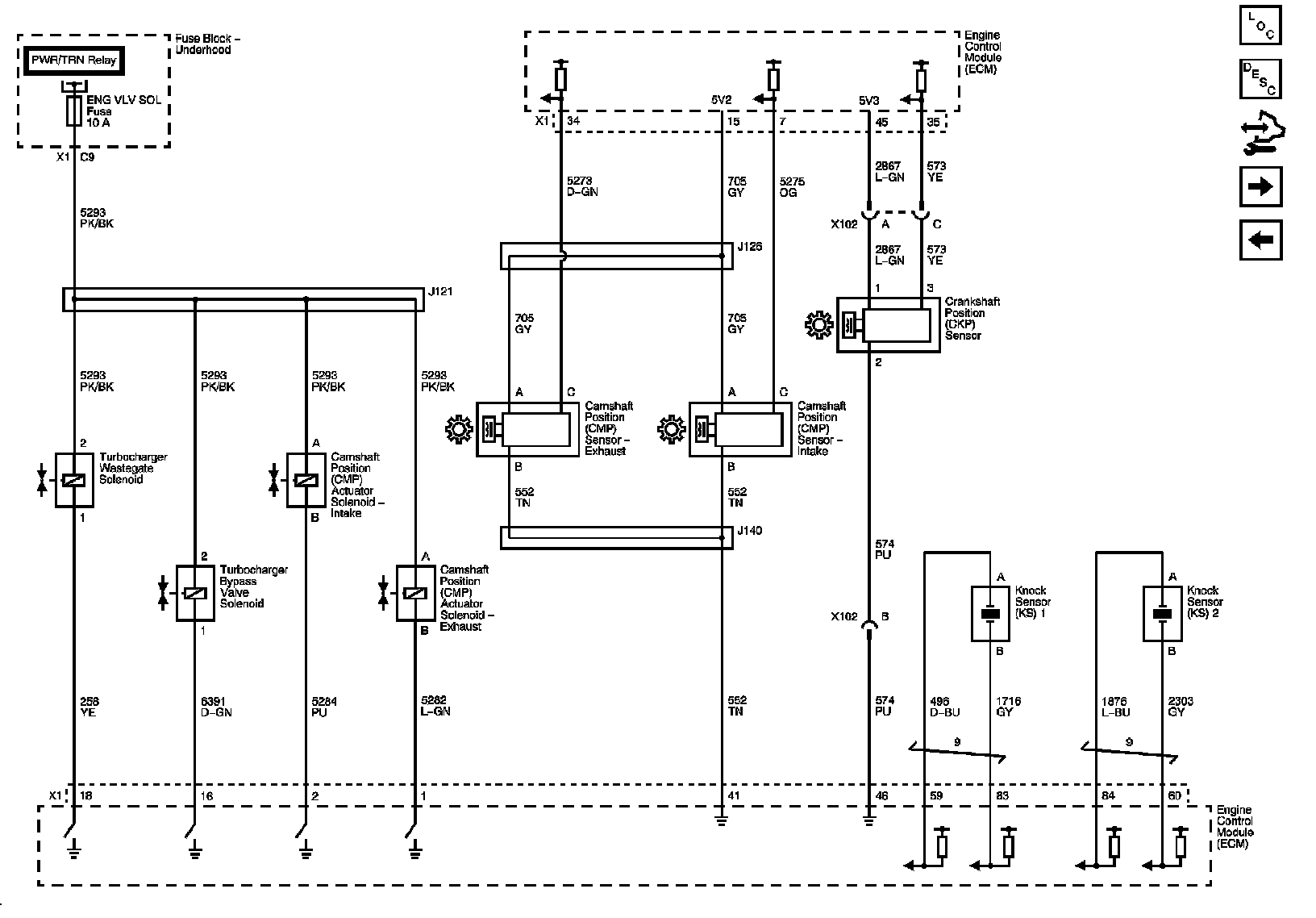

Engine Data Sensors - CKP, CMP, KS and Turbo Solenoids






Engine Data Sensors - HO2S






Engine Data Sensors - APP, Throttle Body






Ignition Controls

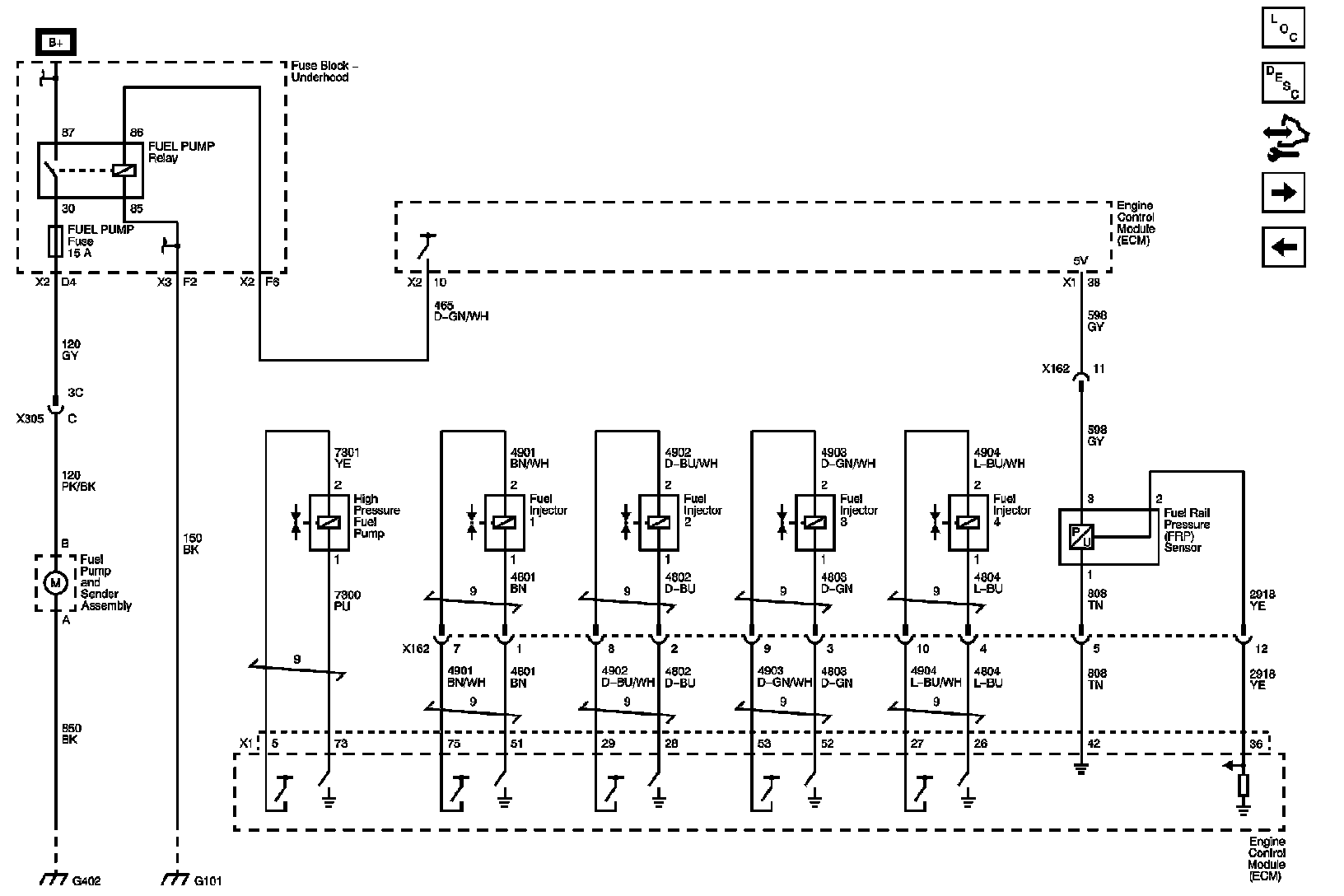

Fuel Delivery






Engine Data Sensors - EVAP, Fuel Tank Pressure (FTP) Sensor






Controlled/Monitored Subsystems References
