Speaker



Component Connector End Views

Speaker - Left Front Door





Speaker - Left Front Door Tweeter (UQ3)





Speaker - Left Rear Door (Extended/Crew Cab)





Speaker - Right Front Door

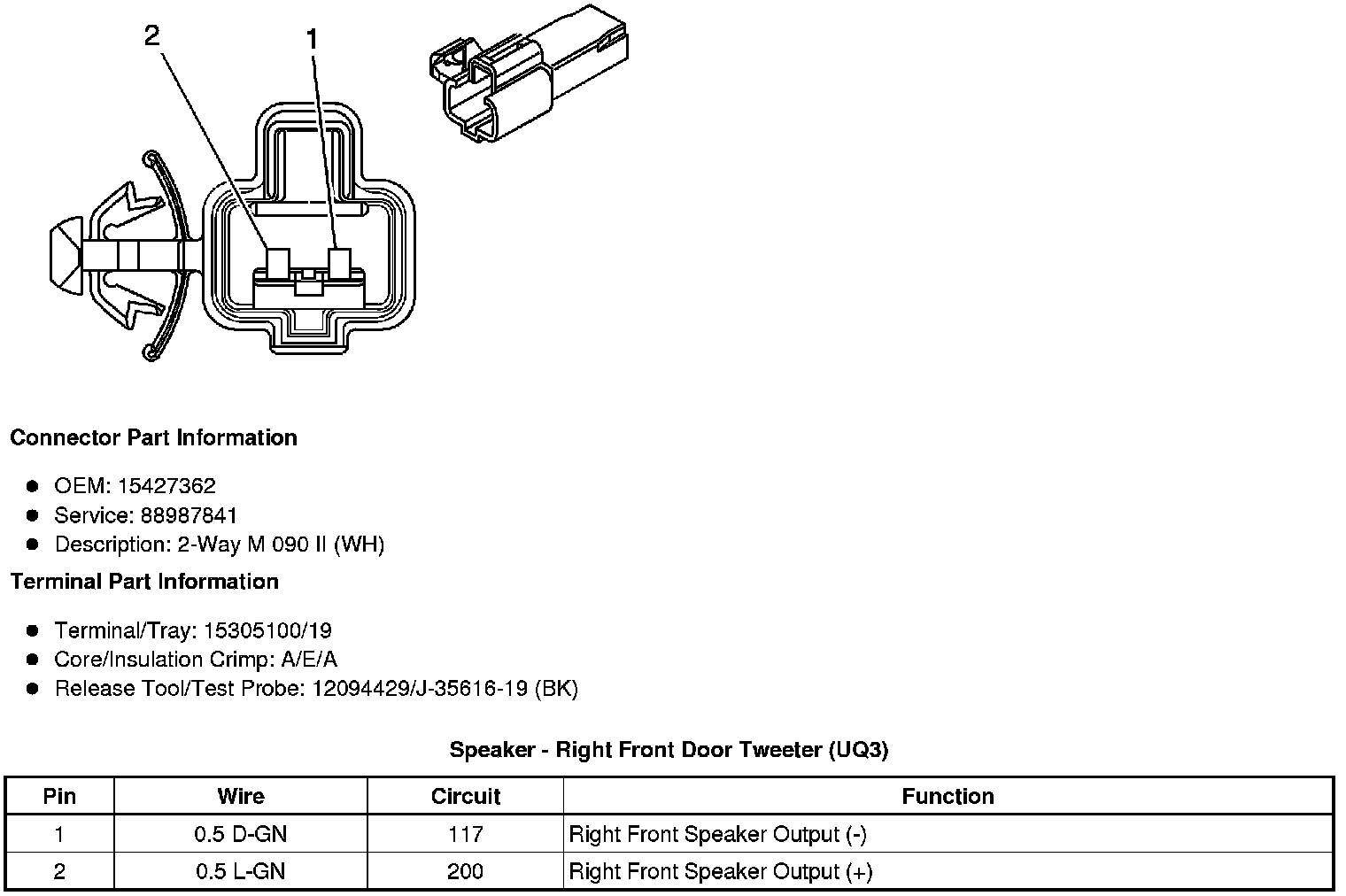

Speaker - Right Front Door Tweeter (UQ3)





Speaker - Right Rear Door (Extended/Crew Cab)
