Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

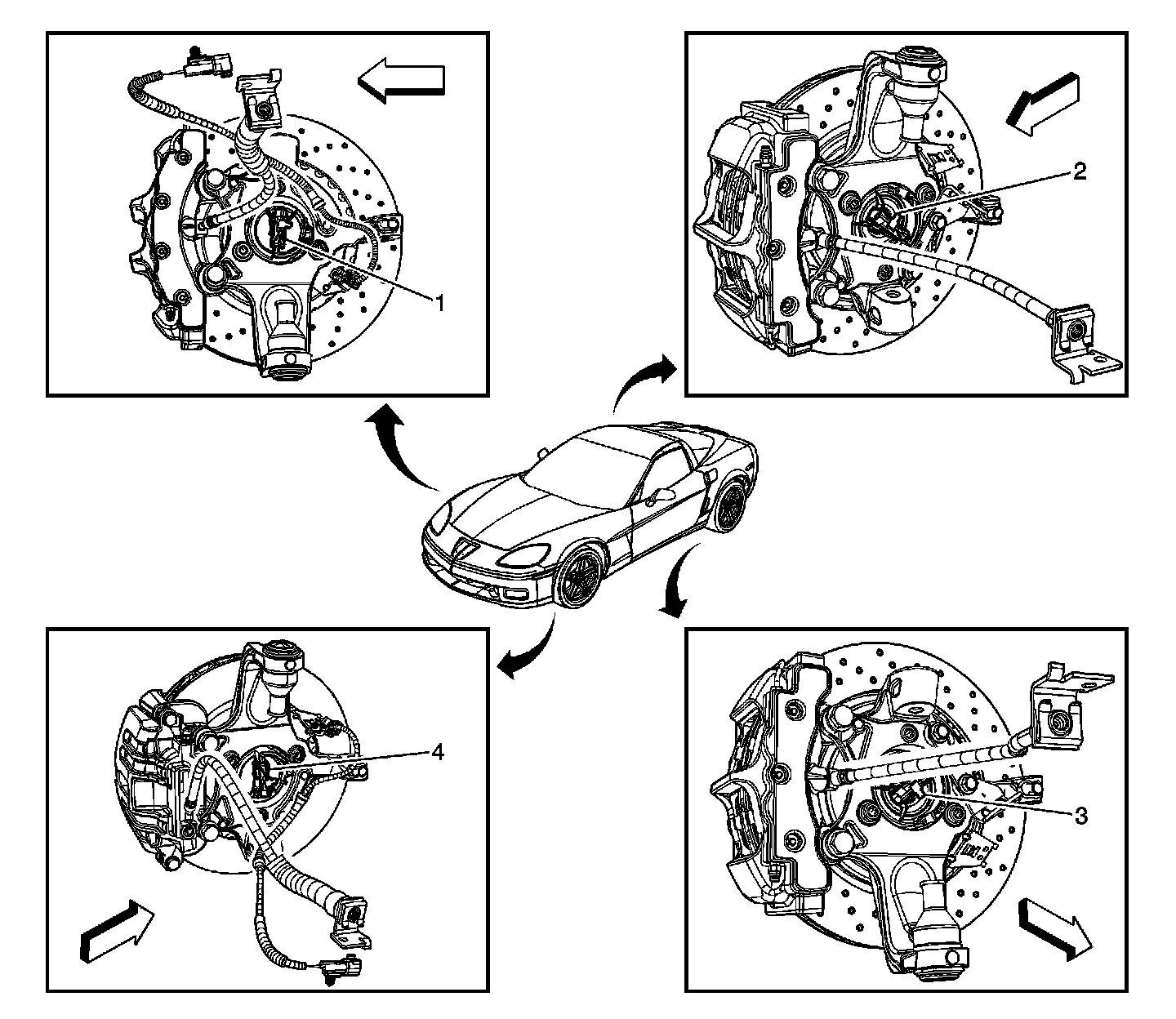

Wheel Speed Sensors

Wheel Speed Sensors:

1 - Wheel Speed Sensor (WSS) - Left Front
2 - Wheel Speed Sensor (WSS) - Left Rear
3 - Wheel Speed Sensor (WSS) - Right Rear
4 - Wheel Speed Sensor (WSS) - Right Front

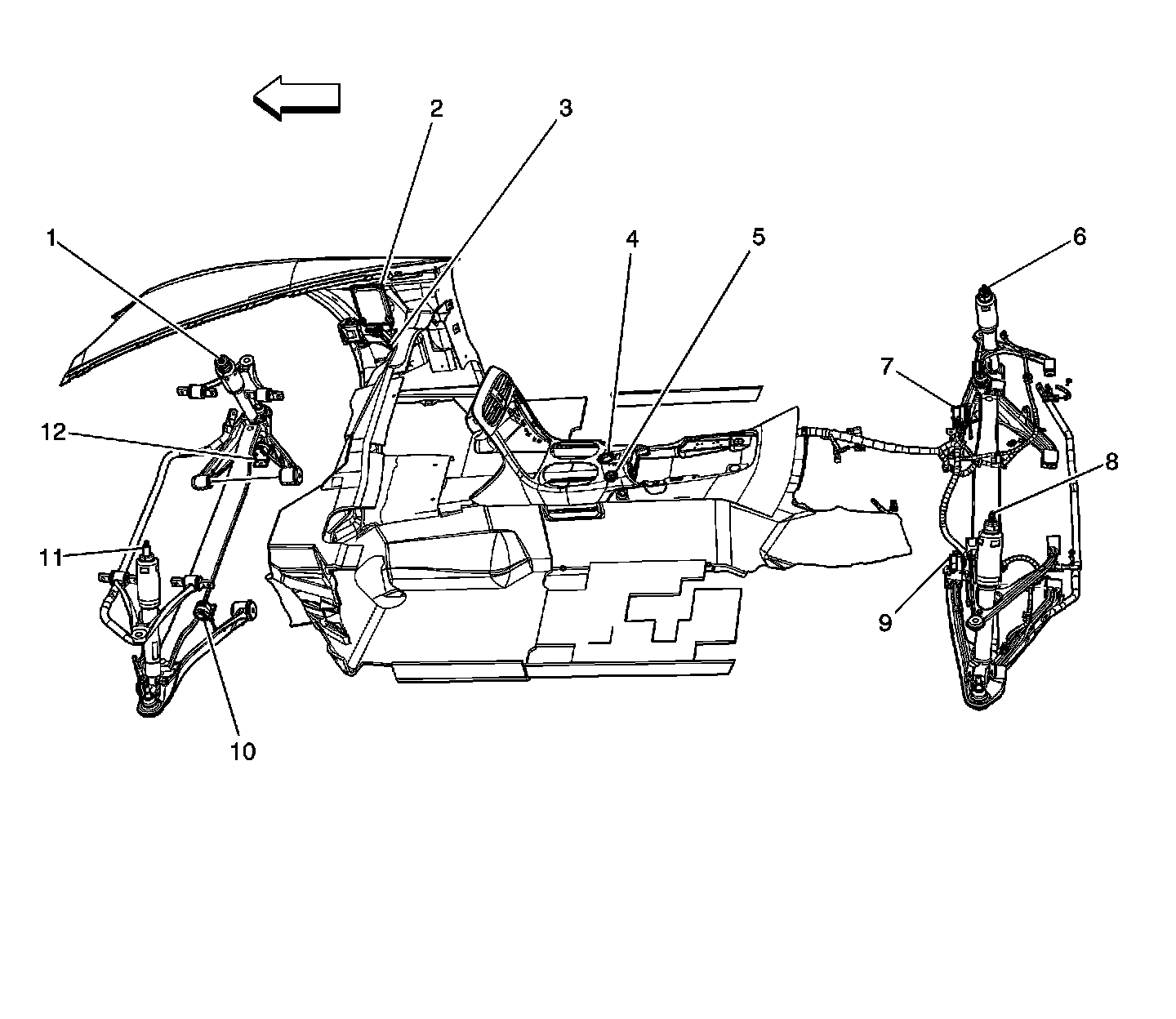

Suspension Components

Suspension Components:

1 - Suspension Damper - Right Front
2 - Electronic Suspension Control (ESC) Module
3 - Transmission Harness
4 - Suspension Control Switch
5 - Traction Control Switch
6 - Suspension Damper - Right Rear
7 - Suspension Position Sensor - Right Rear
8 - Suspension Damper - Left Rear
9 - Suspension Position Sensor - Left Rear
10 - Suspension Position Sensor - Left Front
11 - Suspension Damper - Left Front
12 - Suspension Position Sensor - Right Front
