Body Control Systems



Body Control System Schematics

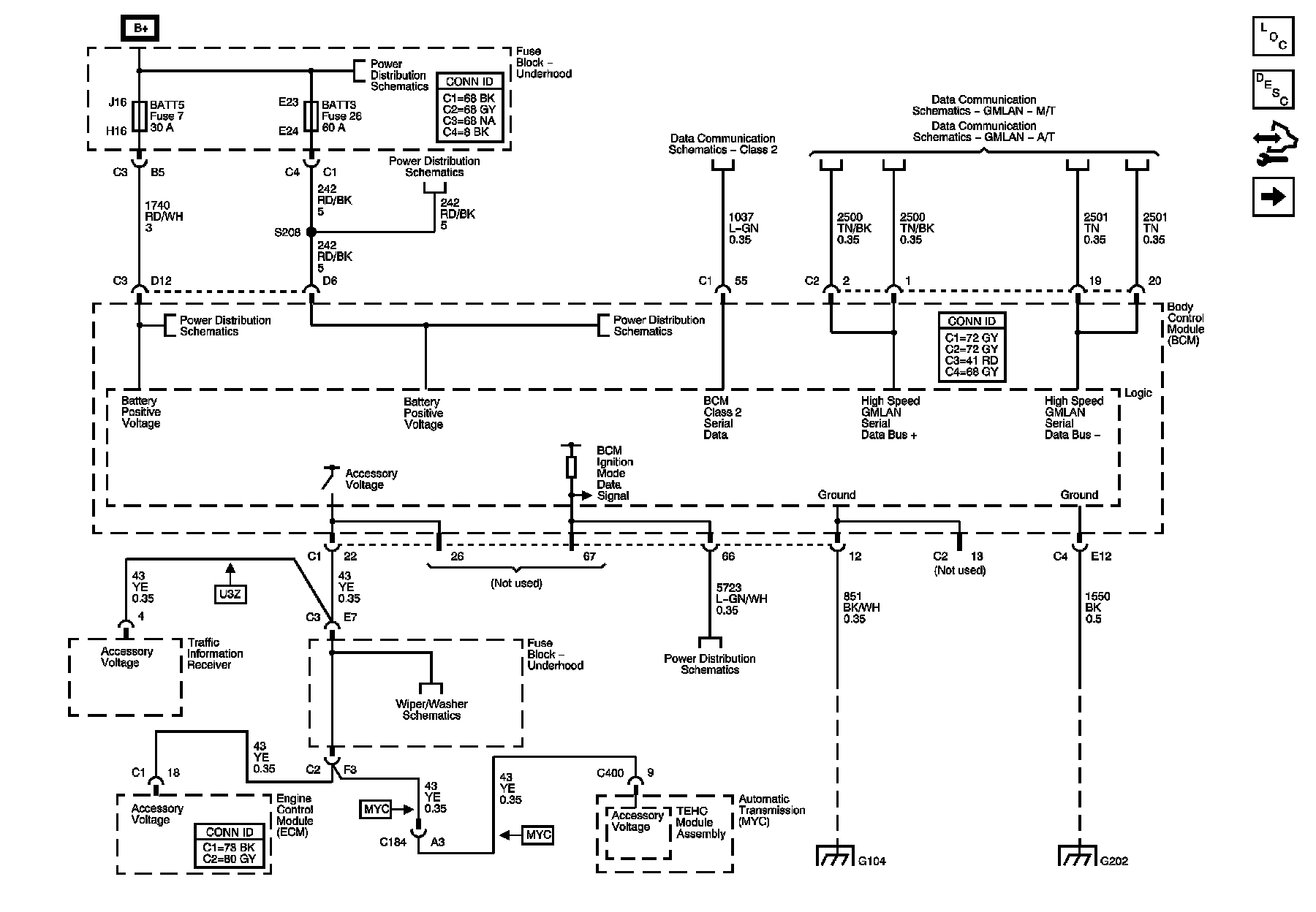

Power, Ground, and Serial Data

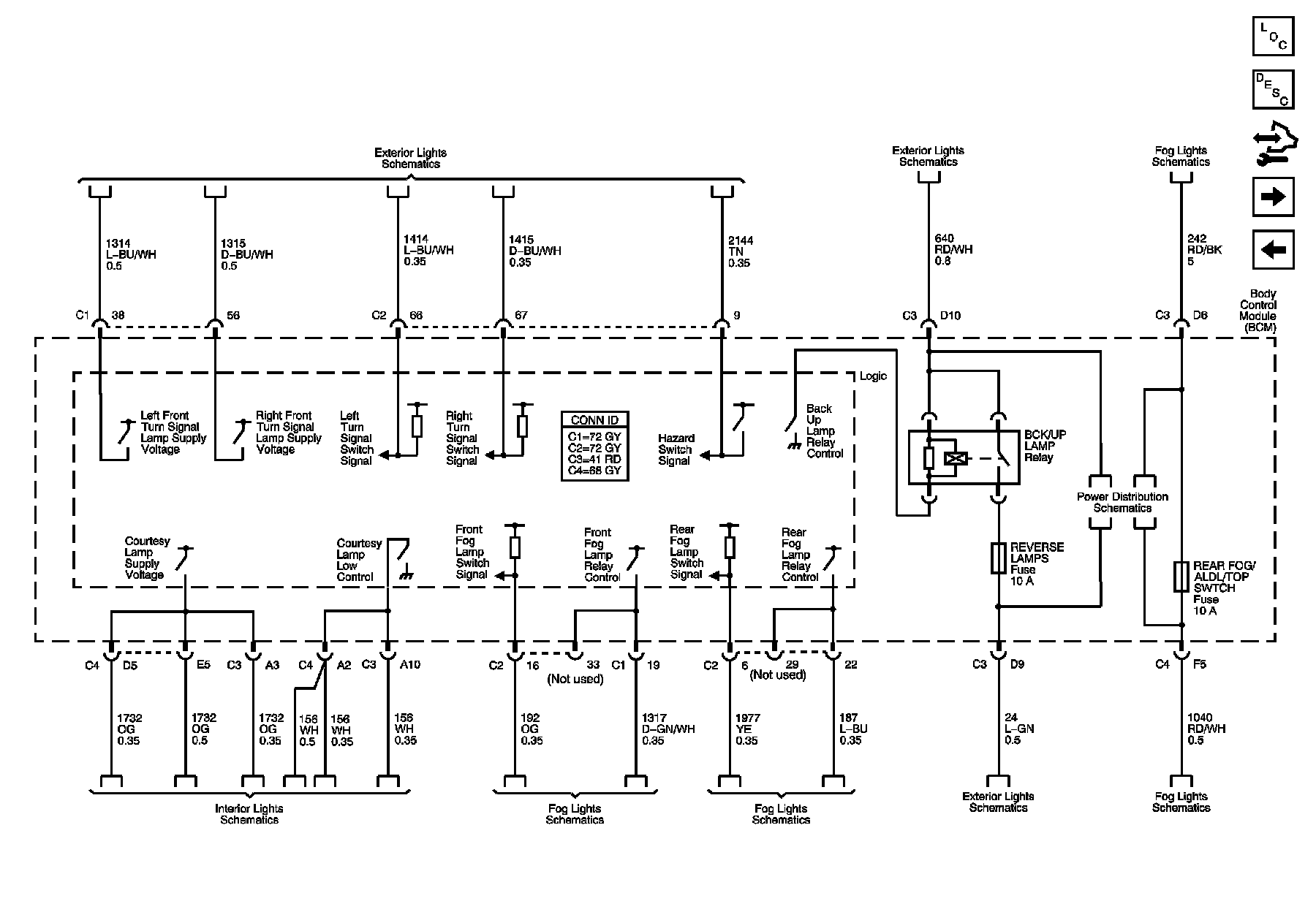

Lighting References 1 of 2

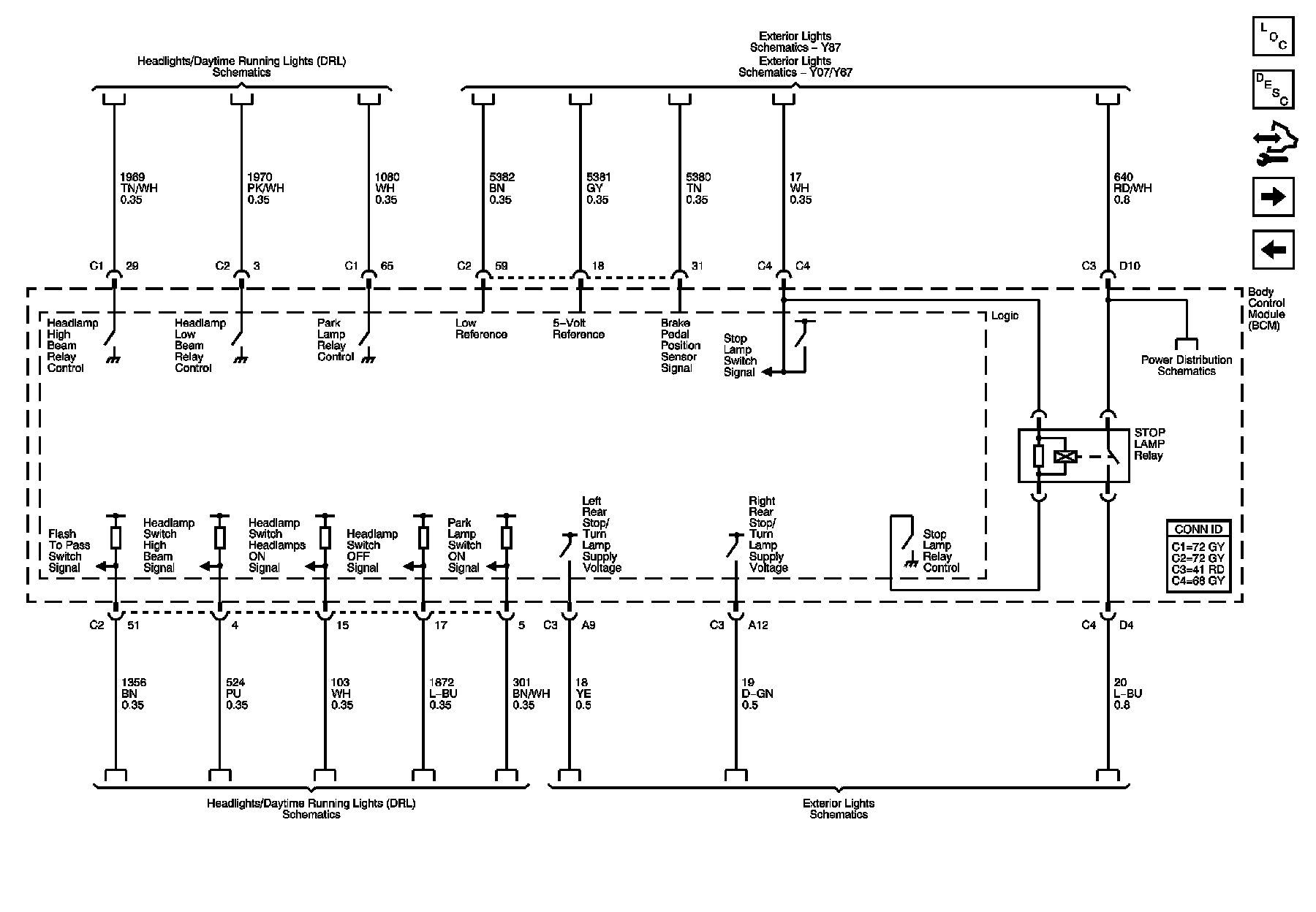

Lighting References 2 of 2

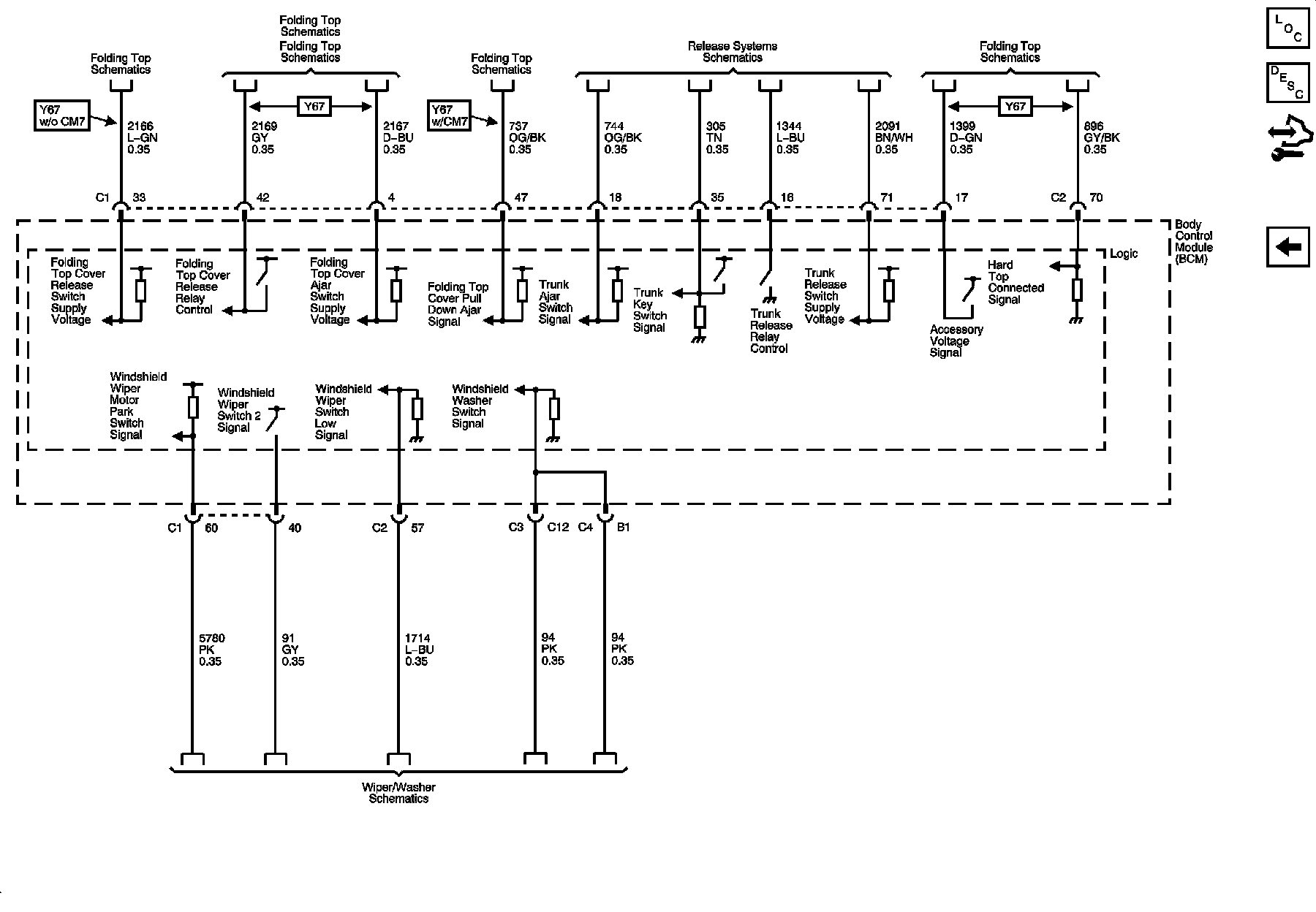

Subsystem References 1 of 2

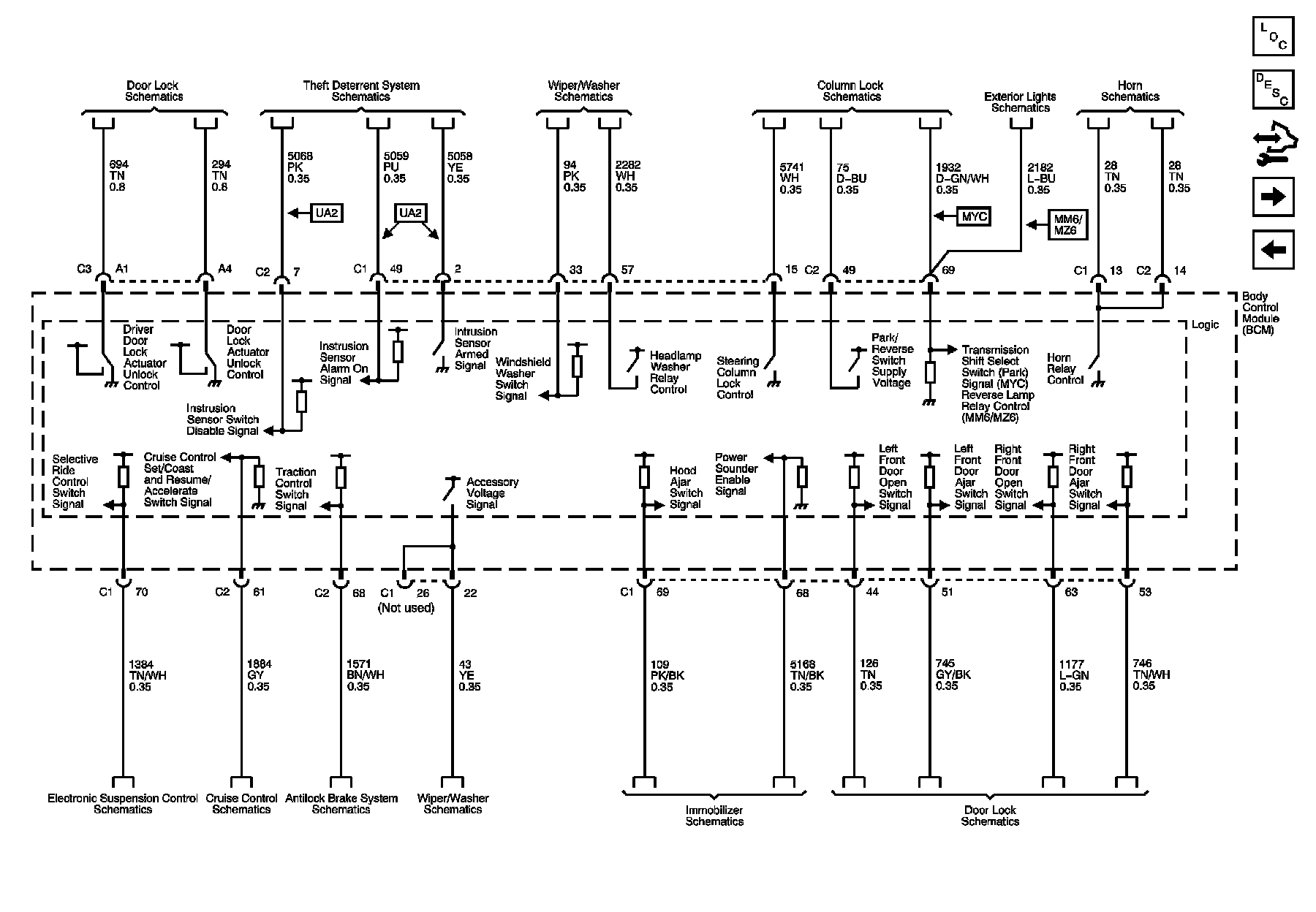

Subsystem References 2 of 2
