Transmission Control Systems



Automatic Transmission Controls Schematics

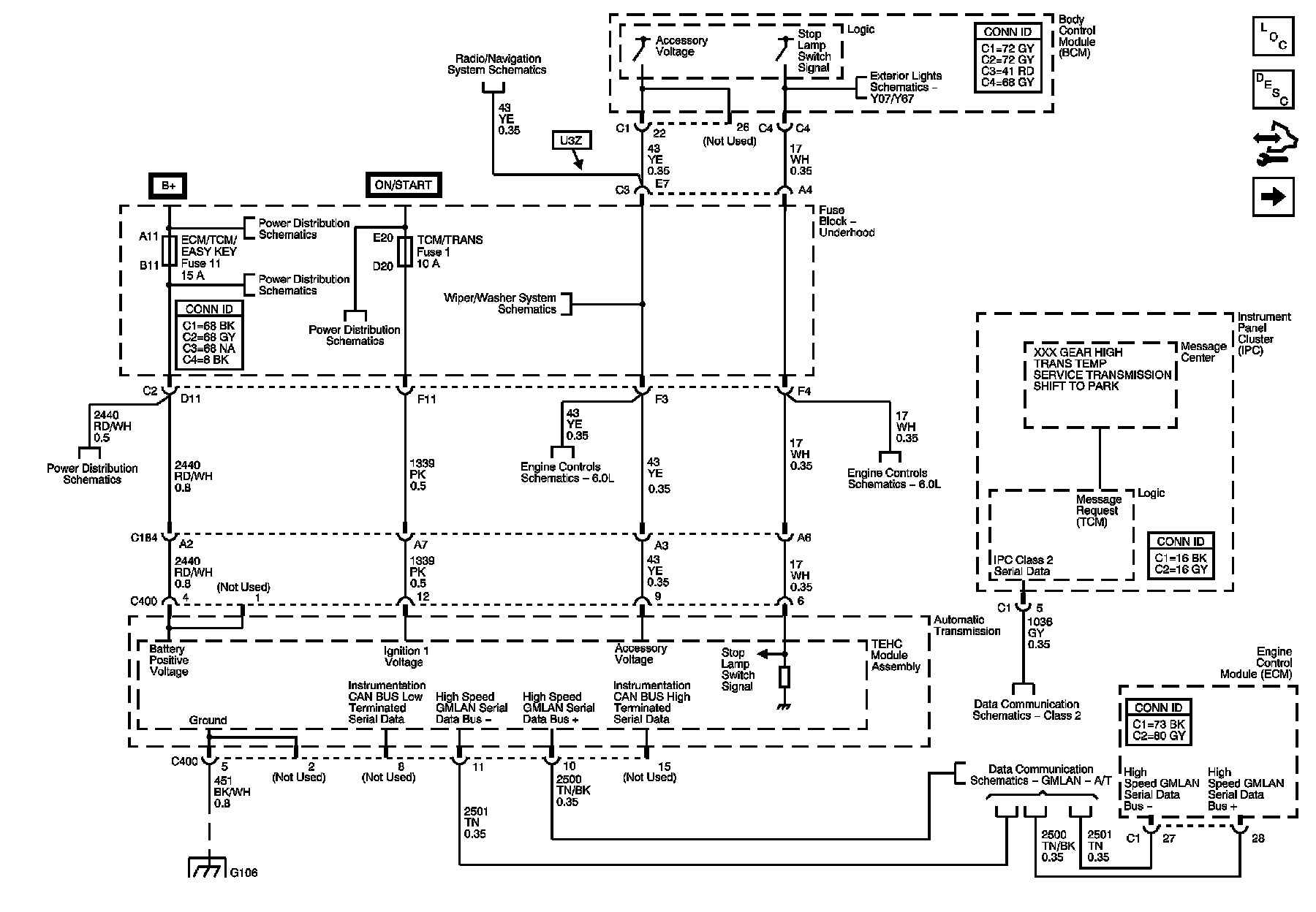

Power, Ground, Serial Data, and Stop lamp Switch Signal

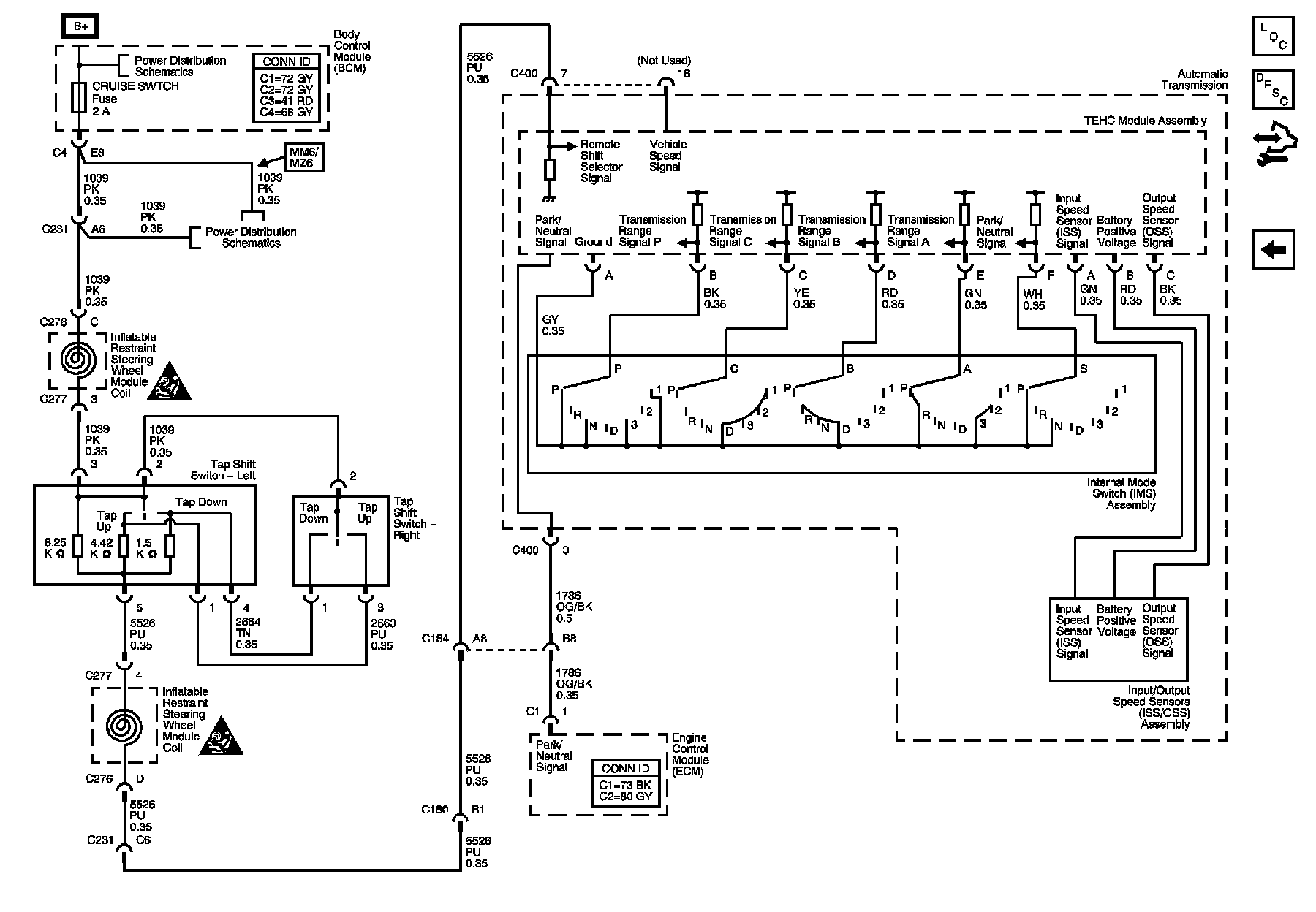

Input/Output Speed Sensors (ISS/OSS), Internal Mode Switch (IMS), and TAP Shift Switches
