Express 2500 V8-4.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Electrical Center Identification Views
>>
Body Fuse Block
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

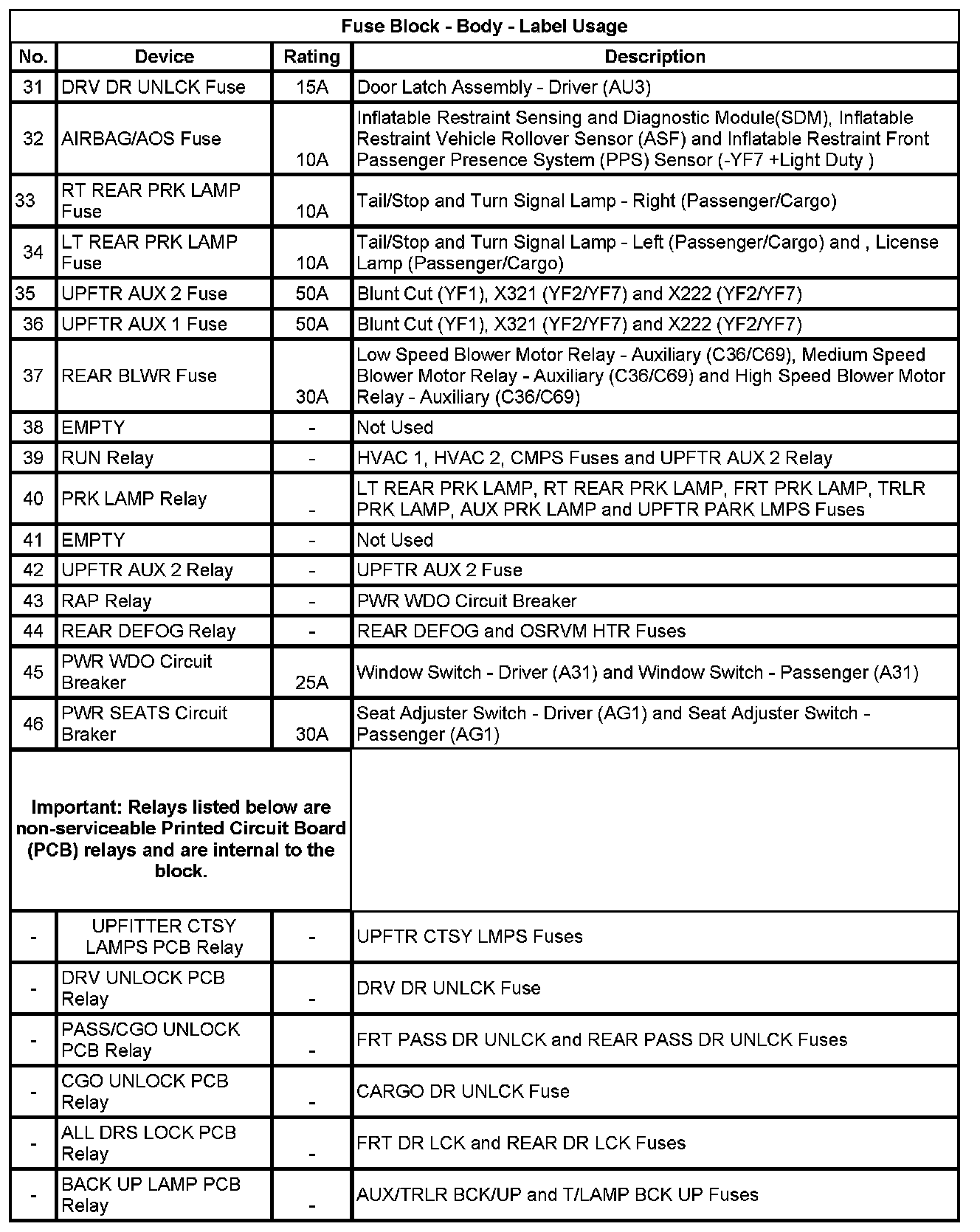

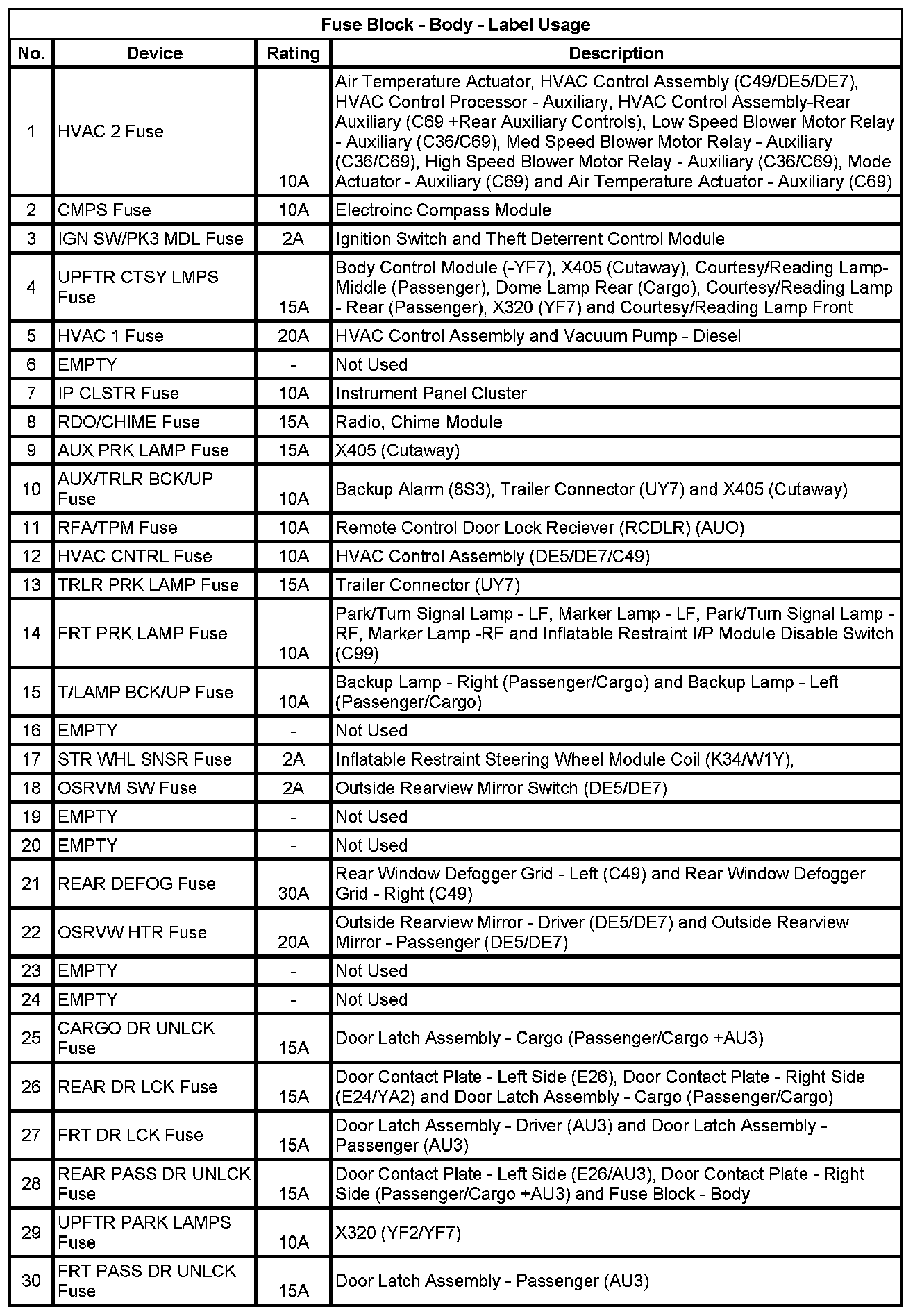

Body Fuse Block
Electrical Center Identification Views
Fuse Block
- Body Label
