Fuel Pressure Control Module: Service and Repair

Fuel Pump Flow Control Module Replacement

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

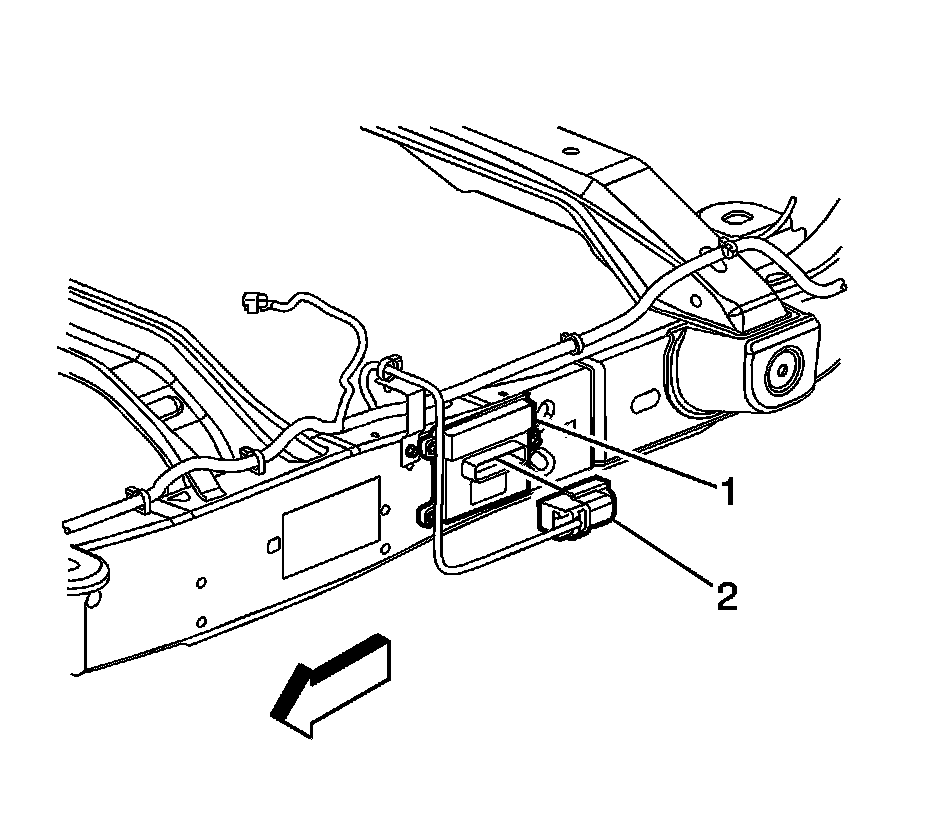

2. Disconnect the chassis wiring harness electrical connector (2) from the fuel pump flow control module (1).

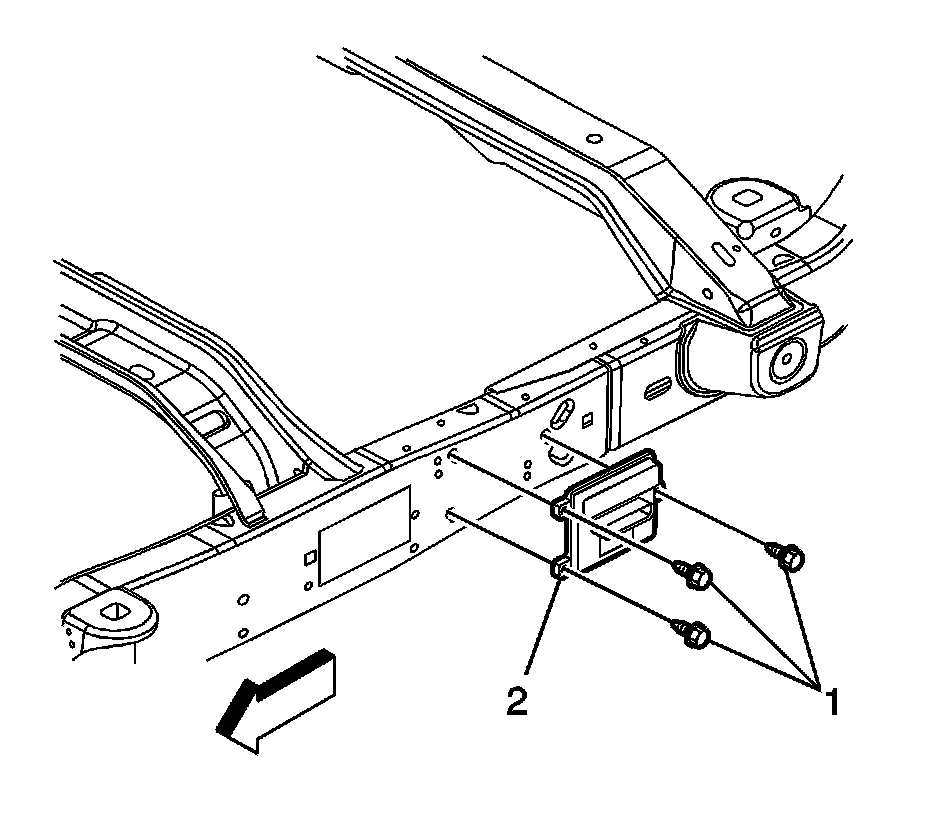

3. Remove the fuel pump flow control module bolts (1).
4. Remove the fuel pump flow control module (2) from the frame.

Installation Procedure




1. Place the fuel pump flow control module (2) against the frame.

Notice: Refer to Fastener Notice.

2. Install the fuel pump flow control module bolts (1).

Tighten the bolts to 9 N.m (80 lb in).




3. Connect the chassis wiring harness electrical connector (1) to the fuel pump flow control module (2).
4. Lower the vehicle.
5. Program the fuel pump flow control module.
